Side 1/2

1. Input selection button for output 1

2. Input selection button for output 2

3. Mode selection switch

4. IR sensor

Quick Install Guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/24/2015

For the latest information, technical specications, and support for

this product, please visit www.startech.com/<sku>.

Packaging contents

• 1 x 2x2 HDMI matrix switch

• 1 x remote control

• 1 x universal power adapter (NA/EU/UK/AU)

• 1 x RJ11 cable

• 1 x RJ11 to DB-9 serial adapter

• 1 x quick start guide

System requirements

• 2 x HDMI enabled Video Source Device w/ HDMI cable (i.e. Blu-ray

player, computer, etc.)

• 2 x HDMI enabled Display Device w/ cable (i.e. Television, projector,

etc.)

Operating system requirements are subject to change. For the latest

requirements, please visit www.startech.com/VS222HD4K.

VS222HD4K

2x2 HDMI® matrix switch - 4K

*actual product may vary from photos

Installation

Note: Ensure your HDMI enabled video source devices, and

the HDMI enabled displays are powered o before you begin

installation.

1. Connect two HDMI cables (not included) from each of the HDMI

output ports on your HDMI source devices, to the HDMI input

ports on the HDMI switch.

Notes:Each port is numbered, please take note of which number

is assigned to each HDMI source device.

2. Connect two HDMI cables (not included) from the output ports

on the HDMI Switch to your HDMI displays.

3. Power on your HDMI displays, followed by each of your HDMI

source devices.

4. Connect the included power adapter from an available power

source to the power adapter port on the HDMI switch.

5. (Optional for serial control) Connect the included RJ11 cable to

the RJ11 to DB-9 serial adapter. Then connect the D9 connector to

a 9-pin serial port on your computer system.

6. Your HDMI matrix switch is now ready for operation.

Operation

Automatic operation

The HDMI switch features automatic operation that allows the switch

to automatically select the most recently activated or connected

HDMI source device.

Simply connect a new device or turn on an already connected device

to automatically switch video sources.

Priority operation

The HDMI switch features priority operation which will prioritize port

1 and port 2 respectfully. Select a prioritized Video Input device that

will automatically be selected when a video source is turned on.

Port 1 will automatically be displayed on your display devices while

it is turned on. Turning o the device will automatically switch back

to port 2.

Manual operation

Manual mode enables you to switch between video sources with

push button operation.

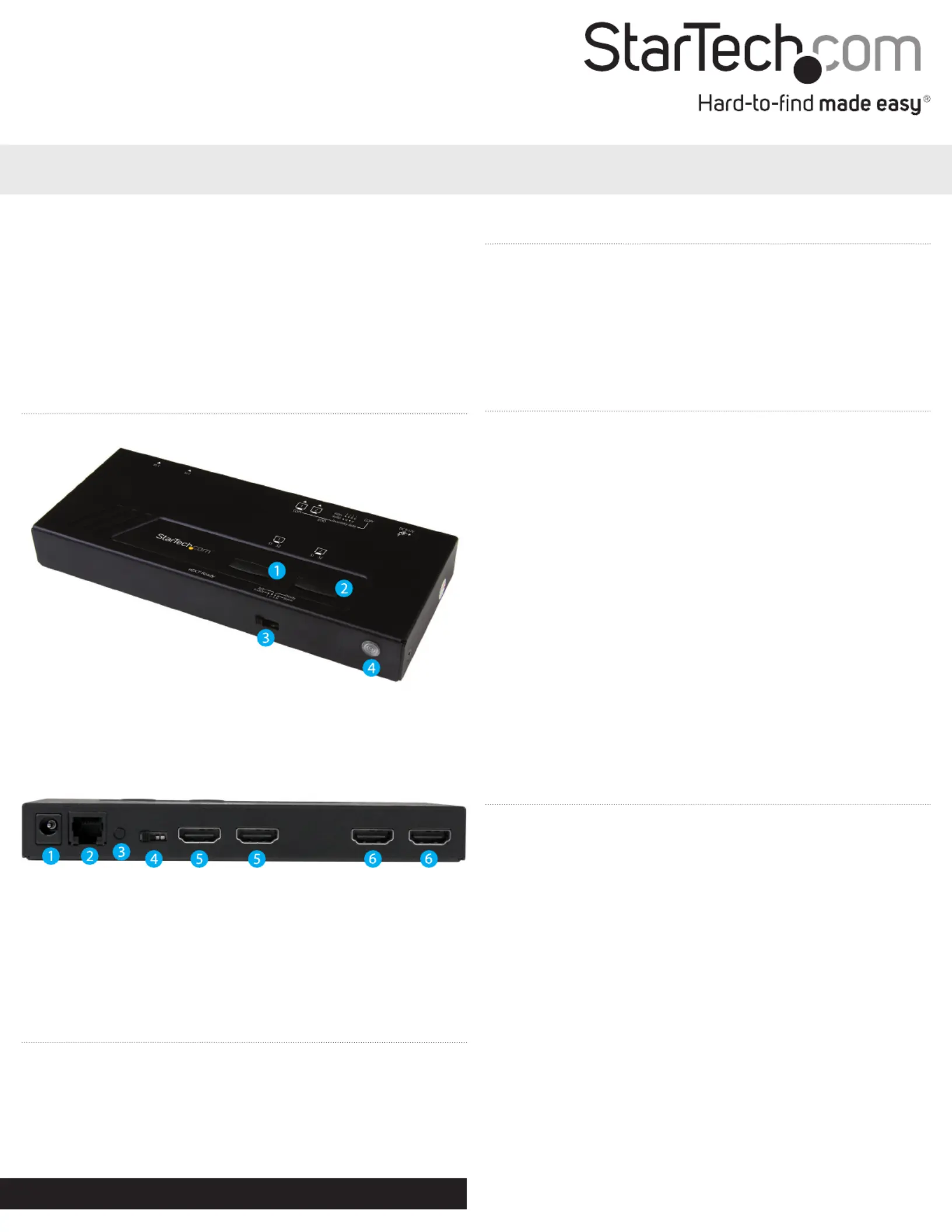

Product overview

Front View

Rear View

1. Power adapter port

2. RJ-11 serial jack

3. EDID copy button

4. EDID audio / video selection switch

5. HDMI output ports (out1 and out2)

6. HDMI input ports (in1 and in2)

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Manual operation with selection button

Press the input Selection button, on the front of the switch to toggle

between each video source device.

The active port LED indicator will light as video sources are switched,

indicating which port is selected.

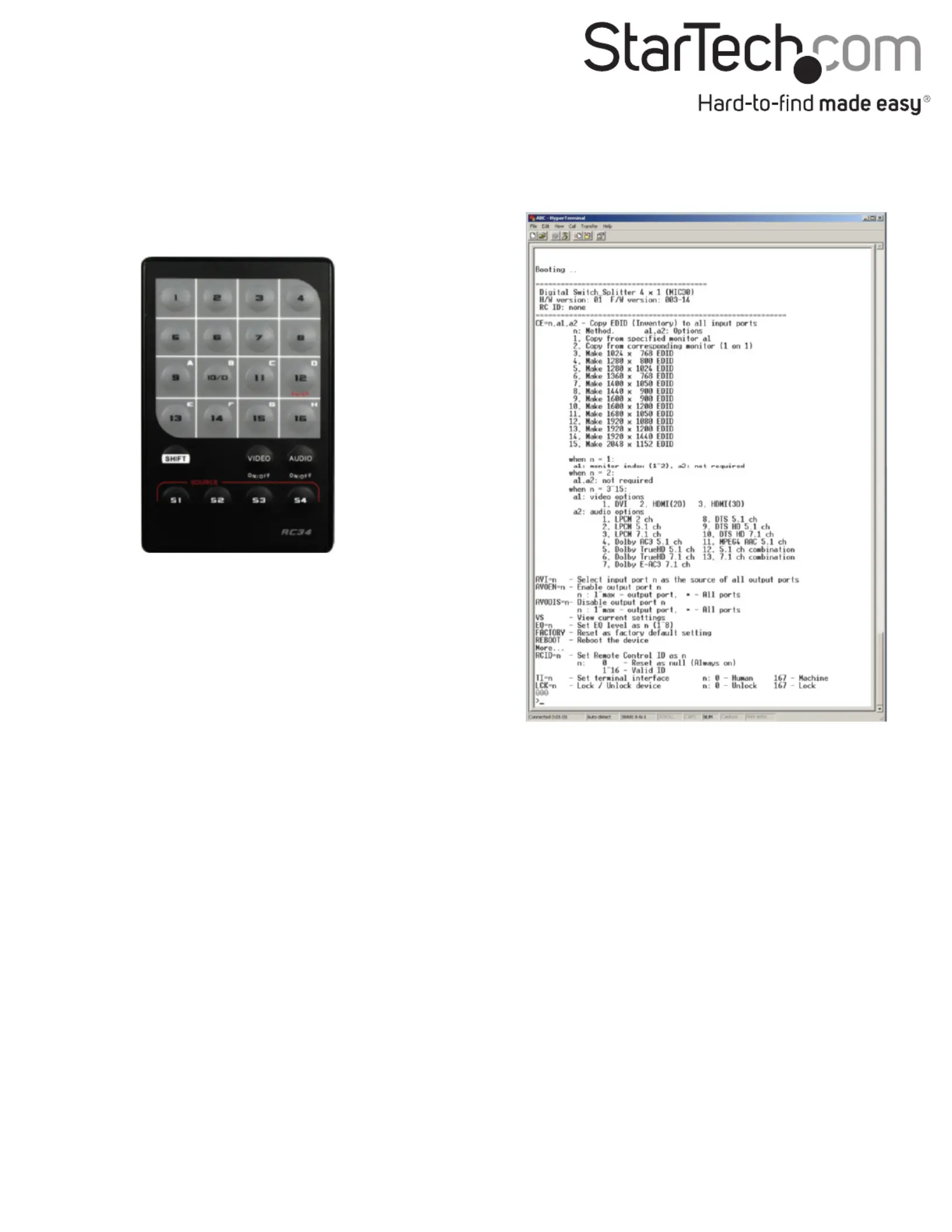

Manual operation with remote control

Press 1 or 2 on the remote control to switch between HDMI ports in1

or in2 respectively on output port 1 (out 1).

Press S1 or S2 on the remote control to switch between HDMI ports

in1 or in2 respectively on output port 2 (out 2).

Manual operation with serial control

1. Congure the settings on your serial port the below conguration:

Baud Rate: 38400 bps

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None

2. Open your terminal software to communicate through the serial

port that the switch is connected to, and use the on-screen

commands displayed to operate and congure your switch.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Audio/video konverter
Model:	VS222HD4K
Produktfarve:	Sort
Pakkevægt:	841 g
Pakkedybde:	156 mm
Pakkebredde:	235 mm
Pakkehøjde:	65 mm
Understøttede videotilstande:	1080p
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 80 %
HDCP:	Ja
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	3840 x 2160 pixel
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Udgangsspænding for vekselstrømsadapter:	12 V
Hurtig start guide:	Ja
Kabler inkluderet:	Telefon (RJ-11)
Fjernbetjening inkluderet:	Ja
Lyd-output kanaler:	7.1 kanaler
Certificering:	CE, FCC
DC-in-stik:	Ja
LED-indikatorer:	Activity, Power
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
HDMI-version:	1.4
Fjernbetjeningstype:	IR
Monteringsbeslag inkluderet:	Ja
HSMI-indgang:	2
Antal HDMI-udgange:	2
Video porttype:	HDMI
Indgangsstrøm til vekselstrømsadapter:	1.5 A
Understøttelse af lyd:	Ja
