SRX-GM14128
Radio Replacement Kit for select
2014-2019 Silverado/Sierra Trucks
Stinger ix212
HORIZON12
© 2025 Stinger
Page 1
Rev: v1
Date:051325
Introduction and Features
The SRX-GM14128 is a complete radio replacement kit for the installation of the Stinger ix212 modular radio in Chevrolet
Silverado and GMC Sierra trucks. All modules, cables and adapters are included to retain important features of the factory
system, including: OnStar, front and rear park assist, warning chimes, factory reverse camera, steering wheel-mounted
radio controls and AM/FM reception. Plug & Play wiring harnesses allow for quick and easy installation without the need
to cut or splice any wiring. The display mounting panel allows ush mounting the 12 inch display without modifying/
cutting any part of the vehicle’s sub-dash.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself
with the entire process prior to beginning the installation.
1. Does not retain the following factory features:
2. If installing aftermarket ampliers, the included RPA-SPK can be used to retain OnStar/chimes.
3. Chime volume can be adjusted in the ix212 settings
4. The Voice button can be set to activate the factory OnStar function when pressed for longer than 1.5 seconds or given the
ability to control the aftermarket radio. This option can be found in the Installer Settings on the ix212. By default, this feature is
set to control the aftermarket radio, but OnStar can still be accessed by using the mirror controls.
5. For the HORIZON12 Display to be waterproof, you must install 6 waterproof plugs to the back of the touch panel display in the
screw holes not used for mounting.
6. This guide is applicale to ix212 (HORIZON12) radios.
● Factory satellite radio
● Rear seat entertainment system (RSE)
● Time of Day in Cluster
● Factory USB Ports
● Valet Mode
● Teen Driver Features
● OnStar Text
● Wi-Fi
SRX-GM14128
Radio Replacement Kit for select
2014-2019 Silverado/Sierra Trucks
Stinger ix212
HORIZON12
© 2025 Stinger
Page 2
Rev: v1
Date:051325
Recommended Tools
1. Display Mounting Panel
2. Main Frame Assembly
3. Dual USB Extension (SSUSB3)
4. AM / FM Antenna Adapter (BAA22)
5. Main Harness Adapter (SR-SRK-ADAPT-IX2XXV2)
6. Main Harness (SRK-GM14HX-HAR V1)
7. Vehicle Harness Adapter (GM52-ADAPT)
8. Radio Replacement Interface (GM6A-SRK)
9. Steering Wheel Control Harness (GM5LIN-SW-HAR)
10. Factory Rear Camera Adapter (CAM-GM51-HAR)
11. IOB Display Harness (GM5CAM-DIS-HAR)
12. MOST Loops (MOST Loop 1 / MOST Loop 2)
13. External Chime Speaker (RPA-SPK)
14. Dierential Video Adapter (RPA-VA1)
15. Satellite Antenna Adapter (SAT-01)
16. Side Mounting Brackets (L & R)
17. PAC-Link Cable (10P-2-10P-6-HAR_V1)
18. PAC-Link Module (PL1)
19. Screw, M5 X10 PHP (Black) p2-x4 (Not Shown)
20. Screw, #8 X 0.5” Tapping PHP p2-x2 (Not Shown)
21. GPS Antenna
22. ix212 Camera Harness
23. ix212 Data Harness
24. ix212 AV Harness
25. External Mic (Not Shown)

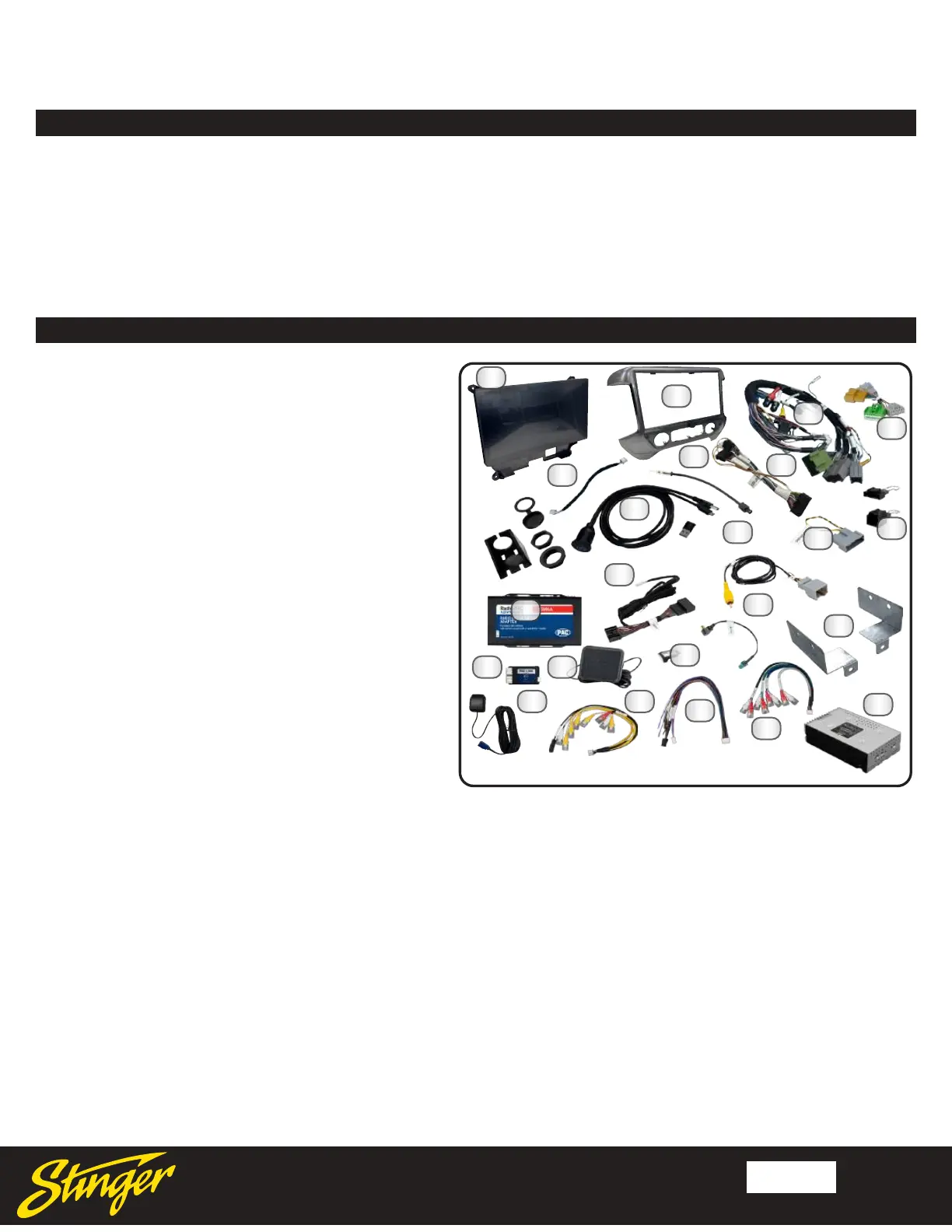

Included Components
1
4
6
10
8
5
2
11
3
9
12
1318
21 22
24
25
23
14
Plastic Panel Tool
7mm Socket
10mm Socket
Pick Tool
Wire Feeder
Power Screwdriver
Ratchet
Torx T15 Screwdriver
Small Flat-blade Screwdriver
NOTE: Along with the SRX-GM14128 components,
additional mounting clips for Main Frame Assembly
(Not Shown)
15
7
16
17
