This product is intended for installation only by expert users. Please consult with a qualified technician for installation.
Improper installation may result in damage to your equipment.
Before you start using this product please follow these basic guidelines:
1. Please carefully read through the instruction manual before beginning the installation process.
2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent any possible
damages to your CPU and motherboard.
3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant Series.
Scan Here
Pacific SW1 Plus
AM3/AM2/FM2/FM1
AM5/AM4
a
b
B
AMD
a
b
LGA1700
LGA1200/1156/1155/1151/1150
a
b
a
b
b
a
C C
A
Intel
A x 1
B x 2
C x 1
D x 4
F x 4
G x 4
H I x 4 x 4
J K x 1 x 1
L x 2
M N x 1 x 1
E x 4
Water Block
AMD clip
Liquid Metal
Screw
Screw Screw
Washer
Backplate
Screw Screw

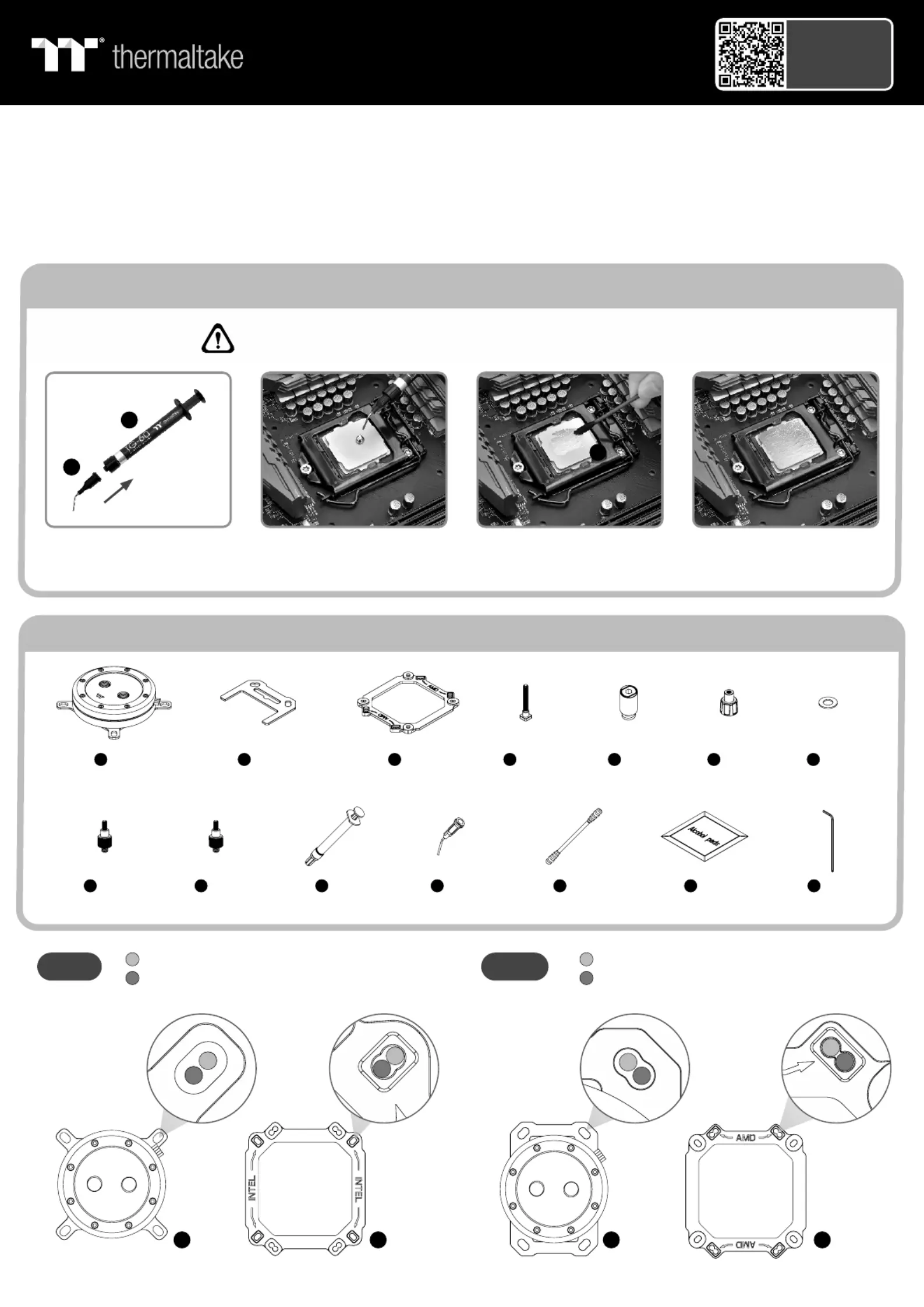

Parts List
Pinhead
Cotton swabs
Alcohol pads Hex Key
Install the pinhead of TG-60. Squeeze certain amount of Liquid
Metal Thermal Grease on the CPU.
(Please wipe it out if overflowed)
Apply the thermal grease evenly
by cotton swabs.
Complete.
J
K
L
a
b
WARNING: Avoid Aluminum Materials
Thermal Grease Application Method
(Black) (Silver)
© 2023 Thermaltake Technology Co., Ltd. All Rights Reserved. www.thermaltake.com
LGA 1700/1200/115X
LGA 2066,2011-3,2011

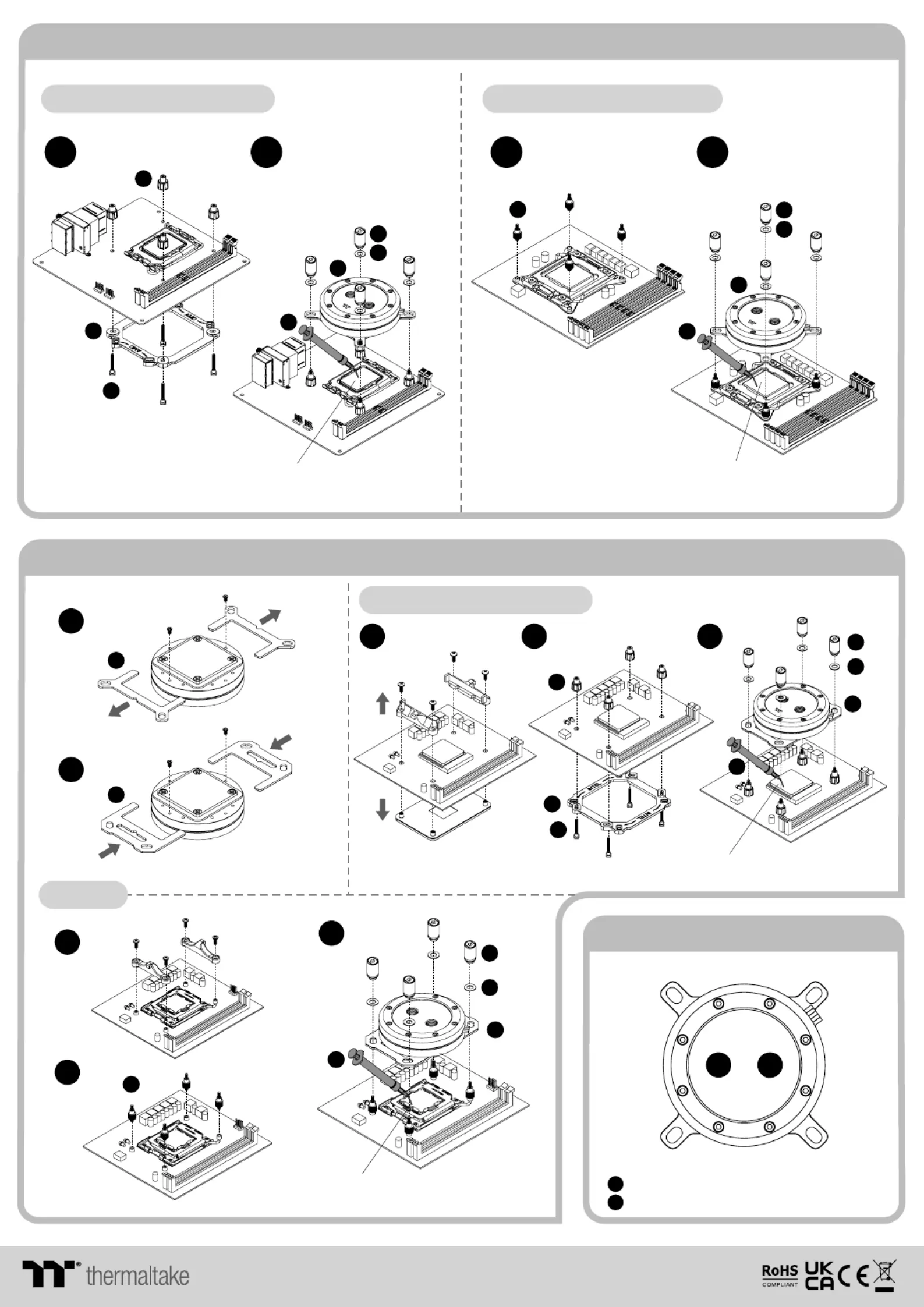

AMD Installation Guide
Intel Installation Guide
E
G
D
F
C
H
G
E
A
1 1
2 2
Out : Circle 1 is designed for liquid outlet
In : Circle 2 is designed for liquid inlet/fill
1
2
Installation Guide
A
Please refer to "Thermal Grease
Application Method"
Please refer to "Thermal Grease
Application Method"
J
J
E
E
G
G
D
F
C
I
1
1
1
2
2
2
3
3
A
A
B
A
J
Please refer to "Thermal Grease
Application Method"
Please refer to "Thermal Grease
Application Method"
AM4/AM3/AM2/FM2/FM1
AM5
J
IN
OUT
1
2
