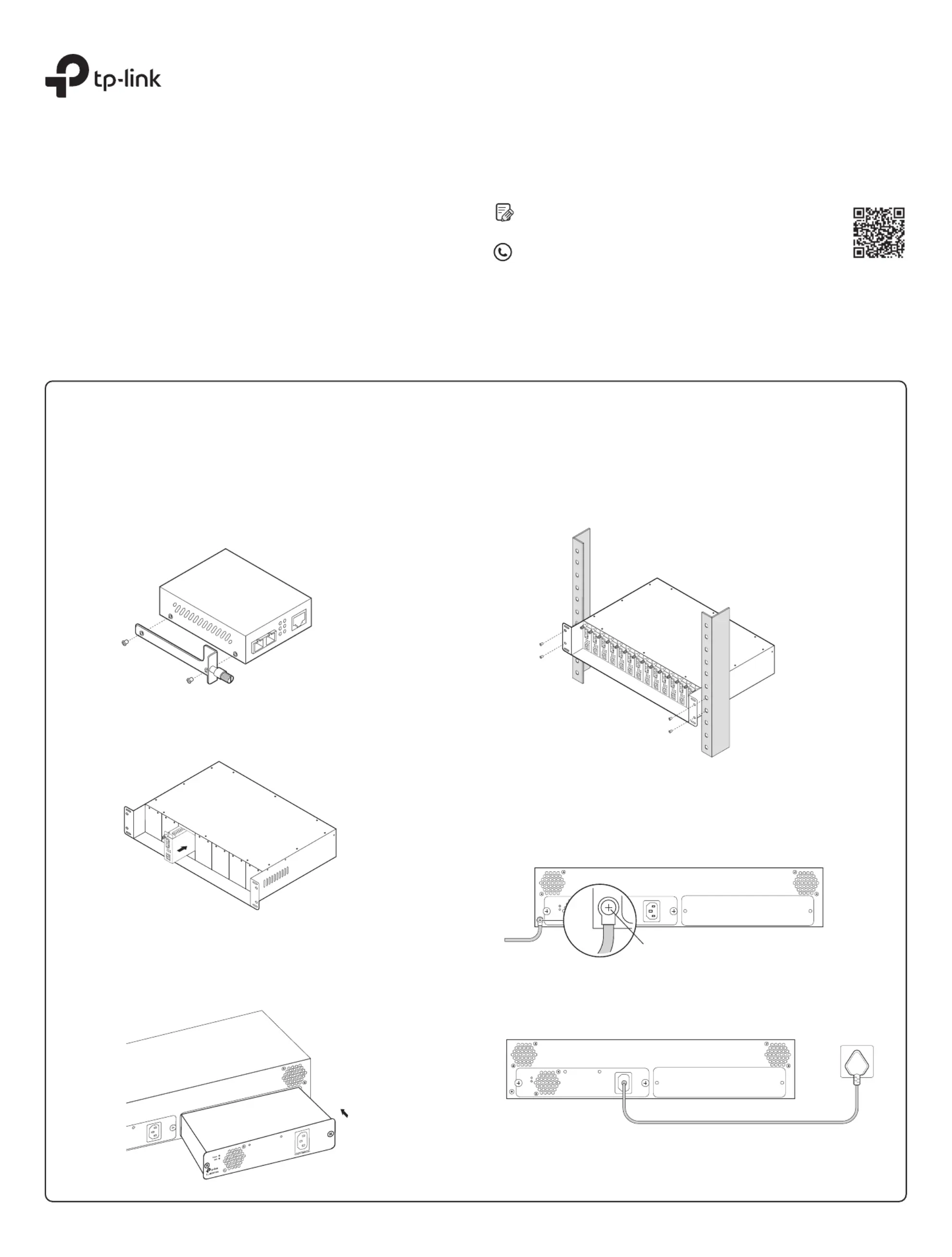

14-Slot Rackmount Chassis
Installation Guide
Package Contents: , AC Power Cord, Fourteen Retainer-plates, Installation GuideChassis
Installation
Step 1: Install the Media Converters in the Chassis
Note:
It is recommended to use TP-Link media converters. Other vendors’ products may
be incompatible.
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
© 2022 TP-Link 7106509905 REV3.2.2
The pictures are for demonstration purposes only. The actual product may dier in appearance from the depicted.
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
1. Tweak out the two screws on the media converter. Then install the
retainer-plate (provided with the chassis) to the media converter using
the screws removed from the media converter.
2. Remove the front metal plate of the slot on the chassis, then carefully
slide the media converter into the slot and lock it tightly with the
locking knob.
Step 2: (Optional) Install the Redundant Power Supply Module
Step 3: Mount the Chassis on the Rack
Step 4: Power On
Note:
1. The chassis supports EIA standard-sized, 19-inch racks.
2. For security reasons, it is recommended to install the chassis as shown below.
1. Electrically connect the Grounding Terminal on the rear panel of the
chassis to ground via the ground cable.
2. Connect the chassis to the AC outlet using the provided power cord.
Fasten the chassis to the rack with screws through the holes of the
brackets on each side.
Remove the protective cover on the power supply module slot of the chassis.
Then gently push in the module and plug it solidly into the connector.
Grounding Terminal
Chassis
Panel Layout
Input: 100–240 V ~ 50/60 Hz 1.8 A (Max)
Output: 12 V, 6.25 A (Max)
Ripple & Noise: < 180 mV (0 C to 50˚ ˚C);
< 250 mV (-10 C to 0˚ ˚C)
AC Power Supply
Power, FANLED
Dimensions
(W×D×H)
Operation Temperature TL-MC1400: 0 C to 40 C (32 F to 104˚ ˚ ˚ ˚F)
TL-FC1420: 0 C to 50 C (32 F to 122˚ ˚ ˚ ˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Humidity 5% to 90% RH non-condensing
482 × 309 × 86 mm
Operation Humidity 10% to 90% RH non-condensing
Specifications Environmental and Physical Specifications
Specications
Power LED
AC Power Plug
Grounding Terminal FAN
Optional Power Supply Position
LED Explanation
On: Power on
O:
Power o
Power
On: The fans are working properly.
O:
The fans are working abnormally.
FAN
Note:
· An optional AC or DC power supply is available for installation in the optional power supply position.
· The power source should comply with Electrical Energy Source Class 1 (ES1) of IEC 62368-1.
YesHot-swappable
YesOverload Protection
FAN LED
DC Power Output per Slot
TL-MC1400: 9 V/0.6 A
TL-FC1420: 5 V/0.6 A
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from
lightning.
The label is placed on the bottom surface of the product.
Place the device with its bottom surface downward.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Plug the product into the wall outlets with earthing connection through the power supply cord or plug.
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
Please read and follow the above safety information when operating the device. We cannot guarantee
that no accidents or damage will occur due to improper use of the device. Please use this product
with care and operate at your own risk.
In Denmark: Apparatets stikprop skal tilsluttes en stikkontakt med jord som giver forbindelse til
stikproppens jord.
In Finland: Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan
In Norway: Apparatet må tilkoples jordet stikkontakt
In Sweden: Apparaten skall anslutas till jordat uttag
