Installation Guide

Note:

1. The PoE Injector supplies steady power and data connectivity to a powered device such as PoE IP Camera, PoE AP and PoE IP Phone through an Ethernet cable.

2. For TL-PI60G/TL-PI90X, plug the product into the wall outlets with earthing connection through the power supply cord.

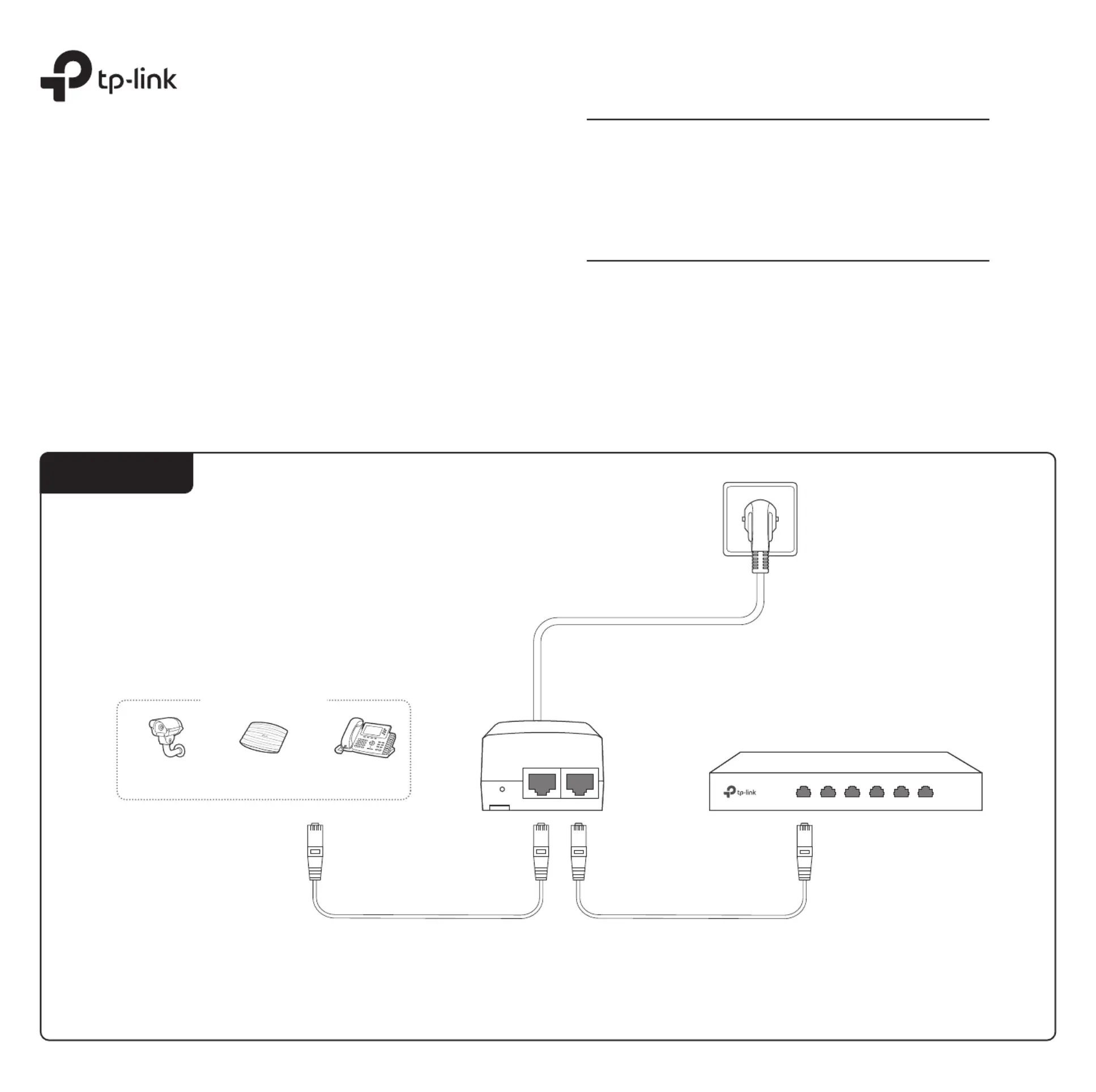

PoE Injector

Connection

IP Camera AP IP Phone

Powered Device (PD)

PWR

PWR+DATA OUT DATA IN

Ethernet Device

(switch, router, etc.)

PoE+ Injector

Note:

For simplicity, we will take TL-PI30G for example in this Guide.

LED Explanation

O: Power o

Steady Yellow: Power on, no PoE power supply

Steady Green: Power on, normal PoE power supply

Flashing Green: Abnormal PoE power supply

PWR

On: Power on

O: Power o

PWR

On: Normal PoE power supply

O: No powered device connected

Flashing: Abnormal PoE power supply

PoE

7106511406 REV1.0.1

For TL-PI60G/TL-PI90X

For TL-PI30G/TL-PI30G-M2

Yes. All RJ45 ports of the PoE injector support 10/100/1000 Mbps.

Q1. Can the PoE injector supply power to a PoE device which

doesn’t have a gigabit PoE port?

A1: Ensure the PD is PoE-compliant and its connecting port supports the PoE

function.

A2: Ensure the power consumption of the PD doesn’t exceed the maximum

power supply of the PoE injector, otherwise the overload protection of the

PoE injector will be activated. The quality and length of the Ethernet cable

may inuence the reception of the power supply.

Q2. What can I do if my PoE injector doesn’t supply power to

the powered device or the supplied power is unstable?

FAQ

For technical support and other information, please visit

https://www.tp-link.com/support/?type=smb, or simply scan the

QR code.

To ask questions, find answers, and communicate with TP-Link users or engineers,

please visit https://community.tp-link.com/business to join TP-Link Community.

Safety Information

Keep the device away from water, re, humidity or hot environments.

Do not attempt to disassemble, repair, or modify the device. If you need service, please

The plug on the power supply cord is used as the disconnect device, the

socket-outlet shall be easily accessible.

Plug the product into the wall outlets with earthing connection through the power supply

cord.

The PoE ports shall not be used to charge lithium batteries or devices supplied by lithium

batteries.

Please read and follow the above safety information when operating the device. We

cannot guarantee that no accidents or damage will occur due to improper use of the

device. Please use this product with care and operate at your own risk.

Specications

Interfaces

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3at

IEEE 802.3bt (Only for TL-PI60G/TL-PI90X)

IEEE 802.3bz (Only for TL-PI30G-M2)

Standards

TL-PI30G/TL-PI30G-M2: PWR

TL-PI60G/TL-PI90X: PWR, PoE

10Base-T/100Base-TX: UTP category 5 cable or above (max. 100 m)

1000Base-T/2.5GBase-T: UTP category 5e cable or above (max. 100 m)

5GBase-T: UTP category 5e cable or above (max. 100 m)(Only for

TL-PI90X

)

10GBase-T: UTP category 6a cable or above (max. 90 m)(Only for

TL-PI90X

)

LED

Cable Type

General Specifications

TL-PI30G/TL-PI60G:

2 × 10Mbps/100Mbps/1Gbps RJ45 Ports

TL-PI30G-M2:

2 × 10Mbps/100Mbps/1Gbps/2.5Gbps RJ45 Ports

TL-PI90X:

2 × 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports

Dimensions

(L×W×H)

TL-PI30G/TL-PI30G-M2: 125×59.4×36.8 mm

TL-PI60G/TL-PI90X: 154.7×70×42 mm

Wall

Mountable

Yes

TL-PI30G/TL-PI30G-M2: 30 W

TL-PI60G: 60 W

TL-PI90X: 90 W

Maximum

Power Supply

TL-PI30G/TL-PI30G-M2: 115.7 mm (Vertical), 37.7 mm (Horizontal)

TL-PI60G/TL-PI90X: 102 mm (Vertical)

Distance Between

Mounting Holes

Operating Temperature

TL-PI30G/TL-PI30G-M2:

0 C to 40 C (32 F to 104 F)˚ ˚ ˚ ˚

TL-PI60G/TL-PI90X:

0 C to 45 C (32 F to 113 F)˚ ˚ ˚ ˚

Storage Temperature t t-40˚C o 70˚C (-40˚F o 158˚F)

Storage Humidity 5% to 90% RH non-condensing

Operating Humidity 10% to 90% RH non-condensing

Environmental and Physic cationsal Speci
