2.4Hz 15dBi Outdoor

Omni-directional Antenna

TL-ANT2415D

Features

Description

TL-ANT2415D operates in the 2.4-2.5 GHz band and provides 15dBi

Omni-directional operation, which largely extends the wireless range and delivers

much better wireless performance. The antenna oers the N female connector

guaranteeing wider compatibility with most of the wireless equipments. Also, the

weather proof design ensures that it can work normally for various demanding

outdoor solutions.

Radiation Patterns

H-Plane Co-Polarization Pattern

2450MHz

V-Plane Co-Polarization Pattern

2450MHz

270

180 0

135

225 315

-25 -15 -5 5

-5

-15

-25

-35

270

180 0

135

225 315

-5

-15

-25

-35 -25 -15 -5 5

-15dBi Omni-directional operation highly enlarges the wireless coverage

-N female connector, compatible with most of the wireless equipments

-Weather proof design, suitable for all weather condition

-Provided mounting kits enable easy installation for various environments

Frequency 2.4 ~ 2.5 GHz

S.W.R. <= 2.0

Antenna Gain 15 dBi

Polarization Linear

Impedance 50 Ohms

HBBW @ H-Plane 360 Degree Omni-Directional

HPBW @ E-Plane <= 9 Degree

Handle Power 20 Watt

Material of Radiator Cu & Zn-Alloy

Material of Plastic Body Glass Fiber

Cable Type RG 316D

Connector Type N Jack

Connector Pull Test >= 8 Kg

Operation Temperature - 40 °C ~ + 65 °C

Standards RoHS, WEEE

Specications

Diagram

www.tp-link.com

Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or

- 15Bi Outdoor Omni- irectionad l Antenna

- Insta lation moul nting kits

- User Guide

- 2.4GHz 150Mbps Outdoor Wireless

Access Point TL-WA7210N

- 150Mbps Wire ess N l Access Poin t

TL-WA701ND

Package Related Products

Access Point

TL-ANT24PT3

TL-ANT200PT

Antenna Extension

Cable

TL-ANT2415D

CPE210 CPE210

Pigtail Cable

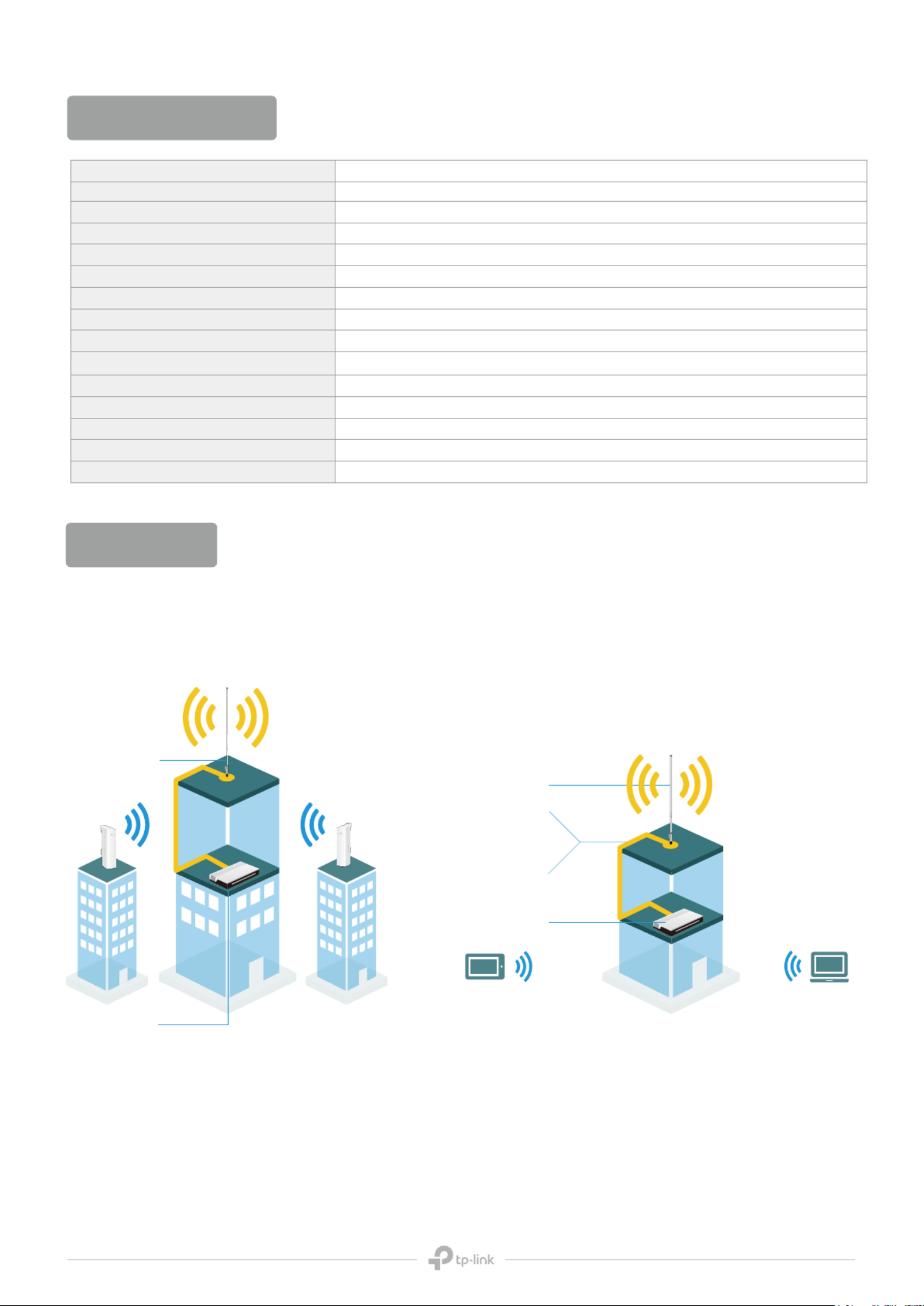

Wi-Fi Coverage

Application

Point to Multi-Point

Application(PTMP)

Produkt Specifikationer

Mærke:	TP-Link
Kategori:	TV antenne
Model:	TL-ANT2415D
Bredde:	0 mm
Dybde:	1500 mm
Højde:	0 mm
Opbevaringstemperatur (T-T):	40 - 80 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 90 %
Driftstemperatur (T-T):	40 - 65 °C
Impedens:	50 ohm (Ω)
Frekvensbånd:	2.4 - 2.5 GHz
Niveau for antennestyrke (maks.):	15 dBi
Netværksforbindelsestype:	802.11n/b/g
Stående spændingsbølgeforhold (VSWR):	1.92: 1
Horisontal strålebredde:	360 °
Vertikal strålebredde:	9 °
Polarisering:	Lodret polarisation
