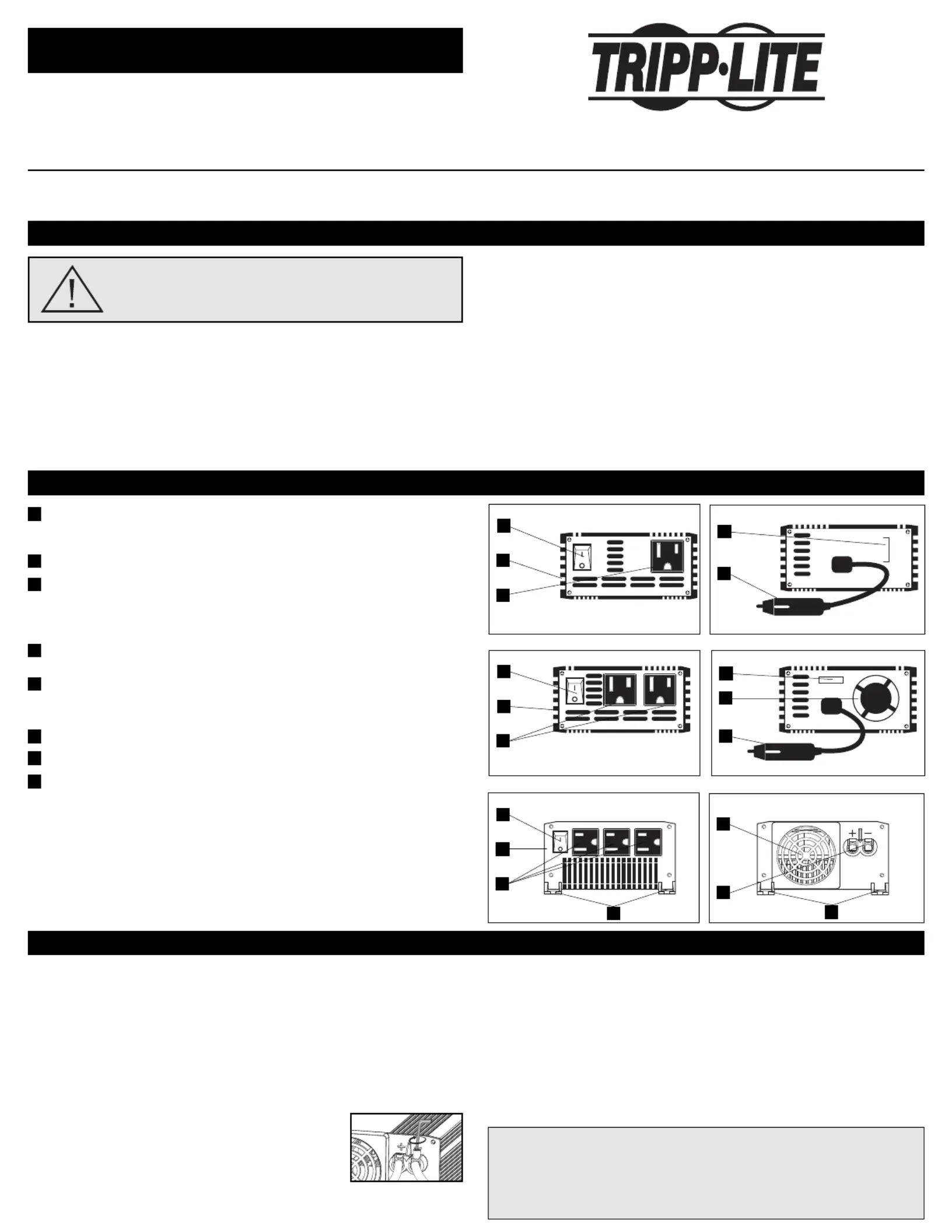

Owner’s Manual
PowerVerter
®
Ultra-Compact DC-to-AC Inverters
PV150, PV375, PV500 & PV600
PV375 Front View
PV150 Front View
1
7
2
3
4
6
Feature Identification
Lighted ON/OFF Switch: move to ON (“I”) position to power connected equipment;
switch will illuminate. Move to OFF (“O”) position to stop powering connected
equipment.
AC Outlet(s): accept 120V AC equipment you would normally plug into a wall outlet.
DC Fuse(s) (externally mounted on PV150 and PV375; internally mounted on
PV500 and PV600):protect vehicle battery from damaging overload. If fuse
blows, replace with standard automotive fuse of equal amperage. CAUTION:
installing non-rated fuses could cause equipment damage and void your warranty.
Vehicle Lighter/Accessory Plug (PV150 & PV375 only): connects to a standard
12V DC vehicle lighter/accessory outlet.
DC Power Terminals (PV500 & PV600 only): directly connect to your battery terminals
with user-supplied cables. Always loosely twist each pair of cables (one positive
and one negative) together.
Cooling Fan (PV375, PV500 & PV600 only): maintains internal cooling.
Ultra-Compact, Lightweight Metal Case
Mounting Flanges (PV500 & PV600 only): provide fixed mounting, if desired.
Install and tighten four user-supplied screws through mounting flanges and into a rigid
horizontal surface. Mount Inverter before DC battery connection.
Low Battery Alarm (internal, not shown): detects low voltage and shuts down
Inverter to preserve vehicle battery. If alarm sounds, turn Inverter OFF and run
engine to recharge battery.
Overload Alarm (internal, not shown): detects wattage overload on Inverter outlets
and shuts down Inverter as a protective measure. If alarm sounds, turn Inverter
OFF and reduce wattage load (by unplugging high-wattage devices).
Safety
Important Safety Instructions! Save These Instructions!
This manual contains important instructions and warnings that
should be followed during the installation, operation and storage
of all Tripp Lite Inverters.
Warning!
• Do not use a Tripp Lite PowerVerter Inverter in life support or healthcare
applications where a malfunction or failure of a Tripp Lite PowerVerter Inverter
could cause failure or significantly alter the performance of a life support device
or medical equipment.
• Do not operate your Inverter near flammable materials, fumes or gases.
Caution!
• Since the Inverter requires adequate ventilation during operation, do not block fan
or cooling vents or cover the Inverter, and do not operate near vehicle heating
vents or in direct sunlight. Keep the Inverter dry at all times and disconnect when
not in use.
• Since the Inverter case will get hot (130° - 140° F) during continuous extended
use, use care when handling it. Do not place it near surfaces or materials
affected by this level of heat.
• Turn OFF connected equipment before starting your engine. DO NOT plug a surge
suppressor, line conditioner or UPS system into the Inverter. If you attach AC
extension cords, use the heaviest practical gauge.
• Before connecting a battery charger or adapter, check its manual to make sure that the
Inverter’s specifications (including output waveform) fall within its recommendations.
Congratulations! Your new PowerVerter Inverter will give you years of reliable, carefree service. Use it to convert DC (battery) power into 110-120V AC (household) power to run
a variety of electronics: notebook computers, game systems, battery chargers, small TVs/VCRs and more! The Inverter’s PWM (Pulse Width Modulated) sinusoidal wave is suitable
for almost all loads.
1
7
2
3
4
PV500/PV600 Front View
PV500/PV600 Rear View
1
7
2
6
5
Operation
Step 1 (PV150 & PV375 models): Plug Inverter into vehicle lighter/accessory outlet.
Step 1 (PV500 & PV600 models): First mount inverter, if desired. With user-supplied
cables,* connect the Inverter’s negative DC terminal directly to your battery’s negative
terminal; connect the Inverter’s positive DC terminal through a UL-listed fuse and fuse
block** and directly to your battery’s positive terminal. Always loosely twist each pair
of cables (one positive and one negative) together. CAUTION! Observe proper polarity.
Reversed polarity will blow the PV500’s and PV600’s internal fuses. To access internal
fuses, disconnect equipment and battery from the PV500 or PV600. Then unscrew and
remove end panels to access fuses. Replace blown fuses with an equal number of new fuses
of the same type and amperage. Replace end panels and screws.
Tighten your Inverter’s and battery’s DC terminals to approximately
2.25 Newton-meters (1.85 foot lbs.) of torque to create an efficient
connection and to prevent excessive heating at this connection.
Insufficient tightening of the terminals could void your warranty.
It is recommended that you solder cable ends and insulate the
terminals at the battery. WARNING! Do not connect your
Inverter directly to output from an alternator rather than a battery or battery bank.
* The PV500’s and PV600’s output is limited by the length and gauge of user-supplied cables. See cable sizing guide on back page. Shorter
and heavier gauge cable maximizes output (especially important when operating heavy-draw equipment). An excellent source of cables are
battery jumper cables. ** Required by NEC article 551. Mount within 18 inches of the battery.
Step 2: Turn on Inverter.
Step 3: Plug equipment into the Inverter.
Determine your equipment’s total wattage.* Do not connect more watts than your
Inverter’s Output Power (Maximum Continuous Watts) rating—either 150, 375, 500 or
600, see Specifications. See back page for typical equipment runtimes. Also see back
page for important note concerning the limitations of vehicle electrical systems.
* Wattage ratings are usually listed in equipment manuals or on nameplates. If your equipment is rated in amps, multiply that number
times AC utility voltage to determine watts. (Example: a ¼ in. drill requires 2½ amps. 2½ amps × 120 volts = 300 watts.)
Important! Alarms and automatic shutdown are normal safety functions of this
inverter, indicating either outlet overload or low vehicle battery voltage.
If alarm sounds and/or the inverter has shut down and will not turn on . . .
• Check inverter connections • Reduce wattage load • Run engine to recharge battery
• Toggle ON/OFF switch on and off 3 to 4 times, ending in the on ("I") position
8
8
1
2
3
4
5
6
7
8
Copyright © 2004 Tripp Lite. All rights reserved. PowerVerter is a registered trademark of Tripp Lite.
200405118 93-2230REV.B
Troubleshooting
Please check the following before sending the Inverter in for service:
Symptom Problem Correction
Alarm sounds. Low battery voltage (<10.5 V). Turn Inverter OFF and run engine to recharge
vehicle battery.
Output overload. Turn Inverter OFF and remove overload by unplugging
high-wattage devices. Load should not exceed your
Inverter's maximum continuous output power
(see Specifications).
Inverter does not turn ON when power switch is turned ON. urn Inverter OFF and run engine to rechargeAutomatic Inverter shutdown due to low battery voltage (<10V). T
vehicle battery.
Automatic Inverter shutdown due to output overload. Turn Inverter OFF and remove overload by unplugging
high-wattage devices. Load should not exceed your
Inverter’s maximum continuous output power
(see Specifications).
Blown fuse. Replace fuse with standard automotive fuse of identical
amperage (see Specifications).
Inverter is unable to power connected equipment. Battery running low. Low battery voltage reduces Turn Inverter OFF and run engine to recharge
Inverter power output. vehicle battery.
Connected equipment load exceeds Inverter’s maximum Turn Inverter OFF and remove overload by unplugging
continuous output power. high-wattage devices. Load should not exceed your
Inverter's maximum continuous output power
(see Specifications).
Connected equipment experiences audio/video distortion. Loose connections. Check and secure all connections.
Audio/video interference. Reposition equipment antennas and Inverter.
Specifications
Maintenance & Service
Your Inverter requires no maintenance and contains no user-serviceable parts (except for
replaceable DC fuses). If returning your Inverter to Tripp Lite, please pack it carefully
using the ORIGINAL PACKING MATERIAL that came with the unit. Enclose a letter
describing the problem. If the Inverter is within the warranty period, enclose a copy of
your sales receipt. To obtain service you must obtain a Returned Material Authorization
(RMA) number from Tripp Lite or an authorized Tripp Lite service center.
Limited Warranty
Tripp Lite warrants its Inverters to be free from defects in materials and workmanship for a period of 1 year (domestic) or 120 days (export) from the date of initial
purchase. Tripp Lite’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under
this warranty you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must
be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of
the problem encountered and proof of date and place of purchase.
This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way,
including opening of the unit’s casing for any reason. This warranty applies only to the original purchaser who must have properly registered the product
within 10 days of purchase.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s)
or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is
not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes,
claims by third parties, or otherwise.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Model: PV150 PV375 PV500 PV600
Output Power (Maximum Continuous Watts):* 150 375 500 600
Output Power (Peak Watts):** 300 600 1000 1000
Input Voltage (DC): 12V nominal (10-15V) 12V nominal (10.5-15V) 12V nominal (10-15V) 12V nominal (10-15V)
Output Voltage (AC)/Frequency: 120V / 60 Hz. nominal 120V / 60 Hz. nominal 120V / 60 Hz. nominal 120V / 60 Hz. nominal
Output Waveform: PWM Sine Wave PWM Sine Wave PWM Sine Wave PWM Sine Wave
Low Battery Voltage Alarm (Volts): 10.5V 10.5V 10.5V 10.5V
Low Battery Voltage Shutdown (Volts): 10V 10V 10V 10V
AC Outlets: 1 2 3 3
Circuit Protection (DC Overload): 20-amp fuse (external) 40-amp fuse (external) Two 40-amp fuses (internal) Two 40-amp fuses (internal)
* Maximum output power (continuous or peak) only available when vehicle battery is properly charged. Run vehicle engine often to maintain proper charge. ** Peak Output Power is instantaneous. The policy of Tripp Lite is one of continuous improvement.
Specifications are subject to change without notice.
Typical Runtimes Before Battery Recharge
Although you can operate your Inverter with your vehicle engine off, best results are usually attained
with the engine running. Since the Inverter converts electrical energy (and doesn’t produce it), the
Inverter’s performance is relative to the condition of your vehicle’s electrical system (battery, alternator
and wiring). If other loads (air conditioner, heater, lights, etc.) are also using power, you may get
With Typical With Typical With Typical
Compact Vehicle (4 cylinder) Mid-Size Vehicle (6 cylinder) Full-Size Vehicle (8 cylinder)
Battery, Alternator Battery, Alternator Battery, Alternator
& Wiring & Wiring & Wiring
Model: PV150
1/2 Load (engine on/engine off) continuous/4-6 hours continuous/6-8 hours continuous/8-12 hours
Full Load (engine on/engine off) continuous/2-3 hours continuous/3-4 hours continuous/4-6 hours
Model: PV375
1/2 Load (engine on/engine off) continuous/1-2 hours continuous/2-3 hours continuous/3-6 hours
Full Load* (engine on/engine off) continuous/30 min-1 hour continuous/1-2 hours continuous/2-3 hours
Models: PV500 & PV600
1/2 Load (engine on/engine off) continuous/1 hour continuous/2 hourscontinuous/not recommended
Full Load (engine on/engine off) 1-2 hours/not recommended 2-4 hours/not recommended continuous/1 hour
* If vehicle wiring is adequate. See “Vehicle Electrical System Limitations” at right.
Minimum Recommended Cable Sizing Chart (PV500 & PV600 only)
Choose the correct wire gauge based on your equipment’s wattage load.
Always loosely twist each pair of cables (one positive and one negative) together.
Wire Gauge
Watts 10 ga. 8 ga. Two 10 ga. 6 ga. 4 ga.
100 24 ft. 36 ft. 48 ft. 56 ft. 100 ft.
200 12 ft. 18 ft. 24 ft. 28 ft. 48 ft.
300 8 ft. 12 ft. 16 ft. 20 ft. 30 ft.
400 6 ft. 10 ft. 12 ft. 14 ft. 24 ft.
500 not recommended 8 ft. 10 ft. 12 ft. 18 ft.
600 not recommended 6 ft. 8 ft. 10 ft. 15 ft.
Note: acceptable power is directly related to cable length (i.e.: the shorter the cable, the better the performance).
Vehicle Electrical System Limitations
NOTE: Due to the limitations of certain vehicles’12V DC lighter/accessory outlet electrical systems,
you may not be able to continuously run a full load (375 watts) from PV375 models. If you regularly
blow fuses, it may indicate your vehicle is not adequately wired to support a PV375 as it is designed.
In this case, consult vehicle manufacturer recommendations for rewiring from the fuse block or battery
with appropriate wiring (10 - 12 gauge) and fusing (at least 40 amp). All standard vehicle accessory
outlet electrical systems can support full loads for PV150 models without any modifications.

Produkt Specifikationer

Mærke: Tripp Lite
Kategori: Batteri
Model: PowerVerter PV150

Har du brug for hjælp?

Hvis du har brug for hjælp til Tripp Lite PowerVerter PV150 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Batteri Tripp Lite Manualer

Tripp Lite

Tripp Lite APS2448UL Manual

31 Juli 2025
Tripp Lite

Tripp Lite PINV2000SWL-120 Manual

31 Juli 2025
Tripp Lite

Tripp Lite PINV750 Manual

31 Juli 2025
Tripp Lite

Tripp Lite PowerVerter PV375 Manual

31 Juli 2025
Tripp Lite

Tripp Lite APSWX2K24VMPPT Manual

31 Juli 2025
Tripp Lite

Tripp Lite APS750 Manual

31 Juli 2025
Tripp Lite

Tripp Lite APSINT2012 Manual

31 Juli 2025
Tripp Lite

Tripp Lite APS700HF Manual

31 Juli 2025
Tripp Lite

Tripp Lite APS2424 Manual

31 Juli 2025
Tripp Lite

Tripp Lite PowerVerter RV1250ULHW Manual

31 Juli 2025

Batteri Manualer

Nyeste Batteri Manualer

Graphite

Graphite Energy+ 58G001 Manual

30 Juli 2025
CyberPower

CyberPower RB1290X2E Manual

25 Juli 2025
Vonroc

Vonroc CD828AA Manual

23 Juli 2025
Bosch

Bosch GBA 18V 4.0Ah Professional Manual

16 Juli 2025
Daewoo

Daewoo DALB-40-1 Manual

16 Juli 2025
Milwaukee

Milwaukee M18 REDLITHIUM FORGE 48-11-1861 Manual

15 Juli 2025
Milwaukee

Milwaukee M18 FUEL 2824-20 Manual

15 Juli 2025
Bosch

Bosch GBA 12V Max 2.0Ah Professional Manual

9 Juli 2025
Bosch

Bosch GBA 36V 6.0Ah Professional Manual

9 Juli 2025
EcoFlow

EcoFlow Lithium 12V 100Ah Deep Cycle Marine Trolling Motor Manual

9 Juli 2025
