INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the
best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by
incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to
incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of
product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only. The LED
tube can be used in hotels, oces, factories, conference rooms, meeting rooms, commercial complexes, residential
buildings, schools, colleges, universities, hospitals, etc.
PACKAGE CONTENT
• LED Tube (1PC)
• Instruction Manual (1PC)
• Dummy Starter (1PC)
WEEE Number : 80133970
T8 LED TUBES
DUMMY STARTER
INCLUDED
STARTER
FOR LED TUBES
TECHNICAL DATA
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE
CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MODEL
SKU
VT-061
21650,21651,21652 21653,21654,21655 21656,21657,21658 21686,21687,21798 21672,21673,21688 21674,21675,21799
VT-121 VT-151 VT-062 VT-122 VT-152
WATTS 9W 18W 20W 7.5W 16.5W 24W
LUMENS 850LM@Sphere360° 1850LM@Sphere360° 2100LM@Sphere360° 850LM@Sphere360° 1850LM@Sphere360° 3000LM@Sphere360°
CRI >80 >80 >80 >80 >80 >80
DF >0.5 >0.7 >0.7 >0.5 >0.7 >0.7
BEAMANGLE 160° 160° 160° 160° 160° 160°
BODY TYPE
IP RATING
Plastic
IP20 IP20 IP20 IP20 IP20 IP20
Plastic Plastic Plastic Plastic Plastic
HOLDER G13 G13 G13 G13 G13 G13
LONG LIFE 25,000 Hours 25,000 Hours 25,000 Hours 25,000 Hours 25,000 Hours 25,000 Hours
ON/OFF CYCLES >15,000 >15,000 >15,000 >15,000 >15,000 >15,000
DIMENSION 600x28mm 1200x28mm 1500x28mm 600x28mm 1200x28mm 1500x28mm
INPUT POWER AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz
INSTRUCTION MANUAL
W
H
ROTATING
180°
WARNING
INSTALLATION & REPLACEMENT OF FLUORESCENT LAM
(SINGLE MAGNETIC BALLAST CIRUIT)
NEW FITTING INSTALLATION
Single Side Power Only

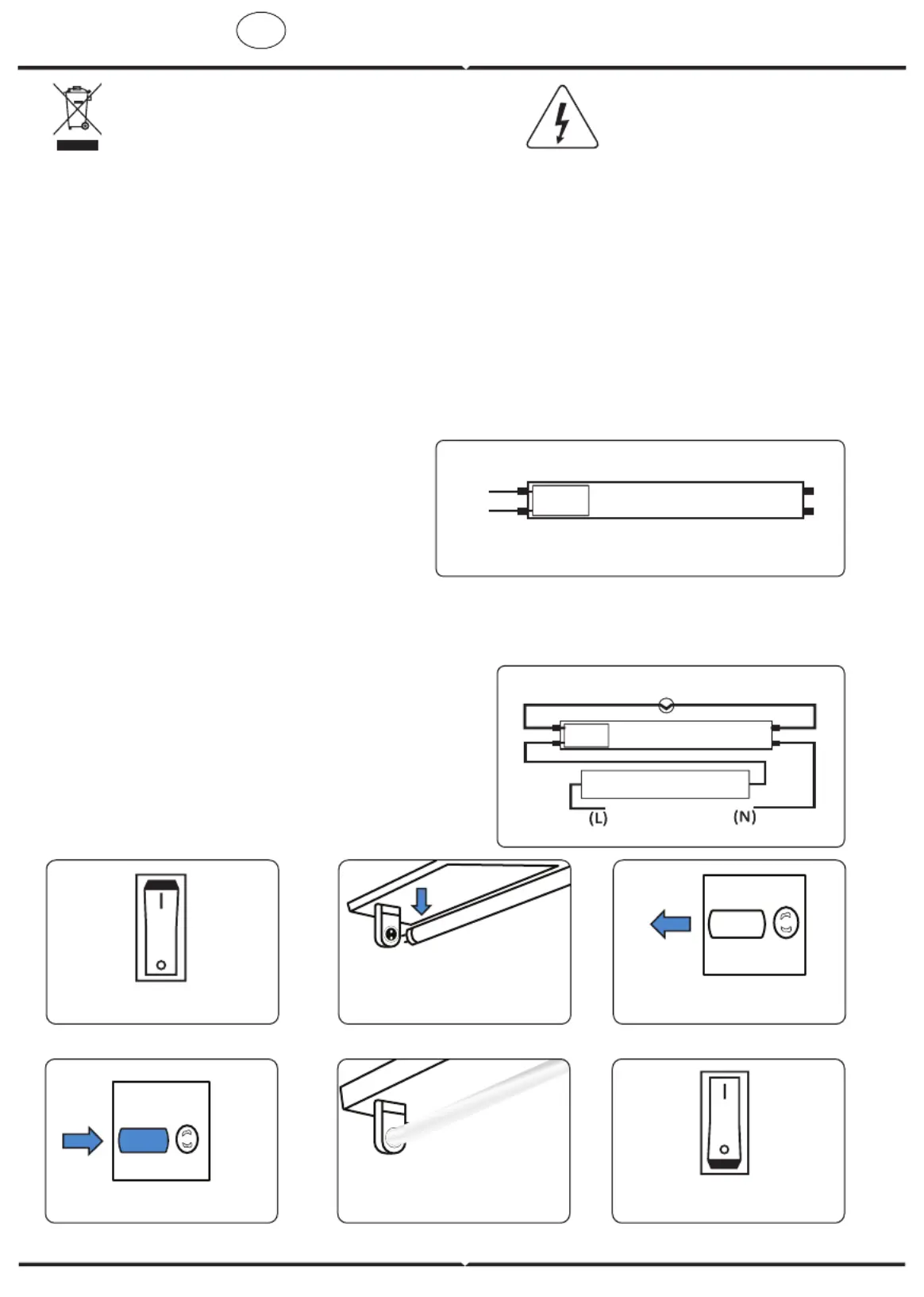

WIRING DIAGRAM
1. o the power Switch 2. Remove the existing
fluorescent lamp
3. Remove the existing
fluorescent starter
4. Insert LED T8 starter 6. Switch ON the power5. Insert V-TAC LED Tube
LED
Le Right
(L)
(N)
V-TAC
INPUT LED TUBE
INSTALLATION INSTRUCTION
EN
INSTALLATION INSTRUCTION
EN
AC:220-240V
50Hz
WIRING DIAGRAM
Le RightLED TUBE
Inductance Ballast
LED Starter
V-TAC
INPUT
AC:220-240V
50Hz
• Installation should only be done by a `certified
electrician.
• Please refer to the wiring diagram for
replacingfluorescent tube on a single magnetic
ballast circuit with V-TAC LED Tube.
• Installation should only be done by a certified
electrician
• Switch O the power.
• Ensure the wiring diagram is followed as highlighted.
• Insert V-TAC LED Tube.
• Switch On the power to test the light.
• Installation should only be done by a certified electrician
• Operation environment temperature: -20°C to +45°C.
• For Indoor use only
• Do not use DC electricity.
• Do not modify the fitting to be used with the LED Tube.
• V-TAC LED Tubes are NOT designed to be used in emergency operations.
• For Indoor use only.
• Do NOT use with electronic ballasts. V-TAC LED tubes are not compatible with electronic ballast circuit. In
order to use the electronic ballast fitting you must ensure to remove the electronic ballast from the fitting
and rewire the circuit as per new fitting installation as shown below. Ensure the installation and wiring is
carried out by certified electrician.
This marking indicates that this
product should not be disposed of
with other household wastes.
Caution, risk of electric shock.
