INSTALLATION INSTRUCTION
T5 INTERGRATED FITTING
VT-035, VT-065, VT-125
Model Was Lumens Body TypeCRI
Beam
Angle
Long
Life
On/O
Cycles Dimension Input Power
VT-035 4W 400 >80 160° P
P
P
25,000
Hours
25,000
Hours
25,000
Hours
>15000 290x27x30mm AC:220-240V,50/60Hz
VT-065 7W 700 >80 160° >15000 551x27x30mm AC:220-240V,50/60Hz
VT-125 16W 1600 >80 160° >15000 1151x27x30mm AC:220-240V,50/60Hz
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of
electric shock.
WARNING!
TECHNICAL DATA
1. Please make sure to turn off the power before starting the installation.
2. The light source of this luminaire is not replaceable, when the light source
reaches its end of life the whole luminaire should be replaced.
3. If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard
4. Installation must be performed by a qualified electrician.
U P G E T H E T O 0 T O 1 0 W A T T S R
L I EN K A B L
5
YEARS
WARRANTY
Non-replaceable light source Non-replaceable control gear
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read
these instructions carefully before starting the installation and keep this manual handy for
future reference. If you have any another query, please contact our dealer or local vendor from
whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 5 years from the date of purchase. The warranty does not apply to
damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the
product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
1. Please make sure to turn off the power
before starting the installation.
2. Installation should only be done by a
certified electrician.
INSTALLATION REQUIREMENTS
• Installation only by certified electrician
• Operation environment temperature:
from -20°C to +45°C
• Do NOT use DC electricity
EN
T5 INTERGRATED FITTING
EN
WIRING DIAGRAM

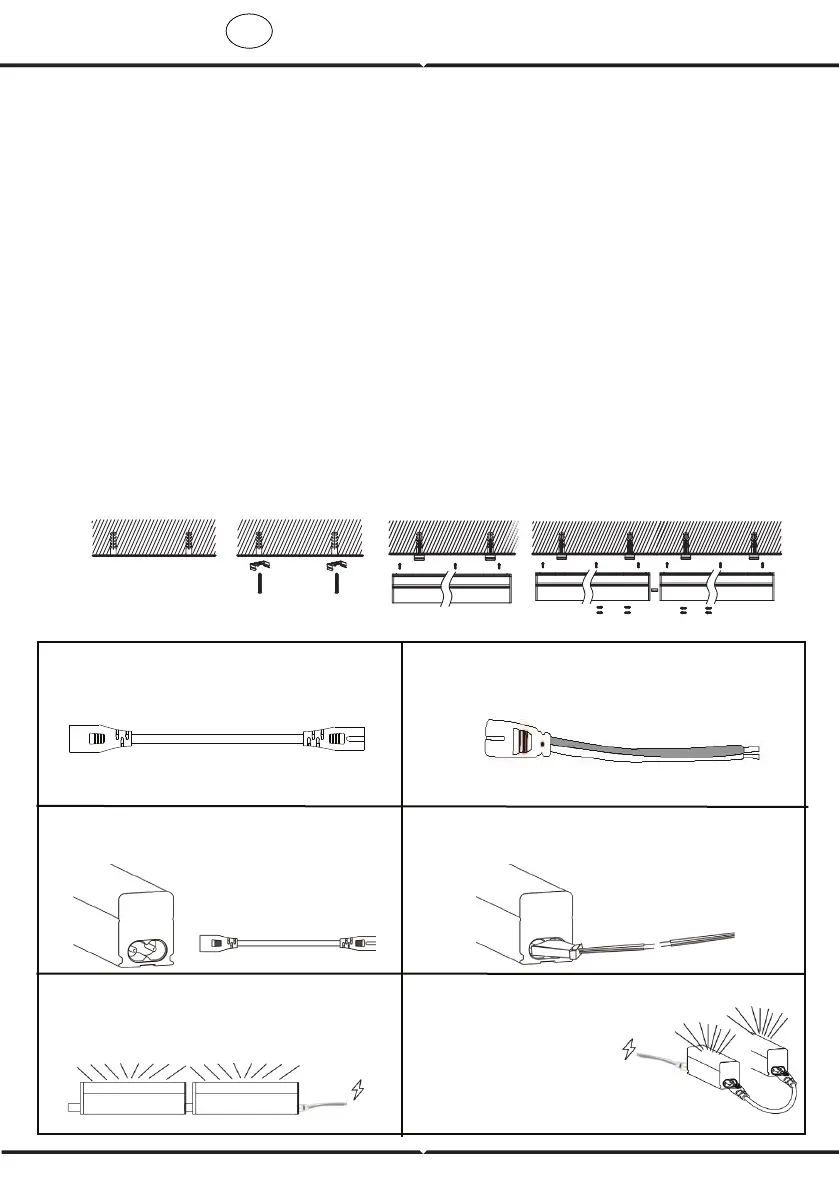

MOUNTING INSTALLATION DIAGRAM
Fig 1 Fig 2
Fig 3 Fig 4
1. Quick Connecting wire with double
head.
2. Using wire clipper cut off one end of the
connecting wire. Ensure to strip the wire
upto 5mm
3. Plug the connecting wire into the
fixture as shown below
4. Power the end of connecting wire which
was cut to input power source.
5 .Linkable T5 tube allows you to
connect two lights together.
6. Easy Connecting wire
allows flexibility of
installing the T5 fixture
for corner installation as
well as linear installa-
tion.
PACKING
• T5 Intergrated Fixture (1PC)
• Mounting Clips (2PCS)
• Quick connecting double head wire
(1PC)
• Screws (2PCS)
INSTALLATION INSTRUCTIONS
A. Turn OFF electricity before
starting!
B. Follow diagram below:
