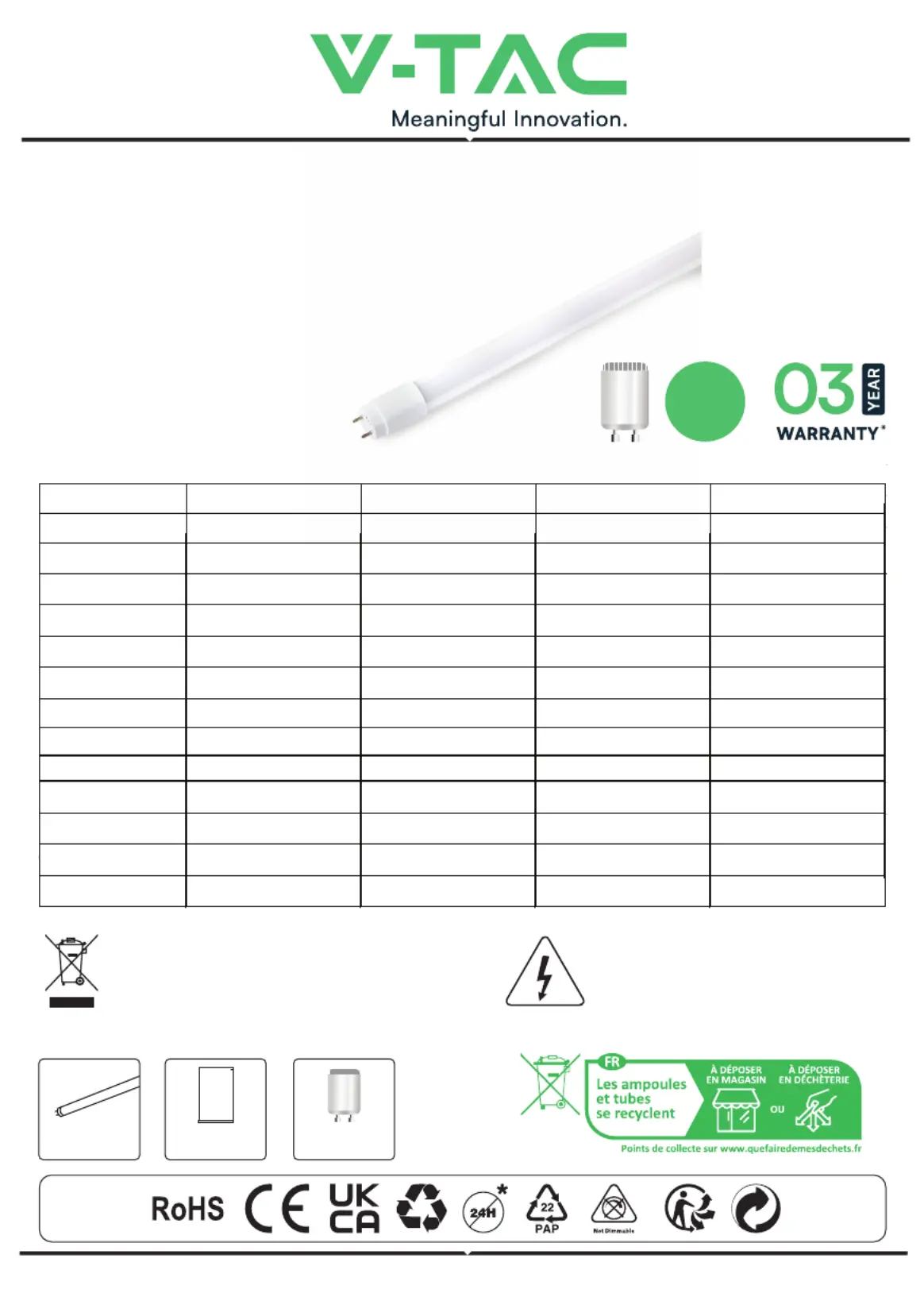

TECHNICAL DATA
PACKING
WEEE Number : 80133970
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT
OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MODEL VT-6072
216392,216393,216394 216265,216309,216310216263,216273,216264216262,216272
VT-9077 VT-1277 VT-1577
WATTS
SKU
9W 14W 18W 20W
LUMENS 850LM@Sphere360° 1400LM@Sphere360° 1850LM@Sphere360° 2100LM@Sphere360°
DF >0.5 >0.7 >0.7 >0.7
CRI >80 >80 >80 >80
BEAM ANGLE 160° 160° 160° 160°
BODY TYPE PlasticPlastic
PlasticPlastic
HOLDER
IP RATING
G13 G13 G13
G13
IP20 IP20 IP20 IP20
ON/OFF CYCLE >15,000>15,000>15,000
>15,000
LONG LIFE 25,000 Hours
25,000 Hours 25,000 Hours 25,000 Hours
DIMENSION 28x1500mm28x1200mm28x900mm28x600mm
INPUT POWER AC: 220-240V,50Hz AC: 220-240V,50Hz AC: 220-240V,50Hz AC: 220-240V,50Hz
T8 LED TUBES
INSTRUCTION MANUAL
This marking indicates that this
product should not be disposed of
with other household wastes.
Caution, risk of electric shock.
LED Tube (1PC)
MANUAL
Dummy
Starter (1PC)
Instruction
Manual (1PC)
STARTER
FOR LED TUBES
DUMMY STARTER
INCLUDED
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only. The LED tube can be
used in hotels, oces, factories, conference rooms, meeting rooms, commercial complexes, residential buildings, schools,
colleges, universities, hospitals, etc.
• Installation should only be done by a certified electrician
• Operation environment temperature: from -20°C to +45°C
• Do not use DC electricity
• Do not modify the fitting to be used with the LED Tube.
• V-TAC LED Tubes are NOT designed to be used in emergency operations.
• For Indoor use only.
• Do NOT use with electronic ballasts. V-TAC LED tubes are not compatible with electronic ballast circuit. In order to
use the electronic ballast fitting you must ensure to remove the electronic ballast from the fitting and rewire the
circuit as per new fitting installation as shown below. Ensure the installation and wiring is carried out by certified
electrician.
INTRODUCTION & WARRANTY
WARNINGS
INSTALLATION & REPLACEMENT OF FLUORESCENT LAMP
(SINGLE MAGNETIC BALLAST CIRUIT)
NEW FITTING INSTALLATION
Single Side Power Only
WIRING DIAGRAM
WIRING DIAGRAM
1. o the power Switch 2. Remove the existing
fluorescent lamp
3. Remove the existing
fluorescent starter
4. Insert LED T8 starter 6. Switch ON the power5. Insert V-TAC LED Tube
LED
Le RightLED TUBE
Inductance Ballast
LED Starter
LeRight
(L)
(N)
V-TAC
INPUT
V-TAC
INPUT
LED TUBE
INSTALLATION INSTRUCTION
EN
INSTALLATION INSTRUCTION
EN
AC:220-240V
50Hz
AC:220-240V
50Hz
• Installation should only be done by a
certified electrician.
• Please refer to the wiring diagram for replacing
fluorescent tube on a single magnetic ballast circuit
with V-TAC LED Tube.
• Installation should only be done by a certified
electrician
• Switch O the power.
• Ensure the wiring diagram is followed as highlighted.
• Insert V-TAC LED Tube.
• Switch On the power to test the light.
