S- - S- - 9830 25 and 9830 70

25V and 70V Stealth FlexH s™ orn

INTRODUCTION

The Clarity S-9830 25- HStealth Flex orn is a 25

Volt - - Vpaging horn and the S 9830 70 is a 70 olt

paging horn designed to provide voice paging as

well as background music. These horn s are

weather resistant and can be used indoors or

outdoors in environments ranging from -20 to

+50 degrees C. Different wattage taps to the

transformer are achieved by connecting to the

color-coded cable.

SPECIFICATIONS

Dimensions & Weight

• " " " D 9.3 H x 15.0 W x 5.0

(23.6 cm x 38.1 cm x 12.7 cm)

• 7.6 (3.4 Weight: lbs. 5 kg)

INSTALLATION

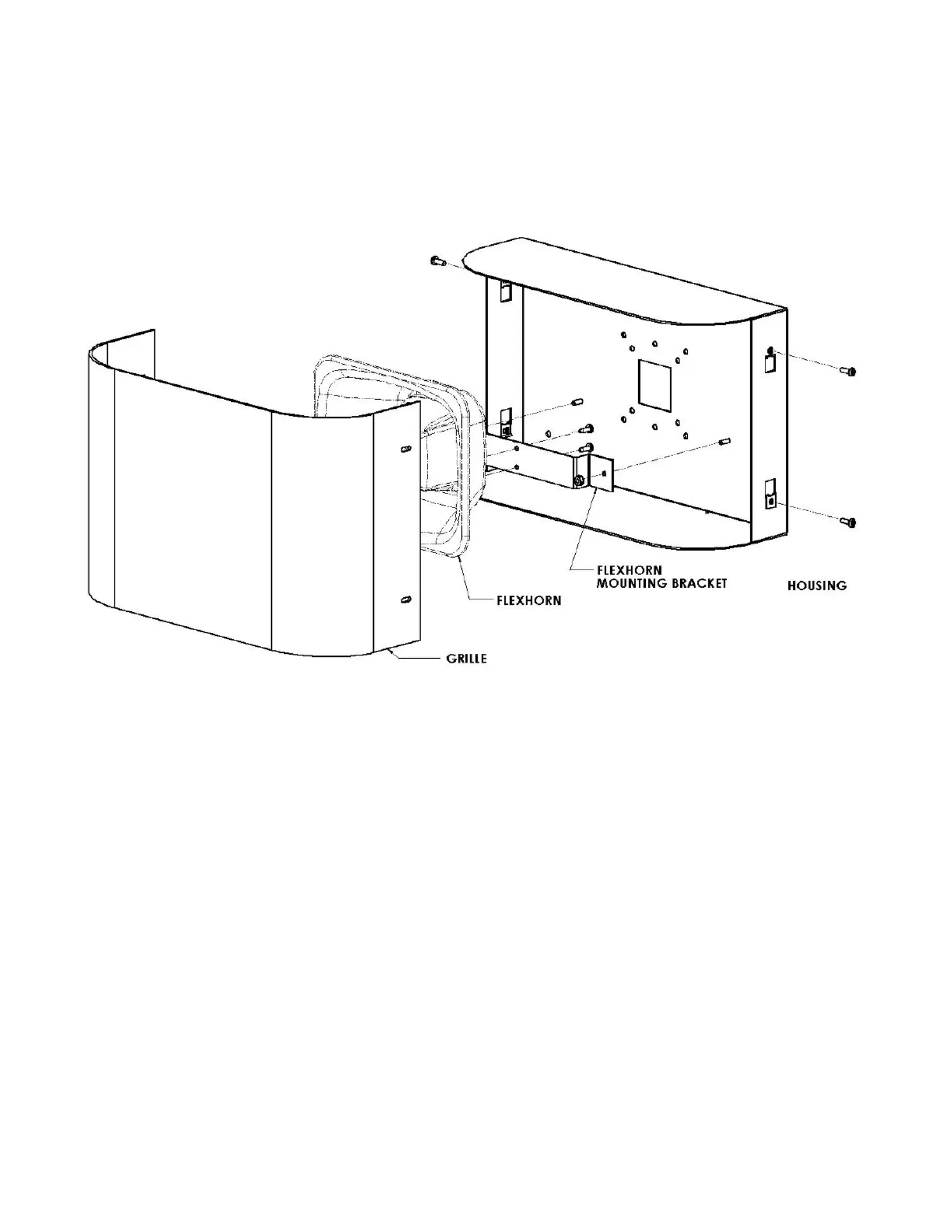

( ) Refer to Figure 1

• , Using a Phillips screwdriver remove 4

s crews attaching grille to enclosure base.

• Remove nting two nuts to remove horn mou

bracket horn from ( with still attached)

enclosure base.

• Mount enclosure base to wall using

a .ppropriate hardware Holes are provided

for mounting to a single gang or double

gang outlet box.

• Rea and bracket ttach horn to enclosure

base.

• Make consignal nections to Flexhorn (see

Cable Tap Connections diagram).

• . Install grille onto enclosure base

Cable Tap Connections

TECHNICAL ASSISTANCE

Assistance in troubleshooting is available from

the factory. When calling, you should have a

VOM available and be calling from the job site.

Call (540) 2000 and ask for Technica 563- l

Support.

Visit our website at http://www.clarity-com.com.

CLARITY equipment is not field repairable.

CLARITY maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person,

and the nature of the problem. Send the unit to:

Clarity

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

WARRANTY

Warranty information may be found on our

website at www.valcom.com/warranty.

Wattage Taps

Color

Designation

Black

Common

White

0. 5 Watt

Brown

1 Watt

Green

2 Watts

Red

4 Watts

4 947 33

Figure 1
