VIP-580A / VIP-581A
IP FlexHorn Surface Mount
INTRODUCTION
The VIP-580A and VIP-581A IP FlexHorn
paging anywhere on an Ethernet network. The
VIP-580A/VIP-581A consists of a network-
connected high efficiency horn, allowing stand
alone capability when used with a SIP telephone
system or can be accessed from a variety of
Valcom managed VoIP products. Power is
provided to the VIP-580A or VIP-581A via a
802.3af specification.
SPECIFICATIONS
Access Methods
SIP telephone system
PBX, FXO Port w/Valcom Network
Station Port
POTS telephone set w/Valcom Network
Station Port
PBX, FXS Port w/Valcom Network Trunk Port
Valcom M Cast Page Group
Features
Power over Ethernet (PoE) 802.3af
compatible
Angled surface mount (VIP-581A)
Straight surface mount (VIP-580A)
Paintable grille and enclosure
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch: Class 3
Environment
Interior Installation only
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
VIP-580A
VIP-581A
Dimensions/Weight
VIP-580A:
10.0” H x 12.2" W x 4.0" D
(25.4cm H x 30.9cm W x 10.2cm D)
Weight: 7.4 lbs. (3.4 kg)
VIP-581A:
9.9” H x 12.2" W x 4.0" D (top) x
2.7” D (bottom)
(25.2cm H x 30.9cm W x 10.2cm D (top) x
6.9cm D (bottom)
Weight: 7.4 lbs. (3.4 kg)
2
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Precautionary Designations
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.
INSTALLATION
Operation
The VIP-580A/VIP-581A provides IP loudspeaker
paging access via network connection to
customer telephone system or stand alone
telephone set. Interface to customer telephone
system can be via SIP registration, FXO or FXS
port (with appropriate PBX connection and
Valcom Network Station Port or Trunk Port).
Mounting
The VIP-580A/VIP-581A is designed for surface
mounting on a solid surface. Remove the grille
from the backbox enclosure and disconnect the
FlexHorn wire harness from the network interface
board.
Pre-drilled 13/64” mounting holes in the back of
the enclosure are designed to fit a single gang,
double gang or octagon outlet box. If not
attaching to an outlet box, use the enclosure as a
template and mark the location of mounting
holes. Depending on wall construction type,
prepare the mounting hole locations on the wall
to securely attach the enclosure. Insert Ethernet
wiring through large hole in rear panel of
enclosure and connect to the Ethernet RJ-45
socket. Use mounting hardware (not included)
appropriate for the wall type to securely mount
the enclosure to the wall or outlet box. With the
enclosure securely mounted, reconnect the
FlexHorn wiring harness to the network interface
board and install the FlexHorn faceplate to the
enclosure using the four screws provided.

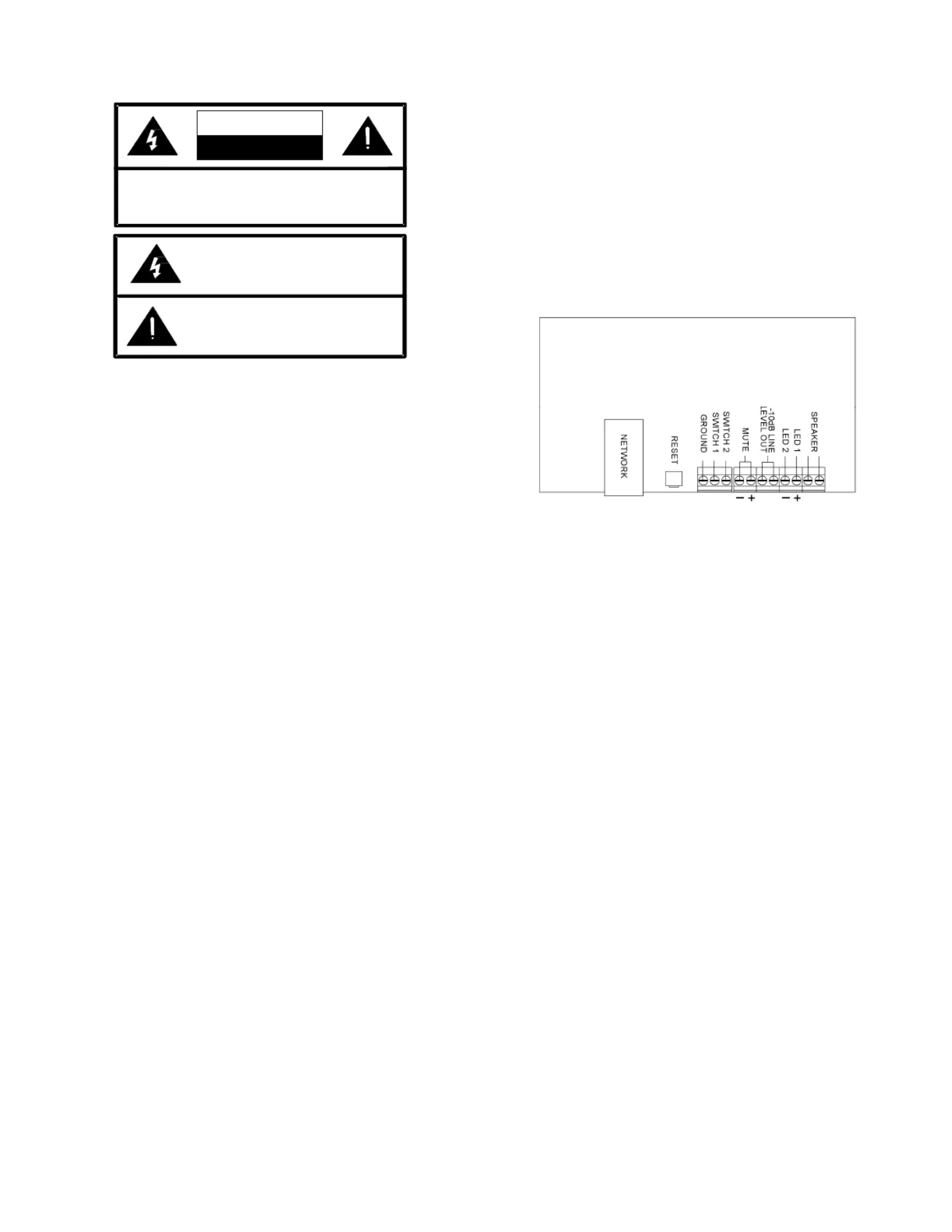

Figure 1.
Power Connections
The only method of powering a VIP-580A/
VIP-581A IP FlexHorn is via a Power over
Ethernet (PoE) network switch or power injector
meeting the 802.3af specification.
Network Connection
The VIP-580A/VIP-581A has one Ethernet RJ-45
network connector on the circuit board. Connect
an Ethernet patch cable from the network switch
to the VIP-580A/VIP-581A Ethernet RJ-45 socket
before attaching the grille to the enclosure.
Signal Connections
Signal connections from the network interface to
the FlexHorn are provided through an attached
wiring harness pre-wired at the factory. If the
horn was disconnected while mounting the
enclosure, reconnect the two-wire harness to
screw terminals labeled SPEAKER on the
network interface board before attaching the grille
to the enclosure.
