Side 1/4

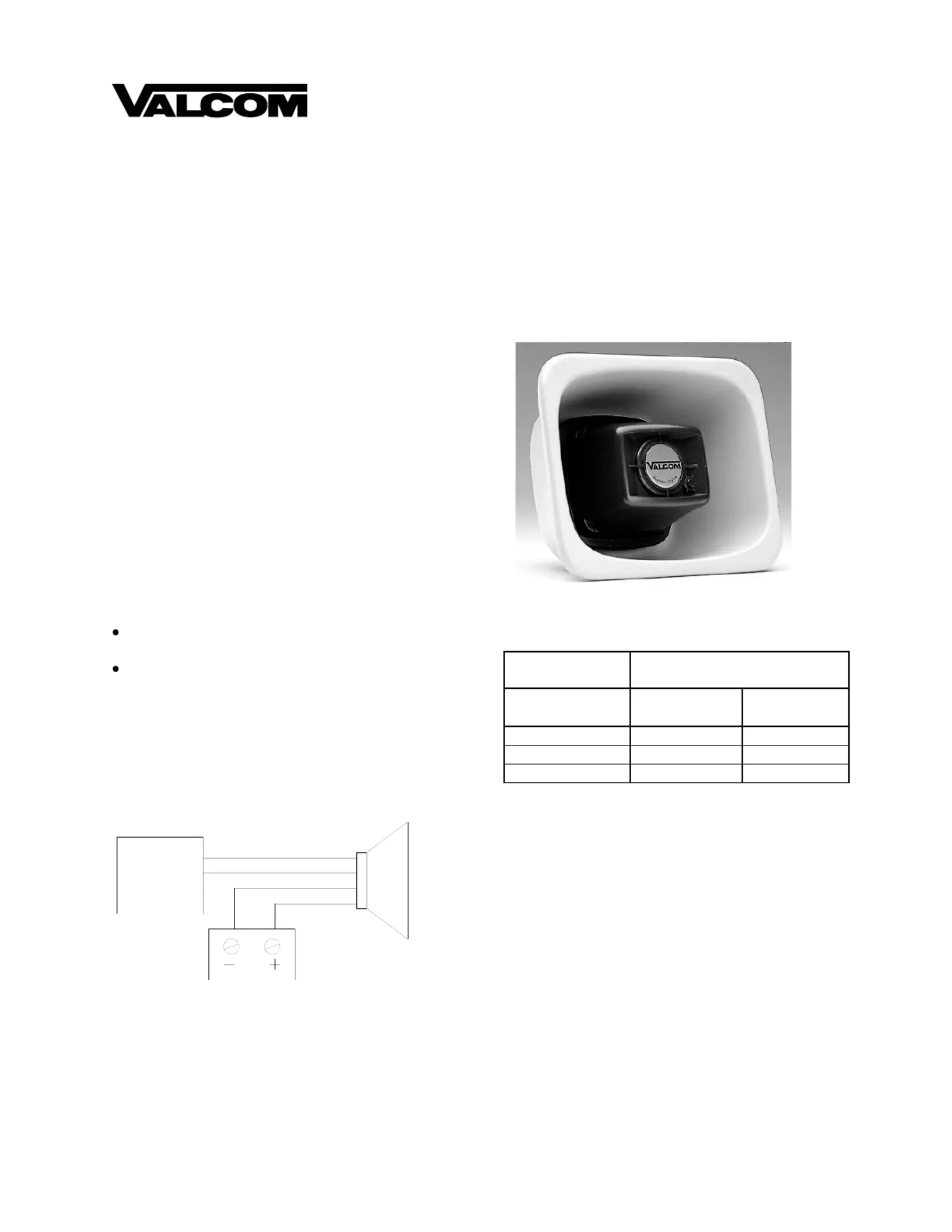

Issue 4

1 947780

V-1080 FLEXHORN

THREE WATT ONE-WAY PAGING HORN

INTRODUCTION

The Valcom V-1080 Flexhorn is a one-way

self-amplified paging horn designed to provide

voice paging as well as background music. This

horn is weatherproof and can be used indoors or

outside in environments ranging from -20 to

+55°C. A volume control is accessible on the

front of the cone. The horn is offered in gray,

beige and white.

Model V- -1080 GY Gray

Model V- - Beige 1080 BG

Model V- -W White 1080

Dimensions/Weight

6.80"H x 8.30"W x 3.30"D

(17.27cm H x 21.08cm W x 8.38cm D)

2.1 lbs. (0.95 kg)

The V-1080 requires -24VDC, 150mA (3 Valcom

Power Units) and is FCC Part 68 Registered

under BAFUSA- -69358 KX- N.

CONNECTIONS

NOTE: Do not connect this speaker directly to

a 25/70/100 Volt amplifier as damage to both

the amplifier and speaker may occur. A V-1095

can be used to provide an interface between a

centrally amplified speaker line and Valcom

self-amplified horns.

POWER WIRE RUN

# Horns per

Power Run

Wire Run Length (feet)

V- 1080

(3 Watts)

24 AWG

22 AWG

250

400

500

800

760

1200

MOUNTING INSTRUCTIONS

FLUSH MOUNT

Using the template packaged with the speaker,

draw the speaker outline on the wall to be cut.

Make appropriate wiring connections and test the

speaker for operation. Using appropriate

mounting screws (not furnished) drill and mount

the flange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves

by loosening or removing the handle and

hardware. Using the back leaf as a template,

mark the wall through the mounting holes, drill

and mount to the wall using appropriate screws

(not furnished) or mount directly to a junction box.

(Tip/A) Green

(Ring/B) Red

(-24VDC) White

(GND) Black

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Control

Valcom -24VDC

Power Supply

Mount the T-bracket to the back of the horn as

shown using the (2) ½ inch screws provided.

"C" CLAMP FOR "I" BEAM MOUNTING

A "C" clamp is provided with the horns to allow

mounting to a beam. Place the bolt through the

hole in the bottom of the base to secure the "C"

clamp to the beam. It is suggested that the horn

be mounted to the underside of the "I" beam to

provide maximum positioning adjustments.

Mount "C" clamp with (2) ½ inch screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is properly

connected and there are no broken connections

leading to this unit. Ascertain volume control is

turned up.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM

and a test set and call from the job site. Call

(540) 563- and press 1 for Technical Support 2000

or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Repair and Return Dept.

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019-5056

TROUBLESHOOTING CHART

PROBLEM

PROBABLE CAUSE AND CORRECTION

No Sound

- Check volume control turned up (clockwise).

- Check presence and polarity of -24VDC and GND.

- Using a telephone test set, check for the proper audio level on the Tip and Ring

leads and if necessary also at the source.

Low Volume

- Check volume control is turned up (clockwise).

- Check voltage at the horn when in use, - -24VDC required. 20 to

- Using a telephone test set, check for proper audio level on Tip and Ring leads.

It is possible that some low level audio will be heard with only one side of Tip

and Ring connected.

Loud Squeal

- Lower volume of horn.

- Aim horn in different direction.

- Increase the distance between the telephone and horn.

- Install a confidencer on the telephone in severe problem areas.

- Add a V-9964, Stacking Feedback Eliminator.
