Side 1/3

VSP-V-1016,V-1022C-27C

Issue 4

1947296

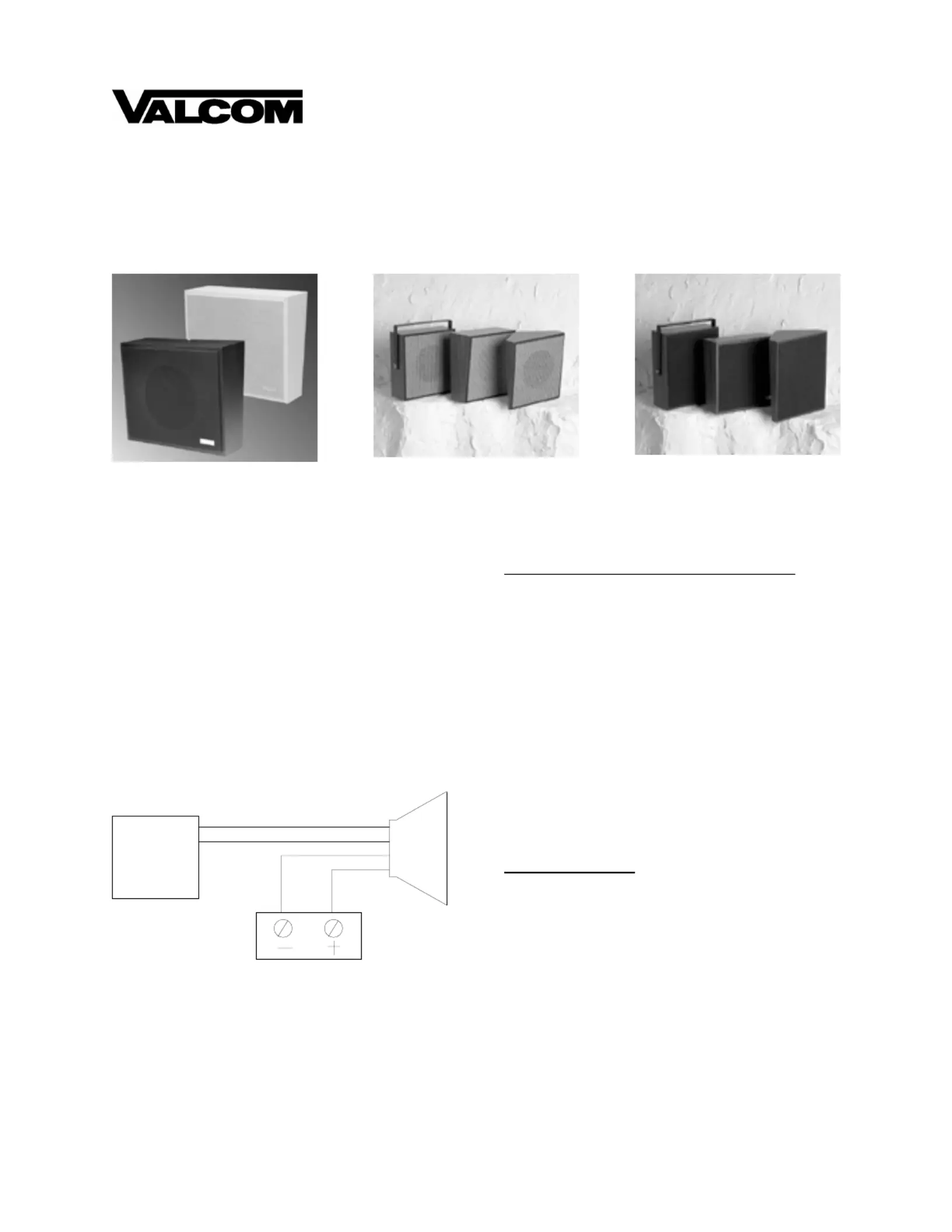

INSTALLATION INSTRUCTIONS FOR

ONE-WAY AMPLIFIED INTERIOR WALL SPEAKERS

V-1016-B, V-1016-W

V-1022C, V-1024C, V-1026C

V-1023C, V-1025C, V-1027C

Valcom One-Way Amplified Interior Speakers,

V-1016-W, V-1016-BK, V-1022C, V-1023C,

V-1024C, V-1025C, V-1026C, V-1026C-W,

V-1027C, are self-amplified and capable of

reproducing paging as well as background music.

These speakers have externally accessible volume

controls that are screwdriver adjustable. The

enclosures are vinyl laminated pressboard with either

a coordinating cloth or woven can grille. All

speakers require -24 Vdc, 50 mA (1 power unit) and

are FCC Part 68 registered under

BAFUSA-69358-KX-N.

INSTALLATION

Typical Connections

NOTE: Do not connect this speaker directly to a

25/70/100 volt amplifier as damage to both the

amplifier and speaker may occur. A V-1095 may

be used to allow the use of Valcom self-amplified

speakers on 70V speaker lines.

Mounting

Ideal mounting heights are 8 to 12 ft. above the floor.

V-1016-BK, V-1016-W, V-1022C, V-1023C:

Remove the screw holding the mounting bracket to

the speaker housing. Mount bracket using appro-

priate hardware such as #8 pan head screws. After

making the required connections, reattach the speaker

housing to the mounting bracket.

• V-1016 – 9.7”H x 11.5”W x 4.0”D

(24.6cm H x 29.2cm W x 10.16cm D)

• 4.1 lbs. (1.86kg)

• V-1022C – 9.6”H x 11.5”W x 4.2”D

(24.4cm H x 29.2cm W x 10.7cm D)

• 4.5 lbs. (2.04kg)

• V-1023C – 9.6”H x 11.5”W x 4.2”D

(24.4cm H x 29.2cm W x 10.7cm D)

• 4.1 lbs. (1.86kg)

V-1024C, V-1025C: After making required connec-

tions, use appropriate hardware such as an 8d

finishing nail to hang the speaker housing in the

corner.

• 10.5”H x 9.5”W x 6.3”D

(26.7cm H x 24.1cm W x 16cm D)

• 3.6 lbs. (1.63kg)

Page

Out

Valcom Page

Control

(Tip/A)

(Ring/B)

(-24Vdc)

(Gnd)

Valcom -24 Vdc

Power Supply

One-Way

Amplified

Speaker

2947296

V-1026C, V-1026C-W, V-1027C: Remove wing

nuts holding mounting bracket to speaker housing.

Remove bracket and mount using appropriate

hardware such as #8 pan head screws. Reattach

speaker housing to mounting bracket. Remove the 4

screws holding the reverse side grille to the speaker

housing and remove the grille. After making required

connections, reattach the grille to the speaker

housing.

• 10.3”H x 10.3”W x 4.2”D

(26.2cm H x 26.2cm W x 10.7cm D)

• 5.6 lbs. (2.54kg)

COVERAGE

The area covered by a wall speaker is typically 600

square feet.

Number of Speakers per Audio Run

Wire Run (Ft.) 22 AWG 24 AWG

400

800

1600

100

Number of Speakers per Power Run

1 Watt Interior

Speakers 22 AWG

24 AWG

200 ft.

400 ft.

800 ft.

125 ft.

250 ft.

500 ft.

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken

connections. Assistance in troubleshooting is

available from the factory. Call (540) 427-3900 and

ask for Technical Support, or call (540) 427-6000 for

Valcom 24-hour Automated Support or visit our

website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the unit

clearly stating company name, address, phone

number, contact person, and nature of the problem.

Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

TROUBLESHOOTING CHART

SYMPTOM ACTION

1. No audio from

speaker.

1a. Check that volume control is turned up (clockwise).

1b. Using a lineman's test set check for the proper audio level on the Tip and Ring

leads, and if necessary also at the source.

2. Low volume from

speaker.

2a. Check that volume control is turned up.

2b. Check voltage at the speaker assembly when in use, -18 to -24 Vdc required.

2c. Using a lineman's test set, check for the proper audio level on Tip and Ring

leads. It is possible that some low level audio will be heard with only one side of

Tip and Ring connected.

3. Loud squeal

(feedback).

3a. Turn down (counter-clockwise) volume of the speaker.

3b. Increase the distance between the telephone and speaker.

3c. Install a noise canceling handset on the telephone in severe problem areas.

3d. Add a V-9962 Digital Feedback Eliminator.

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	V-1026C
Bredde:	262 mm
Dybde:	107 mm
Højde:	262 mm
Vægt:	2880 g
Produktfarve:	Brun
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Udgangseffekt (RMS):	- W
Equalizer:	Ingen
Driftstemperatur (T-T):	-20 - 55 °C
Frekvensområde:	85 - 15000 Hz
Impedens:	600 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	1-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Kan monteres på væggen
Signal/støjforhold:	-70 dB
Forstærker:	Indbygget
