Side 1/4

VSP V- -1030C/1036C

Issue 8

1 947031

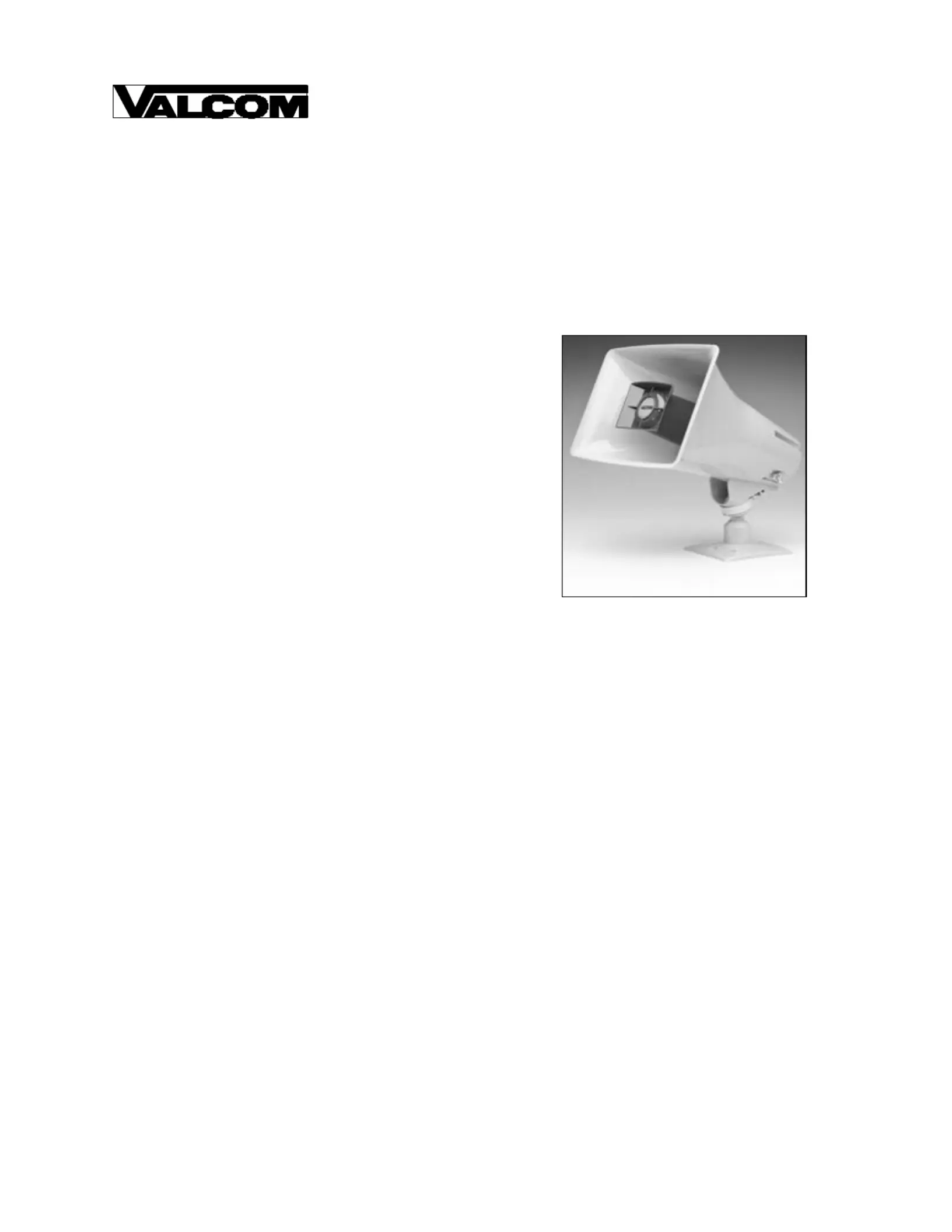

V- -1030C and V 1036C

PAGING HORN AMPLIFIER ASSEMBLIES

INTRODUCTION

This instruction contains the specifications and

information necessary to install, operate, and maintain

the V-1030C and the V-1036C Paging Horn Amplifier

Assemblies.

This equipment has received FCC type KX

registration, designed to be used with FCC registered

Key Telephone Systems. In accordance with FCC

Rules with applicable tariffs, this Paging Unit may

only be installed with the authorization of the host

system. Installations may be made by Valcom, Inc.,

an authorized agent of the same, equipment

manufacturers, telephone companies, registered

telephone refurbishers, and those qualified for

installation of FCC registered systems under FCC

Rules Section 68.215.

The FCC Registration Number,

BAFUSA- - -69358 KX N, will be listed in the affidavits

filed with the Telephone Company; it will also be

recorded in the system log kept by installation and

maintenance personnel. The local Telephone

Company is to be notified of the FCC Registration

Number when this Paging Unit is installed.

SPECIFICATIONS

Description

The V-1030C and V-1036C are Paging Horn/ Amplifier

Assemblies. The V- -1030C is a self contained 5 Watt

paging system with a 5 Watt amplifier; the V-1036C is

a self-contained 15 Watt paging system with a 15

Watt amplifier. Both units incorporate a high

efficiency horn with a volume control.

Applications

• Use with Valcom page control

• Expanding the capability of telephone systems

which contain limited paging capabilities

• Loud ringer application in systems where

loud-speaker tone signaling is employed

V-1030C - Nominal Specifications

Input Impedance: 1000 Ohms nominal

Input level: -15dBm to +10dBm

Current at -24VDC: 300mA

V-1036C - Nominal Specifications

Input Impedance: 1000 Ohms nominal

Input level: -15dBm to +10dBm

Current at -24VDC: 900mA

Dimensions/Weights

• V-1030C - 7.38" H x 10.00" W x 10.40" D

(18.75cm H x 25.40cm W x 26.42cm D)

• 3.6 lbs. (1.63 kg)

• V-1036C - 7.38" H x 10.00" W x 10.40" D

(18.75cm H x 25.40cm W x 26.42cm D)

• 3.7 lbs. (1.68 kg)

Environment

• Temperature: -20 to +55 Degrees C

• Humidity: 0 - - 95% non precipitating

Horn Spacing

(Coverage shown in parenthesis)

Location V-1030C

5 Watt

V-1036C

15 Watt

Quiet 110'

(12,000 sq. ft.)

N/A

Moderate 80'

(6,400 sq. ft.)

N/A

Noisy 50'

(2,500 sq. ft.)

75'

(5,600 sq. ft.)

Very Noisy 30'

(900 sq. ft.)

45'

(2,000 sq. ft.)

Example: In a quiet environment, V-1030C, 5 Watt

Horns, would be spaced 110 feet apart side to side

and would provide good quality sound 110 feet in

front of each horn approximately 12,000 sq. ft. of

coverage.

Definitions:

Quiet: 50-65db. This would include areas such as

waiting rooms, doctor’s examination rooms, stock

areas, etc.

Moderate: 65-80db. This includes areas such as

warehouses, shipping areas or light manufacturing.

Noisy: 80-90db. This includes machine shops or

heavy manufacturing.

Very Noisy: Greater than 90db. This would include

any areas where talking to another person is very

difficult. Workers may be required to wear earplugs.

Audio Wire Runs

When a remote power unit is used, the audio pair run

should be limited to 5,000 feet and a maximum of 4

horns when using 24 AWG wire. A V-1094A, Page

Port Pre-Amp/Expander, may be added to increase the

number of horns and/or distance. Twisted pair wire

(standard telephone wire) should be used for

connections.

Power Wire Run

For good quality sound, the distance recommended

between the power supply and horns should be

adhered to.

See the Valcom power run gauge guide for additional

wire gauges and distances.

Number of Horns

per Power Run

Wire Run Length

(Feet)

15 Watt 5 Watt

V-1036C V-1030C 24 AWG 22AWG

1 4 125 200

0 2 250 400

0 1 500 800

INSTALLATION

Wiring Connections

Twisted pair wire (standard telephone wire) should be

used for connections.

Green - Tip (Audio)

Red - Ring (Audio)

Black - Ground Power In

White - - ( 24VDC)

Brown - Not Used

Attaching Speaker to Base

NOTE: For ease of installation, the base can be

attached to the speaker before or after the base is

mounted.

• Loosen position adjustment knob

• Insert the ball of the base into the socket of the

speaker

• Tighten the position adjustment knob

Mounting

These horns should be mounted 15 to 20 feet above

the floor to allow for best sound distribution. The

units can be mounted to a wall, a beam or an electrical

box.

• Mount the base to a wall using the two holes

provided. Knockout holes are provided for

punch out should additional holes be desired.

• A "C" clamp is provided with the horns to allow

mounting to a beam. Place the bolt through the

hole in the bottom of the base to secure the "C"

clamp to the beam (See Figure 1). It is suggested

that the horn be mounted to the underside of the

"I" beam to provide maximum positioning

adjustments.
