Side 1/5

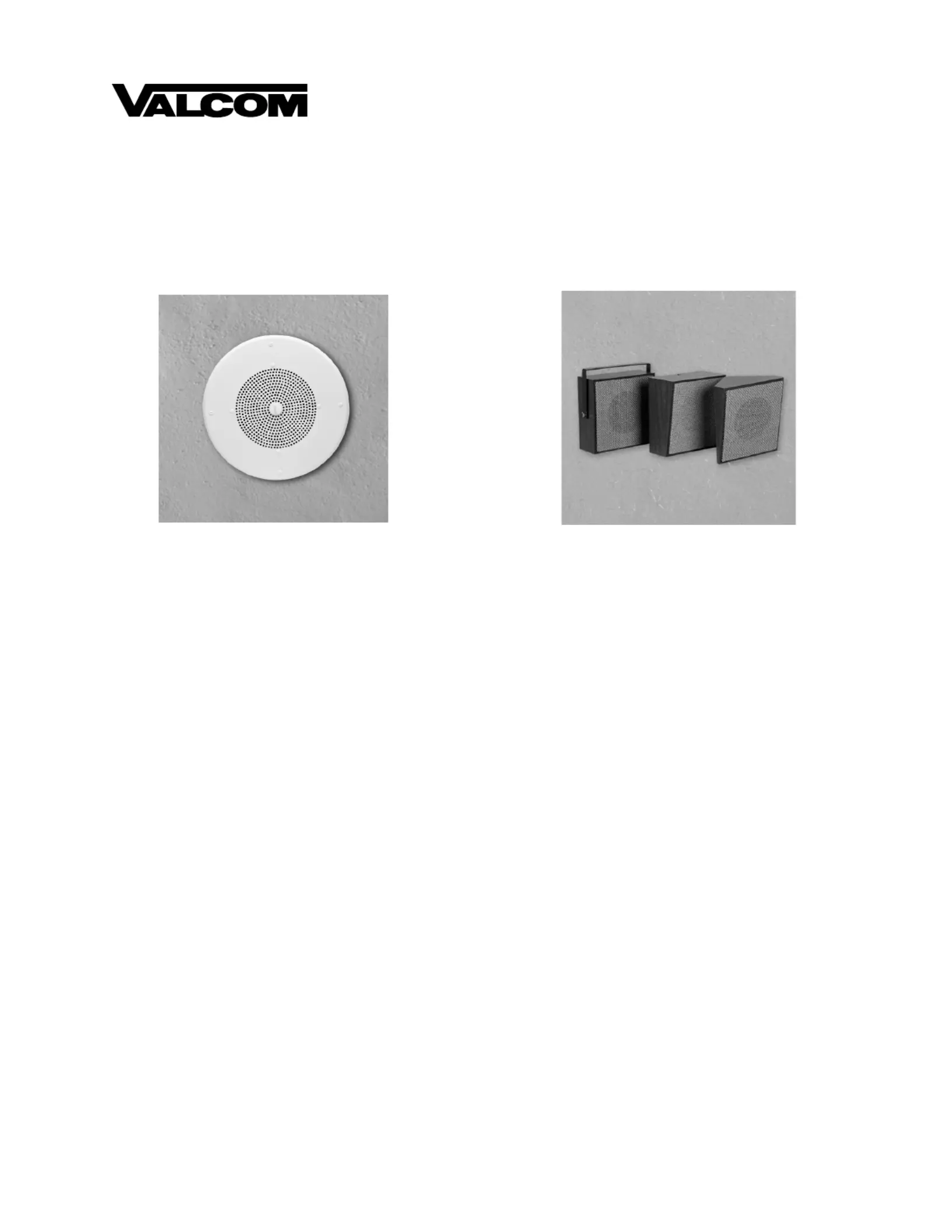

VSP-Dual Input One Way Amp. Spkrs

Issue 5

1947221

DUAL INPUT

ONE-WAY AMPLIFIED INTERIOR SPEAKERS

V-1220

INTRODUCTION

The V-1220, V-1222, V-1224, and V-1226 are dual

Input One-Way Amplied Speaker assemblies for use

with any one-way or handsfree page control unit.

These speakers are for interior use only.

These instructions contain the specifications and

information necessary to install, operate and maintain

the Dual Input One-Way Amplified Interior Speakers.

SPECIFICATIONS

Applications

•

One or Two-Way Page Controls

•

Electronic Key System Page Ports (interface

adapter may be required)

•

PABX Page Ports (interface adapter may be

required)

•

Stand Alone Systems

•

Existing 70V Paging Systems

•

Background music systems

V-1226, V-1222, V-1224

Features

•

Self-contained dual input amplifier and volume

controls

•

8 inch cone type speaker

•

Operates on -24VDC

•

All speakers wired with 3 pair station cable

•

Screw terminals for all connections

Dimensions/Weight

•

V-1220 - Ceiling Speaker

13.0" Dia. X 3.0" D

(33cm Dia. X 7.6cm D)

2.6 lbs. (1.18 kg)

•

V-1222 - Wall Speaker

10.6"H x 9.7"W x 5.2"D

(26.92cm H x 24.63cm W x 13.20cm D)

4.4 lbs. (2.0 kg)

•

V-1224 - Corner Speaker

10.6"H x 9.7"W x 6.3"D

(26.9cm H x 24.6cm W x 16cm D)

3.6 lbs. (1.63 kg)

•

V-1226 - Corridor Speaker

10.3"H x 10.3"W x 4.2"D

(26.2cm H x 26.2cm W x 10.7cm D)

6.5 lbs. (3.0 kg)

2947221

Nominal Specifications

•

Amplifier Input Impedance

1000 Ohms Nominal

•

Amplifier Input Level -10dBm Nominal

•

Amplifier Output 1 watt into 45 Ohm spkr load

Power Requirements

•

Voltage -24VDC

•

Current 50mA

Environment

•

Temperature 0 to 50 Degrees C

•

Humidity 0 - 85% non-precipitating

DESIGN

The Valcom Dual Input One-Way Amplified Interior

Speakers may be used to provide one-way paging

from one-way or talkback page controls. The

speakers provide a means for connecting one speaker

to two audio sources, making it easy to provide

features such as background music, group call, or

emergency override. These speakers can also be used

to expand existing 70V paging systems. When power

and the appropriate input signal are applied, voice

page can be made.

Page Control Access

When using the One-Way Amplified Speakers with a

Page Control, the following equipment will be

required:

•

Appropriate one-way speaker assembly

•

Page Control

•

Power Supply sized to provide power to

operate the amplified speaker

assemblies and page control. (See

Figure 1 for Page System Block

Diagram)

NOTE: When using Valcom Dual Input One-Way

Interior Speakers with a handsfree page control, it is

recommended that a V-1092 Volume Control be

connected between the zone output and the speaker

input to lower the signal level to the one-way

speakers (to prevent overdriving of inputs).

25V or 70V Paging Systems

When using the One-Way Amplified Speakers with

an existing 25 or 70V paging system, the following

equipment will be required:

•

Appropriate one-way speaker assembly

•

Power supply sized to provide power to

operate the amplified speaker

assemblies

•

25V or 70V line transformer tapped at

1/4 watt with an 8 Ohm output

Background Music

The Valcom Dual Input One-Way Amplified

Speakers may be used with a page control for the

purpose of providing background music on a per zone

basis along with one-way voice paging (See Figure 2

for a Background Music Block Diagram).

NOTE: When using the Dual Input One-Way

Amplified Speakers with background music and a

handsfree page control unit, it is recommended that a

V-1094A Page Port Preamp/Expander be connected

between the zone output and the speaker input to

eliminate backfeed of the background music to the

handsfree control unit.

MUSIC

SOURCE

PAGE

CONTROL

POWER

SUPPLY

DUAL INPUT

ONE-WAY

AMPLIFIED

SPEAKER

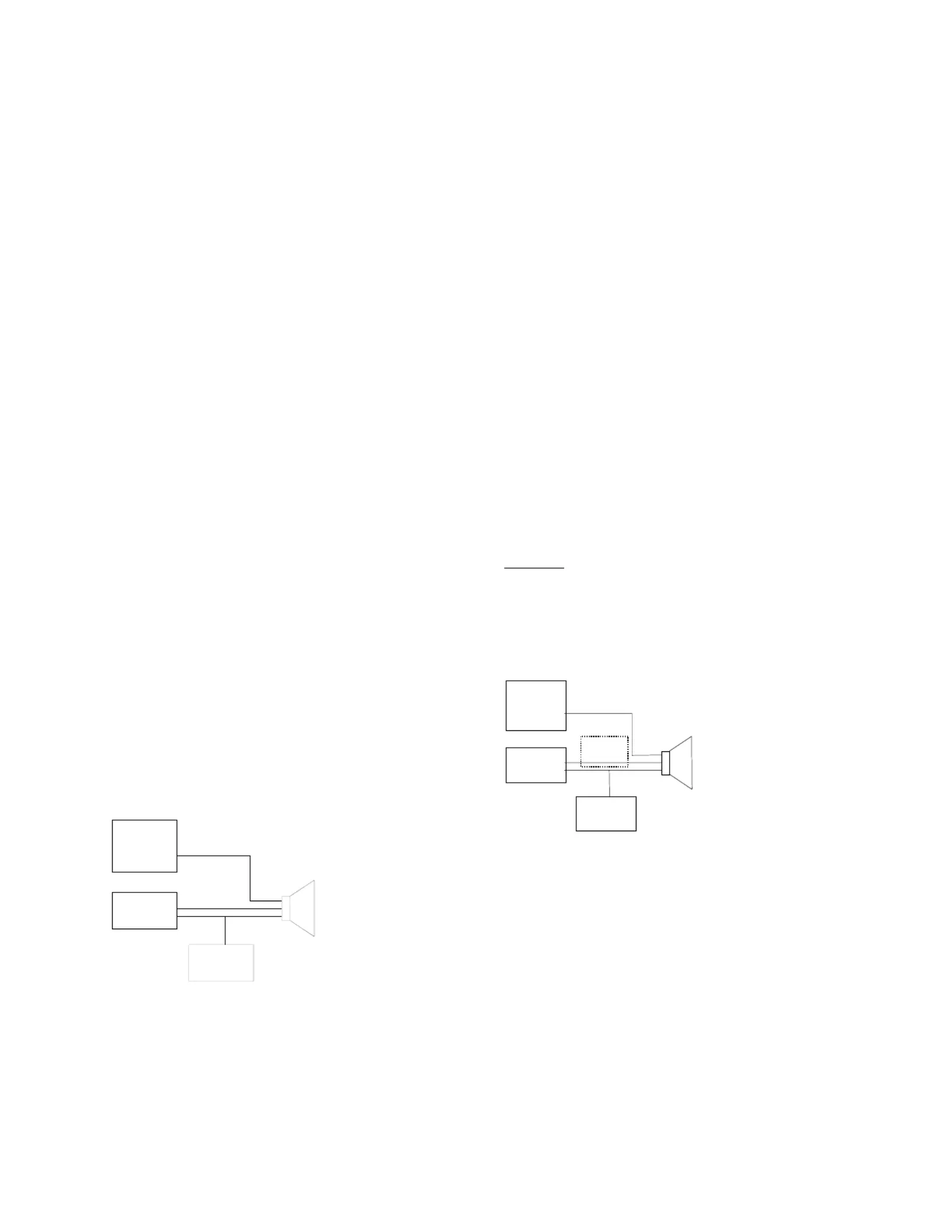

FIGURE 2 - PAGE SYSTEM BLOCK DIAGRAM

V-1094A

* The V-1094A is recommended when using

Handsfree Page Control

SECOND

AUDIO

SOURCE

PAGE

CONTROL

POWER

SUPPLY

DUAL INPUT

ONE-WAY

AMPLIFIED

SPEAKER

FIGURE 1 - PAGE SYSTEM BLOCK DIAGRAM

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	V-1220
Bredde:	330 mm
Dybde:	76.2 mm
Højde:	330 mm
Vægt:	1700 g
Produktfarve:	Hvid
Udgangseffekt (RMS):	- W
Equalizer:	Ingen
Husmateriale:	Metal, Steel
Frekvensområde:	80 - 10000 Hz
Impedens:	600 ohm (Ω)
Højttaler, type:	1-vejs
Højttaler, placering:	Kan monteres i loftet
Antal drivere:	1
Driver diameter:	203.2 mm
Signal/støjforhold:	-70 dB
Forstærker:	Indbygget
Subwoofer driver diameter (britisk):	8 "
