IP Loudspeakers

Valcom, Inc. 5614 Hollins Road Roanoke, Virginia 24019 Phone: 540-563-2000 Fax: 540-362-9800

E-Mail: info@valcom.com www.valcom.com

Page



Technical Specification

FEATURES:

 SIP And Multicast Enabled

 Easy To Install via RJ-45

 Power over Ethernet (PoE 802.3af)

 Live, Recorded Or Scheduled

Messages

 Easily Connect Loudspeaker System

To Existing Computer Networks 10/100

 Compatible With Cisco, Nortel, Avaya

And Most IP Telephone Systems

 Windows Based Application For

Control And Setup

 Can Operate Over Secure Networks

 One-Way Paging

 Paging Prioritization

 Firmware Upgradeable

 High Efficiency

 Line Out Supports Amplified Speakers

 Synchronized Clock Option

 Supervision

 Test / Setup Tones

 Supports Checkmate, PagePro IP

 DHCP Addressable

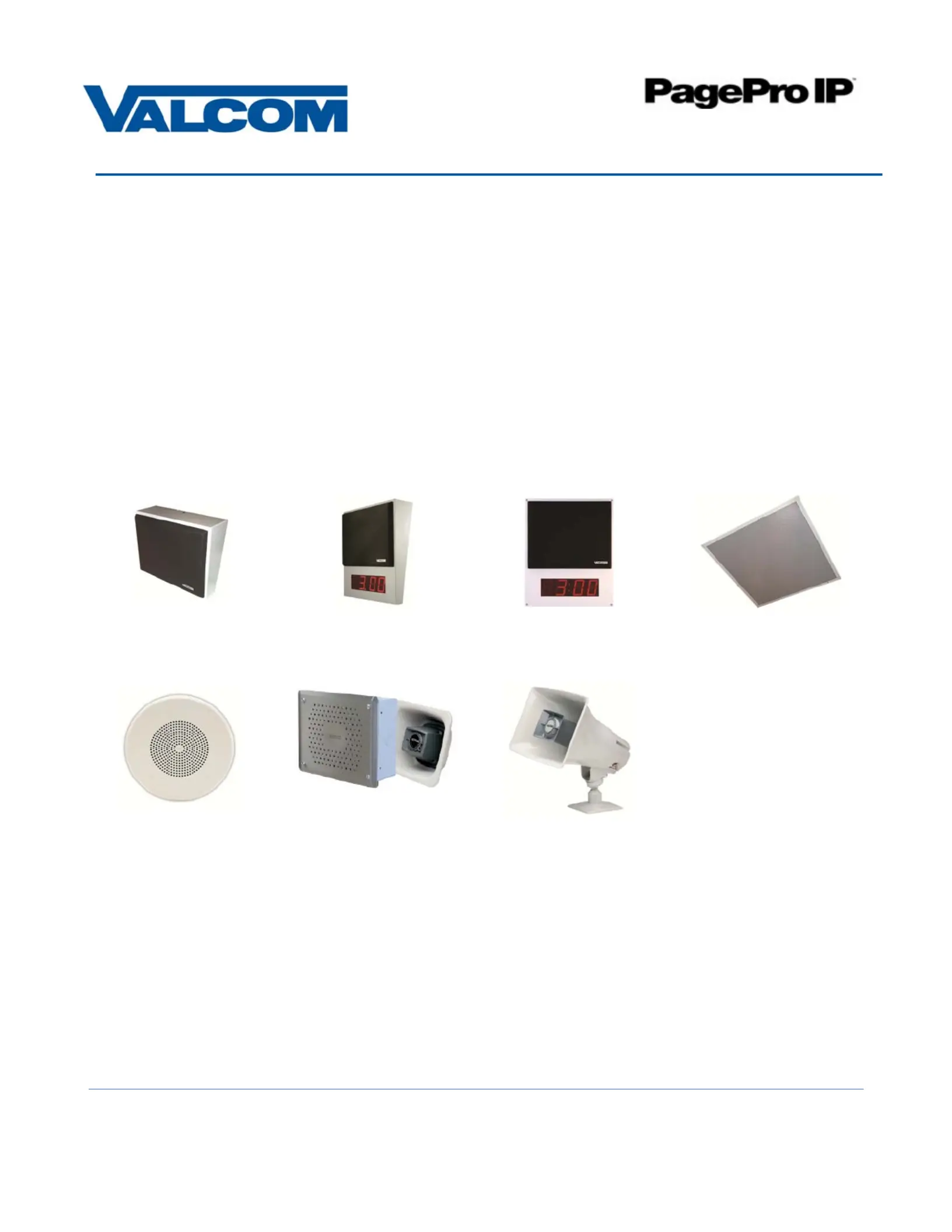

VIP-410 One-Way

Wall IP Speaker

Gray w/ Black Grille,

Paintable Body

VIP-411-DS One-Way

Wall Mount IP Speaker

Gray w/ Black Grille,

w/ Digital Clock

VIP-412-DF One-Way

Flush Mount IP Speaker

Gray w/ Black Grille,

w/ Digital Clock

VIP-402 One-Way

2' x 2' Lay-in IP Speaker

w/ integral backbox/bridge

VIP-120 One-Way

8" Round Ceiling

IP Speaker

VIP-480L One-Way

IP Horn w/ Long Line

Extender

Vandal-Resistant

Enclosure (optional)

VIP-130L One-Way

5-Watt High Efficiency

IP Horn w/Long Line

Extender

(BG) Beige (GY) Gray M)

Marine

Applications

General: Paging/notification applications over existing networks - global WANs

Governments: Provide secure, supervised, high survivability notification systems

Healthcare: The most practical way to page huge facilities

Education: Cost effectively page hundreds of buildings and classrooms (supervised)

Transportation: Airports, Ferry Terminals, Subway Stations, Bus Stops, etc

IP Loudspeakers

Valcom, Inc. 5614 Hollins Road Roanoke, Virginia 24019 Phone: 540-563-2000 Fax: 540-362-9800

E-Mail: info@valcom.com www.valcom.com

Page 2

Technical Specification

General Description

Group Paging Features

Accessible as specific SIP end point and accessible as a multicast group member. Valcom multicast group

paging features robust grouping and priority controls. This makes it easy to distribute low priority

announcements yet allow high priority paging to overide ongoing announcements

Group Paging Priority Feature

An absolute priority can be assigned to allow for emergency override in any circumstance. Group paging

priorities work locally or across the network in the same fashion allowing facility wide emergency paging.

Supervision Features

If a fault is detected in speakers it can be reported to an external device or syslog facility.

Options

Clocks - several styles Explosion proof speaker available

Specifications:

Power

External: 24 VDC @ 325 ma

PoE: 802.3af, class 3

Networking

10/100 Mbps Ethernet port

Manual or Dynamic Host Configuration Protocol

(DHCP) IP address setup.

Time and date synchronization using NTP

Protocols

IETF SIP (RFC3261)

IETF IGMP version 3 (RFC3376)

IETF RTP (RFC1889)

IETF RFC2833

Digest Authentication

Environment

FCC Part 15, WEE

DIMENSIONS AND WEIGHT

VIP-410

Dimensions:10.13" H x 12.31" W x 4.63" D (25.73 cm x 31.27 cm x 11.76 cm)

Weight: 4.25 lbs (1.91 kg) Shipping Weight: 5.5 lbs ( 2.475 kg)

VIP-411-DS

Dimensions:14.90” H x 12.40” W x 4.67” D (37.8 cm x 31.5 cm x 11.86 cm )

Weight: 4.25 lbs (1.91 kg) Shipping Weight: 7.7 lbs ( 3.465 kg)

VIP-412-DF

Dimensions: 20.25" H x 14.38" W x 3.75" D (51.4cm x 36.5 cm x 9.5 cm)

Weight: 4.25 lbs (1.91 kg) Shipping Weight: 8.1 lbs ( 3.645 kg)

VIP-402

Dimensions: 23.75" H x 23.75" W x 4.25" D (60.3 cm x 60.3 cm x 10.8 cm)

Weight: 5.50 lbs (2.48 kg) Shipping Weight: 9.0 lbs ( 4.05 kg)

VIP-130-L

Dimensions: 7.38" H x 10.0" W x 10.4" D (18.7 cm x 25.4 cm x 26.4 cm)

Weight: 5.0 lbs (2.25 kg) Shipping Weight: 5.5 lbs ( 2.475 kg)

VIP-480-L

Dimensions: 6.8" H x 8.3" W x 3.3" D (17.3 cm x 21.1 cm x 8.4 cm)

Weight : 2.1 lbs (0.95 kg) Shipping Weight: 5.0 lbs ( 2.25 kg)

Enclosure Dimensions::

8.50" H x 11.0" W x 4.0" D (21.59cm H x 27.94cm W x 10.16cm D)

Weight : 5.20 lbs (2.34 kg) Shipping Weight: 6.0 lbs (2.7 kg)

VIP-120

Dimensions: 12.88" H x 12.88" W x 4" D (32.7 cm x 32.7 cm x 10.2 cm)

Weight: 2.5 lbs (1.22 kg) Shipping Weight: 5.0 lbs ( 2.25 kg)

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	VIP-580
Produktfarve:	Grå
Wi-Fi:	Ingen
Bluetooth:	Ingen
Udgangseffekt (RMS):	- W
Equalizer:	Ingen
Volumenkontrol:	Digital
Anbefalet brug:	Universel
Frekvensområde:	- Hz
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	1-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	In-wall/in-ceiling, Wall-mountable
Netværksstandarder:	IEEE 802.3af
LED-indikatorer:	Ingen
Strømkilde type:	DC
Fjernbetjent:	Ingen
Antal drivere:	1
Diskanthøjttaler:	Ingen
Sensitivitet:	114 dB
DC indgangsspænding:	24 V
Bashøjttaler:	Ingen
Forstærker:	Indbygget
Højttaler kabinet:	Lukket
Højttalerplacering:	Satellit
USB påkrævet:	Ingen
Aftagelig beskyttelsesdæksel:	Ja
Klemskrue:	Ja
