Side 1/4
1 947819
ISSUE 3
VIP-130AL-IC InformaCast® Compliant
IP Paging Horn
INTRODUCTION
The VIP-130AL consists of a high eciency horn
and a Network Interface compatible with
Singlewire InformaCast broadcasts.
Beige (-BGE), Gray (-GY) and Marine White
(-W).
The Marine version features additional weather
protection, including an O-ring seal on the bell
housing and stainless steel hardware.
Installation
Mounting (Network Interface)
The Network Interface is designed for wall or
shelf mounting and must be within 300 feet of
the network switch.
Shelf: Provided with the Network Interface are
four rubber pads. Peel the pads from the carrier
backing and place at the four corners of the
bottom of the unit.
Wall: Using the brackets and wood screws
provided, secure the Network Interface to the
wall.
Mounting (Horn)
The VIP-130AL-IC Horn is designed for most FD
electrical box or wall mounting and must be
within 350 feet of the VIP-130AL Network
Interface. See NEMA OS 3-2002 sec.1.2.3.5 for
FD box specifications.
Attaching Speaker to Base
NOTE: For ease of installation, the base can be
attached to the speaker before or after the base
is mounted.
Loosen position adjustment knob
Insert the ball of the base into the socket of
the speaker
Tighten the position adjustment knob
These horns should be mounted 15 to 20 feet
above the oor to allow for best sound
distribution. The units can be mounted to a wall,
a beam or an electrical box.
A “C” clamp is provided with the horns to
allow mounting to a beam. When using the
“C” clamp for mounting, remove the signal
cable from the ball mount. Reinstall an
RJ45 connector on the signal cable after
mounting, using the T568B pinout scheme.
See Figure 1.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
2 947819
The base has holes punched for a
double-gang square box, but by punching
out additional knockout holes, the base can
be mounted to a single-gang or octagon box
See Figure 2.
Mount the base to wall studs using the two
holes provided. Knockout holes are
provided for punch out should additional
holes be desired. See Figure 3.
The horn may be rotated or moved up and down
to obtain the desired position by loosening the
position adjustment knob at the bottom of the
unit approximately one turn. Make required
adjustments and re-tighten knob.

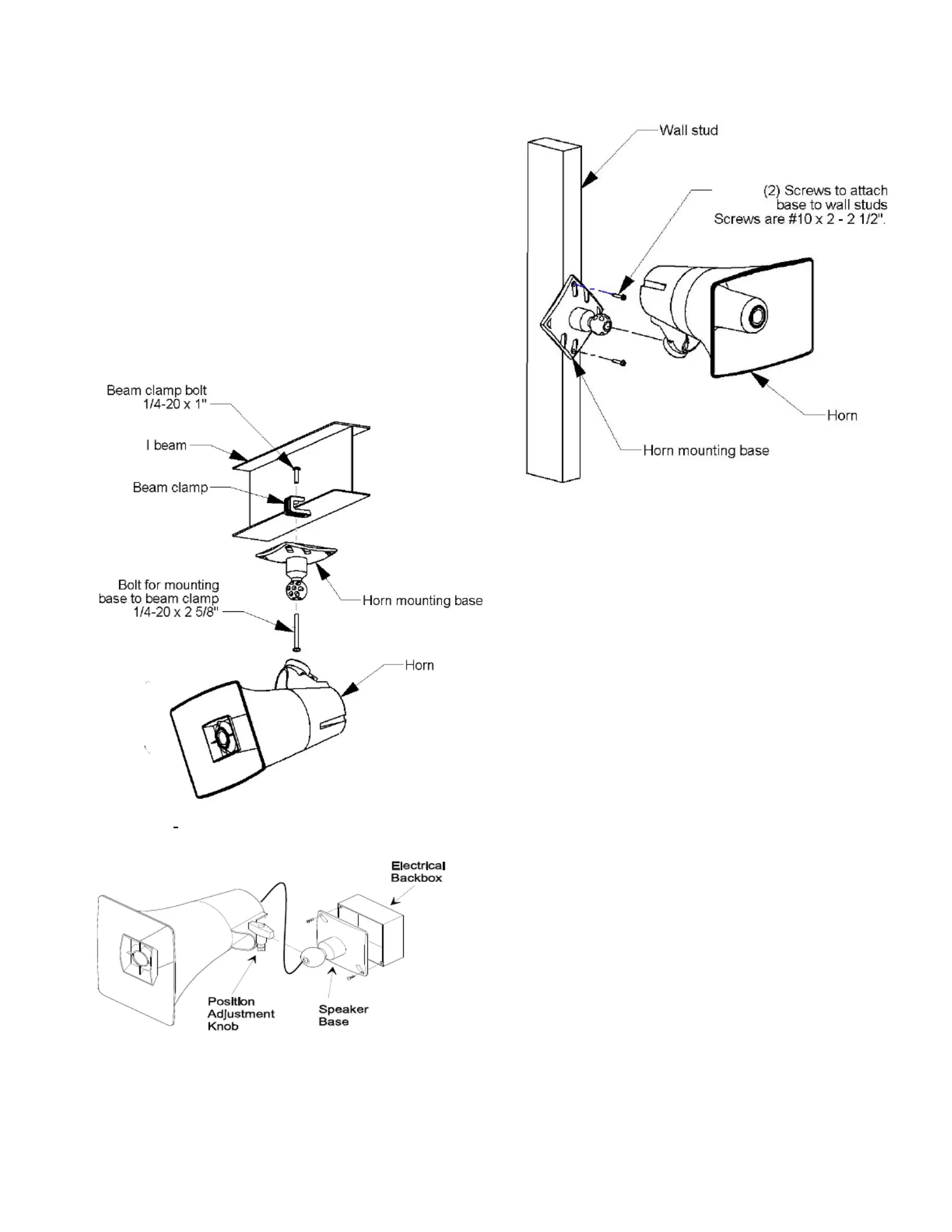

Figure 1. Mounting to a Beam with a “C” Clamp
Figure 2. Mounting to an Electrical Backbox
Figure 3. Mounting to a Wall Stud
Interconnections
The only method of powering the VIP-130AL-IC
IP Paging Horn is via a Power over Ethernet
(PoE) switch or power injector meeting the
802.3af specification.
Make all required signal connections before
connecting to Ethernet switch or power injector
meeting the 802.3af specification. Power is
supplied to the horn assembly via the Network
Interface
Signal Connections
Audio output connection is made from the Signal
Output. The RJ-45 connector on the horn is
connected directly to the RJ-45 Signal Output
socket on the IP Link. If additional length is
required, any standard T568B extension may be
used. See Figure 4.
Network Connection
The Network Interface has one RJ-45 network
connector. Use a standard Ethernet patch cable
to connect the Network Interface to an Ethernet
switch.
