VSP-45 Ohm TB Int Spkrs

Issue 8

1 947065

45 OHM TALKBACK INTERIOR SPEAKERS

V-1060A

V- - - -1061 BK, V 1061 W

V- - -1062A, V 1064A. V 1066A

INTRODUCTION

These instructions contain the specifications and

guidelines necessary to install, operate and maintain

the 45 Ohm Talkback Interior Speaker Assemblies.

The 45 Ohm Talkback Interior Speaker Assemblies are

for use with the Valcom "handsfree" talkback page

control units and are for interior use only.

SPECIFICATIONS

Features

• 45 Ohm Impedance

• 8 Inch Speaker

• Easy Hook-up (2 connections using house cable

or station wire)

V- - -1063A, V 1065A, V 1067A

Dimensions/Weight

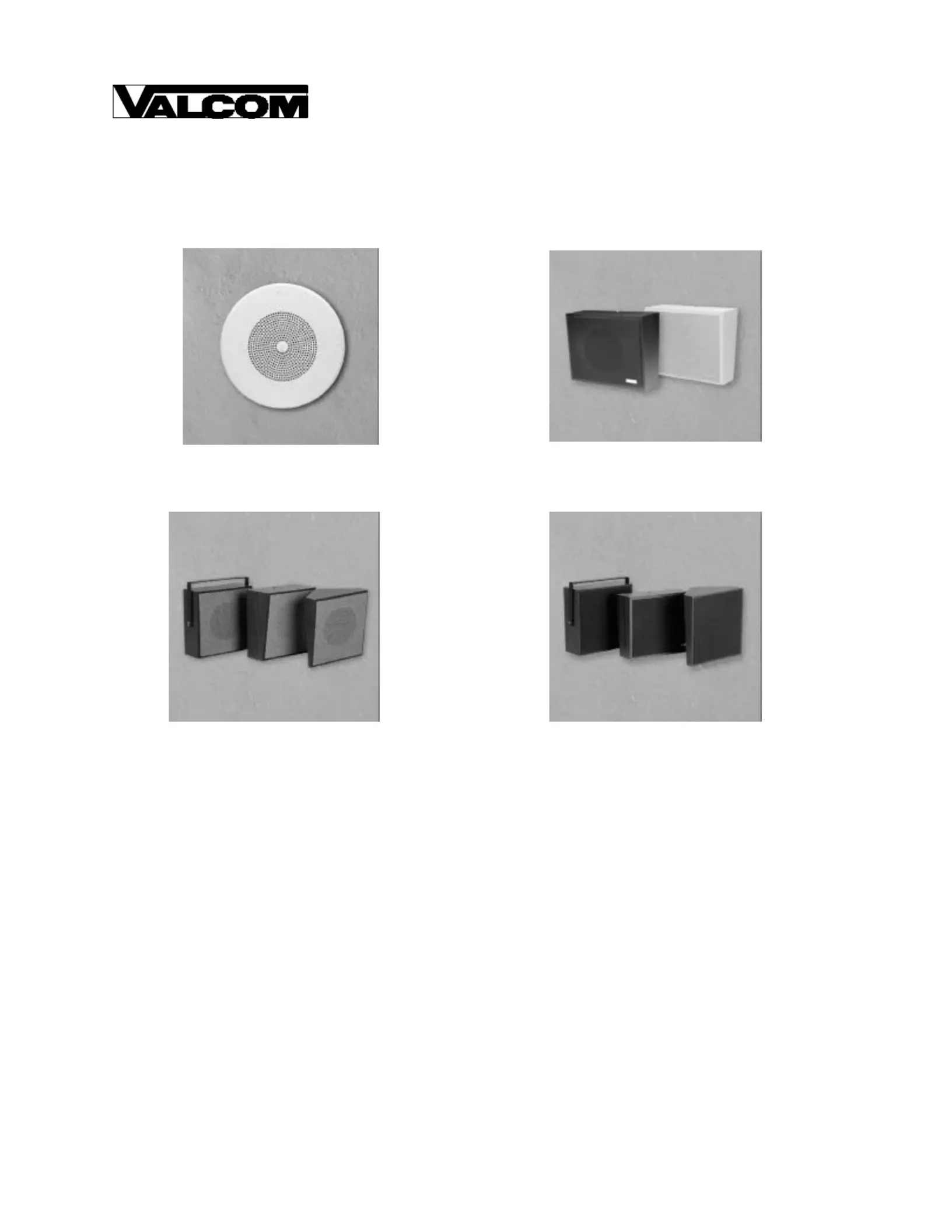

V-1060A 8.00" Ceiling Speaker

13.00" Diameter x 2.50" D

(33.02cm Diameter x 6.35cm D)

2.5 lbs. (1.13 kg)

V- - -1061 BK Wall Speaker black vinyl with black cloth

grille -

9.60" H x 11.50" W x 4.20" D

(24.38cm H x 29.21cm W x 10.67cm D)

4 lbs. (1.81 kg)

V- - -1061 W Wall Speaker white vinyl with white cloth

grille -

9.60" H x 11.50" W x 4.20" D

(24.38cm H x 29.21cm W x 10.67cm D)

4 lbs. (1.81 kg)

V- -1062A Wall Speaker wood grain with light

brown open weave grille -

10.60" H x 9.70" W x 5.20" D

(26.92cm H x 24.64cm W x 13.21cm D

5.4 lbs. (2.45kg)

V- -1063A Wall Speaker wood grain with dark

brown cloth grille -

10.60" H x 9.70" W x 5.20" D

(26.92cm H x 24.64cm W x 13.21cm D)

4.0 lbs. (1.81 kg)

V- -1064A Corner Speaker wood grain with light

brown open weave grille -

10.50" H x 9.50" W x 6.30" D

(26.67cm H x 24.13cm W x 16.00cm D)

3.7 lbs. (1.68 kg)

V- -1065A Corner Speaker wood grain with dark

brown cloth grille -

10.50" H x 9.50" W x 6.30" D

(26.67cm H x 24.13cm W x 16.00cm D)

3.7 lbs. (1.68 kg)

V- -1066A Corridor Speaker wood grain with light

brown open weave grille -

10.30" H x 10.30" W x 4.20" D

(26.16cm H x 26.16cm W x 10.67cm D)

5.7 lbs. (2.59 kg)

V- -1067A Corridor Speaker wood grain with dark

brown cloth grille -

10.30" H x 10.30" W x 4.20" D

(26.16cm H x 26.16cm W x 10.67cm D)

5.6 lbs. (2.54 kg)

Power Requirements

None

Environment

Temperature: -20 to +55

Humidity: 0 to 95% non-precipitating

SYSTEM DESIGN

General

The 45 Ohm Talkback Speakers are designed to be

used with the Valcom "handsfree" talkback control

units. In combination with these units, they will

provide both loudspeaker and talkback functions.

A standard Valcom talkback paging system is made

up of three basic components:

1. A talkback page control unit

2. Speakers (45 Ohm)

3. A power supply

Consult Valcom's VSP - Handsfree Talkback Paging

(Part # 947099) for detailed information on selecting

the control unit and power supply.

Coverage

The distance you can be away from a speaker and still

have good talkback depends on the type of speaker

and the ambient noise level. In a typical office

environment, a wall speaker (V- -1061 W, V- -1061 BK,

V-1062A, V-1063A, V-1064A, V-1065A, V-1066A,

V-1067A) will cover approximately 600 square feet

when mounted eight feet from the floor. Ceiling

speaker coverage is dependent on ceiling height; the

greater the ceiling height, the larger the area covered.

Machine

Shop

(Noisy)

10' 30'20' 40' 50'

Shipping

(Moderate)

Waiting

Rooms

(Quiet)

Talkback not recommended above 80dB

TYPICAL REPLY DISTANCE CHART

Maximum Talkback Reply Distance

IMPORTANT

The speaker is no better than your ears. If you

cannot carry on a conversation at normal voice

levels over the required talkback distance, then

the talkback page equipment will not function

satisfactorily.

Use common sense when mounting a talkback

speaker. The speaker should be as close as

possible to the area where talkback is desired.

It should not be mounted close to or pointed at,

noise producing equipment such as fans, air

conditioners, machinery or compressors.

Limitations

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	V-1060B
Dybde:	63.5 mm
Produktfarve:	Hvid
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Udgangseffekt (RMS):	12 W
Equalizer:	Ingen
Driftstemperatur (T-T):	-20 - 55 °C
Husmateriale:	Stål
Frekvensområde:	80 - 12000 Hz
Impedens:	45 ohm (Ω)
Højttaler, type:	1-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Kan monteres i loftet
LED-indikatorer:	Ja
Diameter:	330 mm
