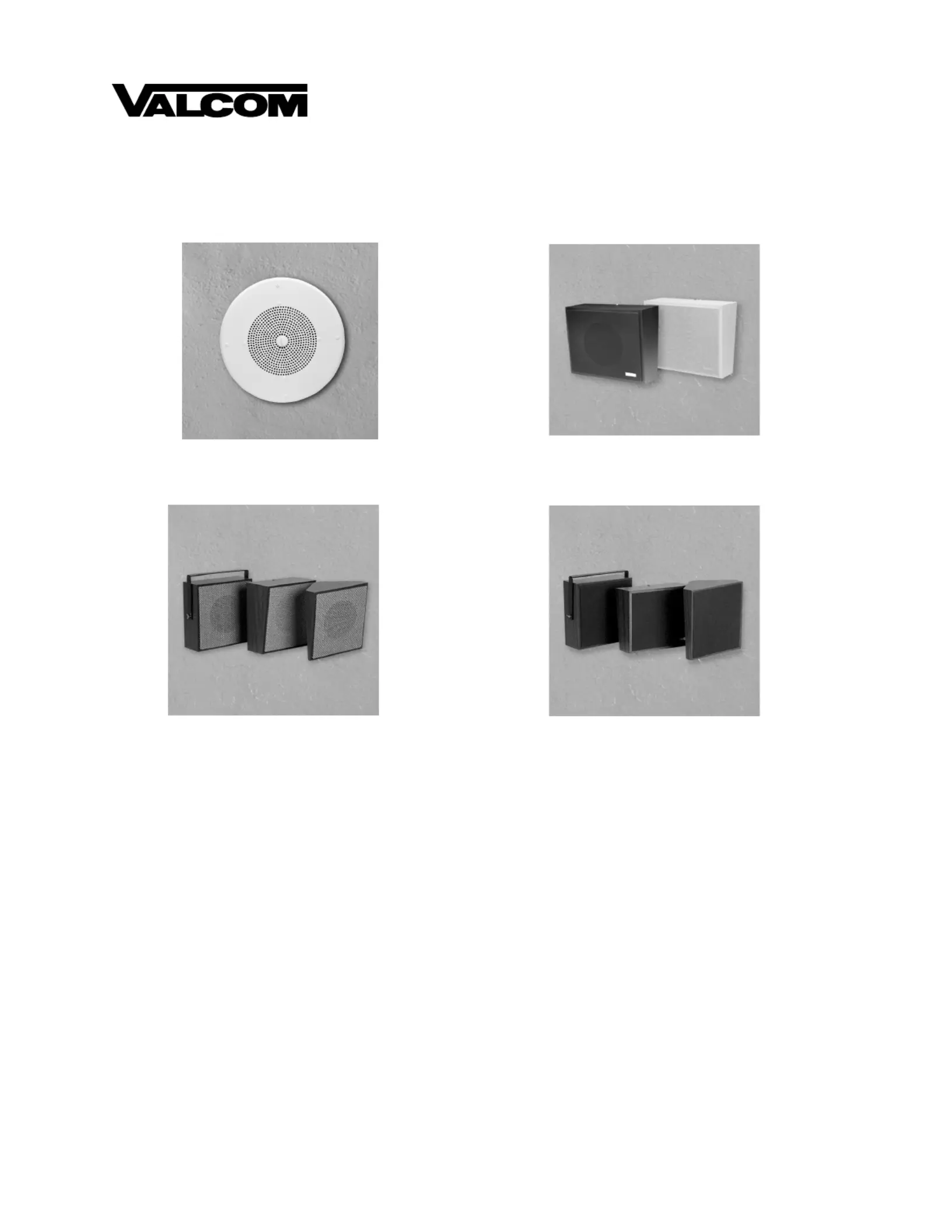

Side 1/4

VSP-45 Ohm TB Int Spkrs

Issue 7

1947065

45 OHM TALKBACK INTERIOR SPEAKERS

V-1060A V-1061-BK, V-1061-W

V-1062A, V-1064A. V-1066A

INTRODUCTION

These instructions contain the specifications and

guidelines necessary to install, operate, and maintain

the 45 Ohm Talkback Interior Speaker Assemblies.

The 45 Ohm Talkback Interior Speaker Assemblies

are for use with the Valcom "handsfree" talkback

page control units and are for interior use only.

SPECIFICATIONS

Features

• 45 Ohm Impedance

• 8 Inch Speaker

• Easy Hook-up (2 connections using house cable

or station wire)

V-1063A, V-1065A, V-1067A

Dimensions/Weight

V-1060A 8" Ceiling Speaker

13" Dia. X 2.5" D

(33cm Dia. x 6.4cm D)

2.5 lbs. (1.14 kg)

V-1061-BK Wall Speaker - black vinyl with black

cloth grille –

9.6"H x 11.5"W x 4.2”D

(24.4cm H x 29.2cm W x 10.7cm D)

4 lbs. (1.82 kg)

V-1061-W Wall Speaker - white vinyl with white

cloth grille –

9.6"H x 11.5"W x 4.2”D

(24.4cm H x 29.2cm W x 10.7cm D)

4 lbs. (1.82 kg)

V-1062A Wall Speaker - wood grain with light

brown open weave grille -

10.6"H x 9.7"W x 5.2"D

(26.9cm H x 24.6cm W x 13.2cm D

5.4 lbs. (2.45kg)

2947065

V-1063A Wall Speaker - wood grain with dark

brown cloth grille –

10.6” H x 9.7” W x 5.2” D

(26.9cm H x 24.6cm W x 13.2cm D)

4.0 lbs. (1.82 kg)

V-1064A Corner Speaker - wood grain with

light brown open weave grille –

10.5”H x 9.5”W x 6.3”D

(26.7cm H x 24.1cm W x 16.0cm D)

3.7 lbs. (1.68 kg)

V-1065A Corner Speaker - wood grain with

dark brown cloth grille –

10.5”H x 9.5”W x 6.3”D

(26.7cm H x 24.1cm W x 16.0cm D)

3.7 lbs. (1.68 kg)

V-1066A Corridor Speaker - wood grain with

light brown open weave grille –

10.3”H x 10.3”W x 4.2”D

(26.2cm H x 26.2cm W x 10.7cm D)

5.7 lbs. (2.59 kg)

V-1067A Corridor Speaker - wood grain with

dark brown cloth grille –

10.3” H x 10.3”W x 4.2”D

(26.2cm H x 26.2cm W x 10.7cm D)

5.6 lbs. (2.54 kg)

Power Requirements

None

Environment

Temperature -20 to +55oC

Humidity 0-95% non-precipitating

SYSTEM DESIGN

General

The 45 ohm Talkback Speakers are designed to be

used with the Valcom "handsfree" talkback control

units. In combination with these units, they will

provide both loudspeaker and talkback functions.

A standard Valcom talkback paging system is made

up of three basic components:

1. A talkback page control unit.

2. Speakers (45 ohm)

3. A power supply.

Consult Valcom's VSP - Handsfree Talkback Paging

(P/N 947099) for detailed information on selecting

the control unit and power supply.

Coverage

The distance you can be away from a speaker and still

have good talkback depends on the type of speaker

and the ambient noise level. In a typical office

environment, a wall speaker (V-1061-W,

V-1061-BK, V-1062A, V-1063A, V-1064A,

V-1065A, V-1066A, V-1067A) will cover

approximately 600 square feet when mounted 8' from

the floor. Ceiling speaker coverage is dependent on

ceiling height; the greater the ceiling height, the

larger the area covered.

Machine

Shop

(Noisy)

10' 20' 30' 40' 50'

Shipping

(Moderate)

Waiting

Rooms

(Quiet)

Talkback not recommended above 80dB

TYPICAL REPLY DISTANCE CHART

Maximum Talkback Reply Distance

IMPORTANT

The speaker is no better than your ears. If you

cannot carry on a conversation at normal voice

levels over the required talkback distance, then

the talkback page equipment will not function

satisfactorily.

Use common sense when mounting a talkback

speaker. The speaker should be as close as

possible to the area where talkback is desired.

It should not be mounted close to, or pointed at,

noise producing equipment such as fans, air

conditioners, machinery, or compressors.
