Issue 2

1 947185

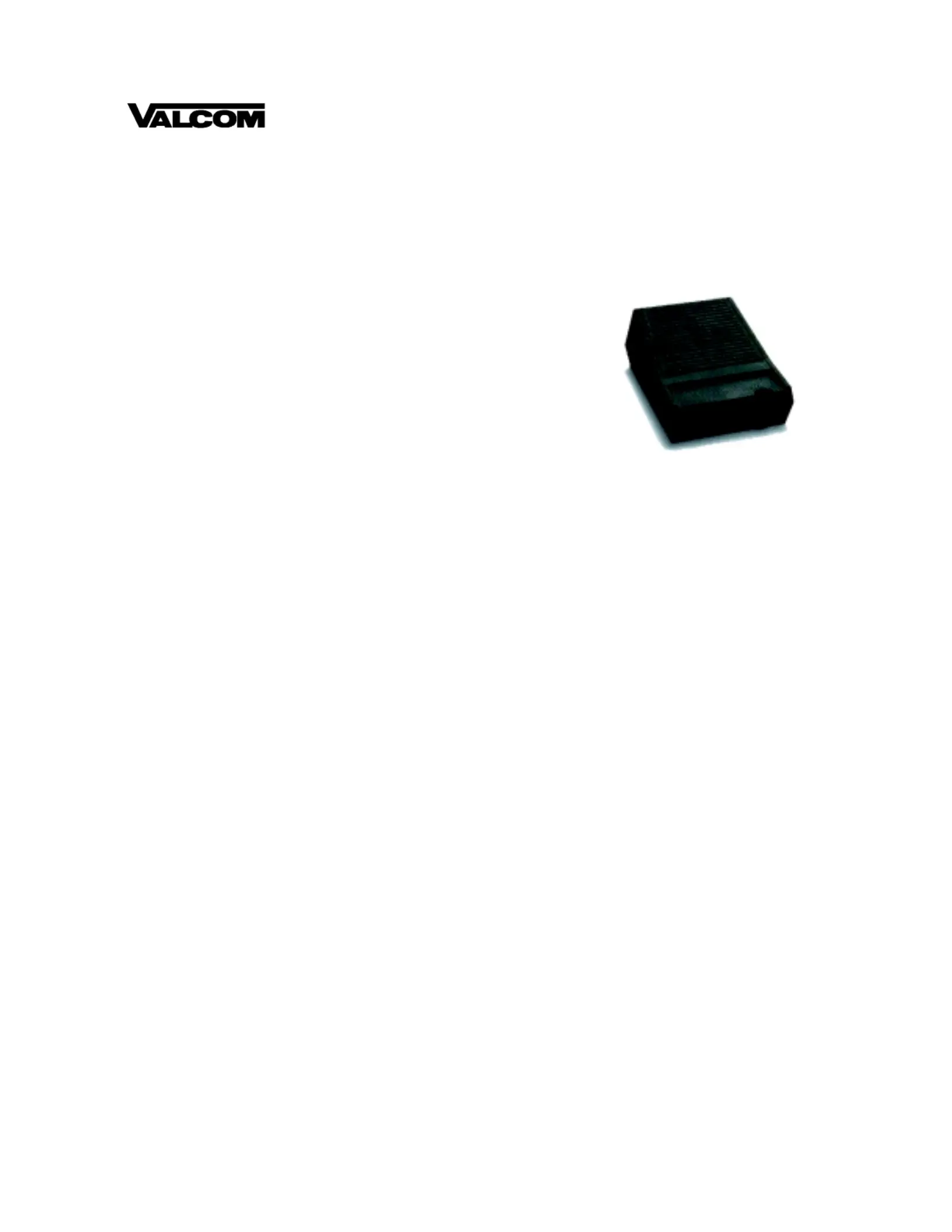

VOICE COIL DESKTOP SPEAKER

V-5330110

PagePac

INTRODUCTION

The Desktop Speaker is a completely assembled

speaker unit for use with Voice Coil paging sys-

tems. Each speaker is equipped with 6-foot

speaker wire.

SPECIFICATIONS

FEATURES

•Volume Control

•Talkback

Dimensions/Weight

•4.75”W x 1.75”H x 6.88”D

( 12.07cm X 4.5cm X 17.48cm)

•3.0 lbs (1.4 kg)

OPERATION

The Desktop Speaker is recommended for use

with all PagePac® Voice Coil paging systems (or

equivalent systems) in which talkback is provided

(talkback is two-way communication between the

paging telephone and the paging loudspeaker).

However, the Desktop Speaker may be used with-

out talkback.

It is recommended that each Desktop Speaker,

when used with talkback, be a separate paging

zone. If this is not feasible, the total number of

Desktop Speakers in any one zone should be lim-

ited to two or less.

When installing PagePac Voice Coil Desktop

Speaker, be sure to use “B” or any similar crimp-

ing type connectors only. This will ensure a solid

connection that will not pull free or become inter-

mittent (see Figure 1).

VOLUME CONTROL

The “VOL” control adjusts the speaker volume in

both the page and music modes (see Figure 1). It

does not affect the talkback level.

INSTALLATION

Place the Desktop Speaker in the desired

location.

Connect the speaker cord to the speaker cable

run. The speaker run to which the Desktop

Speaker is connected must be connected to the

Voice Coil output of the PagePac 6 and PagePac

6 Plus.

TESTING

Access the Desktop Speaker and ensure that

paging occurs. While a page is in progress, adjust

the speaker volume with the VOL control.

Note: Generally, music volume should be

adjusted at the music source or on the PagePac 6

and PagePac 6 Plus MUSIC VOLUME control.

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Telefon
Model:	V-5330110
Bredde:	120.7 mm
Dybde:	155.6 mm
Højde:	69.9 mm
Vægt:	1350 g
Produktfarve:	Sort
Forbindelsesteknologi:	Ledningsført
