TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you should

have a VOM and a lineman's test set available and be calling from the job site. Call

(540) 563- - -2000 for Technical Support or call (540) 767 1555 for Valcom 24 hour Faxback

System or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating your

company name, address, phone number, contact person and the nature of the problem.

Send the unit to: Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and

workmanship under conditions of normal use and service for a period of one year

from the date of shipment. The obligation under this warranty shall be limited to the

replacement, repair or refund of any such defective device within the warranty

period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original

shipment;

3. the product has not been altered in any way or repaired by others and that

factory sealed units are unopened (a service charge plus parts and labor

will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject to a service charge. The service

charge will cover minor repairs (major repairs will be subject to additional

charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or

implied, and in no event shall Valcom, Inc. be liable for any anticipated

profits, consequential damages, loss of time or other losses incurred by

the buyer in connection with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a

product is received in damaged condition, the carrier should be notified immediately.

Claims for such damage should be filed with the carrier involved in accordance with

the F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269

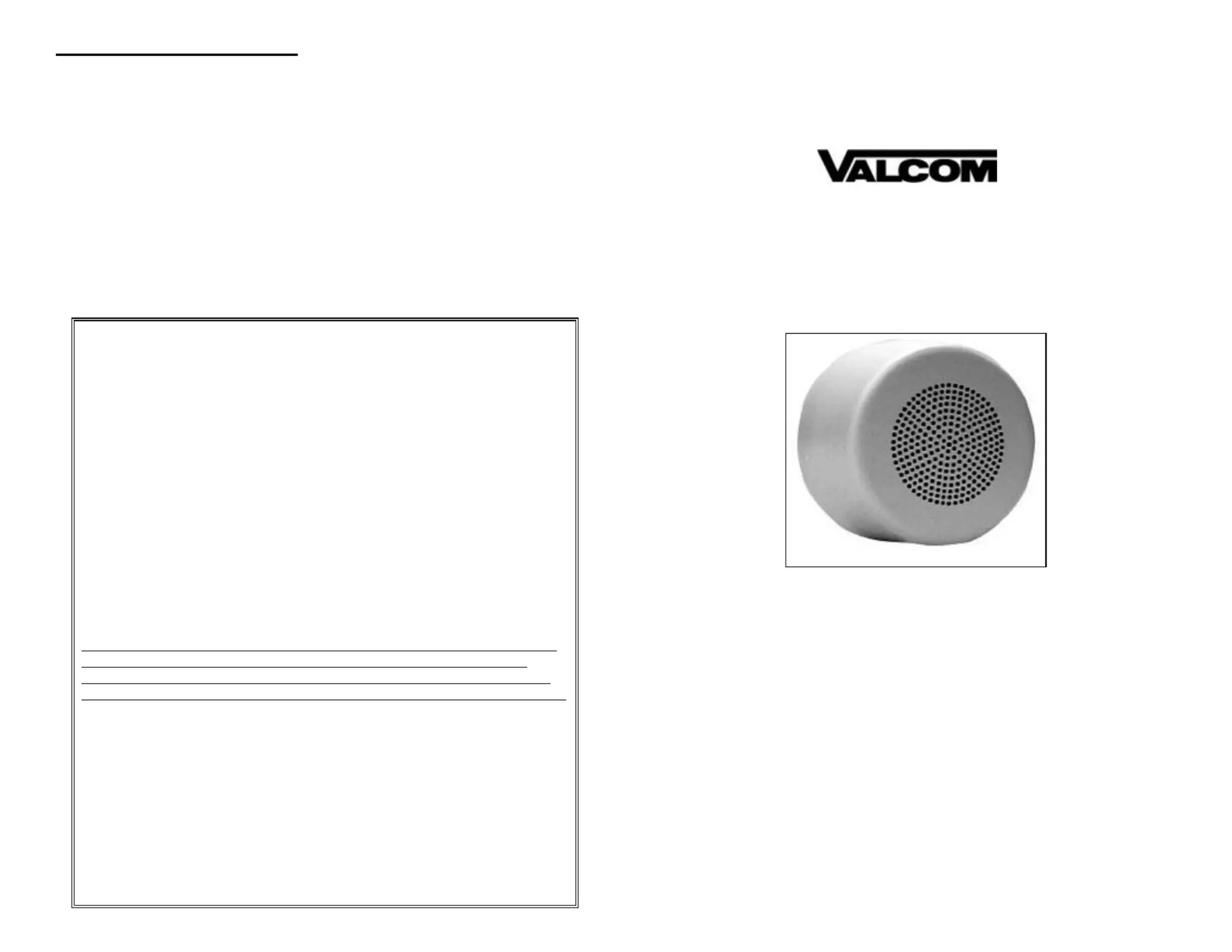

INSTALLATION INSTRUCTIONS FOR

SURFACE MOUNT

VANDAL RESISTANT SPEAKER

V-9010

Issue 4 947910

VALCOM VANDAL RESISTANT SPEAKER

The Valcom Surface Mount Vandal Resistant Speaker, V-9010, was designed to be

used in harsh environments. The speaker assembly features a steel housing, a built-in

amplifier and an interior security screen with tamper resistant screws.

The steel housing is constructed of 18-gauge steel finis hed with a baked on powder

coat urethane finish. The screen is made of 24-gauge steel to prevent sharp object

from penetrating the speakers.

SPECIFICATIONS

Amplifier Speaker

Power Rating: 1 Watt Voice Coil

Impedance:

45 Ohms

Operating Voltage: -24VDC Diameter: 5.10"

Current

Consumption:

50mA Magnet Weight: 10 oz.

Magnet Material: Ceramic

Speaker/Amplifier

Frequency

Response:

350Hz to 6.5kHz

Output Power: 1 Watt

SPL: 94dB at 1 Watt, 1 Meter

CONNECTIONS

NOTE: The V-9010 may be used to expand a constant voltage (25/70/100 Volt)

paging system without placing an additional load on the amplifier by adding a

V-1095, 70V Paging Expander. A power supply will also be required.

MOUNTING

After making connections to the speaker, secure the enclosure assembly to the base

with four #10 stainless steel hex button head machine screws using a standard 1/8

inch hex driver.

The base of the V- - -9010 will mount to a standard 4 inch square or octagon shaped

electrical box or may be fastened to a wall or ceiling using screws as large as 1/4 inch.

Surface wiring or conduit is routed through one of four standard knockouts.

DIMENSIONS/WEIGHT

• 8.50" Dia. x 5.10" D (21.59cm Dia. x 12.95cm D)

• 4.8 lbs. (2.18 kg)

TROUBLESHOOTING CHART

SYMPTOM ACTION

1. No audio from

speaker

1a. Check that volume control is turned up (clockwise).

1b. Using a lineman's test set, check for the proper audio

level on the Tip and Ring leads and also at the

source.

2. Low volume

from speaker

2a. Check that volume control is turned up.

2b. Check voltage at the speaker assembly when in use,

-18 to -24VDC required.

2c. Using a lineman's test set, check for proper audio

level on Tip and Ring leads. It is possible that some

low level audio will be heard with only one side of Tip

and Ring connected.

3. Loud squeal

(feedback)

3a. Turn down (counter-clockwise) volume of the

speaker.

3b. Increase the distance between the telephone and the

speaker.

3c. Install a noise canceling handset on the telephone in

severe problem areas.

3d. Install a V-9962, Digital Feedback Eliminator.

(Tip)

(Ring)

(-24VDC)

(GND)

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Control

Valcom -24VDC

Power Supply
