LAY-IN ONE-WAY IP CEILING SPEAKER

INTRODUCTION

The VIP-402/VIP-402- - One-Way IP EC Lay In

Ceiling Speaker enables voice access to a single

zone of one-way paging over an IP-based

LAN/WAN. This allows page zone extension a

anywhere on the network. The speaker level is

electrically adjusted during setup. The VIP-402

grille is made of steel with a white baked enamel

finish and easily replaces a 2’ x 2’ or ½ of a 2’ x 4’

ceiling tile. The VIP-4 -EC replaces a 600mm x 02

600mm ceiling tile. Power is provided to the unit via

a Power over an Ethernet switch meeting the

802.3af specication.

SPECIFICATIONS

Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP- 811

PBX, FXS Port w/VIP-821

Valcom M Cast Page Group

SIP enabled telephone system –

Features

-45 network connection RJ

802.3af compliant

High E iciency Class-D Amplier ff

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This

equipment generates, uses and can radiate radio

frequency energy and if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case the

user will be required to correct the interference at

his own expense.

DIMENSIONS/WEIGHT

VIP-102:

) 24.0” (60.96cm) L x 24.0” (60.96cm

W x 3.75” (9.53cm) D

Weight: 5.5 lbs. (2.49kg)

VIP-102-E C:

600mm x 600mm W

9.53cm D

Weight: 5.5 lbs. (2.49kg)

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Precautionary Designations

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualied service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

2 947198

Packing List

Qty.

Item

VIP-4 /VIP- - 02 102 EC

VSP Document

RJ-45 Patch Cable

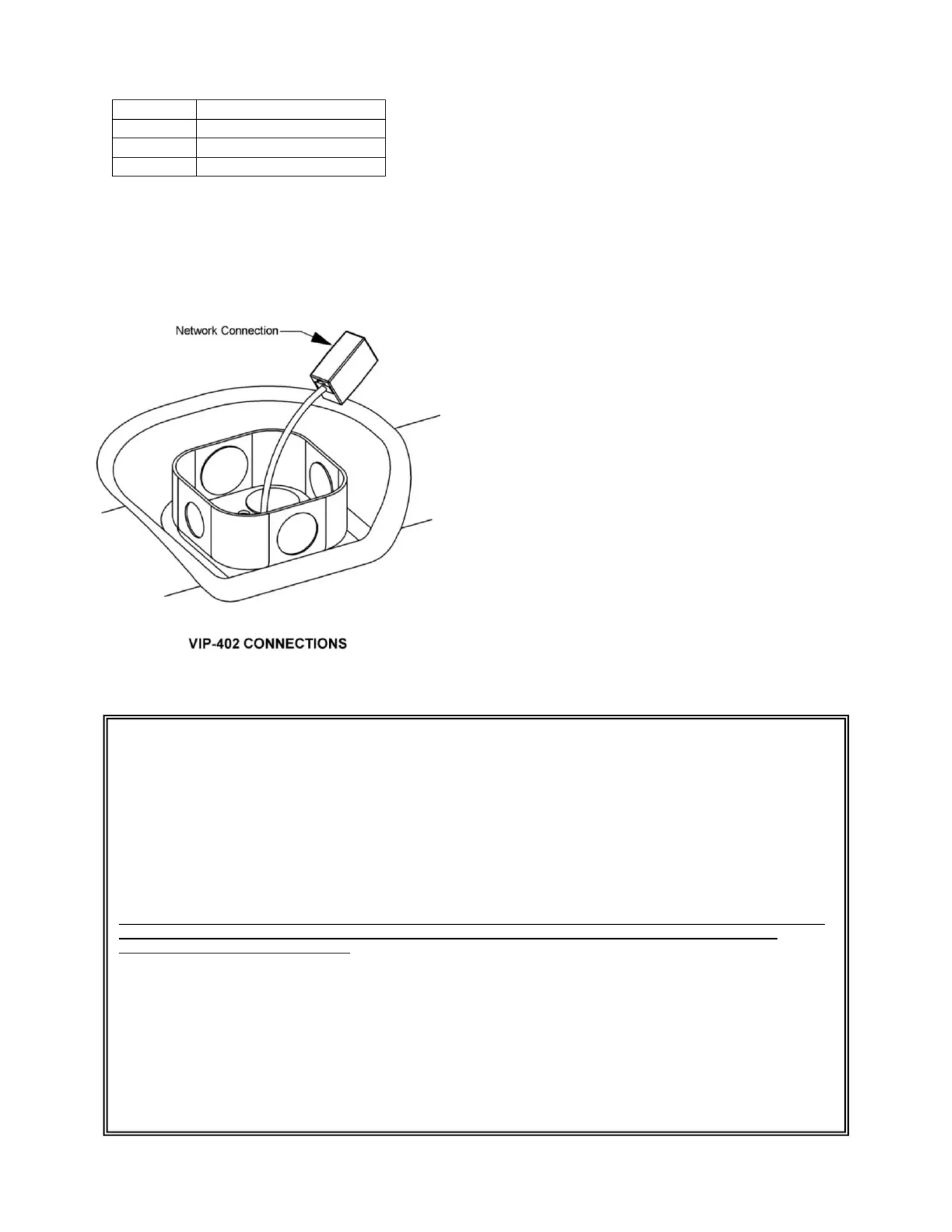

Network Connection

The unit has one C -5 RJ-45 network connector AT

in the rear junction box. Use the supplied Cat-5

patch cable to connect the unit to an Ethernet

switch.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. Check voltages for proper polarity to

the one-way amplied speakers. If a spare unit is

available, substitute a spare unit for the suspected

defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

support@valcom.com

When requesting assistance, you should include all

available information. It is strongly suggested that

you go to the web site and follow the trouble

resolution procedure at http://voip.valcom.com.

Valcom equipment is not eld repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and

service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement,

repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3 the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service

charge plus parts and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5 all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will

be subject to addition charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for

any anticipated prots, consequential damages, loss of time or other losses incurred by the buyer in connection with the

purchase, operation or use of the product.

This warranty specically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notied immediately. Claims for such damage should be led with the carrier involved in accordance with the

F.O.B. point.

Headquarters

Valcom, Inc.

5614 Hollins Road

Roanoke,Va 24019- 5056

Phone: (540) 563- 2000

Fax: (540) 362- 9800
