Issue 1

1 947808

VIP-428A

IP PoE SPEAKER WITH SQUARE FACEPLATE

INTRODUCTION

The VIP-428A IP PoE Speaker with Square

Faceplate enables voice access to a single zone of

paging over an IP-based LAN/WAN. This allows a

page zone extension anywhere on the network.

The enclosure is made of steel with a durable white

powder coated finish. The color of the enclosure

can easily be changed to match any decor. Power

is provided to the Vip-428A via a Power over

Ethernet (PoE) switch meeting the 802.3af

specification.

SPECIFICATIONS

Access Methods

 PBX, FXO Port w/VIP-801x

 POTS telephone set w/VIP-801x

 PBX, FXS Port w/VIP-802x

 Valcom M Cast Page Group

 SIP telephone system

Features

 Single RJ-45 network connection

 Power over Ethernet (PoE) 802.3af compatible

 High Efficiency Class-D Amplifier

 Software Volume Control

DIMENSIONS/WEIGHT

 11.5” H x 11.5” W x 3.7” D

(29.2 cm x 29.2 cm W x 11.4 cm)

 Weight: 4.25 LBS (1.91 kg)

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

PSE (Power Sourcing Equipment) to be compliant

to IEEE 802.3af

Packing List

Qty. Item

1 VIP-428A

1 VSP Document

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

2 947808

Network Connection

The VIP-428A has one RJ-45 network connector on

the rear panel. Use a standard patch cable and

connect the VIP-428A to an Ethernet switch. (See

Figure 1)

MUTE OUT CONNECTION

The Mute Out may optionally be connected to the

mute input of Valcom Classroom audio

management systems in order to suspend locally

originated classroom audio during intercom

announcements.

LED Connection

LED 1 (+) and LED 2 (-) is a current limited output

designed to illuminate an optional LED. The LED is

intended to provide visual indication of call

progress. The LED illumination will flash when the

call switch is pressed and will continue to flash until

the call is answered. The LED illumination will be

solid when a connection to the unit is established

-10 dB Line Level Out Connection

The -10dBm Line Level Out may be connected to

up to 40 Valcom Self Amplified Speakers in order to

provide additional sound reinforcement in an area.

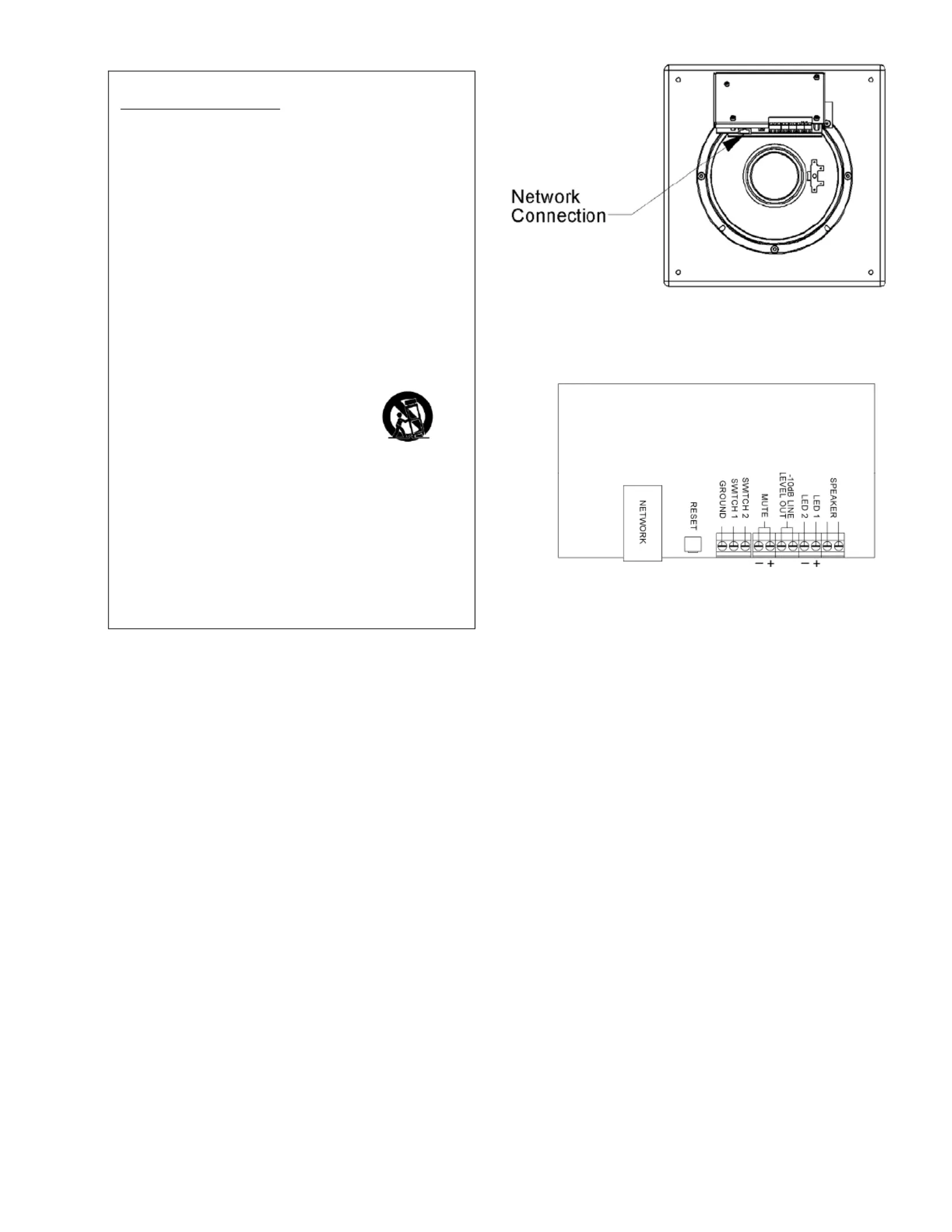

Figure 1. Network Connection

Figure 2. Connections

Call Switch Connection

The VIP-428A provides a call switch input via

screw terminal connections, labeled Switch 1 and

Ground.

Setup

Information specific to your application will need

to be programmed into the VIP-428A using a

computer. The PC used for programming should

be connected to the same subnet as the

VIP-428A. Setup will be done using the IP

Solutions Setup Tool. The IP Solutions Setup Tool

may be downloaded from the Valcom website at

www.valcom.com.

Mounting

Valcom offers three backboxes (not included) for

mounting the VIP-428A speaker. The VB-S11

(surface mount), VB-A13 (angled surface mount)

and VB-R12 (recess mount) are all designed to fit

the VIP-428A. Mount the backbox according to the

instructions provided with the backbox. After

mounting the backbox, connect the Ethernet cable

to the RJ-45 jack on the speaker. Mount the

speaker baffle to the backbox with the hardware

provided.

IMPORTANT SAFETY INFORMATION

CONSIGNES DE SÉCURITÉ IMPORTANTES

1. Read these instructions.

Lisez ces instructions.

2. Keep these instructions.

Conservez ces instructions.

3. Heed all warnings.

Respectez tous les avertissements.

4. Follow all instructions.

Suivez toutes les instructions.

5. Do not use this apparatus near water.

Ne pas utiliser cet appareil près de l'eau.

6. Clean only with dry cloth.

Nettoyer avec un chiffon sec.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du

fabricant.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de

chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade and the third prong are provided for your safety. If

the provided plug does not fit into your outlet consult an electrician for replacement of the

obsolete outlet.

Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une

fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a

deux lames et une troisième broche de mise à la terre. La lame large et la troisième

broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,

veuillez consulter un électricien pour le remplacement de la prise obsolète.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

N'utilisez que des fixations / accessoires spécifiés par le fabricant.

12. Use only with the cart, stand, tripod, bracket or table specified

by the manufacturer or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over.

Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le

fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque

vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au

renversement.

13. Unplug this apparatus during lightning storms or when unused for a long period of time.

Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une

longue période de temps.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way. Such as when the power supply cord or plug is

damaged, liquid has been spilled, objects have fallen into the apparatus or the

apparatus has been exposed to rain or moisture and does not operate normally or has

been dropped.

Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque

l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon

d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont

tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne

fonctionne pas normalement ou s'il est tombé.
