ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTIONS.
C0278 / C0279
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

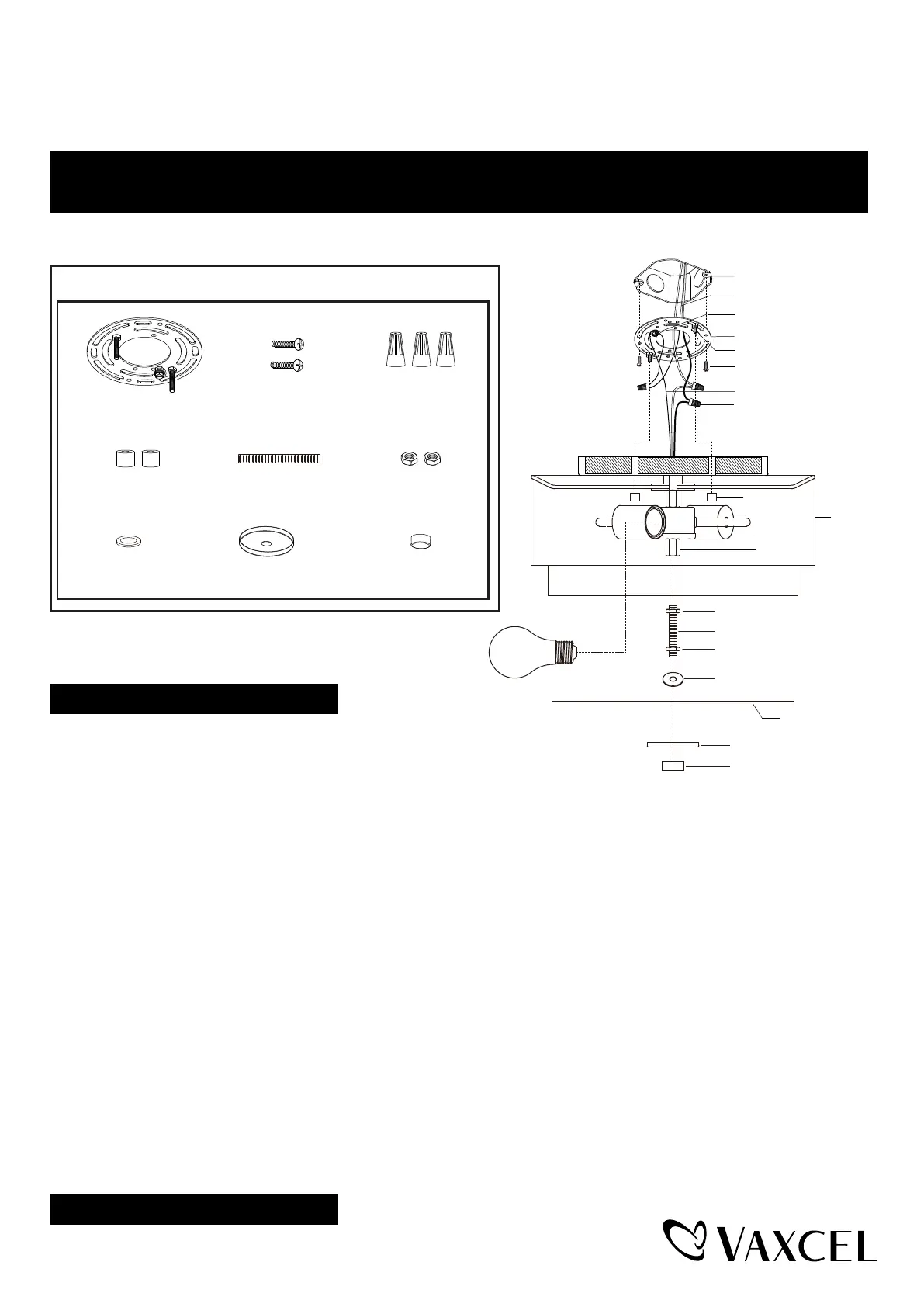

Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the power source to the black wire from the fixture.
---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw,
or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.
3. Attach the fixture onto the mounting strap unit (A) and tighten it with two bolt nuts (D).
4. Install 2 x 60W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
5.
Attach the long threaded pipe
(E)
to coupling, then secure the preinstalled hex nut
(F)
.
6.
Attach the hex nut
(F)
and the metal pad
(G)
to the long threaded pipe
(E)
, slip the acrylic diffuser and decorative cap
(H)
up through the long threaded pipe
(E)
, then secure them with the finial
(I)
.
NOTE: The depth of the lower hex nut (F) and the metal pad (G) in long threaded pipe may need to be adjusted to
properly fit the acrylic diffuser. The acrylic diffuser should be flatly laid on three brackets, and the frosted side of
the acrylic diffuser should be faced down.
221102
Wire Connector (C)Mounting Screw (B)
Mounting plate Unit (A)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Fixture Mounting Screw
Mounting Plate Unit (A)
Bolt Nut (D)
Socket
Coupling
Linen
Hex Nut (F)
Hex Nut (F)
Metal Pad (G)
Long Threaded Pipe (E)
Acrylic Diffuser
Decorative Cap (H)
Finial (I)
Max.60W Type A Bulb
(not included)
Hex Nut (F)
Metal Pad (G)
Long Threaded Pipe (E)
Decorative Cap (H) Finial (I)
Shade
Page 1 / 2
