1. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod and the hook, then
secure the upper rod onto the middle rod using the threaded pipe,
attach the hook onto the upper rod using the threaded pipe.
The height can be adjustable to 15"~57", by using the rods.
2. Thread the fixture wire through canopy, then hook the rod assembly
to the loop.
3.
Unscrew two bolt nuts (D), remove mounting strap unit (A) from canopy.
4. Attach the mounting strap
unit (A)
to outlet box by using two mounting
screws
(B)
.
5. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with
the green ground screw, then connect it to the house ground wire
with a wire connector (C) .
Carefully put the wires back into the outlet box.
6. Attach the canopy to the mounting strap unit (A) by inserting the fixture
mounting screws , and secure it with two bolt nuts (D) .
7. Install 1 x 60W Max. medium base bulb (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
8. Attach the glass shade to the fixture, secure it with three set screws (E). (Don′t over tighten.)

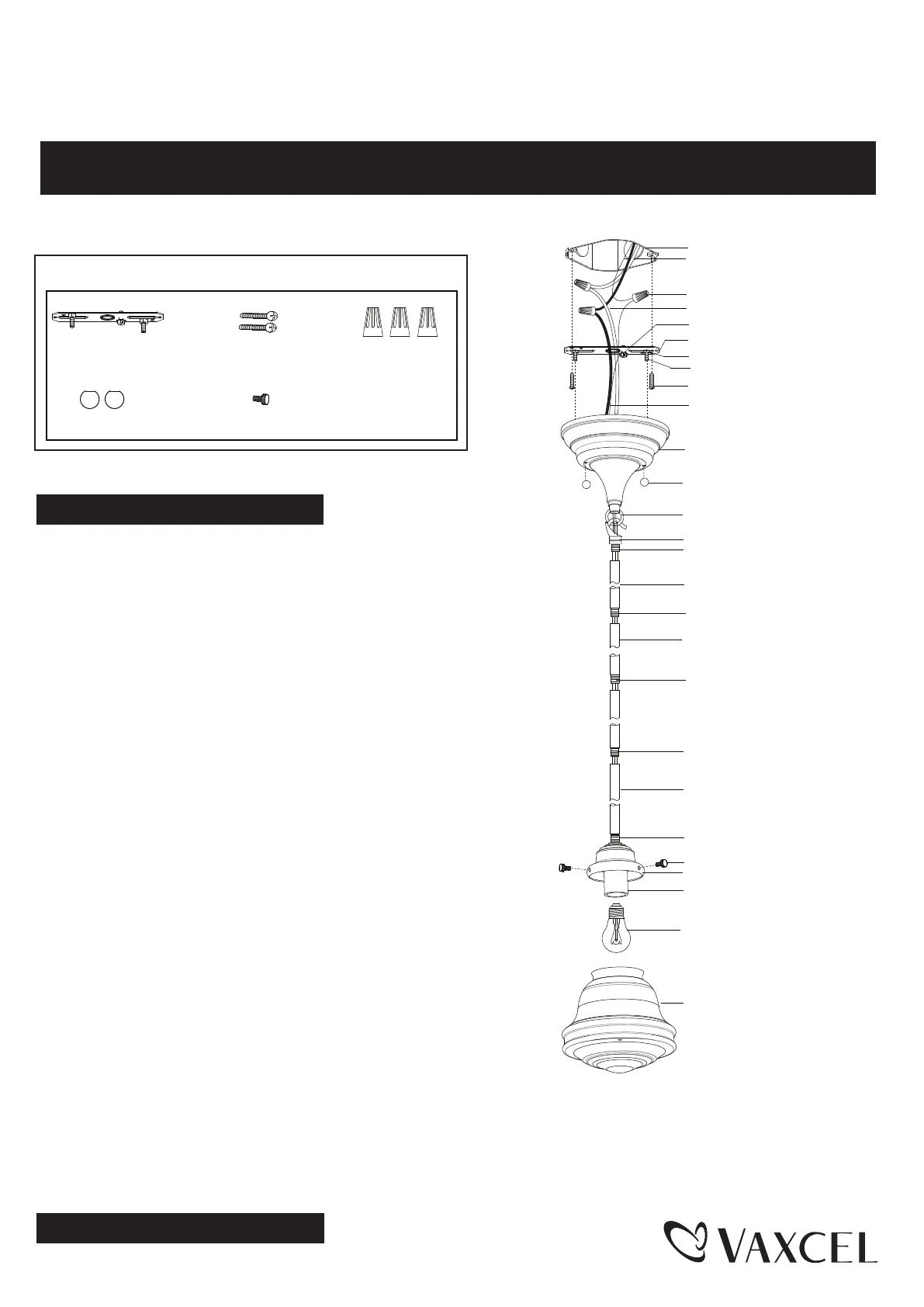

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
P0153 / P0154 / P0241 / P0267 / P0402
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
Installation Steps
Turn on the power at fuse or circuit box.
Set Screw (E)
Page 1 / 2
Hardware Package (included):
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Canopy
Bolt Nut (D)
Loop
Upper Rod
Hook
Threaded Pipe
Lower Rod
Middle Rod
Threaded Pipe
Set Screw (E)
Socket
Fixture
Glass Shade
Threaded Pipe
Threaded Pipe
Threaded Pipe
(not Included)
Max. 60W Medium Base Bulb
231120
