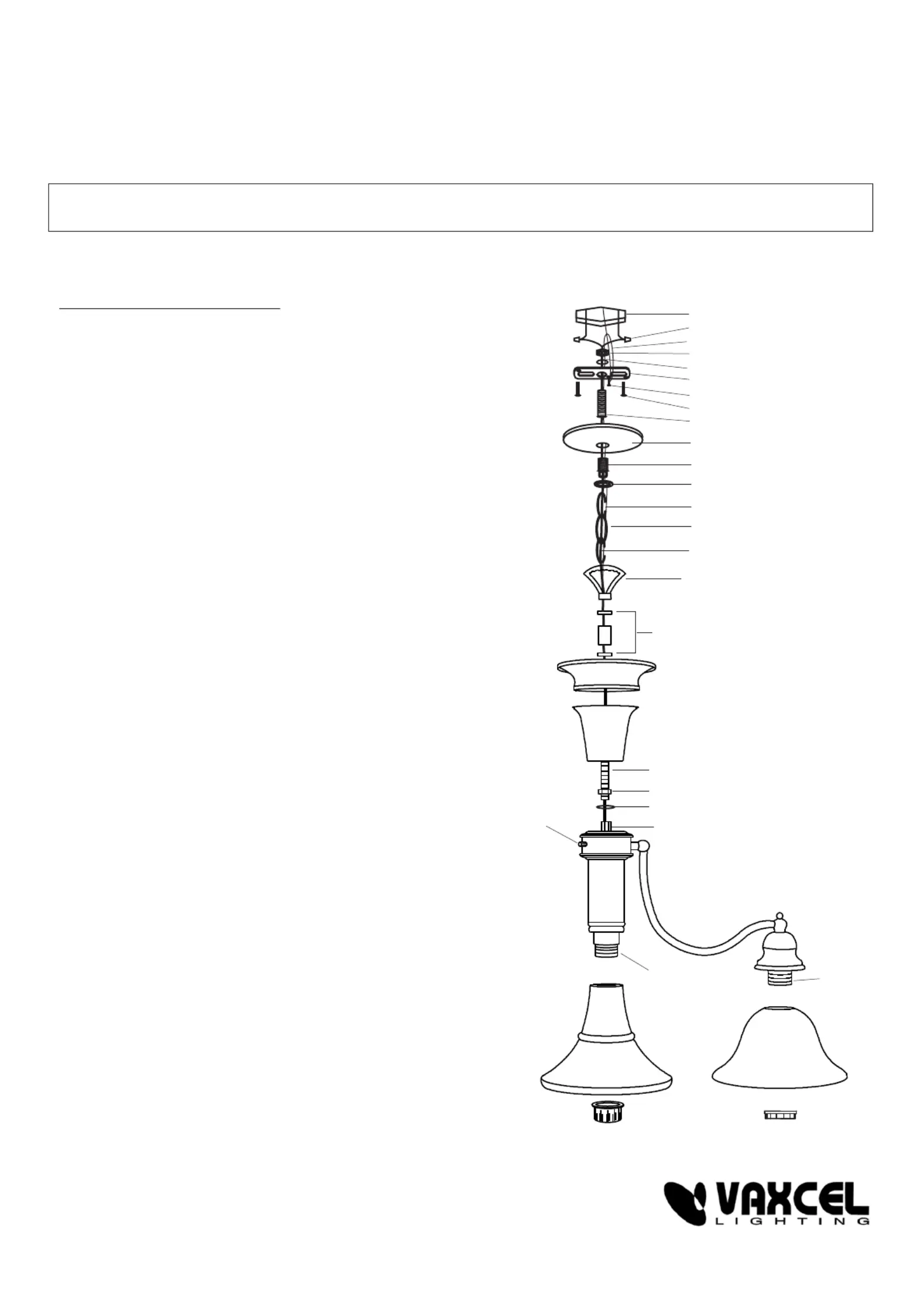

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT

OFF POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Installation Steps:

CH30304 / CH30307

Nipple-1

Grounding Wire

Collar

Top Loop

Canopy

Mounting Strap

Green Grounding Screw

Mounting Screw

Hex.

Nut

Washer

Ceiling Box

Wire Nut

House Grounding Wire

Fixture Wire

Chain

Loop

Pipe Set

Socket

Ring

Socket

Center Socket

Metal Shade

Decoration-1

Decoration-2

Center Socket

Ring

Glass Shade

Coupling

Arm

Fixture

Switch

Nipple-2

Hex Nut

Washer

1.Attach the nipple-1 to the mounting strap, and

secure with the washer and the hex nut.

2.Attach the mounting strap to the ceiling box by

using 2 mounting screws.

3.Thread the nipple-2 into the coupling, and secure with

the washer and hex nut.

4.Attach the decoration-2, decoration-1 and pipe set on to

the nipple-2, and secure with the loop.

5.Choose a certain length of the chain you need, and

weave the xture wire and the grounding wire through

the chain links. Spread one end of the chain link to clamp

securely to the loop.

6.Secure the top loop to the nipple-1.

7.Thread the xture wire and grounding wire through

the collar, canopy, top loop, nipple-1 and mounting

strap in order.

8.Clamp the other end of the chain link to the top loop.

9.Make wire connections with wire nuts:

---Connect smooth wire (marked) from xture to black

wire from power source.

---Connect ridged wire (unmarked) from xture to white

wire from power source.

---Attach the grounding wire and house grounding wire

to the mounting strap with the green grounding screw.

Carefully tuck wires back into the ceiling box.

10.Attach the canopy to the mounting strap by inserting the

top loop, and secure with the collar.

11.Attach the metal shade to the xture by securing

with the center socket ring.

12.Attach the glass shades to the xture, and secure with

the socket rings.

Note: The glass shades should be all in horizontal line.

13.Install bulbs.(Please do not exceed the maximum

capacity, which is recommended on the package.)

14.Control the lamp with the switch.

NOTE: 1.Before installing, consult local electrical codes for wiring and grounding requirements.
