ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.

CH38803/CH38805

Installation Steps

1. Attach the nipple to the mounting strap, and then secure

with a washer and a hex nut.

2. Attach the mounting strap to the ceiling box by using two

mounting screws.

3. Adjust the arms of the fixture according to the drawing of

the package.

Important to know:

a.The distance between the arms should be equally

distanced.

b.The arms should be fixed securely.

4. Choose the certain length of the chain you need, and then

weave the fixture wire and the grounding wire through the

chain. Then connect one end of the chain with the fixture

by using the loop lock.

5. Secure the top loop to the nipple tightly.

6. Thread the fixture wire and grounding wire through the

collar, canopy, top loop, nipple and mounting strap in

order.

7. Connect the other end of the chain with the top loop by

using the loop lock.

8. Make wire connections with wire nuts:

---The smooth wire (marked) from fixture to the black

wire from power source.

---The ridged wire (unmarked) from fixture to the white

wire from power source.

---Attach the grounding wire to the mounting strap with

the green grounding screw. Then connect it to the

house grounding wire with the wire nut.

Carefully tuck wires back into the ceiling box.

9. Attach the canopy to the mounting strap by inserting

the top loop, and then secure with the collar.

10. Place the glass shades into the decoration rings carefully,

attach them upwards to the glass holders, and then secure

with socket rings.

Note:The glass shades should be all in horizontal line.

11. Install bulbs. (Please do not exceed the maximum

capacity that is recommended on the package.)

12. Turn on the power at fuse or circuit box.

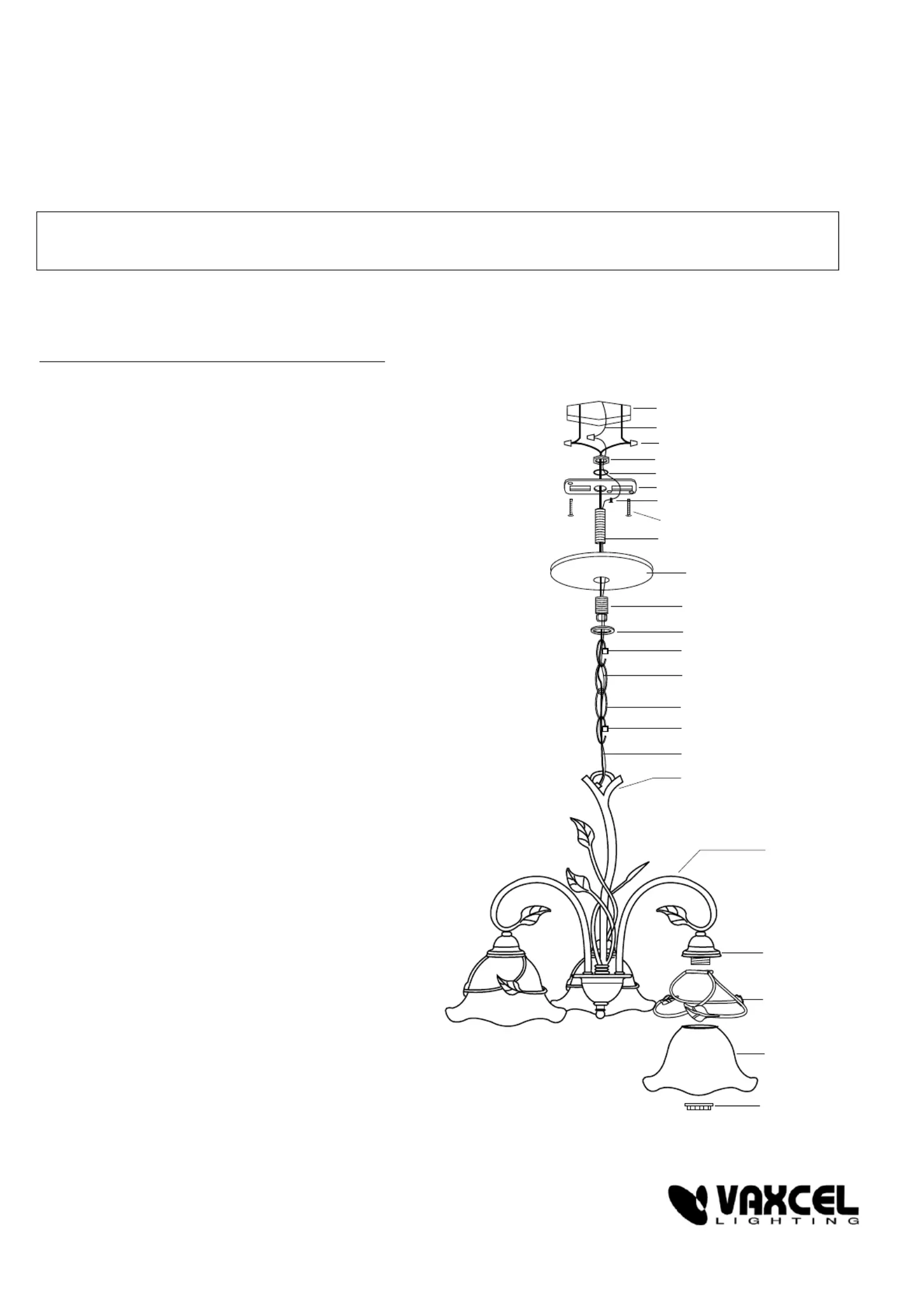

Fixture Wire

Fixture

Chain

Mounting Screw

Nipple

Fixture Grounding Wire

Collar

Top Loop

Canopy

Mounting Strap

Green Grounding Screw

Hex Nut

Wire Nut

Washer

Ceiling Box

House Grounding Wire

Loop Lock

Arm

Decoration Ring

Glass Holder

050712

Socket Ring

Glass Shade
