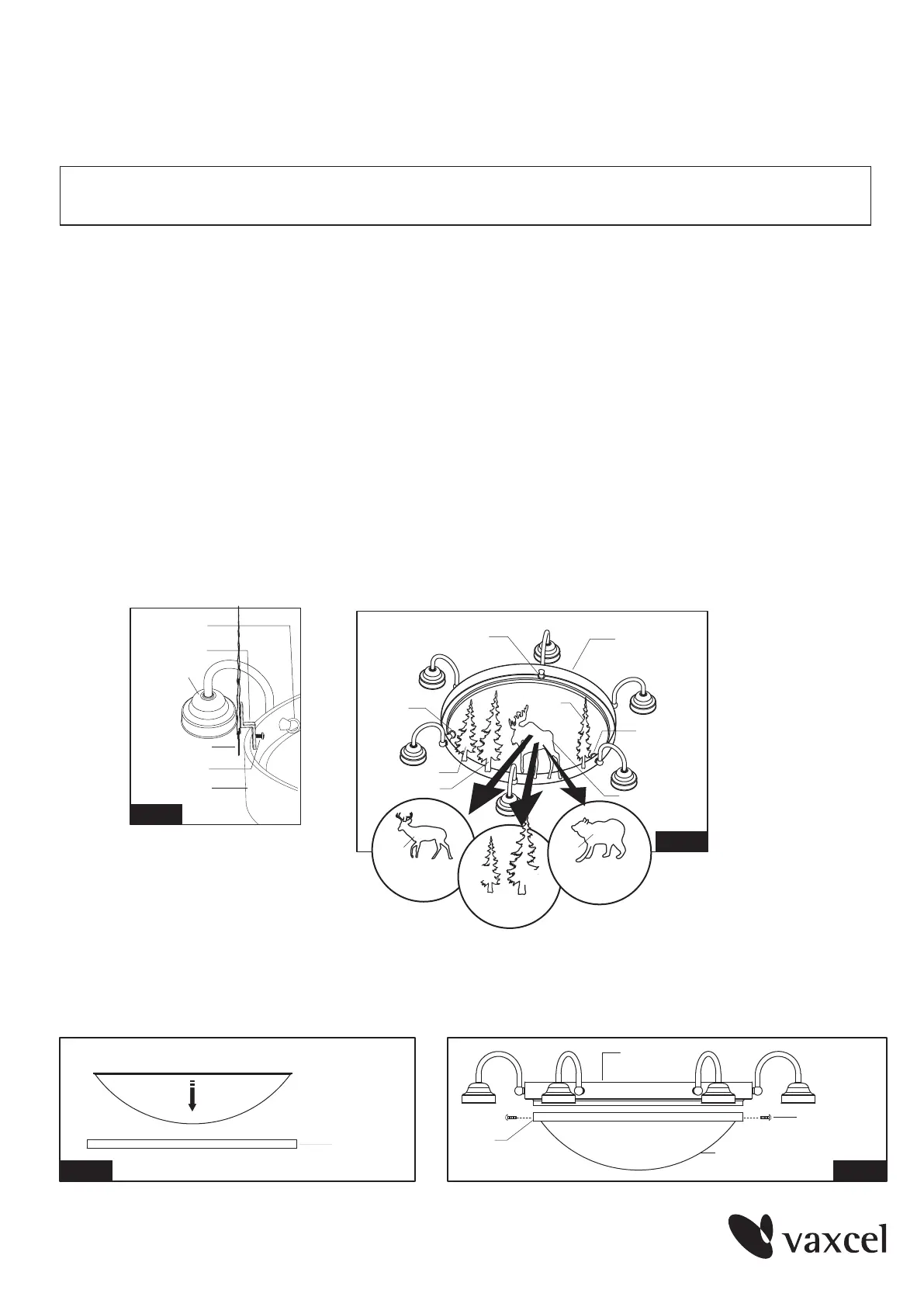

Assembling the center glass shade:

Fixing the silhouette:

1. Attach the center glass shade downward to the pan carefully. (See Fig.3)

2. Attach the assembled pan upward to the metal ring, make the hole on the metal ring and the hole on

the pan overlap, and then secure with the set screws. (See Fig.4)

1. Take out the silhouettes from the package carefully. Loosen the set screws, but do not unscrew the

set screws to prevent them lost.

2. Insert the silhouette(P-C) to the metal ring, and then fix it toward to the metal ring with the set screw.

(See Fig.1)

3. Do the same way for fixing the silhouettes(P-B, P-E and P-C) in counterclockwise between two

loops-3 in order.

4. Repeat Steps 2~3 to finish other silhouettes fixing.

a. The loops-3 divide the silhouettes fixing into three equal divisions. (See Fig.2)

b. Please according to Fig.2 shown to fix all the silhouettes whichever you fix first.

5. You can install the silhouettes which marked P-R (for CH55406) or marked P-S (for CH55706) or

marked P-C & P-B (for CH55506) to the location of silhouettes which marked P-E (for CH55606)

shown in Figure 2 to replace them.

Page 1

Fig.1

Set Screw

Clip

Loop-3

Metal Ring

P-C

Metal Ring

Holder Set-1

Loop-3

P-C

P-B

P-E

Fig.2

Center Glass Shade

Set Screw

Pan

Metal Ring

Fig.4

Fig.3

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

CH55406 / CH55506 / CH55606 / CH55706

110319

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

Parts for

CH55406

Parts for

CH55506

Parts for

CH55706

P-S

P-R

P-B

P-C
