1. Thread two assembly screws to the mounting strap, and
secure them with two lock nuts. Adjust the length of the
assembly screws if necessary.
2. Attach the mounting strap to the outlet box by using two
mounting screws.
3. Rod connections:
a. Thread the fixture wire from the fixture through the lower
rod, and then secure the lower rod onto glass holder
using the nipple.
b. Thread the fixture wire through the middle rod, and then
secure the middle rod onto the lower rod using the nipple.
c. Thread the fixture wire through the upper rod, and then
secure the upper rod onto the middle rod using the nipple.
The height can be adjustable to 9-3/4" ~ 54-3/4", by
using the rods.
4. Thread the fixture wire through the canopy kit, then secure
the rod assembly to the set nipple of the canopy kit.
5. Pull out the outlet wires and the house grounding wire from
the outlet box. Make wire connections using the wire nuts:
---The black wire from fixture to the black wire from power
source.
---The white wire from fixture to the white wire from
power source.
Ball Nut (G)
Canopy Kit
Outlet Box
House Grounding Wire
Wire Nut (E)
Assembly Screw (C)
Mounting Strap (A)
Green Grounding Screw (F)
Mounting Screw (D)
Upper Rod
Middle Rod
Nipple
Set Nipple
Fixture Wire

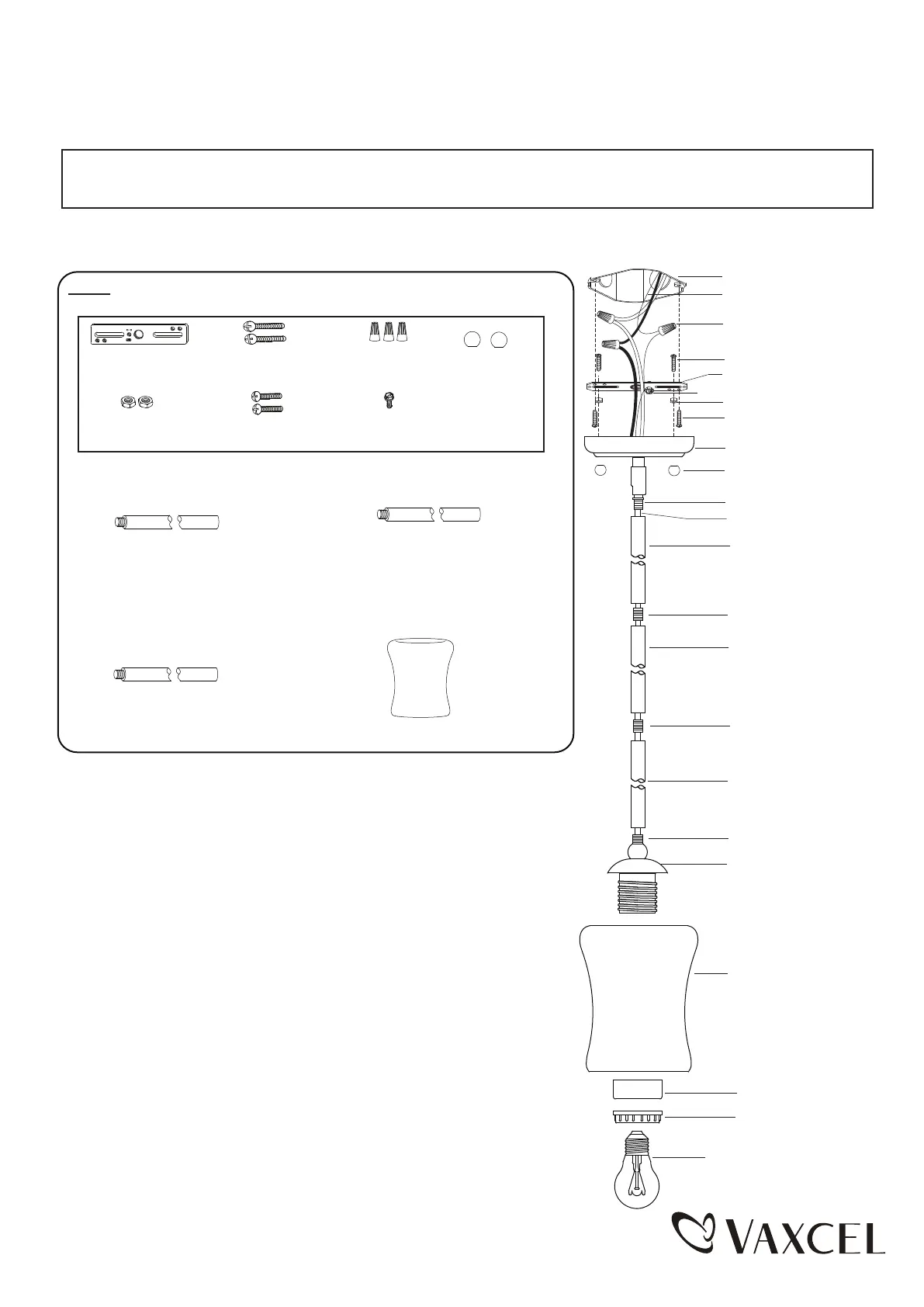

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0095
Lower Rod
Nipple
Bulb Type A Max.100W
(not included)
Nipple
Parts:
Parts Number (4913MM)
Mounting Screw (D)
Lock Nut (B)
Wire Nut (E)
Mounting Strap (A)
Assembly Screw (C)
Green Grounding
Screw (F)
Ball Nut (G)
131218
Parts Number (4914RR)
12”Rod (H) (X3)
Parts Number (4915RR)
6”Rod (I) (X1)
Parts Number (4916RR)
3”Rod (J) (X1)
Lock Nut (B)
Parts Number (9543EW)
Glass Shade (K) (X1)
Spacer
Glass Shade (K)
Glass Holder
Socket Ring
