180410
1. Unscrew two ball nuts, and then remove the mounting strap from the
canopy.
2. Thread the cord through the canopy and the strain relief. Measure the
desired length of the cord (A) from the canopy to the shade and
Leave additional 9" cord (B) above the canopy(include the canopy).
And then cut off the unnecessary cord.(See Fig.1)
3. Adjust the strain relief at 9" position from the top of the cord.
4. Mark the 3" cord (C) from the top of the cord (B). Use a knife to peel
off the insulation of the cord (C) carefully to show the 3 inside wires
out. (See Fig. 1)
Note : Cutting too deep may cut off three inside wires and
destroy the insulation surface of the three inside wires.
5. Peel off the 3 wires from the top about 3/8" long(D) to expose the
copper for wiring.
6. Attach the mounting strap to the outlet box by using two mounting screws.
7. Pull out the source wires from the outlet box. Make wire connections
using wire connectors as follow:
---Connect the hot wire (usually black insulation) from the fixture to the
black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to
the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire)
to the mounting strap with the green grounding screw, and then connect
it to the house grounding wire with the wire connector.
Carefully put the wires back into the outlet box.
8. Pull the cord (A) down slightly until the strain relief touches the hex nut .
Attach the canopy to the mounting strap by inserting two screws, and then
secure it with two ball nuts.
Note: Adjust the strain relief can decrease or increase the length of cord
exposing outside.

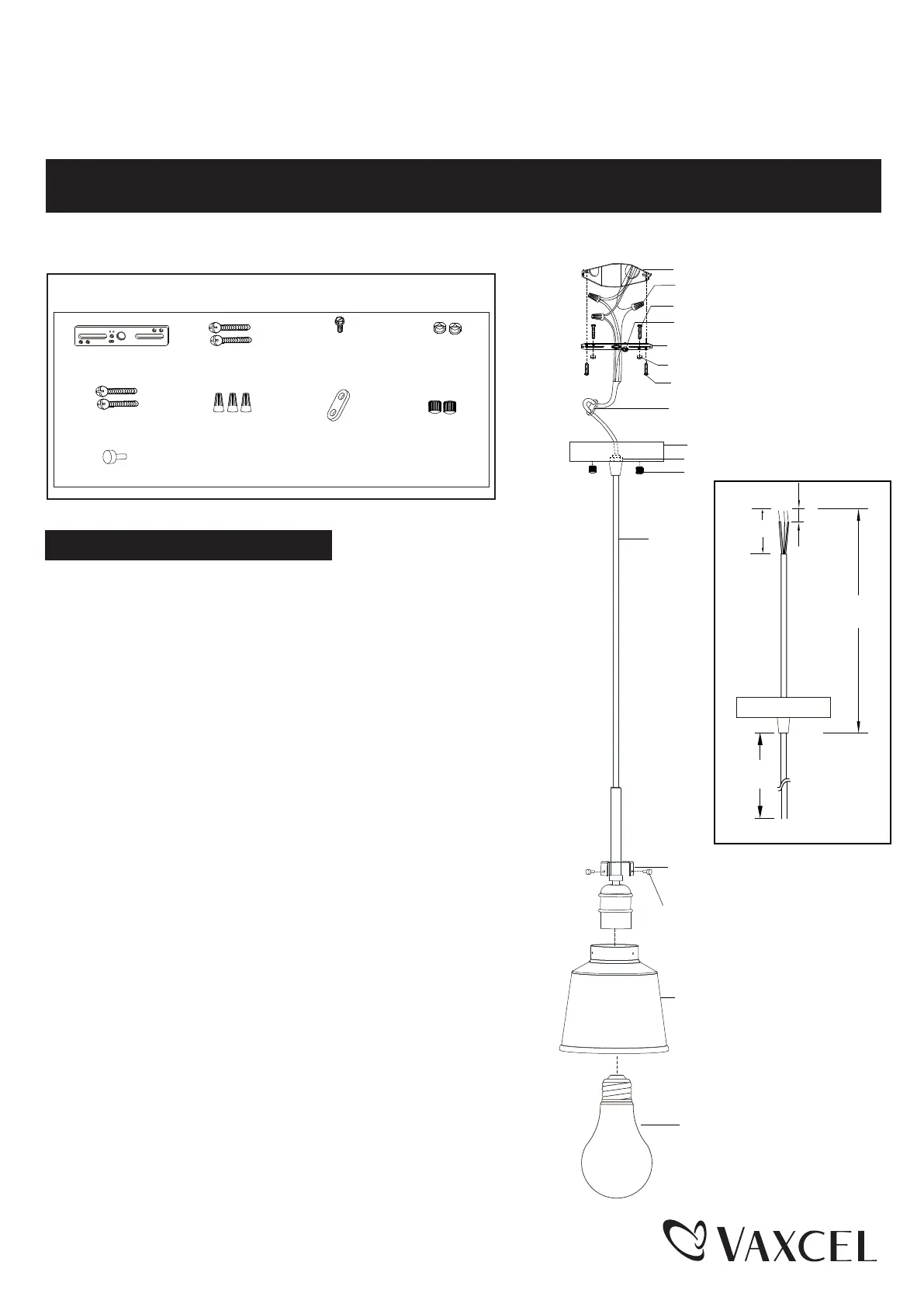

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0260
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (B)
Wire Connector (F)
Strain Relief(G)
Fixture
Support Rod(I)
Glass
Shade
Mounting Strap (A)
Screw (E)
Green Grounding
Screw (C)
Canopy
Ball Nut(H)
Cord(A)
Hex Nut
Lock Nut (D)
Ball Nut (H)
Support Rod (I)
Bulb Type A Max.60W
(not included)
Strain Relief (G)
Mounting Strap (A)
Green Grounding Screw (C)
Lock Nut (D)
Mounting Screw (B)
Wire Connector (F)
Screw(E)
Outlet Box
A
C(3")
D(3/8")
B(9")
Fig.1
