ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
PD5024BN / PD5024OBB

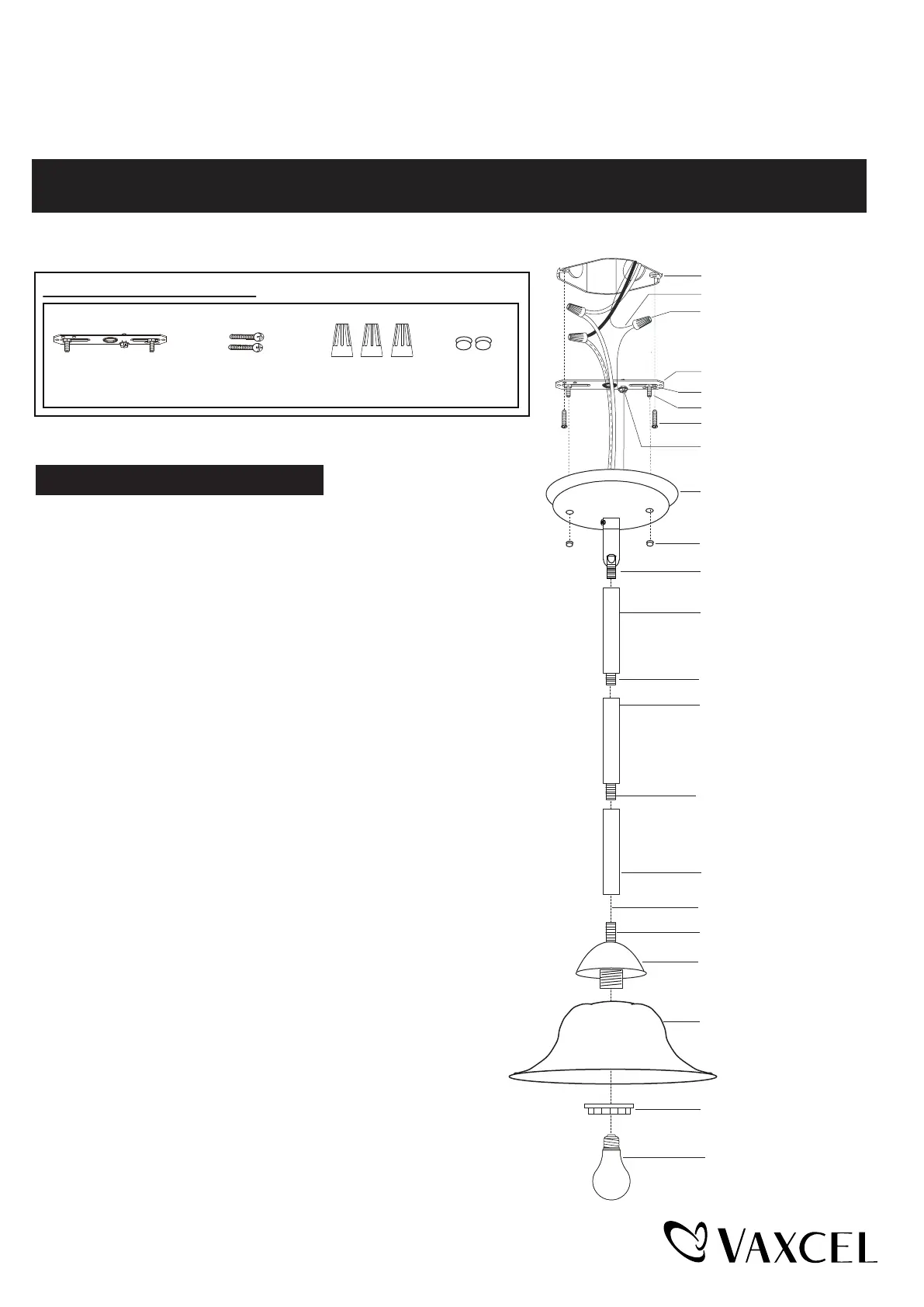

Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap Unit (A)
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Canopy
Bolt Nut (D)
Upper Rod
Middle Rod
Low Rod
Fixture Wire
Socket Ring
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Glass Holder
Glass Shade
Max. 100W Medium Base Bulb
(not included)
Turn off the power at fuse or circuit box
Installation Steps
1. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 17" to 53-1/2". Use fewer rods if
shorter length is desired.
2.
Thread the fixture wire through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
3.
Attach the
mounting strap unit (A)
to outlet box by using two mounting
screws
(B)
.
4. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect theribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with
the green ground screw, then connect it to the house ground
wire with a wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the fixture canopy to the mounting strap unit (A) by
inserting the fixture mounting screws, then secure it with
two bolt nuts (D).
Page 1 / 2
230414
