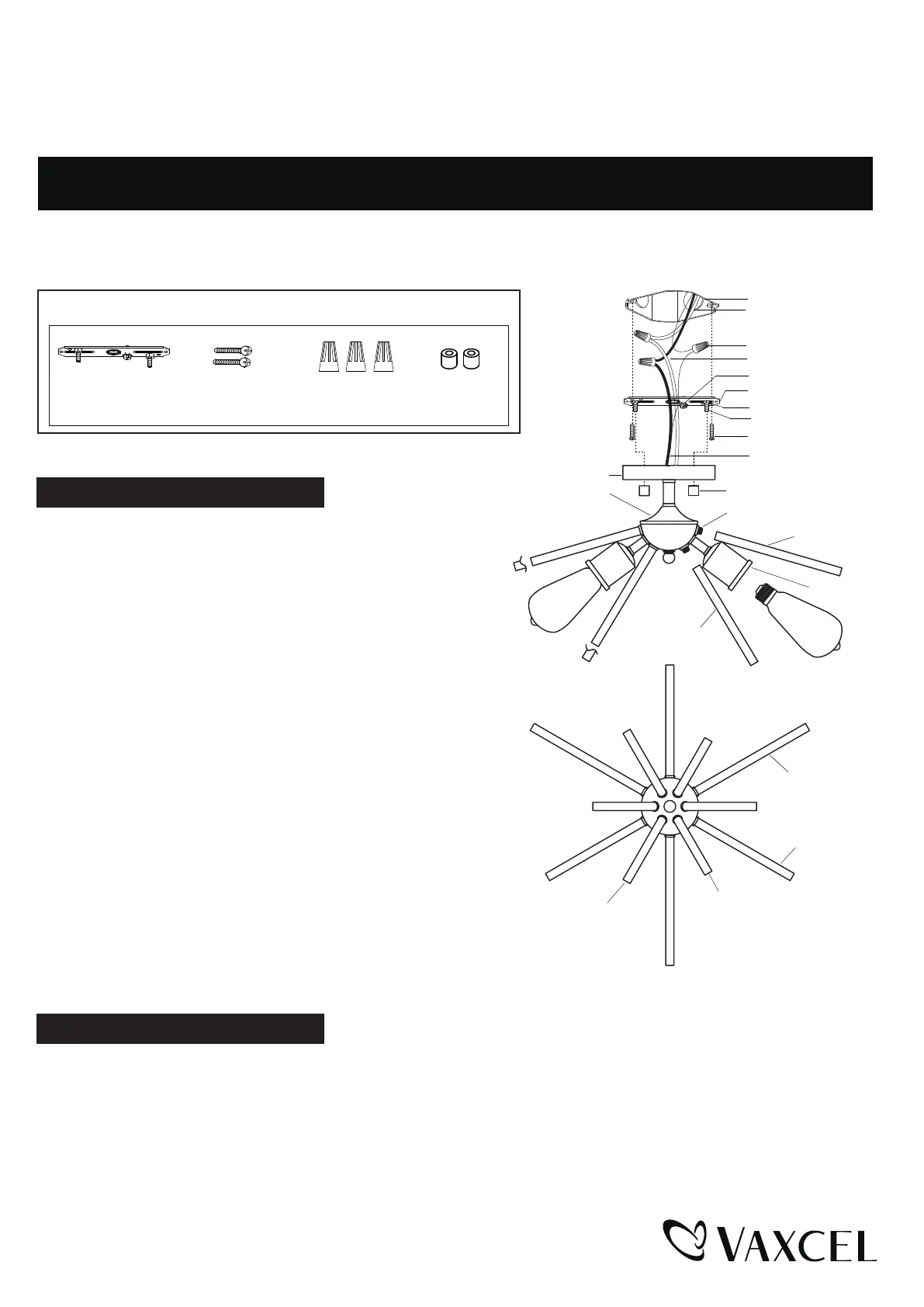

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

C0273

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Bolt Nut (D)

Mounting Screw (B)

Mounting Strap Unit (A)

Wire Connector (C)

Outlet Box

House Ground Wire

Wire Connector (C)

Lock Nut

Mounting Strap (A)

Green Ground Screw

Mounting Screw (B)

Fixture Wire

Fixture Mounting Screw

Fixture Ground Wire

Bolt Nut (D)

Threaded Pipe

Fixture Canopy

Fixture

Long Rod

Socket

Rod

Long Rod

Max. 40W Type ST / Type A

Vintage Bulb

(not included)

Long Rod

Rod

Turn off the power at fuse or circuit box.

Turn ont he power at fuse or circuit box.

Installation Steps

Attach the

mounting strap unit (A)

to outlet box by using two

mounting screws

(B)

2. Screw 11" long rods and 8-1/2" rods to the other threaded

pipes of fixture.

3. Pull out the source wires from the outlet box. Make wire

connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the

fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from

the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting

strap unit (A) with the green ground screw. Then, depending

on local code, then connect it to the house ground wire with the

wire connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the fixture canopy to the mounting strap unit (A)

by inserting the fixture mounting screw, then secure it

with two bolt nuts (D).

5. Install 6 x 40W Max. medium base bulbs (not included).

Check relamping label at socket area or packaging for

maximum wattage allowed.
