ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0266

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Installation Steps

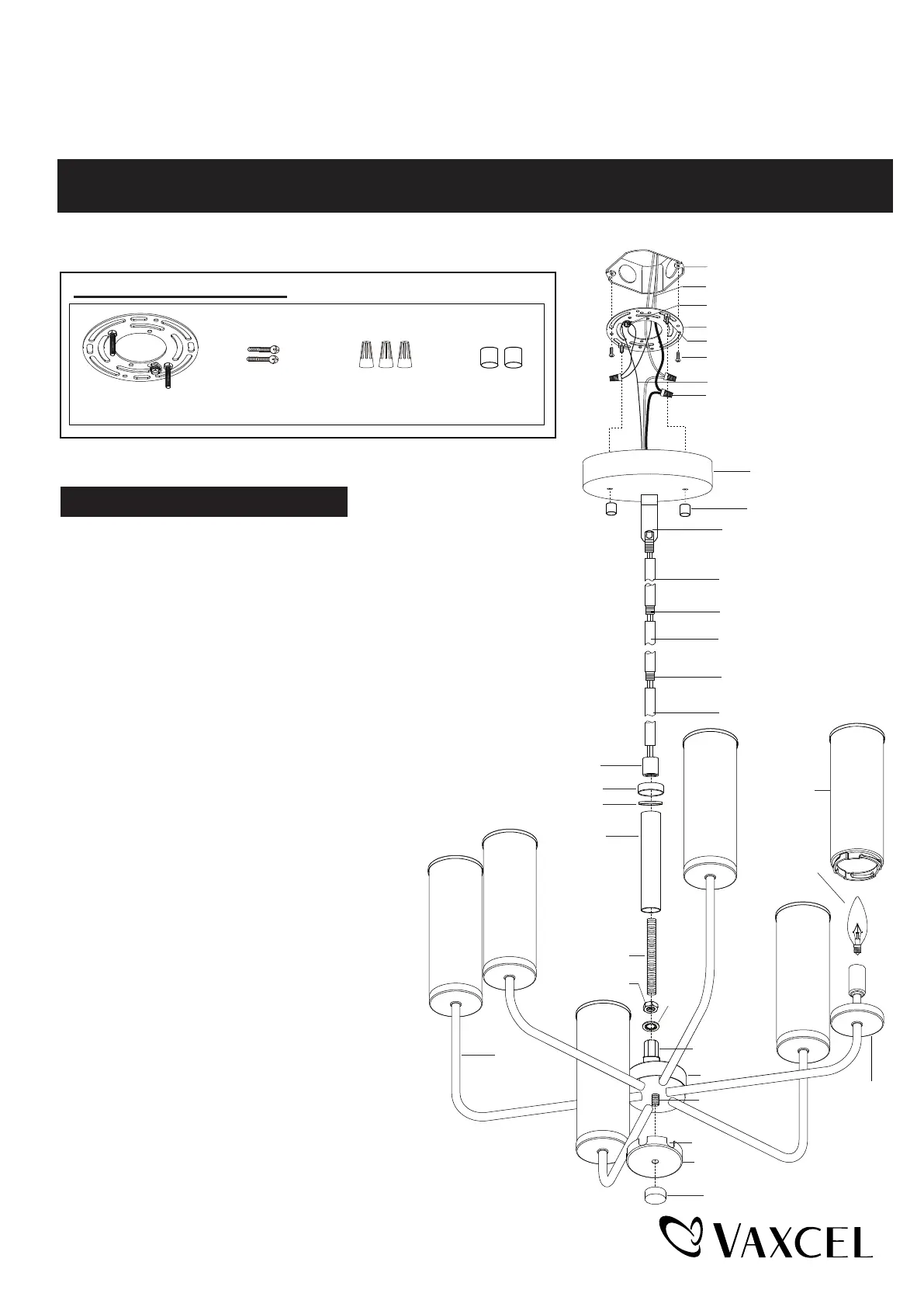

1. Attach the mounting plate unit (A) to the outlet box by using two

mounting screws (B).

2. Attach the threaded pipe to the coupling of the main fixture,

secure it with a washer and hex nut. Adjust the length of the

threaded pipe if necessary.

3. Attach the tube, metal pad and cap onto the coupling by

inserting the threaded pipe, and then secure with the metal part.

4. Adjust the arms of the fixture to fit in six slots of decorative cup,

then put the decorative cup on the fixture by inserting the

threaded pipe-1, secure it with the finial.

. Rod Connections:

a. Thread the fixture wire from the fixture through

the lower rod, then secure the lower rod onto

fixture using the threaded pipe.

b. Thread the fixture wire through the middle

rod and then secure the middle rod onto the

lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod,

then secure the upper rod onto the middle rod

using the threaded pipe.

Note: Length adjustable from 21-3/4" to

72-3/4". Use fewer rods if shorter length is

desired.

Thread the fixture wire through the canopy kit,

then secure the rod assembly to the set threaded

pipe of the canopy kit.

Threaded Pipe

Metal Part

Metal Pad

Cap

Tube

Glass Shade

Glass Holder

Max.60W

Type B Bulb

(not included)

Hex Nut

Coupling

Arm

Threaded Pipe-1

Fixture

Decorative Cup

Slot

Finial

Washer

Canopy Kit

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Set Threaded Pipe

Bolt Nut (D)

Mounting Screw (B) Wire Connector (C)Mounting Plate Unit (A)

Bolt Nut (D)

220228

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box
