ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
C0263
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Thread the fixture wires from the fixture through the
threaded pipe (I), then secure the threaded pipe (I)
onto the fixture using the lock washer (E) and hex nut (D).
Thread the fixture wires from the fixture through the tube (H),
tube cap (G), canopy, metal pad (F) ,lock washer (E) and hex
nut (D) in sequence, then secure them using the hex nut (D).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the power source to the black wire from the fixture.
---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw,
or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.
4. Attach the canopy to the mounting strap unit (A) and secure it with two bolt nuts (J) .
5.
Install 3 x 60W Max. medium base bulbs (not included).
Check relamping label at socket area or packaging for maximum wattage allowed.
220228

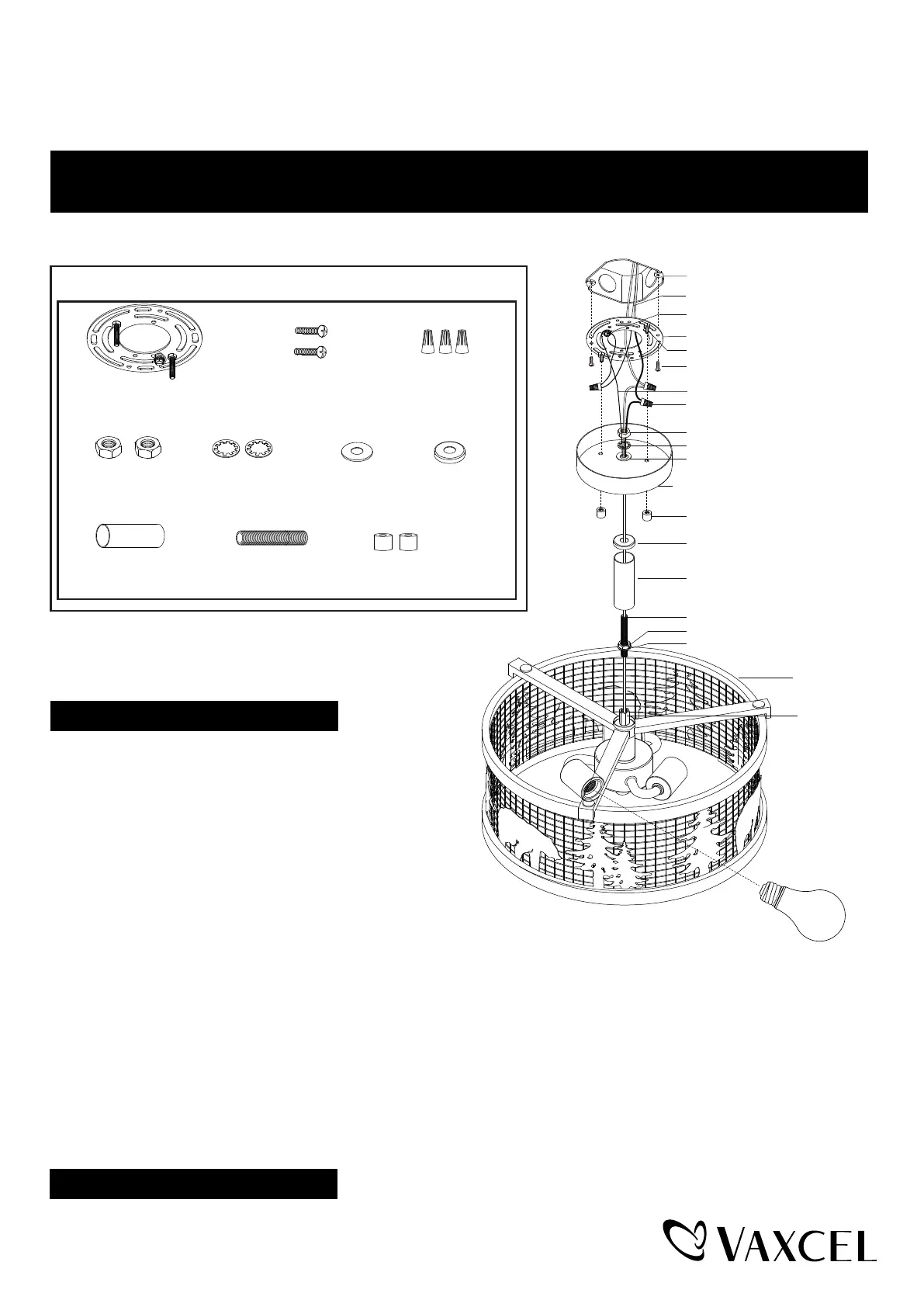

Wire Connector (C)Mounting Screw (B)
Mounting plate Unit (A)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy
Bolt Nut (J)
Hex Nut (D)
Lock Washer (E)
Metal Pad (F)
Tube Cap (G)
Tube (H)
Fixture
Coupling
Threaded Pipe (I)
Hex Nut (D)
Outlet Box
Lock Washer (E)
Max.60W Type A Bulb
(not included)
Bolt Nut (J)
Metal Pad (F) Tube Cap
(G)
Hex Nut (D) Lock Washer (E)
Tube (H) Threaded Pipe (I)
