ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1.

Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0099

Loop

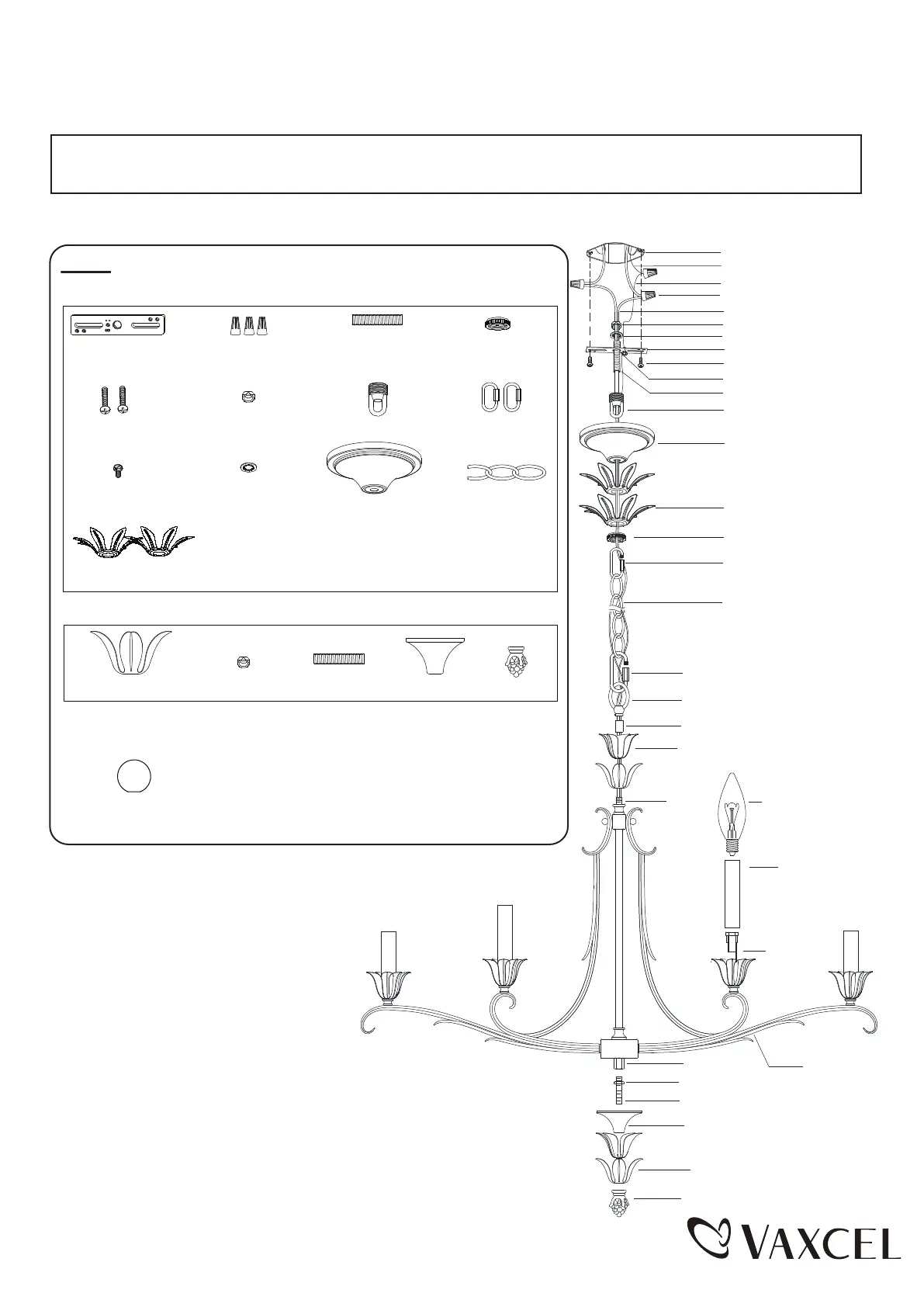

Parts:

Bulb Type B Max.60W

(not included)

Parts Number (5021MM)

Mounting Strap (A)

Mounting Screw (B)

Green Grounding

Screw (C)

Wire Nut (D)

Canopy (I)

Loop Lock (K)

Chain (L)

140307

Main Fixture

Socket

Outlet Box

House Grounding Wire

Wire Nut (D)

Fixture Wire

Fixture Grounding Wire

Mounting Strap (A)

Green Grounding Screw (C)

Mounting Screw (B)

Nipple(G)

Canopy (I)

Top Loop (H)

Hex Nut (E)

Washer (F)

Collar (J)

Loop Lock (K)

Loop Lock (K)

Chain (L)

Hex Nut (E)

Washer (F)

Nipple(G)

Top Loop (H)

Collar (J)

Candle Tube

1. Attach the nipple to the mounting

strap, then secure it with a washer

and hex nut.

2. Attach the mounting strap to the

outlet box by using two mounting

screws.

3. Attach the rod and decorative leaf-1 onto stem

of main fixture, thread the loop onto stem of main fixture as

shown.

Note: The decorative leaves must be staggered.

4. Secure the top loop to the nipple.

5. Choose the length of the chain you need, then weave the

fixture wire and the fixture grounding wire through the chain,

collar, decorative leaf and canopy.

Stem

Decorative Leaf (M)

Decorative Leaf (M)

Rod

Decorative Leaf-1

Finial (R)

Nipple-1 (P)

Coupling

Hex Nut (O)

Decorative Leaf-1 (N)

Cap (Q)

Parts Number (5028AA)

Hex Nut (O)

Nipple-1(P)

Cap (Q)

Decorative Leaf-1 (N)(X2)

Finial(R)

Parts Number (5024BB)

Ball Nut (R) (X2)
