ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0178

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

161207

Mounting Strap (A)

Green Grounding

Screw (E)

Fixture Mounting

Screw(D)

Mounting Screw (B)

Wire Nut (C)

Installation Steps

Lock Nut (F)

Ball Nut (G)

Upper Rod

Threaded Pipe

Middle Rod

Lower Rod

Threaded Pipe

Coupling

Fixture Canopy

Ball Nut (G)

Outlet Box

House Grounding Wire

Wire Nut(C)

Fixture Mounting Screw (D)

Mounting Strap(A)

Green Grounding Screw(E)

Lock Nut(F)

Mounting Screw(B)

Rod

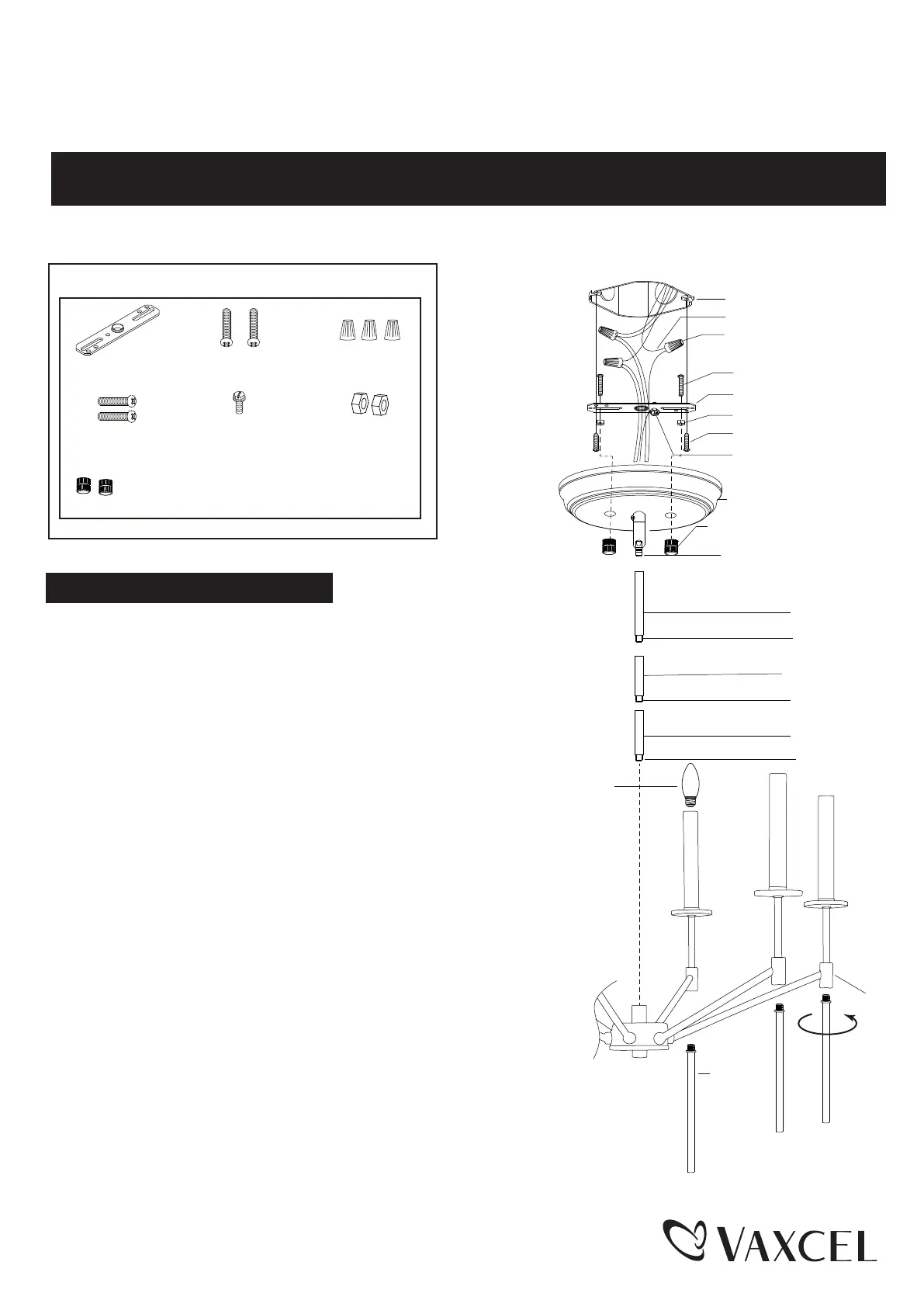

1. Secure rods into the couplings of the light.

2. Attach two fixture mounting screws to the mounting strap,

and then secure it with two lock nuts. Adjust the length of

the fixture mounting screws if necessary.

3. Attach the mounting strap to the outlet box using two

mounting screws.

. Rod Connections:

a. Thread the fixture wires from the fixture through the

lower rod, and then secure the lower rod onto fixture using

the threaded pipe.

b. Thread the fixture wires through the middle rod, and then

secure the middle rod onto the lower rod using the

threaded pipe.

c. Thread the fixture wires through the upper rod, and then secure

the upper rod onto the middle rod using the threaded pipe.

d. Thread the fixture wires through the fixture canopy, and then secure

fixture canopy onto the upper rod using the threaded pipe.

Note: Height adjustable from 23-1/4" to 65-1/4".

Use fewer rods if shorter length is desired.

Bulb Type B

Max. 60W

(not included)
