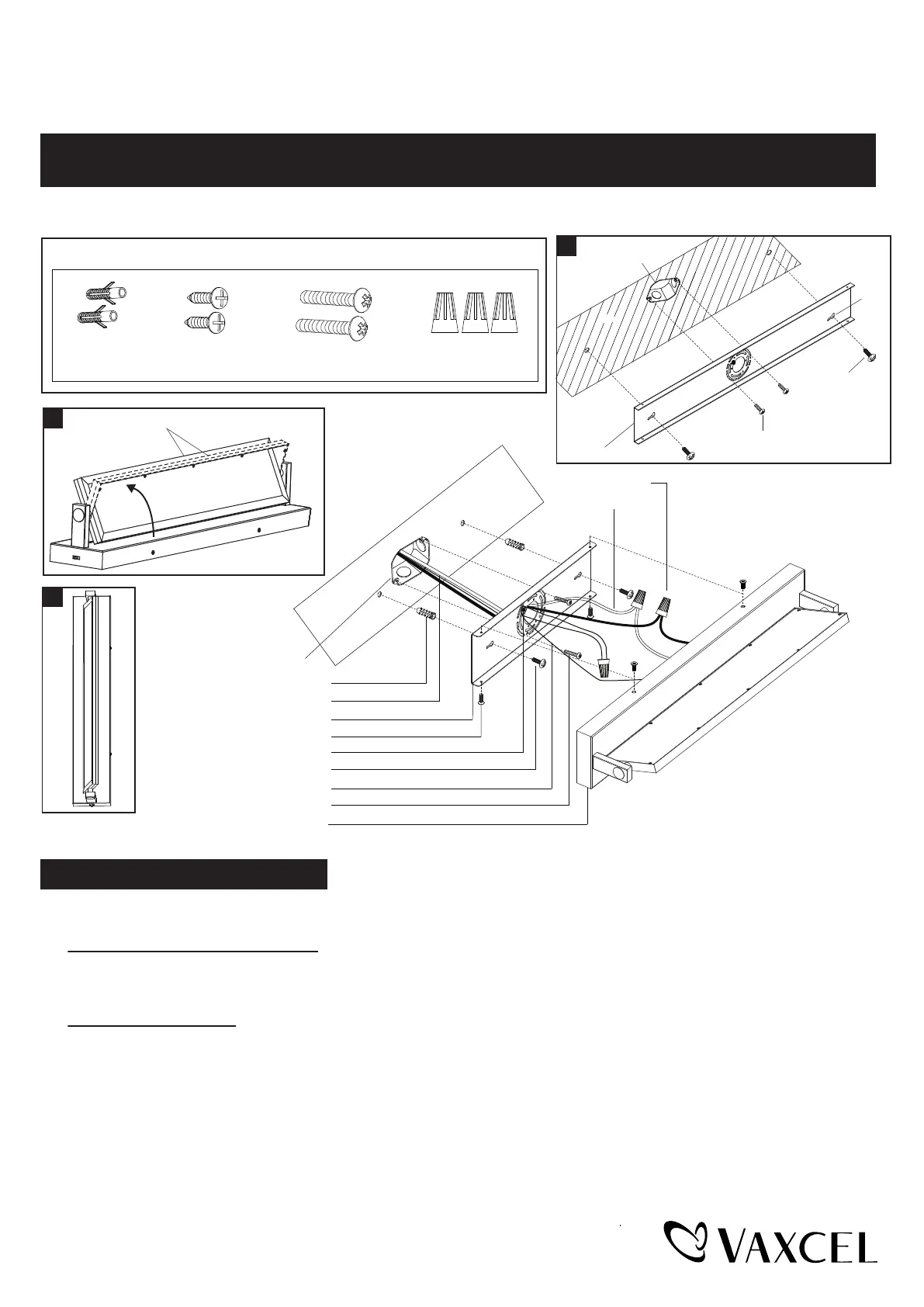

1. Remove four set screws to separate the mounting plate from backplate.
2a. For Mounting to Wood (See Fig.1):
Attach the mounting plate to the outlet box by using two mounting screws (C), then secure the drywall screws (B)
through the set holes to the wall.
2b. For Mounting to Drywall:
Place the mounting plate to the outlet box and mark the target on the wall from the set holes for drilling two holes,
remove the mounting plate. Drill the holes and thread the anchors (A) into the holes, then attach the mounting
plate to the outlet box by using two mounting screws (C). Secure the drywall screws (B) through the set holes into
the anchors (A).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (D) as follows:
---Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
---Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
---Attach the fixture ground wire to the mounting plate with the green ground screw, then connect it to the
house ground wire with a wire connector (D). If your outlet box does not have a house ground wire, then
wrap the fixture ground wire around the green ground screw.
Carefully put the wires back into the outlet box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
W0497
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Page 1 / 2
Wire Connector (D)Mounting Screw (C)
Drywall Screw (B)Anchor (A)
Backplate
Drywall
Wire Connector (D)
Anchors (A)
House Ground Wire
Outlet Box
Green Ground Screw
Drywall Screws (B)
Mounting Screw (C)
Set Screw
Mounting Plate
Fixture Wire
Fixture Ground Wire
Mounting Plate
Mounting Screw (C)
Drywall Screw (B)
Set Hole
1
Outlet Box
Wood
2
Light Source
3
240808
