1. Unscrew the bolt nuts (D), take out the mounting plate unit (A) from the
canopy kit, then attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 19-1/4" to 38-1/4". Use fewer rods if
shorter length is desired.
3.
Thread the fixture wire through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
4. Pull out the source wires from the outlet box. Make wire connections using
wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire
from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white
wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A)
with green ground screw, then depending on local code, connect it to
the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
5. Attach the canopy kit to the mounting plate unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
6. Put the top glass shade, metal ring and bottom glass shade together
as shown in the picture, then carefully attach it onto the glass holder,
and secure it with the socket ring.

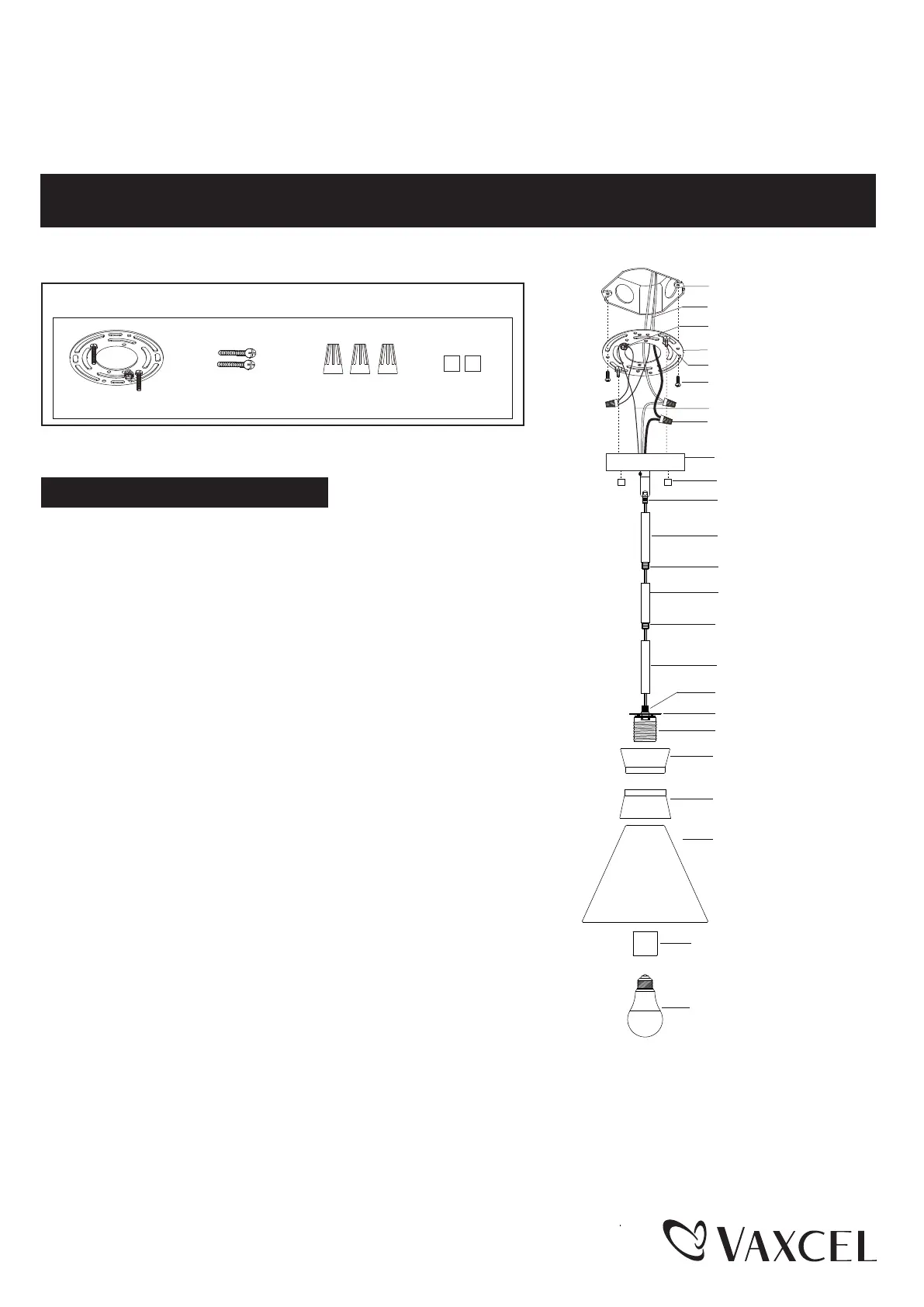

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
P0403
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Bolt Nut (D)
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Lower Rod
Threaded Pipe
Set Threaded Pipe
Bolt Nut (D)
Mounting Screw (B)
Wire Connector (C)
Mounting Plate Unit (A)
Max. 60W Medium
Base bulb (not included)
Page 1 / 2
Socket Ring
Top Glass Shade
Metal Ring
Bottom Glass Shade
Glass Holder
Socket
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
240430
