ASSEMBLY AND INSTALLATION

INSTRUCTIONS

191127

1. Attach threaded pipe (D) to the mounting strap (A),

then secure it with a washer (F) and hex nut (E).

2. Attach the mounting strap (A) to the outlet box by

using two mounting screws (B).

3. Secure the crystal rod into the coupling.

4. Choose the length of the chain (K) you need,

then weave the fixture wire and the fixture

ground wire through the chain (K), collar (I)

and canopy (G).

5. Connect one end of the chain (K) with the

loop by using a loop lock (J).

6. Connect the other end of the chain (K) with

the top loop (H) by using another loop lock (J).

7. Thread the fixture wire and fixture ground wire

through the top loop (H), threaded pipe (D) and mounting strap (A).

Turn off the power at fuse or circuit

box.

Installation Steps

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0243

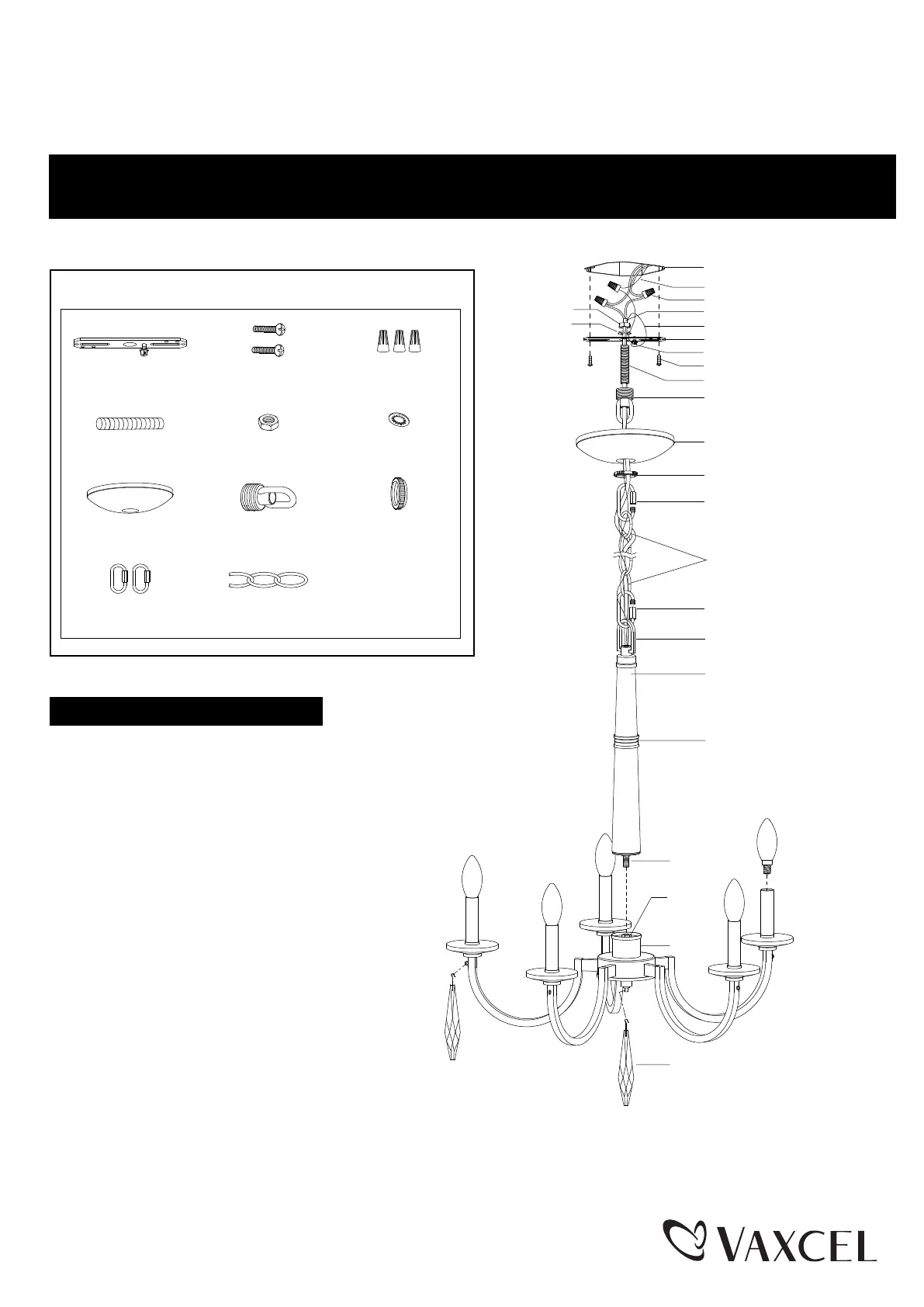

Mounting Strap (A) Wire Connector (C)

Collar (I)

Washer (F)

Mounting Screw (B)

Hex Nut (E)

Canopy (G) Top Loop (H)

Threaded Pipe (D)

Loop Lock (J)

Chain (K)

Hardware Package(inculded):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Candelabra Base Bulb

Max.60W (not included)

Outlet Box

Housing Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Strap (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe (G)

Hex Nut (E)

Washer (F)

Top Loop (H)

Canopy (H)

Loop Lock (J)

Loop Lock (J)

Collar (I)

Chain (K)

Loop

Threaded Pipe

Threaded Pipe

Coupling

Fixture

Crystal

Crystal Rod
