1. Unscrew the headless screws from backplate by using "L" screwdriver (C), then remove the mounting plate.

2. Attach the mounting plate to the wall.

a) If the wall material is wood:

Attach the mounting plate to the outlet box by using two mounting screws (A), then secure the drywall screws (D)

through the set holes to the wall.

b) If the wall material is cement:

Place the mounting plate to the outlet box and mark the target on the wall from the set hole for drilling two holes.

Remove the mounting plate. Drill the holes and thread the anchors (E) into the holes, then attach the mounting plate

to the outlet box by using two mounting screws (A). Secure the drywall screws (D) through the set holes into the

anchors (E).

Mounting Screw (A) ″ L ″ Screwdriver (C)Wire Connector (B)

Anchor (E)Drywall Screw (D)

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

W0048 / W0124 / W0310

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Assembly Instructions:

Turn off the power at fuse

or circuit box.

Glass bracket

Max. 75W T10 Bulb

(not included)

Backplate

Mounting Screw (A)

Headless Screw

Mounting Plate

House Ground Wire

Green Ground Screw

Fixture Ground Wire

Wire Connector (B)

Outlet Box

Fixture Wire

″ L″ Screwdriver (C)

Anchor (E)

Drywall Screw (D)

Interior Glass Shade (G)

Exterior Glass Shade (F)

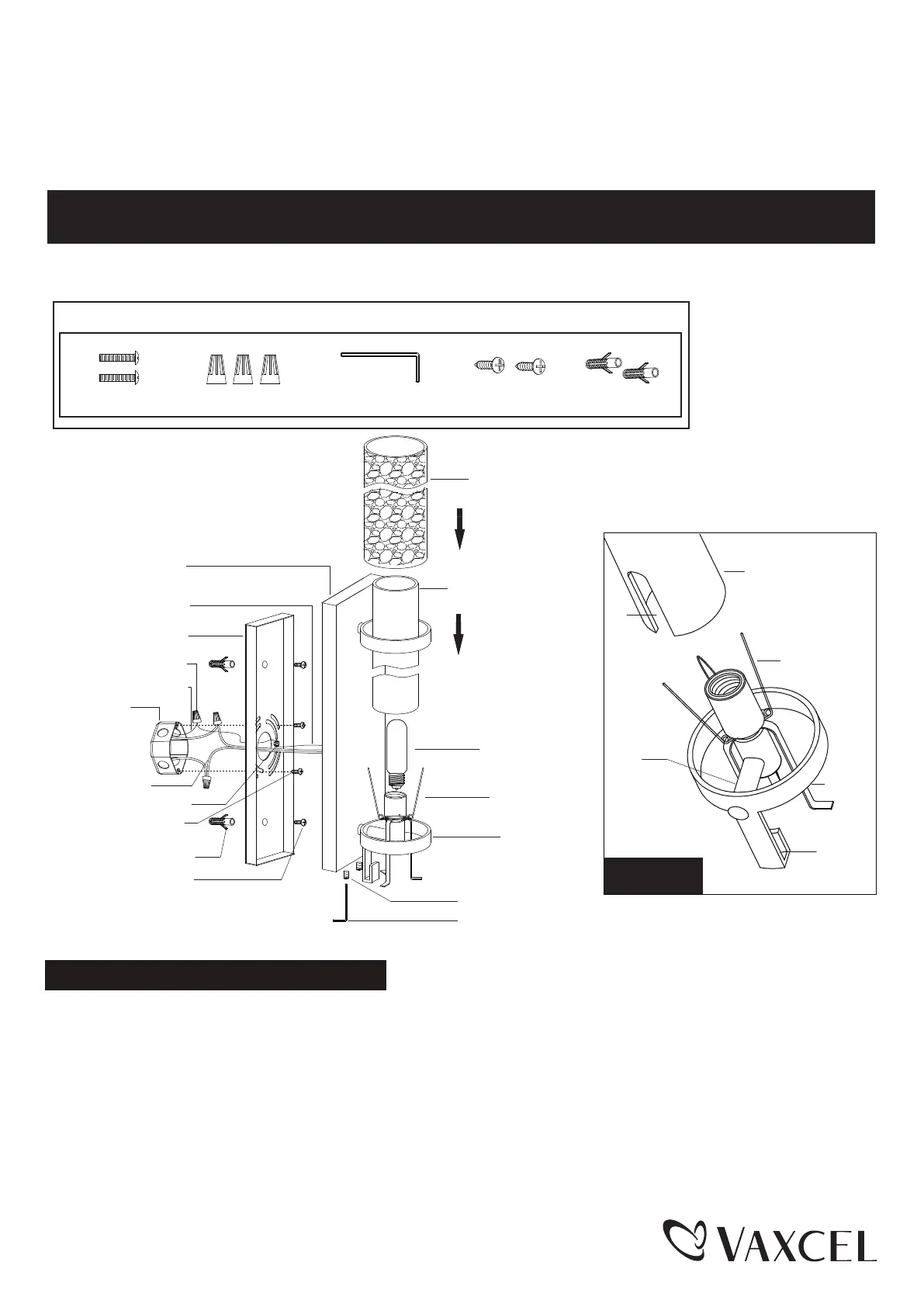

Figure.1

Interior Glass Shade

Slot

Fixture

arm

Slot

Socket Spring

Page 1 / 2
