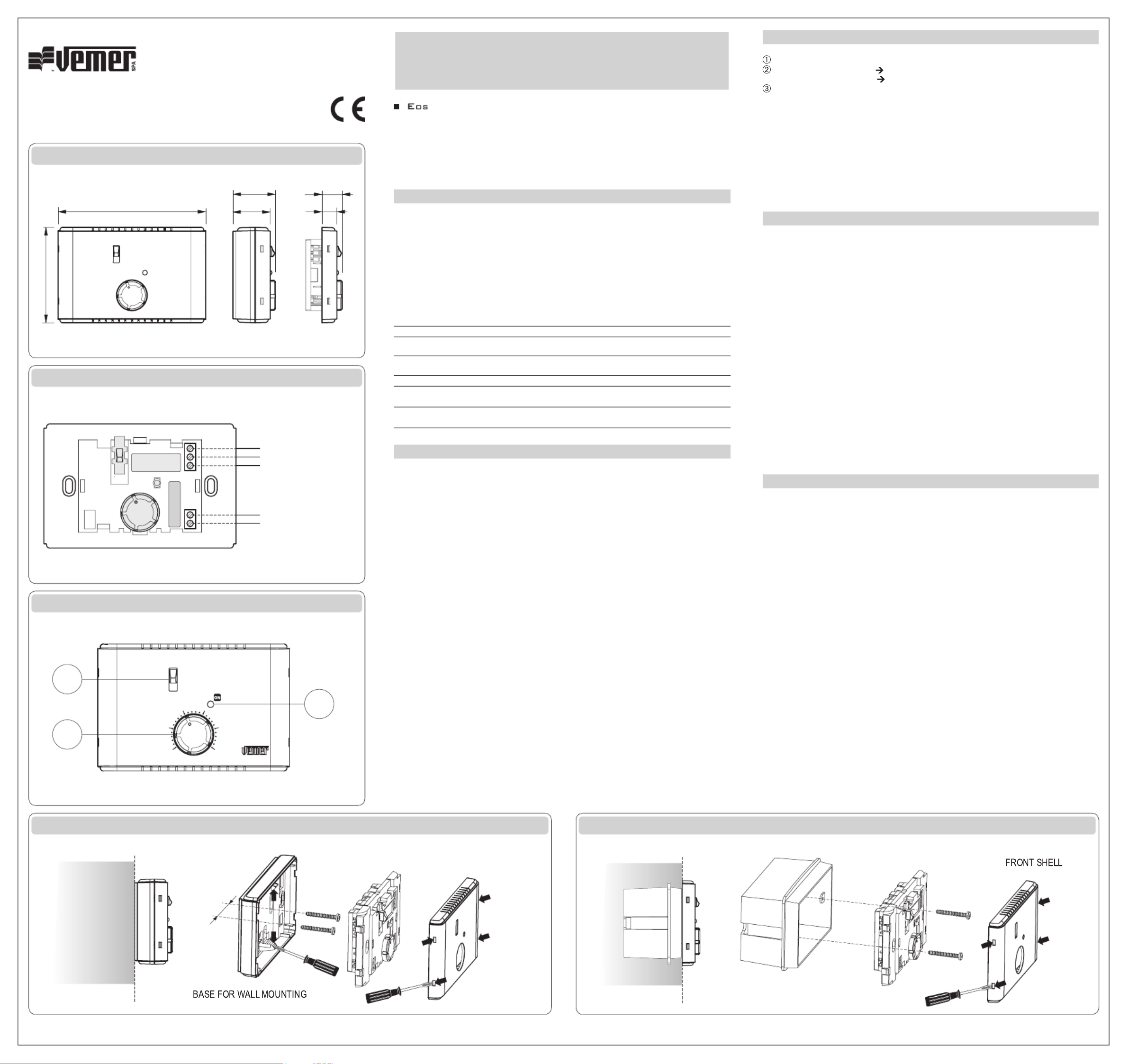

Side 1/6

Dimensions

Connections

Description

V3IS00409-011

Mod. Eos

Eos DN

Eos SW

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

Tel +39 0439 80638 • Fax +39 0439 80619

e-mail: info@vemer.it - web site: www.vemer.it

is an electronic thermostat, semi-ﬂ ush mount for box 503, featuring temperature

control by knob and load-on indication light. The package includes the relevant mounting

support, also for wall installation.

Besides the EOS base model, the following versions are available:

- EOS DN, featuring a selector switch by which it is possible to turn the temperature setting

down by 3°C

- EOS SW, featuring a selector switch by which it is possible to control both heating and

A/C systems

SAFETY INSTRUCTIONS

The EOS thermostat performs 1B-type actions and is aimed for household or similar premises,

under a normal pollution degree.

During product installation and operation, it is necessary to observe the following

instructions:

1) The instrument must be installed by a qualiﬁ ed person

2) Disconnect power supply while installing the unit

3) Do not power or connect the product if any part of it is damaged

4) Connect the product considering the diagrams described in the following manual and

on the instrument

Code Model Description Function

VE084000 Eos Thermostat with warning lamp Heating

VE085700 Eos DN Thermostat with warning lamp

and day/night/OFF switch

Heating and night offset of 3°C

VE086500 Eos SW Thermostat with warning lamp

winter/OFF/summer switch

Heating and A/C

VE151700 Eos gray Thermostat with warning lamp Heating

VE167300 Eos gray

Thermostat with warning lamp

and day/night/OFF switch

Heating and night offset of 3°C

VE168100 Eos gray

Thermostat with warning lamp

winter/OFF/summer switch

Heating and A/C

TECHNICAL SPECIFICATIONS

• Power supply: 230Vac (± 10%), 50/60Hz

• Device consumption: 3VA (0,5W)

• Output: relay with exchange contact

8A / 250Vac (resistive load)

2000VA (resistive load)

• Output status signalling: red light on when load is on

• Termination:

– terminal-strip power supply: 2 poles, maximum section of cables 1,5 mm²

– relay output terminal strip: 3 poles, maximum section of cables 1,5 mm²

• Installation:

– on wall dimensions 113x73x32,4 mm

– semi-ﬂ ush mount on 503 box: dimensions 113x73x15,5 mm

• Temperature control range:

– SUMMER/WINTER modes: +5°C ÷ + 30°C

– NIGHT mode: +2°C ÷ + 27°C

• Night offset (for EOS DN only): ﬁ xed - 3°C from temperature setting

• Cut-in differential: ﬁ xed 1°C for ON/OFF-type temperature control

• Accuracy: ±0,5C°

• Operating conditions:

– temperature 0°C ÷ + 40°C

– relative humidity 20% ÷ 90%, non-condensing

• Storage temperature: - 10°C ÷ + 60°C

• Enclosure: white thermoplastic ABS

• Protection rating: IP30

• Insulation class: II (double between accessible parts and terminals)

User Manual

ELECTRONIC THERMOSTAT

Read all instructions carefully

DEVICE DESCRIPTION

room temperature control knob from +5°C to 30°C

red “ON” warning light on load on (between COM and NO)

off load off

operating mode selector (not featured on the EOS base version):

EOS DN

“Sun” setpoint: heating (between COM and NO)

“night” setpoint: heating, but with temperature offset of 3°C below the knob setting

(e.g. if the knob setting is 22°C, control temperature will be 19°C)

position “OFF”: the thermostat is off

EOS SW

“Winter” setpoint: heating (between COM and NO)

“Summer” setpoint: A/C (tra COM ed NO)

position “OFF”: the thermostat is off

INSTALLATION AND MOUNTING

It is advisable to choose for the thermostat a position in a zone in which the temperature

is the room average value.

Do not install it too near doors, windows, sources of heat, direct sunlight or in places in

which airing is too much or too poor.

Installing the thermostat about 150cm from the ﬂ oor is recommended.

• SEMI-FLUSH MOUNTING (BOX 503)

Connect the power and relay terminals (refer to the wiring diagrams).

Fasten the thermostat to the 503 box using the two screws attached.

Place the silk-screen printed front shell by pressing on the four corners simultaneously.

(The wall-mounting base is not used)

• WALL MOUNTING

Fasten the base to the wall.

Connect power and relay terminals (refer to the wiring diagrams) and then ﬁ t the

thermostat in.

Place the silk-screen printed front shell by pressing on the four corners simultaneously.

In order to access to the wiring when the device is in its service position, cut off the power

supply, insert a ﬂ at-head screwdriver into the slots on the sides as shown on ﬁ gure, lift the

front shell and remove the thermostat.

If the thermostat is installed on the wall, place a ﬂ at-head screwdriver into the upper and

lower slots to remove it (as shown in the ﬁ gure).

REFERENCE STANDARDS

Conformity with EU directives:

2006/95/EC (Low Voltage)

89/336/EEC modiﬁ ed by 92/31/EEC and 93/68/EEC (EMC)

is declared with reference to the following harmonised standards:

Safety: EN 60730-2-9

Electromagnetic compatibility: EN 61000-6-1, EN 61000-6-3

113

15.5

11.5

32.4

28.5

Heating and A/C systems

Max 8A 250Vac (resistive load)

POWER SUPPLY 230V~

COM

15 20

Eos

Wall mounting

Semi-ﬂ ush mounting (box 503)
