SENSE

IR Detection

Packing List

1 - SENSE Control Box

1- Optical Sensor

1 - Owners Manual

2 - Mounting Screws

1 - 6’ Control/Link Cable

1 - 2’ Control/Link Cable

1 - Sensor Mounting Bracket

1 - 6’ Power/Trigger Cable for using SENSE as a dry

contact switch

SENSE Owners Manual

d i g i t a l

Basic Operation of SENSE

SENSE can be used with any of our interactive

media players, with most 3rd party players and

as a “dry contact” switch. When a Videotel digital

media player is bundled with SENSE then the

solution is preset and ready to plug and play

right out of the box. The SD card has also been

pre-loaded with sample videos: 000.mov (loop-

ing “attract” video). 001.mov (plays when some-

one is detected). 002.mov (plays after 001 has

been triggered and when someone moves away

from the sensor the amount of time set on after

the “Triggers Exit” dial). 003.mov (plays after 001

has been triggered and when someone moves

away from the sensor before the amount of time

set on the “Triggers Exit” dial).

Connections

SENSE will connect to any of our interactive

media players with a 4 pin I/O cable. This cable

can be made in any length up to 50’. Connect the

I/O cable to the back of the media player and

then to either jack on SENSE.

When connecting multiple SENSE devices,

simply use the other included 4 pin I/O cable and

connect the additional SENSE as shown below.

For additional instructions, videos

and help with connecting SENSE to

our interactive players or to a 3rd

party player, please scan QR code

Naming Files When Using SD/USB/LAN/FTP

Load 4 videos per SENSE on your SD/USB (for

LAN and FTP - see VP90/VP92 manual). These

les will need to be labeled 000.mov (mov, mp4,

mp3, etc.), 001.mov, 002.mov, 003.mov. The

video le 000.mov represents the video that will

loop endlessly until someone stands in front of

the sensor. When using 1 SENSE the le 001 is set

on the “File to Play” dial and video 001.mov will

play once when triggered. If a second Wave

Device is used, load a 004.mov, 005.mov and

006.mov videos, set the dial to 004 and video

004.mov will play once when triggered.

Adjusting Distance & Delay

The distance dial can be adjusted from 3’ to 16’. If

the dial is set for 6’, someone can be 10’ away and

walk towards the sensor, once they are 6’ away

the 001 video will start to play. The delay dial on

the left is how long someone must stand in front

of the sensor before the video will be triggered.

The middle dial is for how long the person must

move away from the sensor before the “exit

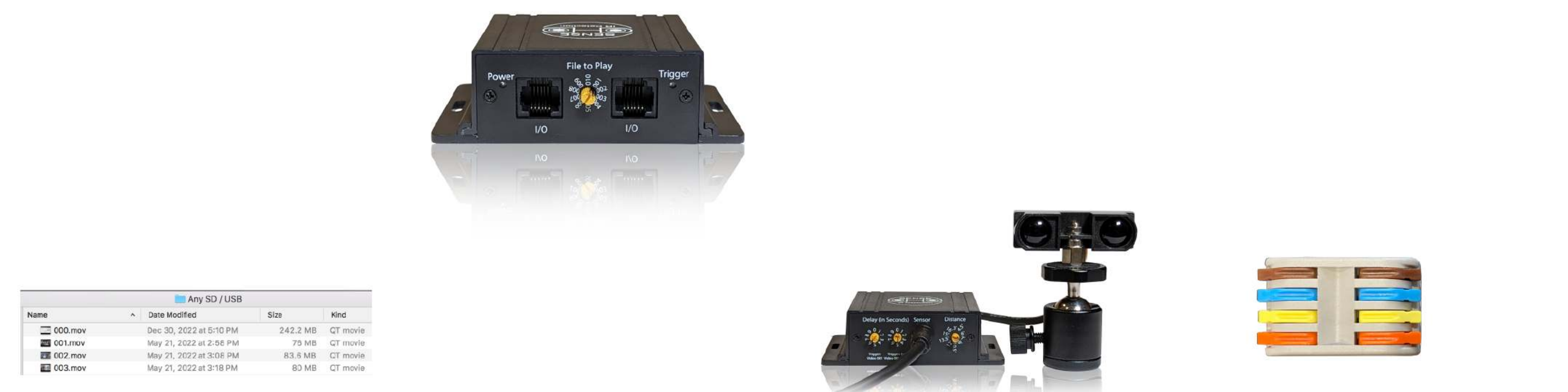

Connections, File To Play, Power & Trigger

• Either I/O jack can be used for Videotel Media

Players, RS232, TTL or dry contact trigger

• When the SENSE Box is connected the

“Power” LED will illuminate green

• When the SENSE IR Sensor detects someone

(or something) the “Trigger” LED will

illuminate blue

Connecting Dry Contact Switch Terminal

SENSE can be used as a dry contact switch. When

the sensor detects a person (or object) an inter-

nal relay is switched from the normally open

position (N.O.) to normally closed (N.C.) for as

long as the sensor detects a person/object. Con-

nect the 6 pin I/O cable with the orange 4

conductor terminal block (shown below) into

the SENSE Box. The terminal block is labeled and

requires 5VDC on the outside connections. The 2

inside connections are the switch.

Ground

Switch

+5VDC

video” is triggered (can just

be a copy of 001 or a

unique “thank you for stop-

ping by” type of video).
