VP92 Operation Manual
What is in the box
1 - VP92 Video Player
1 - 32-256 GB Micro SD (in-
stalled)
1 - Remote Control
1 - 5’ HDMI Cable
1 - 5’ USB Power Cable
1 - 5’ 3.5mm to RCA A/V Cable
1 - Wi Antenna
4 - Mounting Screws
d i g i t a l
(7)(5) (6)(4) (8)(3)(2)(1)
(9)
Remote Functions
Power On & O
Change Video
Output - HDMI
and A/V
Mouse Mode -
Press to enter
& exit “mouse
mode”, then
use arrow keys
Home - Returns
to start up
screen
Rewind
Play / Pause
Previous Video
Volume Down
Volume Up
Rotate -Rotates
video counter
clockwise /
clockwise /
normal
OS Settings -
(HDMI, Wi, Time,
Date, Etc)
ALL - Lists all con-
tent on SD/USB/
Micro SD
Turns on/o OSD
Arrow & SELECT
- Navigate all op-
tions
Last - Returns to
previous screen
Fast Forward
Next Video
Stop Video
Mute Audio
Scale - Various
output options
4 : 3 / 1 6 : 9 / f u l l
screen/origin
Zoom - Trim
screen size with
11 pre set op-
tions
Videotel Digital
Chula Vista, California
(619) 670-4412
www.videoteldigital.com
Connections
The VP92 is capable out outputting vid-
eo either (A or B) or both HDMI
(5 & 6)
out jacks. The I/O port is used for (4)
RS232/TTL communication and con-
necting to our line of interactive solu-
tions including PUSH, MOVE, SENSE,
WAVE, RFID, SCAN, TAP and ELEVATE.
The USB on the front or back can be (3)
used for a keyboard and/or mouse. Use
the enclosed Wi antenna and attach to
the threaded plug if you plan to use
(8)
Wi. The Micro SD is inside of the player
for storing les when using FTP/LAN/
URL. The audio jack is used for out(9) -
puting line level (not am-
plied) stereo audio (R &
L) . Use the enclosed pow-
er supply and make sure
to line up the pins on the
plug and
then “Twist
& Lock” the
plug into
the jack .
(1)
DRAFT - Updated 9/16/22

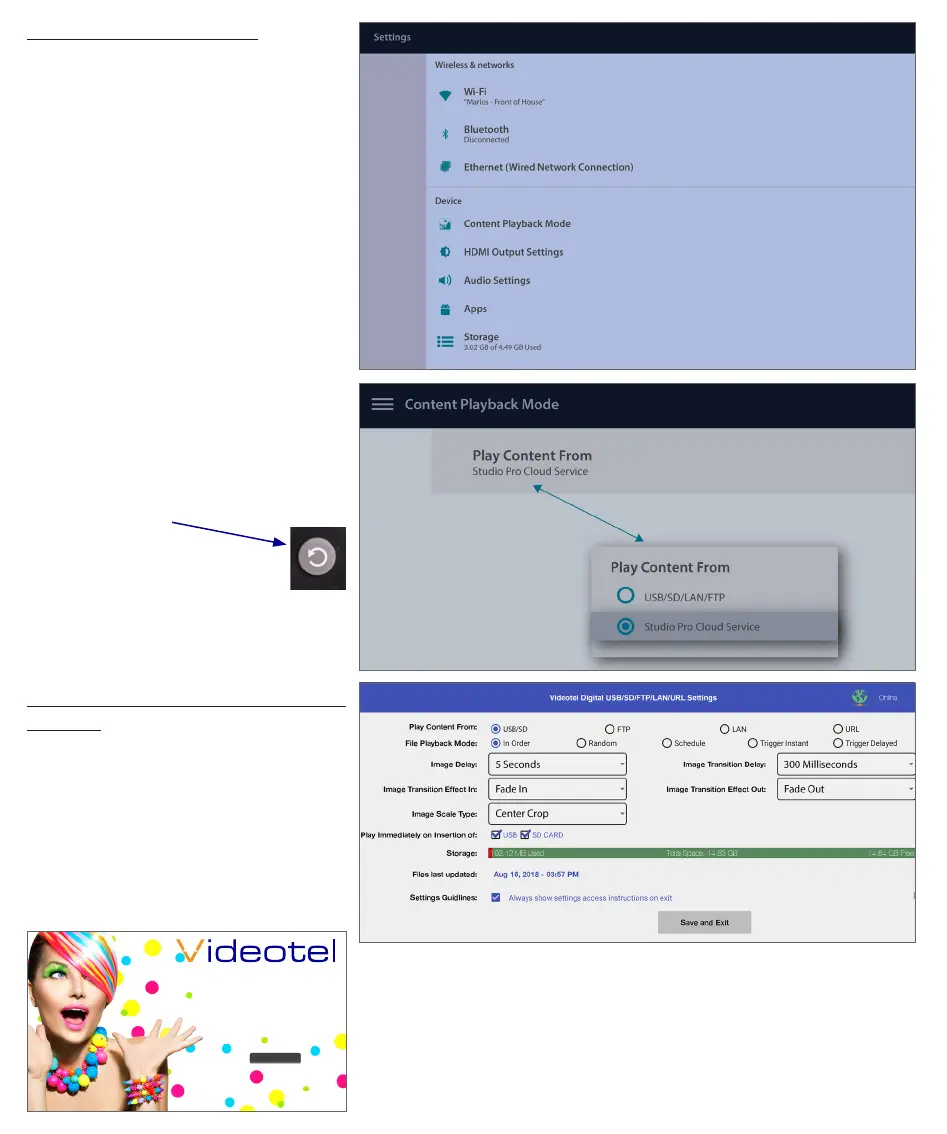

Content Playback Options
The VP92 has 2 main catagories for
playing content. The 1st allows you to
play content from SD, USB, LAN, FTP or
a URL. With these options you can loop
content, schedule content and con-
nect any of our interactive device. You
can also control the player through
RS232 or TTL using the I/O port. The
2nd allows you to update content us-
ing our Cloud Service. To switch be-
tween the 2 catagories, press the Set-
tings button on the remote and then
select the “Content Playback Mode”
option .
(10)
Once the Playback Mode options are
listed, select an option. To play from
USB, SD, FTP, LAN or URL select the
“USD/SD/LAN/FTP” option , then
(11)
press the “Return/Last” button 2 times.
(10)
(11)
(12)
Access the USB/SD/FTP/LAN/ URL
Settings
To access the various content playback
options (random, schedule or interac-
tive) simply select the USB/SD/LAN/
FTB option from the settings button
and then press the HOME button on
the remote, or remove the SD/USB.
The screen below will appear and you
will then just press the SELECT button (14)
To play from Studio Pro or Stu-
dio Web Cloud Services, select
on the remote and the screen above will appear. Once your content
is playing you can access the settings again by removing the SD/
USB or by clicking the SETTINGS ICON in the upper right corner of
the screen when using a mouse or “mouse mode” on the remote.
Note: If the “Settings Guidelines” is checked an animated on (14)
screen display will show settings access instructions each time the
settings are saved.
the “Studio Pro Cloud Service” option
(12) (if the option does not auto load,
press the “Return/Last” button).
VP92 4K Media Player
Networked • 4K UHD @ 60fps • Industrial
Auto Loop • Se amless • Inte ractive
Dual HD MI Ou tputs • HDMI Input
Settings
d i g li t a
www.videoteldigital.com
