Graphic User Interface (GUI) for IP Speed Dome
Installation and operation manual
2
Graphic User Interface (GUI) for IP Speed Dome
EN
Cautions
- Please use the specied power supply to connect.
- Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers.
- There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is
any failure.
- Avoid from incorrect operation, shock vibration, heavy pressing which can cause damage to product.
- Do not use corrosive detergent to clean main body of the camera. If necessary, please use soft dry cloth to wipe dirt;
for hard contamination, use neutral detergent. Any cleanser for high grade furniture is applicable.
- Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this may damage the image
sensor.
- Please follow the instructions to install the camera. Do not reverse the camera, or the reversing image will be re-
ceived.
- Do not operate it incase temperature, humidity and power supply are beyond the limited stipulations.
- Keep away from heat sources such as radiators, heat registers, stove, etc.
- Do not expose the product to the direct airow from an air conditioner.
- This is product instructions not quality warranty. We may reserve the rights of amending the typographical errors,
inconsistencies with the latest version, software upgrades and product improvements, interpretation and modica-
tion. These changes will be published in the latest version without special notication.
- When this product is in use, the relevant contents of Microsoft, Apple and Google will be involved in. The pictures and
screenshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos
and other intellectual properties related to Microsoft, Apple and Google belong to the above-mentioned companies.
- All pictures and examples used in the manual are for reference only.
3
Graphic User Interface (GUI) for IP Speed Dome
EN
Contents
1 Introduction .........................................................................................................................................................3
2 IE Remote Access ..............................................................................................................................................3
2.1 LAN ..........................................................................................................................................................3
2.1.1 Access through IP-Tool ..................................................................................................................3
2.1.2 Directly Access through IE .............................................................................................................4
2.2 WAN .........................................................................................................................................................6
3 Remote Preview .................................................................................................................................................8
4 Menu Setup ........................................................................................................................................................13
4.1 System Information .................................................................................................................................. 13
4.2 System Setup ...........................................................................................................................................13
4.2.1 Auto PT Flip ...................................................................................................................................14
4.2.2 Date Setup .....................................................................................................................................14
4.2.3 Title Setup ......................................................................................................................................14
4.2.4 North setup ....................................................................................................................................15
4.2.5 New Password and Change Password..........................................................................................15
4.2.6 Auto Exit Time ................................................................................................................................15
4.3 Camera Setup ..........................................................................................................................................15
4.3.1 Camera Control ..............................................................................................................................16
4.3.2 Image Setup ...................................................................................................................................16
4.3.3 Lens Setup .....................................................................................................................................17
4.3.4 Day & Night Setup .........................................................................................................................18
4.3.5 Video Format .................................................................................................................................18
4.4 Dome Function .........................................................................................................................................18
4.4.1 Preset Setup ..................................................................................................................................18
4.4.2 Cruise Setup ..................................................................................................................................19
4.4.3 Grouping Setup ..............................................................................................................................20
4.4.4 Task Setup .....................................................................................................................................20
4.4.5 Track Setup ....................................................................................................................................21
4.4.6 Alarm Setup ...................................................................................................................................21
4.4.7 Home Position ................................................................................................................................22
4.5 Display Setup ...........................................................................................................................................22
4.6 Load Default .............................................................................................................................................23
5 Remote Conguration.........................................................................................................................................23
5.1 System Conguration ...............................................................................................................................23
5.1.1 Basic Information ...........................................................................................................................23
5.1.2 Date and Time Conguration .........................................................................................................23
5.1.3 Local Cong ...................................................................................................................................24
5.1.4 SD Card .........................................................................................................................................24
5.2 Image Conguration .................................................................................................................................27
5.2.1 Camera parameters .......................................................................................................................27
5.2.2 Video Stream .................................................................................................................................29
5.2.3 OSD Conguration .........................................................................................................................30
5.2.4 Video Mask ...................................................................................................................................30
5.3 PTZ Conguration ....................................................................................................................................31
5.3.1 PTZ and Password Setting ............................................................................................................31
5.3.2 Load Default ...................................................................................................................................31
5.3.3 Dome Function ...............................................................................................................................31
5.4 Alarm Conguration ..................................................................................................................................32
5.4.1 Motion Detection ............................................................................................................................32
4
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4.2 Alarm In ..........................................................................................................................................34
5.4.3 Alarm Out .......................................................................................................................................35
5.4.4 Alarm Server ..................................................................................................................................36
5.4.5 Smart Tracking ...............................................................................................................................37
5.4.6 Line Crossing Detection .................................................................................................................39
5.4.7 Intrusion .........................................................................................................................................40
5.4.8 Region Entrance ............................................................................................................................41
5.4.9 Region Exiting ................................................................................................................................42
5.4.10 Target Counting ............................................................................................................................43
5.4.11 Face Comparison .........................................................................................................................43
5.5 Network Conguration ..............................................................................................................................47
5.5.1 TCP/IPv4 ........................................................................................................................................47
5.5.2 Port ................................................................................................................................................47
5.5.3 Central Server ................................................................................................................................48
5.5.4 DDNS Conguration ......................................................................................................................48
5.5.5 SNMP .............................................................................................................................................50
5.5.6 802.1x ............................................................................................................................................51
5.5.7 RTSP..............................................................................................................................................52
5.5.8 UPnP ..............................................................................................................................................53
5.5.9 E-mail .............................................................................................................................................53
5.5.10 FTP Setting ..................................................................................................................................54
5.5.11 HTTPS .........................................................................................................................................55
5.7 - Security Conguration ............................................................................................................................57
5.6.1 User Conguration .........................................................................................................................57
5.6.2 Online User ....................................................................................................................................58
5.6.3 Block and Allow List .......................................................................................................................59
5.6.4 Security Management ....................................................................................................................59
5.7 - Maintenance ..........................................................................................................................................60
5.7.1 Backup & Restore ..........................................................................................................................60
5.7.2 Reboot Device ...............................................................................................................................61
5.7.3 Upgrade .........................................................................................................................................61
5.7.4 Operation Log ................................................................................................................................61
6 Search ................................................................................................................................................................62
6.1 Video Search ............................................................................................................................................62
6.2 Image Search ...........................................................................................................................................63
6.3 SD card video search ...............................................................................................................................65
7 FAQ ..................................................................................................................................................................67
5
Graphic User Interface (GUI) for IP Speed Dome
EN
1 Introduction
This Speed Dome IP-camera is designed for high performance CCTV solutions. Its digital ip technology makes omni-
directional and non-blind-spot monitoring into reality. It utilizes most advanced technologies, such as video encoding
and decoding technology, complies with theTCP/IP protocol, SoC (System on chip), etc to ensure this system more
stable and reliable.
Complete manuals and CVM CCTV Manager, Iptool e Diskcalculator software are available to download in the Product
info sheet section of www.vimar.com website.
Main characteristics:
- CMOS progressive scan
- HD network video output
- H.265/H.264 image compression format
- TCP/IP, DHCP, DDNS, NTP, RTSP, SMTP, FTP, PPPoE
- SD card local storage, network remote storage
- Web GUI menu
- Support selected area amplication and PTZ function
- lIntelligent Analytics: Line Crossing (human/vehicle classication), region intrusion/entrance/exiting (human/vehicle
classication), Target Counting, face detection, auto-tracking, etc. (For all these smart functions, depending on models).
2 IE Remote Access
You may connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows:
2.1 LAN
In LAN, there are two ways to access IP-Cam:
1. access through IP-Tool;
2. directly access through IE browser.
2.1.1 Access through IP-Tool
Network connection:
1 - Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the PC from the CD.
2 - Double click the IP-Tool icon on the desktop to run this software as shown below:
3 - Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the information of the camera
listed in the above table to show the network information on the right hand. Modify the IP address and gateway of the
camera and make sure its network address is in the same local network segment as the computer’s. Please modify
the IP address of your device according to the practical situation.
6
Graphic User Interface (GUI) for IP Speed Dome
EN
For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to
192.168.1.X. After modication, please input the password of the administrator and click “Modify” button to modify the
setting.
4 - Double click the IP address and then the system will pop up the IE browser to connect IP-CAM. IE browser will auto
download the Active X control. After downloading, a login window will pop up as shown below.
The default password of the administrator is “ ”.123456
Input the username and password to log in.
The default username is “ ”; the default password is “ ”.admin 123456
2.1.2 Directly Access through IE
The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
You may use the above default settings when you log in the camera for the rst time. You may directly connect the
camera to the computer through network cable.
The system will prompt the above-mentioned textbox to ask you to change the default password. It is strongly recom-
mended to change the default password for account security. If “Do not show again” is checked, the textbox will not
appear next time.
7
Graphic User Interface (GUI) for IP Speed Dome
EN
1 - Set the IP address of the PC and make sure the network segment should be as the same as the default settings of
the IP camera. Open the network and share center. Click “Local Area Connection” to pop up the following window.
Select “Properties” and then select internet protocol according to the actual situation (for example: IPV4).
Next, click “Properties” button to set the network of the PC.
8
Graphic User Interface (GUI) for IP Speed Dome
EN
2 - Open the IE browser and input the default address of IP-CAM and conrm. The IE browser will download Active X
control automatically.
3 - After downloading Active X control, the login dialog box will pop up.
4 - Input the default username and password and then enter to view.
2.2 WAN
Access through the router or virtual server
1 - Make sure the camera is well connected via LAN and then log in the camera via LAN and go to Cong Network
Cong Port menu to set the port number.
2 - Go to Cong Network Cong TCP/IPv4 menu to modify the IP address.
3 - Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the
“Virtual Server”.
9
Graphic User Interface (GUI) for IP Speed Dome
EN
Router Setup
4 - Open the IE browser and input its WAN IP and http port to access.
Access through PPPoE dial-up
Network connection
You may access the camera through PPPoE auto dial-up. The setting steps are as follow:
1 - Go to Cong Network Cong Port menu to set the port number.
2 - Go to Cong Network Cong TCP/IPv4 menu. Check “PPPoE” and then input the user name and pass-
word which you can get from your internet service provider.
3 - Go to Cong Network Cong DDNS Cong menu. Before you congure the DDNS, please apply for a
domain name rst. Please refer to 5.5.4 DDNS Conguration for detail information.
4 - Open the IE browser and input the domain name and http port to access.
10
Graphic User Interface (GUI) for IP Speed Dome
EN
The setting steps are as follow:
1 - Go to Cong Network Cong Port menu to set the port number.
2 - Go to Cong Network Cong IP Address menu to set the IP address. Check “Use the following IP ad-
dress” and then input the static IP address and other parameters.
3 -Open the IE browser and input its WAN IP and http port to access.
Network connection.
3 Remote Preview
After you log in, you will see the following window.
Access through static IP
11
Graphic User Interface (GUI) for IP Speed Dome
EN
The descriptions of the icon on the remote preview interface:
Click PTZ extended button to unfold PTZ control panel. In remote preview interface, you can view the image from every
direction by controlling PTZ panel.
Icon Description Icon Description
Original size Color abnormal indicator
Fit correct scale Abnormal clarity indicator
Auto (ll the window) Scene change indicator
Full screen Line crossing indicator
Start/stop live view Sensor alarm indicator (only some
models support)
Start/stop two-way audio Intrusion indicator
Enable/disable audio Motion alarm indicator
Snapshot Region entrance indicator
Start/stop local recording Region exiting indicator
Zoom in Face detection indicator
Zoom out Target counting indicator
PTZ control SD card recording indicator
Face Detection
12
Graphic User Interface (GUI) for IP Speed Dome
EN
The descriptions of the control panel are as follows:
Select preset and click
to call the preset. Select and set the preset and then click
to save the position of the
preset. Select the set preset and click
to delete it. Select cruise and click to start cruise.
Icon IconDescription Description
Click it to rotate dome
diagonally up-left
Click it to rotate dome diagonally
up-right
Click it to rotate the dome
upwards Click it to stop rotating the dome
Click it to rotate the dome
towards left
Click it to rotate the dome towards
right
Click it to rotate the dome
doagonally down-left
Click it to rotate the dome
doagonally down-right
Click it to rotate the dome
diagonally down-left
Drag the scroll bar to adjust
rotating speed of the some
Click it to zoom out the live
image Click it to zoom in the live image
Focus - Focus +
Iris - Iris +
Auto scan Wiper (if available)
Light (if available) Random scan
Group scan Preset
Cruise Track
13
Graphic User Interface (GUI) for IP Speed Dome
EN

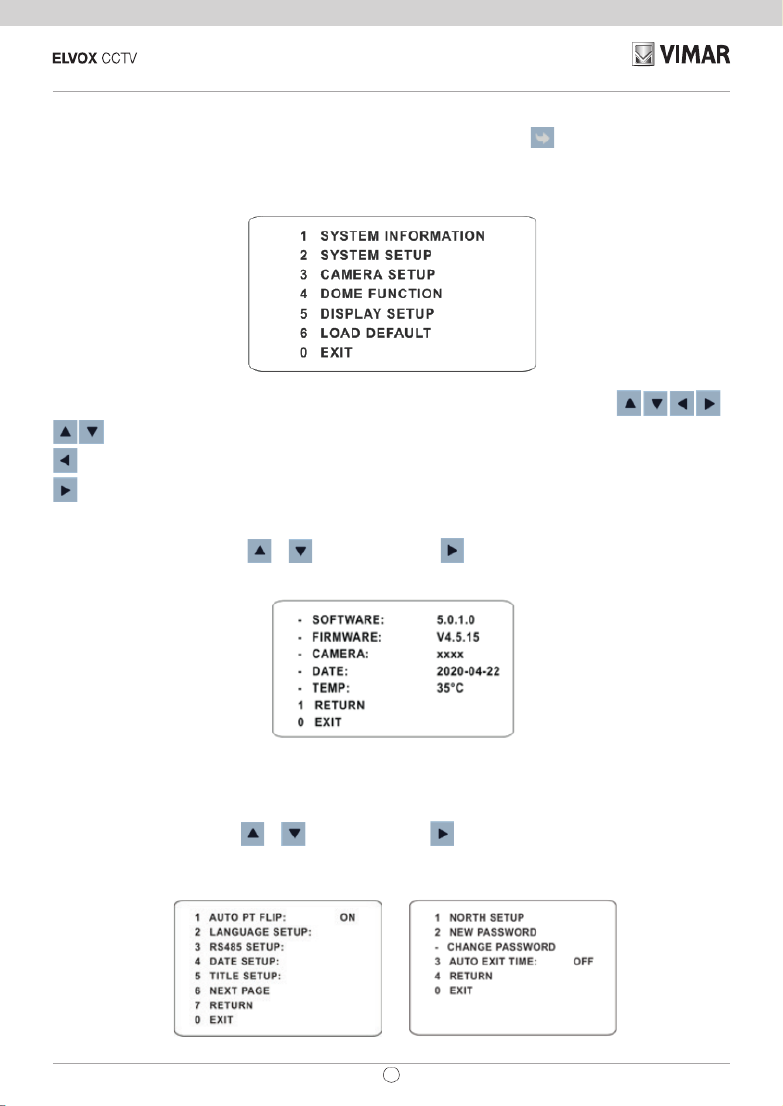

4 Menu Setup
On the PTZ control panel of IE remote preview interface, call Preset 95 and click . This will take you to see the
following main menu setup.
ATTENTION: All the following menus and sub-menus may vary depending on the camera model. Refer to the menu
of your PTZ model.
- The menu setup can be displayed when the visualization of the live is set to main stream.
After you go to the main menu interface, you can select the menu by clicking the direction button ( ).
: To select menu by moving up and down.
To return to the menu on the left.
To conrm to enter sub-menu or to select the menu on the right.
4.1 System Information
Select System Setup by clicking or button and then click button to go to System Information menu as
shown below:
You can check the software and rmware version, camera, system temperature, date, dome ID, dome protocol and
baud rate here.
4.2 System Setup
Select System Setup by clicking or button and then click button to enter
System Setup as shown below:
14
Graphic User Interface (GUI) for IP Speed Dome
EN
4.2.1 Auto PT Flip
Select Auto PT Flip and then click to set up the menu on the right; click or button to select On/O󰀨. If “On”
is selected, please click button to return to the menu on the left and click button to select Exit. Now, you will
see the remote preview interface. (The ways to go to sub-menu, return or exit to the main menu in the following settings
are similar to the above-mentioned steps. The following contents will not introduce it in details).
After you exit the main menu, press and hold button to let the speed dome move to the bottom so that the dome
will auto ip.
4.2.2 Date Setup
Go to System Setup RS485 Setup as below:
1 - Set the date and time by clicking the direction button.
2 - Select STORE to save the setting.
4.2.3 Title Setup
Go to System Setup Title Setup as below:
15
Graphic User Interface (GUI) for IP Speed Dome
EN
4.2.4 North setup
Go to System Setup North Setup, the following screen will open: PICTURE BELOW
1- choose the position by clicking on the direction buttons.
2- Select STORE to save the position.
Enter the password by clicking or button.
Numbers from 0 to 9 are available. The password should be 6 characters.
Empty password is invalid when you set the new password.
Password needs to be input when you log in next time.
- Change Password
Enter the current password and then input the new password twice. (Please refer to “New Password” for details.)
Inputting empty new password means to delete the current password.
4.2.6 Auto Exit Time
Go to System Setup Next Page Auto Exit Time. You may set the time to exit the menu automatically as
required.
4.3 Camera Setup
After you go to camera setup menu, you will see the following menu.
4.2.5 New Password and Change Password
- New Password
16
Graphic User Interface (GUI) for IP Speed Dome
EN

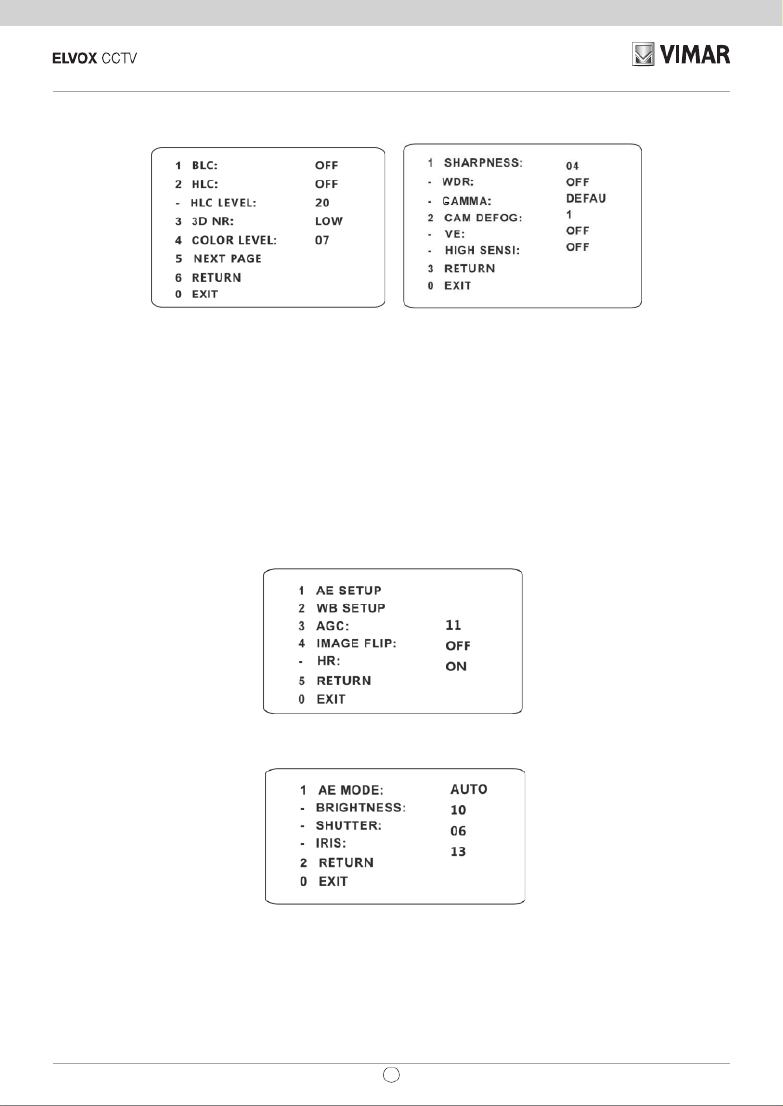

4.3.1 Camera Control
After you select Camera Control, you will see the following menu.
(BLC): When the background light is so stronger that the foreground is dark, the brightness of the whole image will
improve thereby enhancing the visibility of the foreground image if the BLC function is enabled.
(HLC): If enabled, the darker part of image will be lightened, while the highlight part will be suppressed.
(3D-NR): Reduce the noise of the brightness and chroma of the image in low illumination condition.
(Color Level): Adjust the saturation of the image.
(Sharpness): Set the image definition.
(WDR): If WDR is ON, it will help the speed dome provide clear images even under back light circumstances. When
there are both very bright and very dark areas simultaneously in the field of view, WDR will balance the brightness level
of the whole image and provide clear images with details.
(Gamma): Measurement of the contrast of an image.
(CAM Defog): Improves image quality.
4.3.2 Image Setup
Select Image Setup to go to the following sub-menu.
- AE Setup
Go to AE Setup menu as shown below:
(AE MODE): Auto, Bright, Shutter, IRIS and Manual are optional.
(Brightness): Range from 0 (darkest)~20(brightness). It is available only when bright mode is selected.
(Shutter): The lower the value of camera shutter is, the brighter the image is. It is available only when the shutter or
manual mode is selected.
(IRIS): The higher the value of the camera IRIS is, the more the light gets. It is available only when the camera is IRIS
or Manual mode.
17
Graphic User Interface (GUI) for IP Speed Dome
EN
- WB Setup
Go to WB Setup menu as shown below:
(WB Mode): White Balance Mode. There are two options you can choose including auto and manual. You can select
the mode according to different lighting condition.
(MWB Red Gain):The operation is effective in manual mode.
(MWB Blue Gain): The operation is effective in manual mode.
- AGC
The larger the number is, the higher the brightness and the more the noises of the image are.
- Image Flip
- MIRR: Turn over the image left or right.
- FLIP: Turn over the image up or down.
- ROTA: Turn over the image up, down, left or right.
4.3.3 Lens Setup
Go to Camera Setup Lens Setup menu as shown below:
- Focus Limit
Set the nearest distance of focus.
- Zoom MAG DISP
If “ON” is selected, you will see the zoom magnication in the live image
- Zoom Speed
Adjust zoom speed. The range is from 1 to 8.
- DZoom
After enabling digital zoom mode, digital zoom will be increased on the basis of optical zoom.
- Len Initialize
After enabling “Len Initialize”, the camera lens will restore to factory default.
18
Graphic User Interface (GUI) for IP Speed Dome
EN

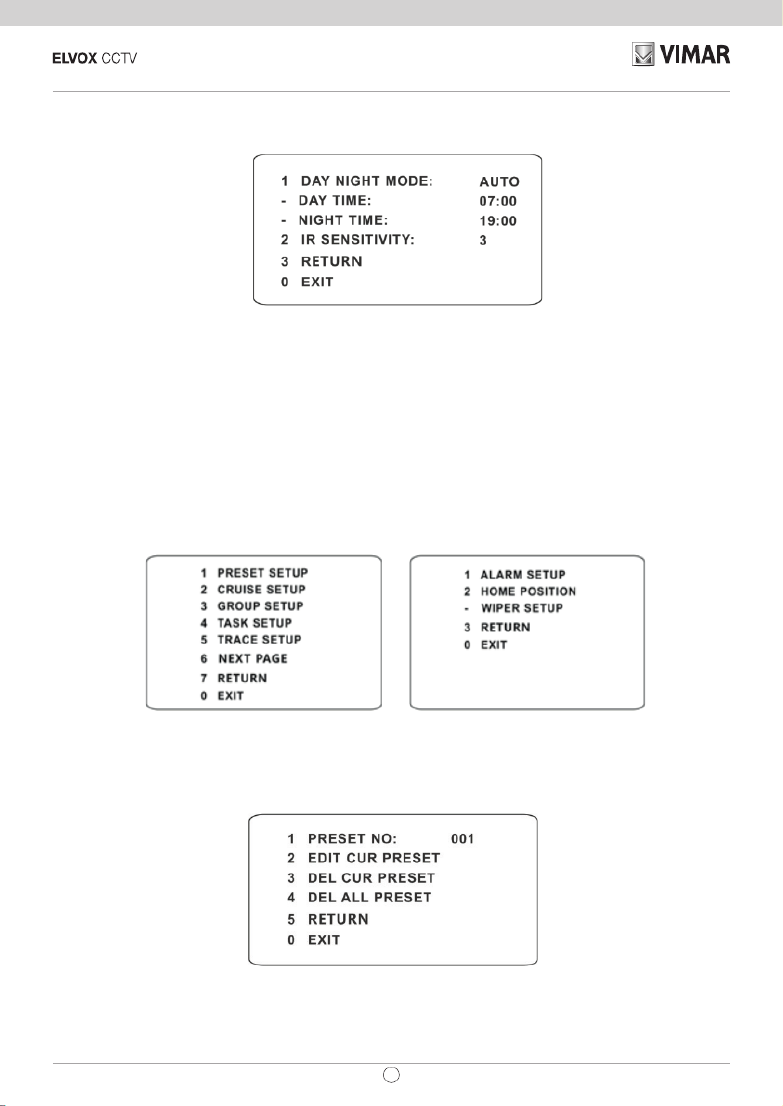

4.3.4 Day & Night Setup
Day & Night Mode includes three modes: Auto, Night, Day and Time.
- Auto: Camera will automatically switch the mode between day and night as per the ambient illumination.
- Night:The camera will be night mode at all time. You’d better use this mode at night.
- Day: The camera will be day mode at all time. You’d better use this mode in daytime.
- Time: Camera will regularly switch the mode between day and night according to the set day and night time. Day &
Night Mode will be disabled if enabling this function.
- IR Sensitivity
Set the level of the IR sensitivity. The higher the value is, the more the sensitivity is.
4.3.5 Video Format
PAL or NTSC is optional.
4.4 Dome Function
Go to Dome Function menu as shown below:
4.4.1 Preset Setup
This function is used to memorize the specic position of pan, tilt, zoom and focus, giving much convenience for quick
return to this position by calling preset.
1 - Selecting the preset setup menu brings up the following menu.
2- Select the preset number.
3- Go to Edit CUR Preset interface as below:
19
Graphic User Interface (GUI) for IP Speed Dome
EN
4- Press iris to switch menu mode and PTZ mode. And then set the position of the preset by clicking the direction
buttons.
5- Set the title by clicking or button.
6- Save the setting.
4.4.2 Cruise Setup
Go to Dome Function Cruise Setup menu as below:
In this interface, by programming presets in cruise list in advance, the system will keep calling those presets at the set
time in sequence when executing cruise command so that non-stop monitoring between multiple important positions
can be achieved. Setting steps are as follows:
1 - Select the cruise number.
2 - Edit the current cruise. This camera supports 8 cruises and 16 presets for each cruise. Go to “Edit Cur Cruise” menu
as shown below:
Set the preset and time. The preset ranges from 001 to 255 and the dwell time is from 05s to 240s.
3 - Run the current cruise. The camera will automatically keep running according to the cruise you set until new com-
mand is received. The corresponding operating information will display on the screen when the camera is running.
4 - Select STORE to save the setting.
20
Graphic User Interface (GUI) for IP Speed Dome
EN

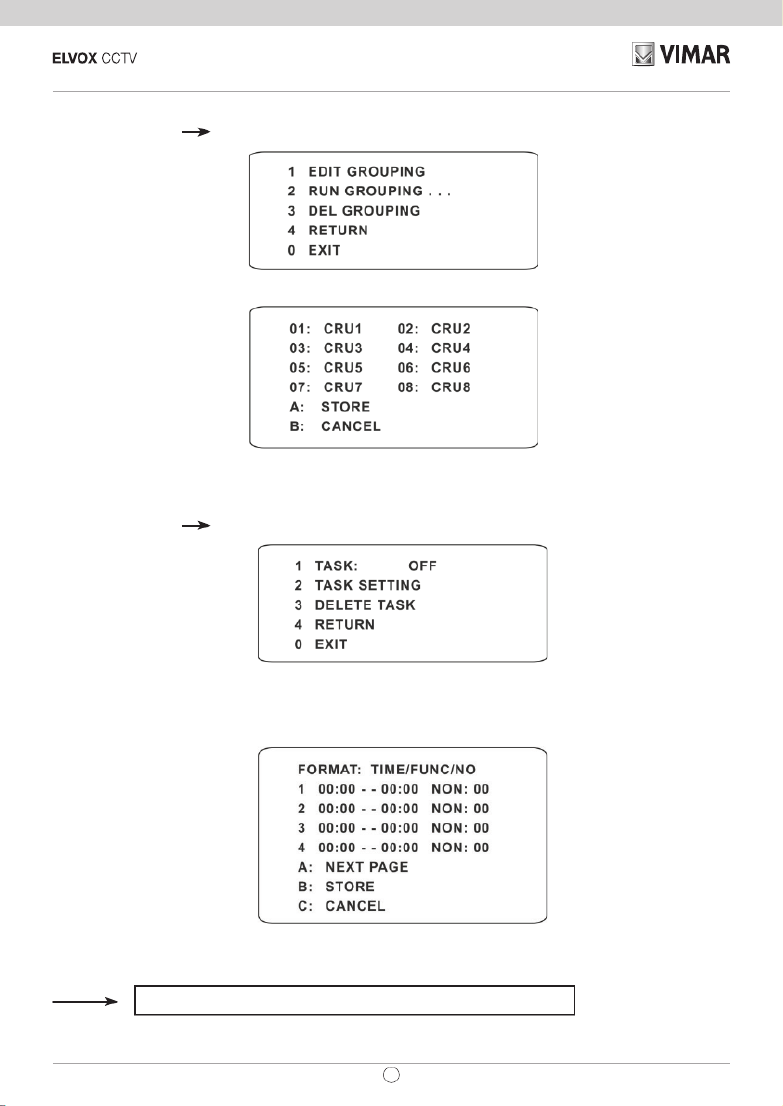

4.4.3 Grouping Setup
Go to Dome Function Grouping Setup as below:
Go to “Edit Grouping” menu as shown below.
8 cruises can be set in a group. CRU 1 stands for Cruise 1, CRU 2 stands for Cruise 2 and so on. “Run Grouping”
means to run the cruises in order.
4.4.4 Task Setup
Go to Dome Function Task Setup menu as shown below:
By dividing 24 hours into several periods and appointing di󰀨erent commands for each period, the camera system will
automatically execute the commands according to the set time if there is no operation. Setting Steps:
1- Enable the task.
2- Set the task.
Time Format: Start Time – End Time. The tasks will be automatically executed in chronological order. Task Type: RSC,
ASC, PRE, CRU, TRA.
Note: The home position function will be disabled if enabling task setting.
21
Graphic User Interface (GUI) for IP Speed Dome
EN

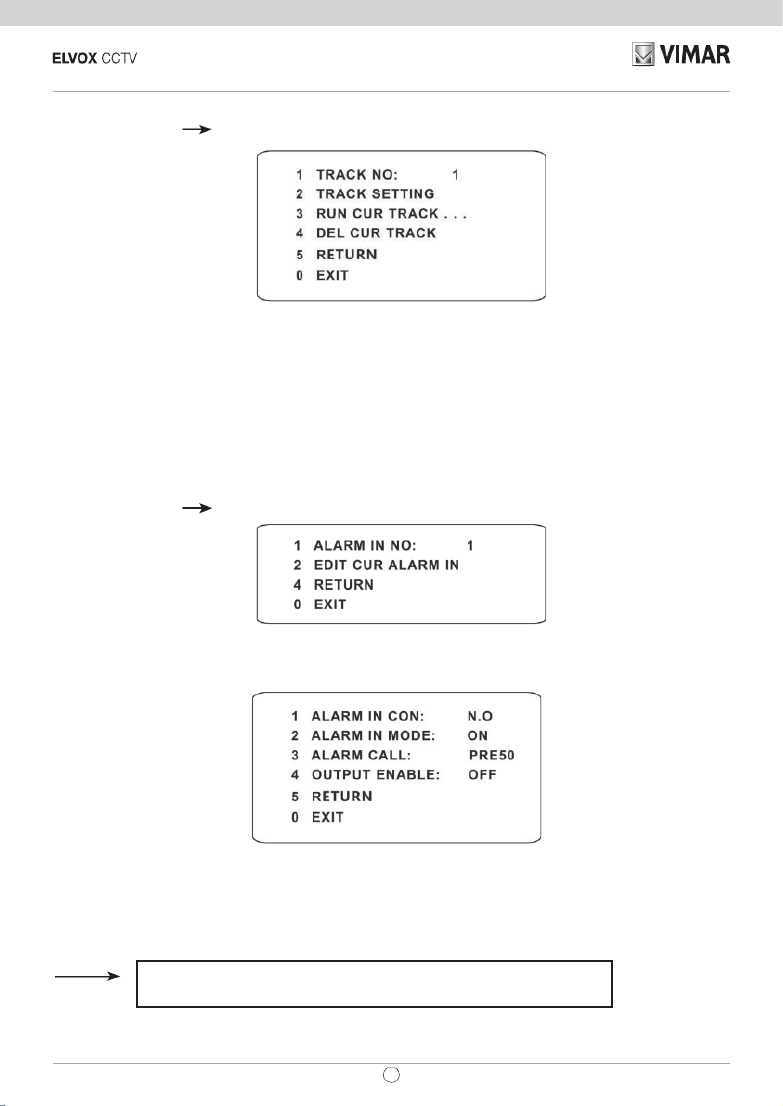

4.4.5 Track Setup
Go to Dome Function Track Setup menu as shown below:
This function is used to memorize the operation to PTZ, zoom and focus so that repeating operation progress can be
realized by running track. Setting Steps:
1 - Choose the track number.
2 - Edit the track. Enter the track setting menu. Click “Iris –“ to start recording track. Control the dome movement by di-
rection buttons and then save the setting. Each track can record up to 180s. If the time exceeds 180s, the system will
automatically save the operation data and return to the previous menu. In addition, 360 commands can be recorded
for each track at most. If exceeding 360 commands, the system will automatically save the rst 360 commands and
then exit the current menu. The recording time is related to the operating frequency. The more frequent the operation
is, the shorter the memory time is.
3 - Select “RUN CUR TRACK…” to perform the command.
4.4.6 Alarm Setup
Go to Dome Function Alarm Setup as shown below:
Setting Steps:
1 - Select Alarm In No.
2 - Go to “EDIT CUR ALARM IN” menu as shown below.
(ALARM IN CON):Set the alarm input type to be Normally Opened (N.O.) or Normally Closed (N.C.) according to the
sensor type.
(ALARM IN MODE):ON, OFF and TIME are optional.
(ALARM CALL): Call the preset you need. When the rst alarm input happens, the camera will automatically switch
to this preset to monitor.
(OUTPUT ENABLE): Select it ON. When alarm input occurs, the camera will output alarm information.
Note: If the dome is on the menu state on an alarm, any command is negative.
The camera must have an alarm in / out connector.
22
Graphic User Interface (GUI) for IP Speed Dome
EN

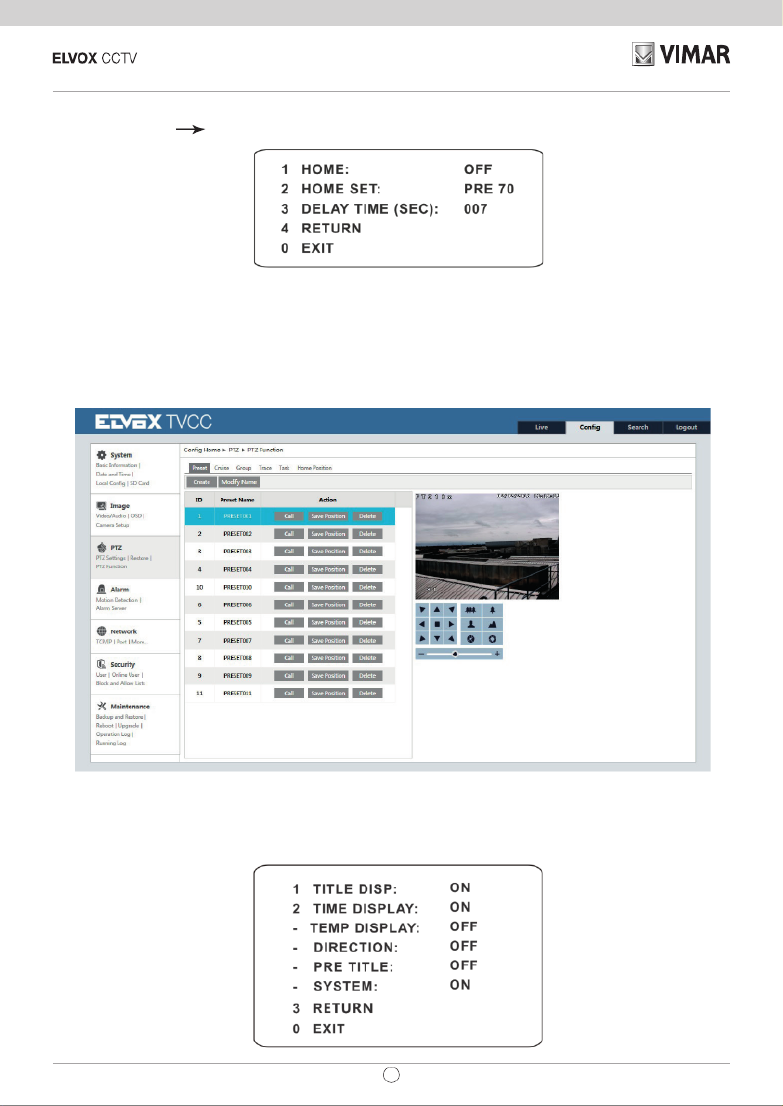

4.4.7 Home Position
Go to System Setup Home Position menu as shown below:
The setting steps:
1 - Enable the home position function and select the preset which should be set in advance.
2 - Then select delay time (range from 007s to 180s) and exit the menu.
When the stand-by time of the dome camera exceeds the delay time, the camera will automatically execute the
command to monitor the selected preset.
ATTENTION: All the functions described above can also be congured from the WEB interface on the PTZ Function
screen in the picture below.
4.5 Display Setup
You can enable title display and time display if you need. (Some models may support temperature display or system
display).
23
Graphic User Interface (GUI) for IP Speed Dome
EN
5 Remote Conguration
5.1 System Conguration
The “System conguration” includes four sub-menus: Basic Information, Date and Time, Local Cong and SD Card.
5.1.1 Basic Information
In the Basic Information interface, you can check the relative information of the device.
5.1.2 Date and Time Conguration
Go to Cong System Date and Time. Please refer to the following interface.
4.6 Load Default
There are three menus, including master reset, master clear and system reboot.
(Master Reset): Restore the camera state and active menu to factory default but do not clear those parameters such
as preset, cruise.
(Master Clear): Restore the camera to factory default.
(System Reboot): Reboot the camera.
You can select the time zone and DST as required.
24
Graphic User Interface (GUI) for IP Speed Dome
EN
Click “Date and Time” to set the time mode.
5.1.3 Local Cong
Go to Cong System Local Cong. You can set the storage path of the captured pictures and video records.
It is also possible to enable or disable the display of bitrate in recorded les.
5.1.4 SD Card
Go to Cong System SD Card.
In the above interface, you can check the capacity, used capacity, remaining capacity and state of the SD card.
The rst time you used the SD card, you should click “Format” to format SD card”.
Note: Using of SD card function should be coordinated with alarm. When alarm is triggered, the
system will automatically snap picture and save the picture into SD card.
Also, here you can enable or disable "Local Smart Snapshot Storage". If enabled, captured images triggered by intel-
ligent events (such as line crossing detection, region intrusion, etc.) will be saved to your local PC.
Snapshot Quota: Set the capacity proportion of captured pictures on the SD card.
Video Quota: Set the capacity proportion of record les on the SD card.
25
Graphic User Interface (GUI) for IP Speed Dome
EN
- Schedule Recording Settings
1. Go to Cong System Storage Record to go to the interface as shown below.
2. Set record stream, pre-record time, cycle writing.
Pre Record Time: Set the time to record before the actual recording begins.
3. Set schedule recording. Check “Enable Schedule Record” and set the schedule.
Weekly schedule
Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green
means scheduled. Blank means unscheduled.
“Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline.
“Erase”: Delete the schedule. Drag the mouse to erase the time on the timeline.
Manual Input: Click it for a specic day to enter specic start and end times. This adds more granularities (minutes).
Day schedule
Set the alarm time for alarm a special day, such as a holiday.
Note: Holiday schedule takes priority over weekly schedule.

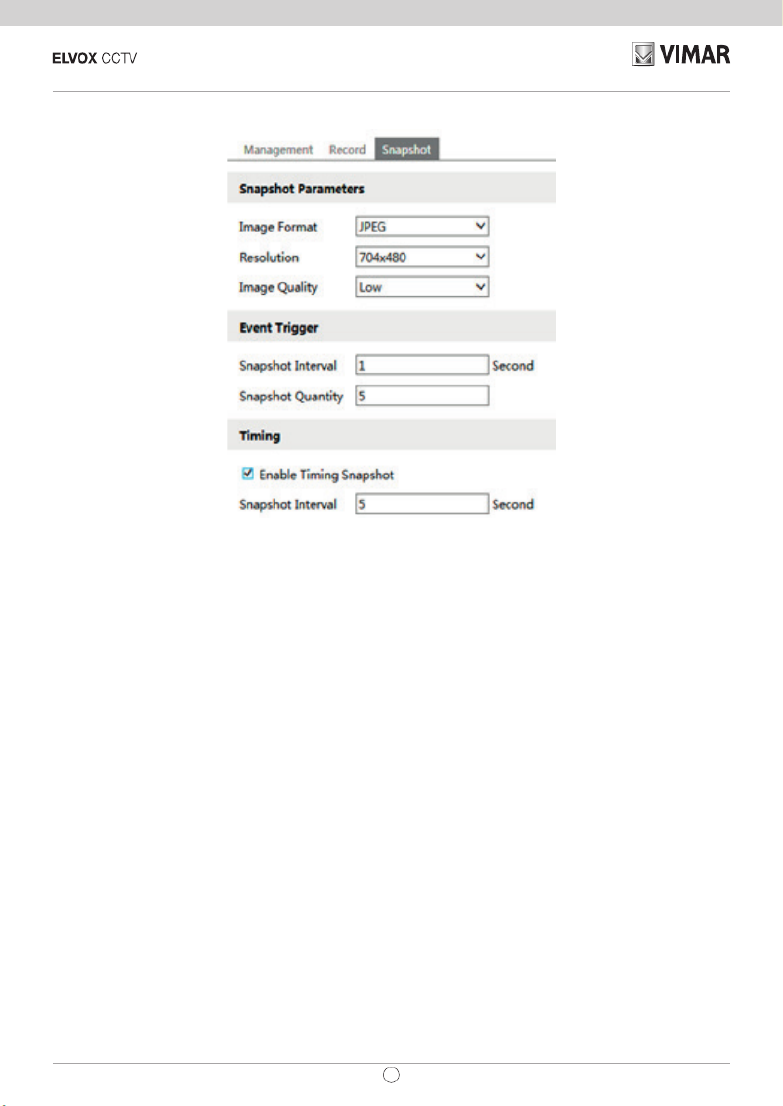

- Snapshot Settings
Go to Cong System Storage Snapshot to go to the interface as shown below.
26
Graphic User Interface (GUI) for IP Speed Dome
EN
Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and
the timing snapshot here.
Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of
snapshots may be less than this number. Supposing the occurrence time of an alarm event is less than the time of
capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.
Timing Snapshot: Enable timing snapshot rst and then set the snapshot interval and schedule. The setup steps of
schedule are the same as the schedule recording (See Schedule Recording).
27
Graphic User Interface (GUI) for IP Speed Dome
EN

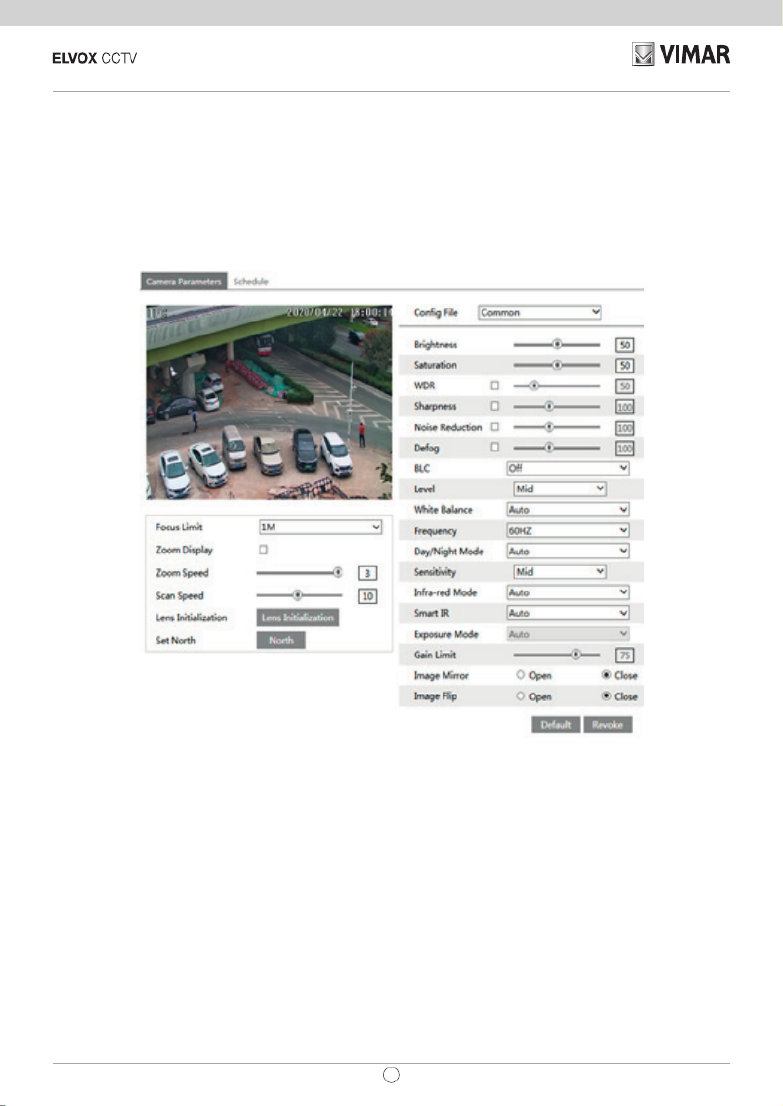

5.2.1 Camera parameters
Many parameters of the camera can be set in above sub-menu, such as Color, Level, HLC, Sharpness, Wide Dynamic,
3D DNR, GAMMA, Fog, White Balance, Day Night Mode, Focus, Zoom and so on.
5.2 Image Conguration
Image Conguration includes others submenus: Settings camera parameters, Video/Audio, OSD Conguration e Video
Mask.
28
Graphic User Interface (GUI) for IP Speed Dome
EN
Brightness: set the brightness level of the camera's image.
Contrast: set the color dierence between the brightest and darkest parts.
Hue: set the total color degree of the image.
Saturation: set the degree of color purity. The purer the color is, the brighter the image is.
Sharpness: set the resolution level of the image plane and the sharpness level of the image edge.
Noise Reduction: decrease the noise and make the image more thorough. Increasing the value will make the noise
reduction eect better but it will reduce the image resolution.
Backlight Compensation:
- O: close the backlight compensation function. It is the default mode.
- HWDR
As to the WDR scene, WDR will help the camera provide clear images when there are both very bright and very
dark areas simultaneously in the eld of the view by lowering the brightness of the highlight area and increasing
the brightness of the lowlight area. High, middle and low can be selected.
There will be some record lost in a few seconds during mode changing from non-WDR to WDR mode.
- HLC: lower the brightness of the whole image by suppressing the brightness of the image's highlight area and
reducing the size of the halo area.
- BLC: if enabled, the auto exposure will activate according to the scene so that the object of the image in the
darkest area will be seen clearly.
Antiicker:
- O: close the anti-icker function.
- 50Hz: make sure the horizontal stripes will not appear in the image while the device is adjusting the exposure
automatically according to the brightness of the scene.
- 60Hz: make sure the horizontal stripes will not appear in the image while the device is adjusting the exposure
automatically according to the brightness of the scene.
White Balance: adjust the color temperature according to the environment automatically.
Frequency: 50Hz and 60Hz can be optional.
Day/night Mode: please choose the mode as needed.
Sensitivity: high, middle and low can be selected.
Infrared Mode: you may choose "ON", "OFF" and "Auto" as required.
Exposure Mode: you may choose "Auto" or "Manual" as required.
29
Graphic User Interface (GUI) for IP Speed Dome
EN
In this interface, you can set the resolution, frame rate, bitrate type, video quality and so on subject to the actual
network condition.
To set the audio encoding and audio type, please select the audio tab.
Three video streams can be adjustable.
Resolution: The higher the resolution is, the clearer the image is.
Frame rate: The higher the frame rate is, the more uency the video is. However, more storage room will be taken up.
Bitrate type: Including CBR and VBR. CBR means that no matter how changeable the video resources are, the com-
pression bitrate keeps constant. This will not only facilitate the image quality better in a constant bitrate but also help
to calculate the capacity of the recording. VBR means that the compression bitrate can be adjustable according to the
change of the video resources. This will help to optimize the network bandwidth.
Video Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose,
the more bitrate will be required.
Bitrate: Please choose it according to the actual network situation.
I Frame interval: It is recommended to use the default value. If the value is over high, the read speed of the group of
pictures will be slow resulting in the quality loss of the video.
Video encoding prole: Baseline and main prole are optional. Baseline prole is mainly used in interactive applica-
tion with low complexity and delay. Main prole is mainly used for higher coding requirement.
Sending Snapshot: Please select it according to the actual situation.
Video encode slice split: If enabled, you may get more uency image even though using the low-performance PC.
Watermark: If selected, you can input the watermark theme. You may check the watermark when playing back the local
record in the search interface, lest the record les is tampered.
Audio Encoding: G.711A and G.711U are selectable.
Audio In Type: MIC and LIN are selectable.
5.2.2 Video Stream
The following interface will be displayed by clicking Cong Image Video/Audio.
30
Graphic User Interface (GUI) for IP Speed Dome
EN

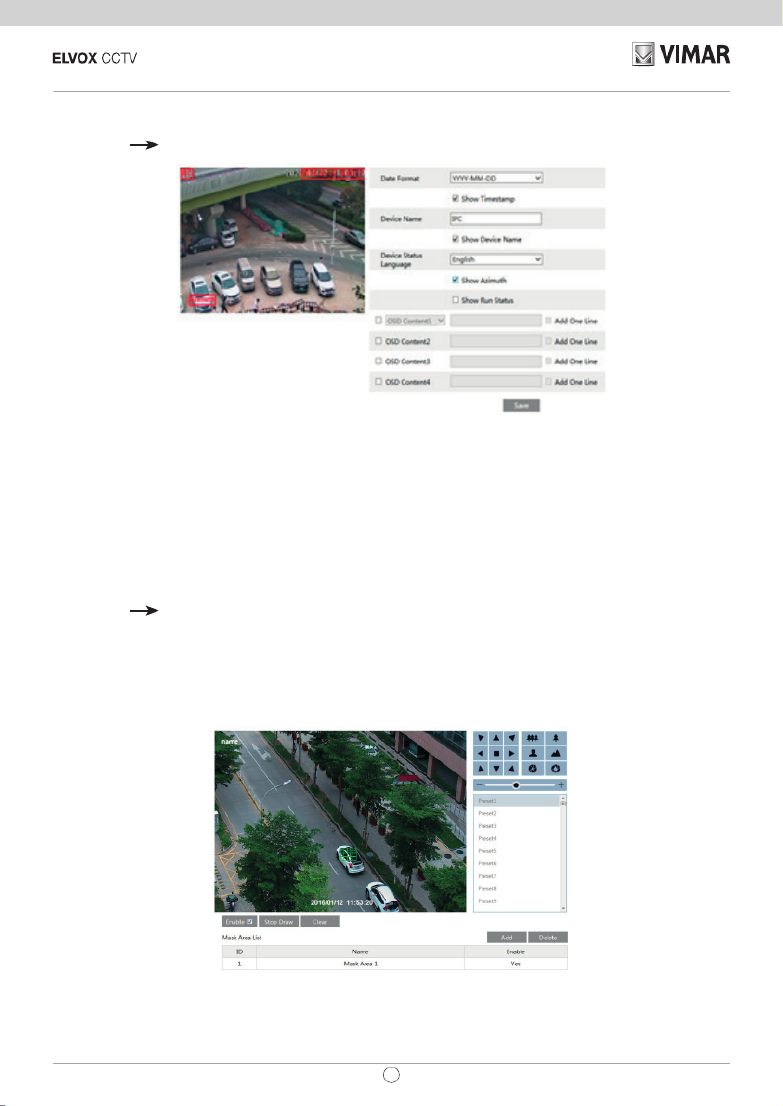

5.2.3 OSD Conguration
Go to Image OSD interface as shown below.
Set time stamp, device name, device status language, OSD content and picture overlap here. After enabling the
corresponding display and entering the content, drag them to change their position. Then click “Save” to save the
settings.
Show Azimuth: Show the PTZ moving direction on the live view interface.
Show Run Status: Show the PTZ control status on the live view interface. For example, if the preset 2 is called,
“PRE:002” will be shown on the live view interface.
Picture Overlap Settings:
Check “OSD Content1”, choose “Picture Overlay” and click “Browse” to select the overlap picture. Then click “Upload”
to upload the overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded.
5.2.4 Video Mask
Go to Image Video Mask interface as shown below. A maximum of 4 zones can be set up.
Only some models support this function. If your PTZ camera doesn’t support it, please skip the following instructions.
To set up video mask:
1. Enable video mask.
2. Click direction buttons to change the area you want to mask.
3. Click “Draw Area” and then drag the mouse to draw the video mask area.
4. Click “Add” to add the mask area.
To delete mask area:
1. Select the mask area in the mask area list.
2. Click “Delete” to delete this mask area.
31
Graphic User Interface (GUI) for IP Speed Dome
EN
In this submenu, PTZ title, date, auto PTZ ip, language, menu keeping time can be set.
- Password Setting
If the password is set, you must input the password every time you go to the menu of the PTZ by calling preset NO.
95. Go to Cong PTZ Setting Others. You can set the password of the PTZ menu.
5.3 PTZ Conguration
5.3.1 PTZ and Password Setting
- PTZ Setting
Go to Cong PTZ Setting. This will let you see the following submenu.
5.3.2 Load Default
It includes the function of reset, clear and restart. Please refer to Chapter 4.6 for more details.
5.3.3 Dome Function
Dome function includes preset setup, cruise setup, group setup, track setup, task setup, alarm setup, home position
setup and wiper setup. Please refer to Chapter 4.4 Dome Function for more details.
32
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4 Alarm Conguration
Alarm conguration includes four submenus: Motion Detection, Alarm In, Alarm Out and Alarm Server.
5.4.1 Motion Detection
To set motion detection:
1 - Go to Cong Motion Detection to set alarm trigger. Alarm
Check “Enable Alarm” check box to activate motion based alarm, choose alarm holding time and set alarm trigger
options.
Alarm Out: If selected, this would trigger the external relay output on detecting a motion based alarm.
Trigger Snap: If selected, the system will snap images on an alarm and save them in SD card.
Trigger SD Recording: If selected, video will be recorded on an SD card on motion detection.
Trigger Email: If the email and attach picture checkbox is checked (Email address shall be set rst in the Mail cong
interface), the triggered snap pictures and event will be sent into those addresses.
Trigger FTP: If “Uploading picture” is checked, the triggered snap pictures will be sent into FTP server address. Please
refer to FTP conguration chapter for more details.
2 - Set motion detection area and sensitivity. Click “Area and Sensitivity” tab to see the following sub-menu.
33
Graphic User Interface (GUI) for IP Speed Dome
EN
Move the “Sensitivity” scroll bar to set up the motion track sensitivity. Check “Add”, click “Draw” button and move mouse
to select the motion detection area; Select “Erase” and move the mouse to clear motion detection area.
After that, click “Save” to save the settings.

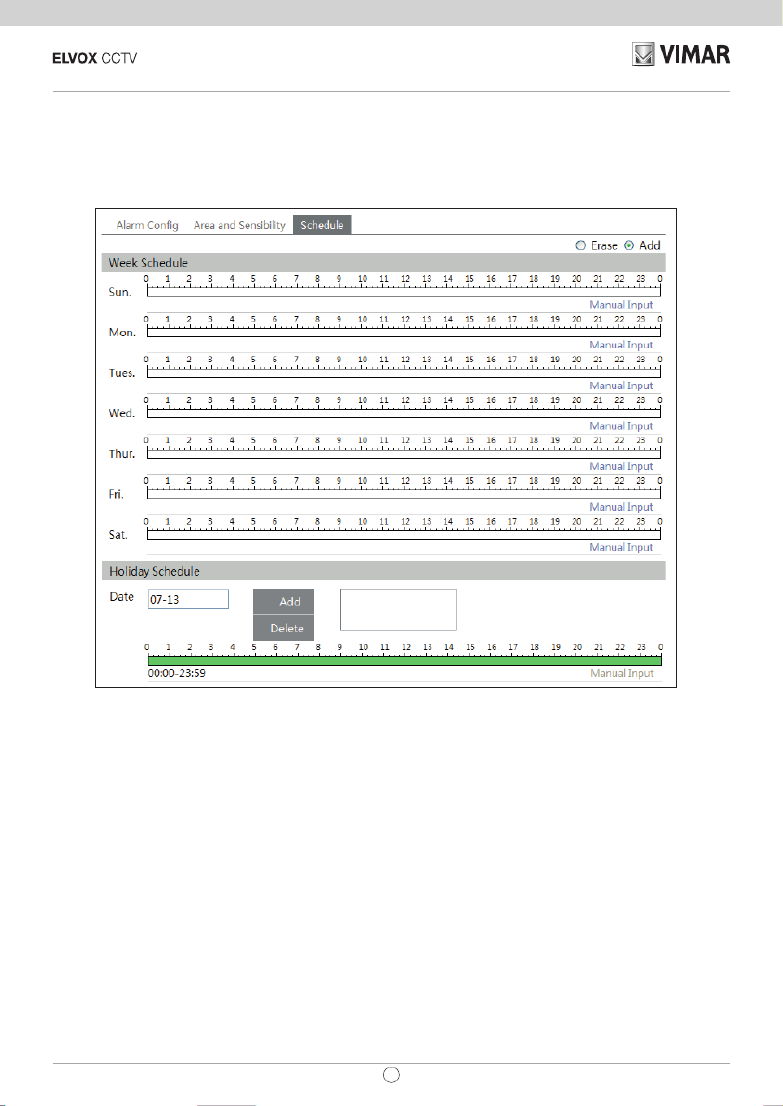

3 - Set the schedule of the motion detection. Click “Schedule” tab to set the schedule of the motion detection.
Week schedule
Set the alarm time from Monday to Sunday for alarm everyday in one week. The lengthwise means one day of a week;
the rank means 24 hours of a day. Green means selected area. Blank means unselected area. “Add”: Add the schedule
for a special day. “Erase”: Delete holiday schedule.
Day schedule
Set alarm time for alarm in some time of a special day, such as holiday.
- Select a date at the “Date” pull down list, press “Add” button to add that date to the list box on the right side and then
move the scroll bar to set the schedule of that day.
- Select a date in the list box on the right side, and press “Delete” to remove the schedule on that day.
Press the “Save” button to save the settings.
Note: Holiday schedule is prior to Week schedule.
34
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4.2 Alarm In
To set sensor alarm (alarm in):
Go to Cong Alarm Alarm In interface as shown below.
1 - Enable alarm and set the alarm type, alarm holding time and sensor name.
2 - Set alarm trigger options. The setting steps are the same with that of motion detection. Please refer to motion de-
tection chapter for details.
3 - Click "Save" button to save the settings.
4 - Set the schedule of the sensor alarm. The setting steps of the schedule are the same with that of motion detection.
Please refer to motion detection chapter for details.
35
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4.3 Alarm Out
This function is only available for some models. Go to Cong Alarm Out. Alarm
Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and timing are optional.
Alarm Linkage: Having selected this mode, select alarm out name, alarm holding time at the “Alarm Holding Time”
pull down list box and alarm type.
Manual Operation: Having selected this mode, select the alarm type and click “Open” to trigger the alarm out imme-
diately; click “Close” to stop alarm.
Day/Night Switch Linkage: Having selected this mode, select the alarm type and then choose to open or close
alarm out when the camera switches to day mode or night mode.
Timing: Select the alarm type. Then click “Add” and drag the mouse on the timeline to set the schedule of alarm out;
click “Erase” and drag the mouse on the timeline to erase the set time schedule. After this schedule is saved, the
alarm out will be triggered in the specied time.
36
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4.4 Alarm Server
Go to “Alarm conguration” “Alarm Server” interface as shown below.
You may input the alarm server address and port. When the alarm happens, the camera will automatically transfer the
alarm event to the alarm server. If the alarm server is not used, there is no need for you to congure here.
37
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4.5 Smart Tracking
The tracking option is available for line crossing detection, region entrance and exiting and intrusion detection.
Smart Tracking: When people or vehicle cross the alarm line or intrude or exit the predened area, the PTZ camera
will automatically track them and the target image will be automatically zoomed in and centered on the screen until the
target disappears on the screen. After that, the PTZ camera will return to the tracking start position.
Tracking Mode: PTZ Auto Tracking Priority or Manual PTZ Control Priority can be optional.
PTZ Tracking Priority: if this mode is selected, in smart tracking mode, you cannot control PTZ by clicking the buttons
on the PTZ control panel in the live view interface.
Manual PTZ Control Priority: if this mode is selected, in smart tracking mode, you can control PTZ by clicking the
buttons on the PTZ control panel in the live view interface and then the camera will immediately stop the tracking action.
After you nish controlling PTZ for 5 seconds, the PTZ camera will return to the start tracking position and wait for the
object to appear.
Still time: If it is enabled and the time is set, when the target stops or hides behind an obstacle, or the target tracking
is complete and there is no target appearing in the detection area during the set time, the PTZ camera will return to the
tracking start position. Of course, during this time, if there are targets moving, the PTZ will continue tracking. If it is not
enabled, when the target stops or there is no target appearing in the detection area for 5 seconds, the PTZ camera will
return to the start tracking position.
How to set smart tracking:

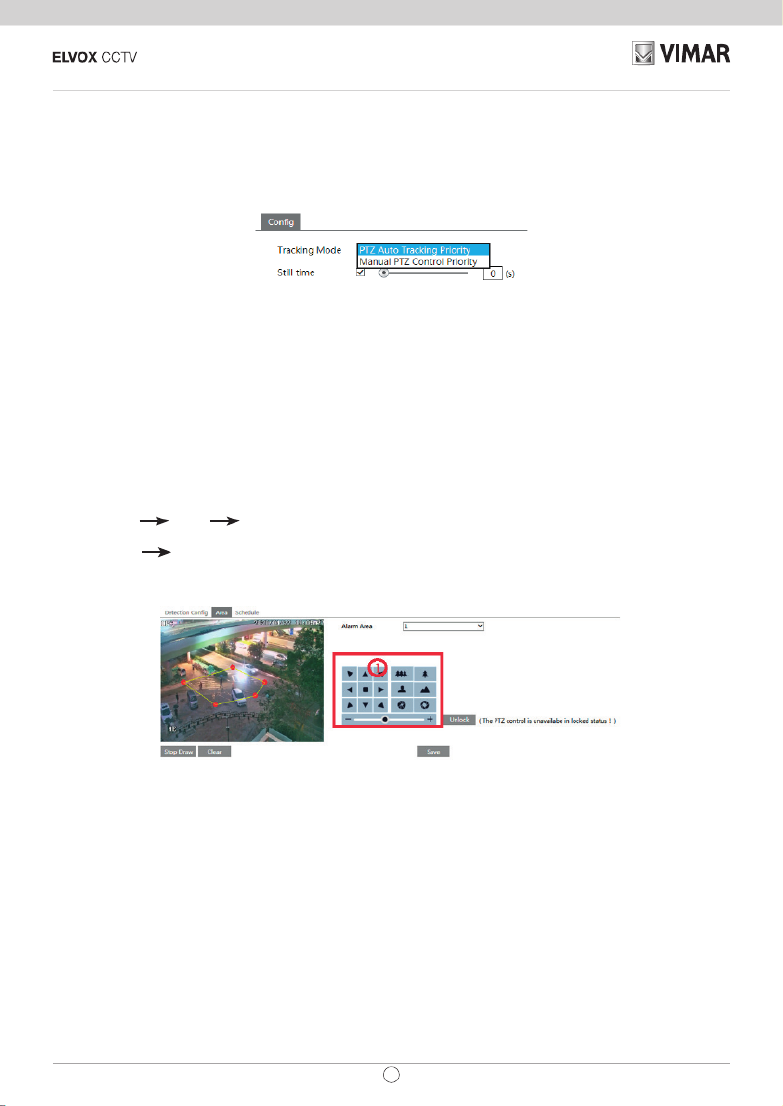

1. Click Cong Smart Tracking to go to the smart tracking interface. Select the tracking mode and set Alarm
the still time as needed.
2. Click Cong Event. Select the event as needed. For example intrusion, enable the intrusion detection, select
detection target and then check “Trigger Track”. After that click “Save” to save the settings.
3. Set the alarm area and lock the PTZ.
Using the PTZ control buttons (area (1)) sets appropriate eld of view and then draw the detection area and save the setting.
After that, click the “Lock” button to save the current PTZ position as the start tracking position). Now, the “Lockbutton
changes its function to “Unlock”.
Note: Clicking the “Unlock” button suspends object tracking until you click the “Lock” button. If you want to change the
start tracking position, you can click “Unlock” button to enable PTZ control. After that, please remember to lock the PTZ,
or object tracking will not take e󰀨ect.

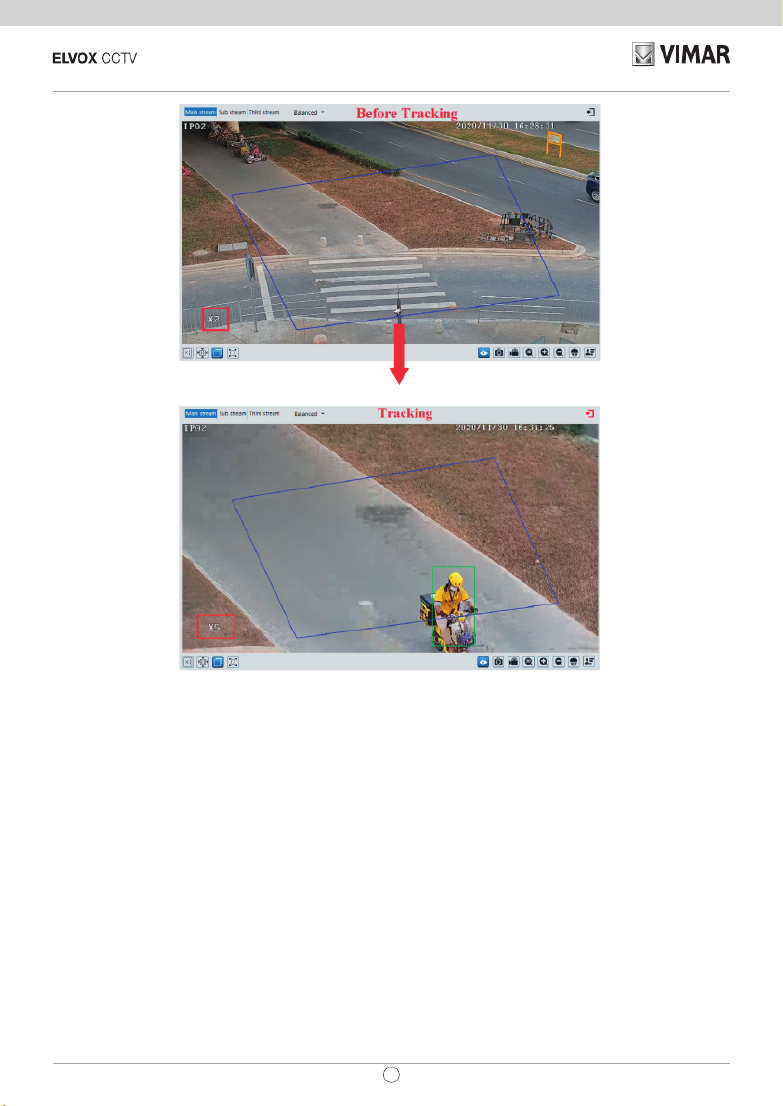

4. Go back to the live view interface to view smart tracking.
38
Graphic User Interface (GUI) for IP Speed Dome
EN
39
Graphic User Interface (GUI) for IP Speed Dome
EN
5.4.6 Line Crossing Detection
Line Crossing: Alarms will be triggered if the target crosses the pre-dened alarm lines.
Go to Cong Line Crossing interface as shown below. Event
- Detection Conguration:
1. Enable line crossing detection and select the snapshot type and the detection target.
Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card
when the targets cross the alarm line.
Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card
when the targets cross the alarm line.
Note: To save snapshots to the local PC, please enable “Local Smart Snapshot Storage” in the local cong interface
rst. To save snapshots to the SD card, please install an SD card rst.
Detection Target:
Human: Select it and then alarms will be triggered if someone crosses the pre-dened alarm lines.
Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or
truck) crosses the pre-dened alarm lines.
Motorcycle/Bicycle: Select it and then alarms will be triggered if a non-motor vehicle (eg. a motorcycle or bicycle)
crosses the pre-dened alarm lines.
The three types of objects can be selected simultaneously. Please select the detection objects as needed. If no
object/target is selected, alarms will not be triggered even if line crossing detection is enabled.
2. Set the alarm holding time.
3. Set alarm trigger options.
Alarm Out: If selected, this would trigger an external relay output that is connected to the camera on detecting a
target crossing the alarm line.
Trigger Track: if enabled, the PTZ camera will automatically track the target that crosses the alarm line and the
target’s image will be automatically zoomed in and centered on the screen until the target disappears on the screen.
After that, the PTZ camera will return to the pre-dened detection area.
Trigger SD Snap: If selected, the system will capture images when a target crosses the alarm line and save the
images on an SD card.
Trigger SD Recording: If selected, video will be recorded on an SD card when a target crosses the alarm line
Trigger Email: If “Trigger Email” and “Attach Picture” are checked (email address must be set rst in the Email con-
guration interface), the captured pictures and triggered event will be sent into those addresses.
Trigger FTP: If “Trigger FTP” is checked, the captured pictures will be sent into FTP server address. Please refer to
FTP conguration chapter for more details.
4. Click “Save” button to save the settings.
- Area Conguration

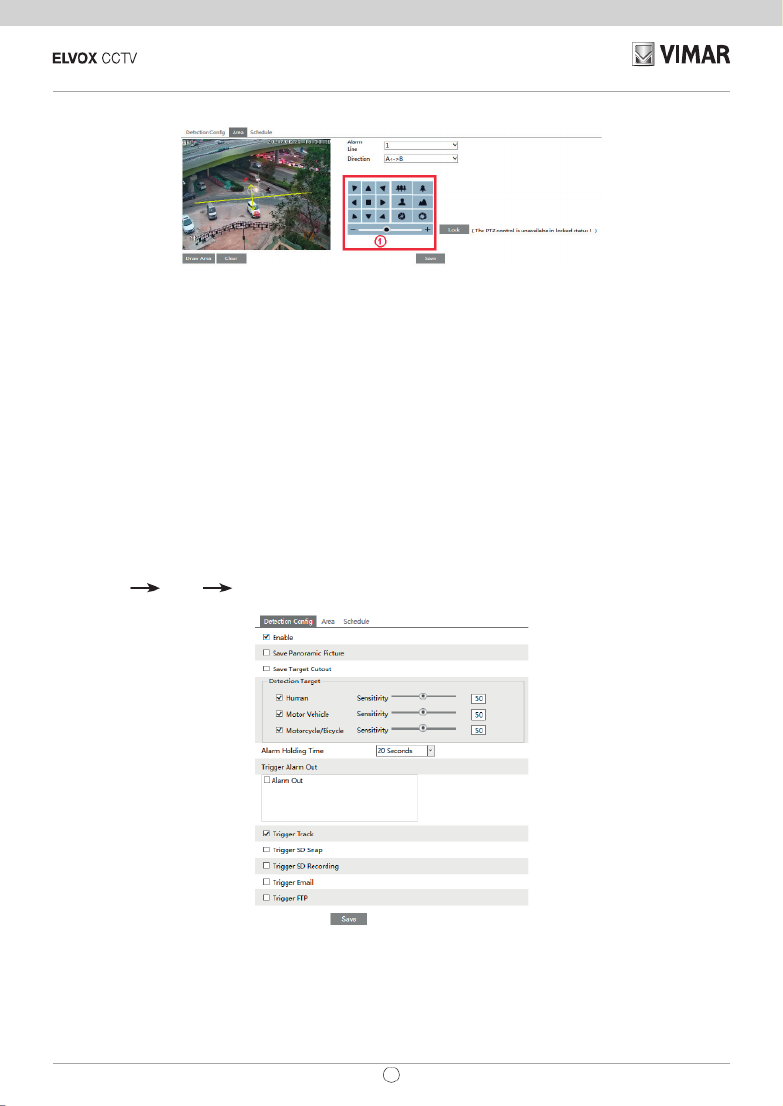

1. Click the “Area and Sensitivity” tab to go to the interface as shown below.
40
Graphic User Interface (GUI) for IP Speed Dome
EN
2. Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneous-
ly.
Direction: A<->B, A->B and A<-B optional. This indicates the direction of someone or a vehicle crossing over the
alarm line.
A<->B: Alarms will be triggered when someone or a vehicle crosses over the alarm line from B to A or from A to B.
A->B: Alarms will be triggered when someone or a vehicle crosses over the alarm line from A to B.
A<-B: Alarms will be triggered when someone or a vehicle crosses over the alarm line from B to A.
3. Set the detection area by clicking the buttons of area (1) and then click “Lock” to lock the area.
Note: The PTZ will not be controlled if you click “Lock” here. Click “Unlock” and then click the buttons of area (1) to
move the PTZ camera. Clicking the “Unlock” button suspends object tracking until you click the “Lock” button.
4. Click the “Draw Area” button and then drag the mouse to draw a line in the image. Click the “Stop Draw” button to
stop drawing. Click the “Clear” button to delete the lines. Click the “Save” button to save the settings.
- Schedule Conguration
Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the Motion detection
setup schedule.
5.4.7 Intrusion
Intrusion: Alarms will be triggered if the target intrudes into the pre-dened areas.

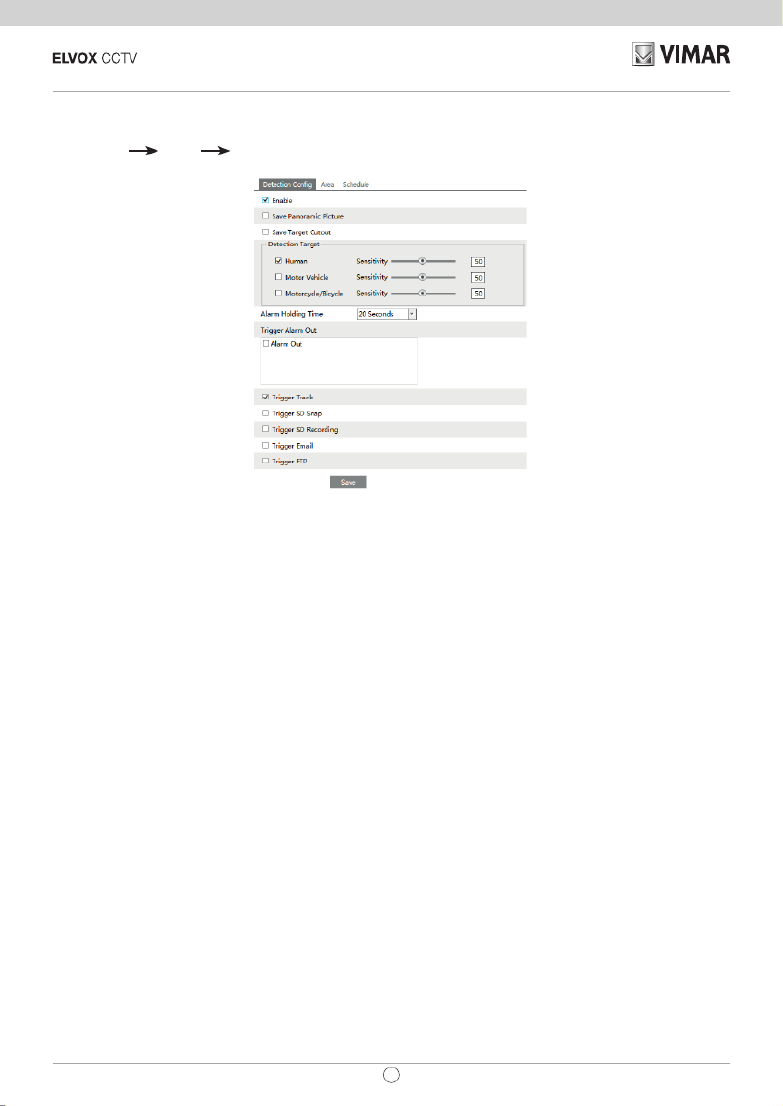

Go to Cong Intrusion interface as shown below. Event
- Detection Conguration
Enable intrusion detection, select the snapshot type and the detection target and set the alarm holding time and
alarm trigger options. The detection setup steps are the same as line crossing detection. Please refer to the detection
conguration of line crossing detection for details.
- Area Conguration

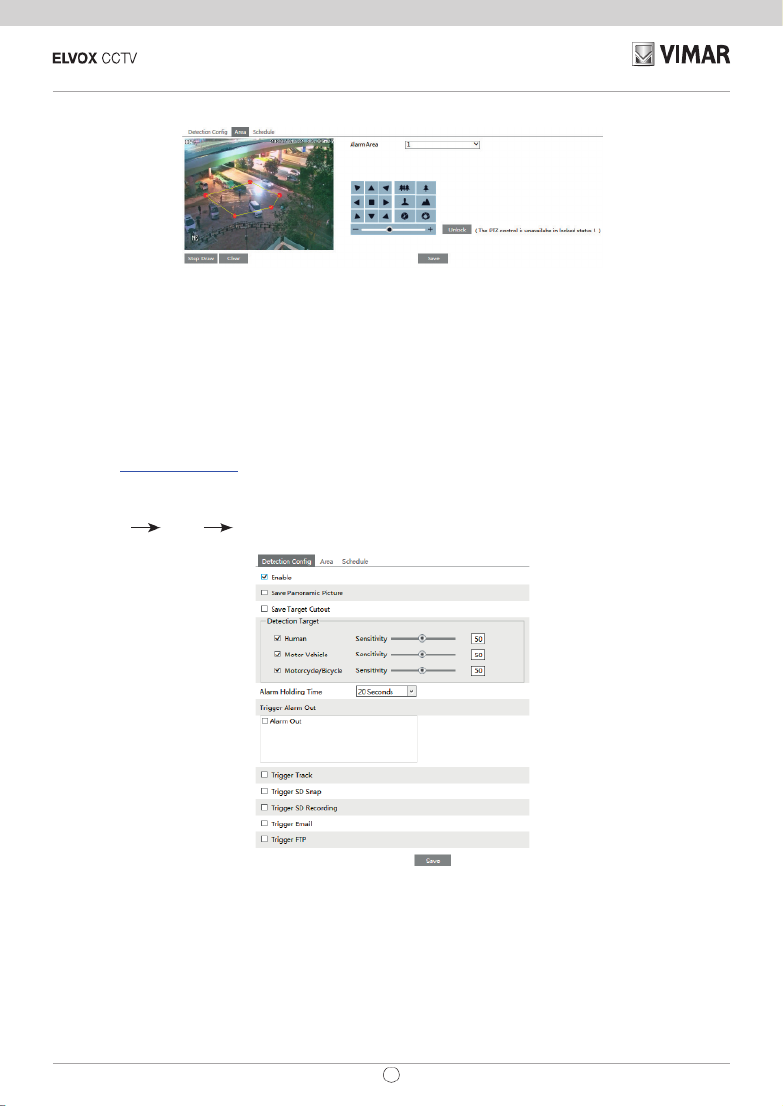

1. Click the “Area” tab to go to the interface as shown below.
41
Graphic User Interface (GUI) for IP Speed Dome
EN
2. Set the alarm area number on the right side. Up to 4 alarm areas can be added.
3. Set the detection area by clicking the buttons of area (1) and then click “Lock” to lock the area.
Note: The PTZ will not be controlled if you click “Lock” here. Click “Unlock” and then click the buttons of area to
move the PTZ camera. Clicking the “Unlock” button suspends object tracking until you click the “Lock” button.
4. Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the im-
age on the left side (the alarm area should be a closed area). Click the “Stop Draw” button to stop drawing. Click the
“Clear” button to delete the alarm area. Click the “Save” button to save the settings.
After that, the camera will automatically return to this detection area after auto human /vehicle tracking.
- Schedule Conguration
Set the schedule of the intrusion detection. The setup steps of the schedule are the same as schedule recording
setup (See Schedule Recording).
5.4.8 Region Entrance
Region Entrance: Alarms will be triggered if the target enters the pre-dened areas.

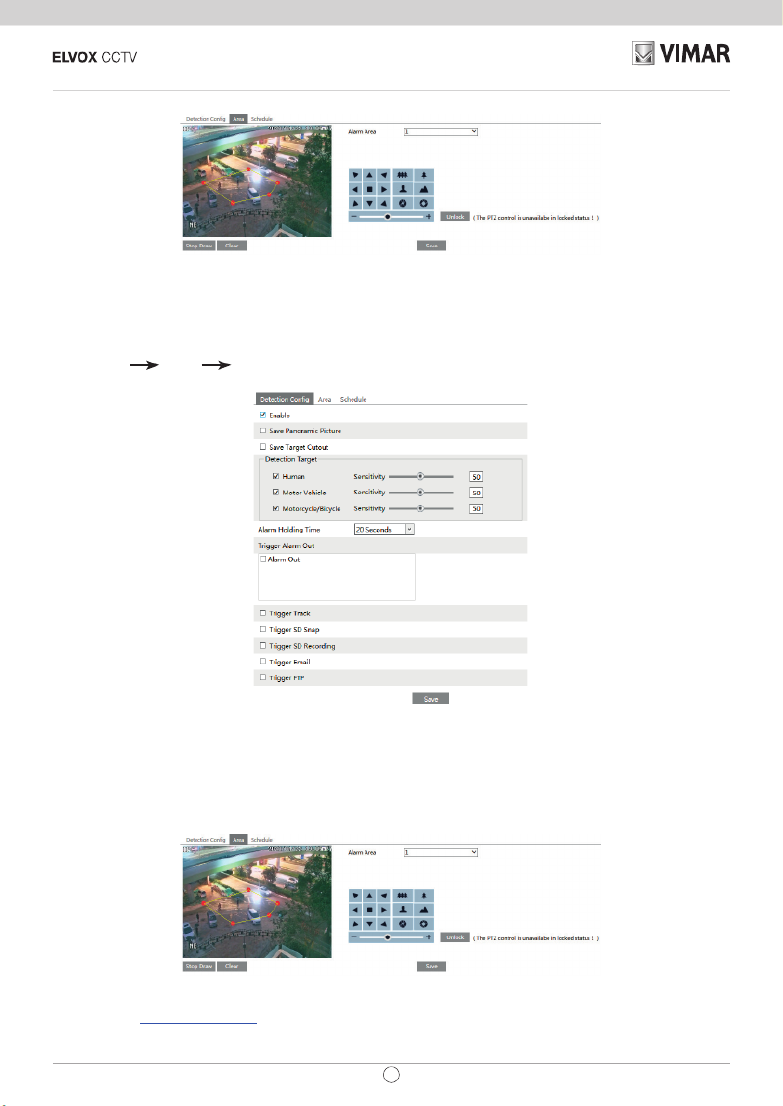

Go to Cong Region Entrance interface as shown below. Event
1. Enable region entrance detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter
for details.
4. Set the alarm area of the region entrance detection.
42
Graphic User Interface (GUI) for IP Speed Dome
EN
5. Set the schedule of Region Entrance detection.
For more information, see the "Analysis video" manual.
5.4.9 Region Exiting
Region Exiting: Alarms will be triggered if the target exits from the pre-dened areas.
Go to Cong Event Region Exiting interface as shown below.
1. Enable region exiting detection, select the snapshot type and the detection target and set the alarm holding time and
alarm trigger options. The detection setup steps are the same as line crossing detection. Please refer to the detection
conguration of line crossing detection for details.
2. Set the area of region entrance detection. The area setup steps are the same as intrusion detection. Please refer to
the area conguration of intrusion detection for details.
3. Set the schedule of the region exiting detection. The setup steps of the schedule are the same as schedule record-
ing setup (See Schedule Recording).


Produkt Specifikationer

Mærke: Vimar
Kategori: Kamera
Model: ELVOX 46235.030D

Har du brug for hjælp?

Hvis du har brug for hjælp til Vimar ELVOX 46235.030D stil et spørgsmål nedenfor, og andre brugere vil svare dig
