Operator’s Manual
Heated Display Cases
©
2016 The Vollrath Company L.L.C. Part No. 2350050-1 ml 5/31/16
Please register your product at Vollrath.com
Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment:
• Use only grounded electrical outlets matching the nameplate rated
voltage.
• Have a qualified person install the equipment in accordance with
local codes and ordinances.
• Use equipment in a flat, level position.
• Do not use an extension cord with this equipment. Do not plug this
equipment into a power strip or multi-outlet power cord.
• Unplug equipment and turn off before cleaning or moving.
• Do not spray controls or outside of equipment with liquids or
cleaning agents.
• Do not clean the equipment with steel wool.
• Keep equipment and power cord away from open flames, electric
burners or excessive heat.
• Do not operate unattended.
• Do not operate equipment in public areas and/or around children.
• Do not operate if equipment has been damaged or is malfunctioning
in any way.
WARNING
CAUTION
Item No. Model No. Description Volts Amps Watts Hz Plug
40845 HDE7136
Drop-In
36”
120
5.6 670
60 5-15P40846 HDE7148 48” 5.9 710
40847 HDE7160 60” 6.3 750
4084505 HDE1136 36”
220-240
4.7 752
50/60
UK/
Schuko/
China*
4084605 HDE1148 48” 4.9 792
4084705 HDE1160 60” 5.2 832
40855 HDE8136
Countertop
Curved
36”
120
5.6 670
60 5-15P40856 HDE8148 48” 5.9 710
40857 HDE8160 60” 6.3 750
4085505 HDE1236 36”
220-240
4.7 752
50/60
UK/
Schuko/
China*
4085605 HDE1248 48” 4.9 792
4085705 HDE1260 60” 5.2 832
40865 HDE8236
Countertop
Cubed
36”
120
6.1 730
60 5-15P40866 HDE8248 48” 6.6 790
40867 HDE8260 60” 7.1 850
4086505 HDE1336 36”
220-240
5.0 810
50/60
UK/
Schuko/
China*
4086605 HDE1348 48” 5.4 870
4086705 HDE1360 60” 5.8 930
40883 HDE8336
Self-Serve
Countertop
Curved
36”
120
5.6 670
60 5-15P40884 HDE8348 48” 5.9 710
40885 HDE8360 60” 6.3 750
4088305 HDE1436 36”
220-240
3.4 770
50/60
UK/
Schuko/
China*
4088405 HDE1448 48” 3.5 810
4088505 HDE1460 60” 3.7 850
40890 HDE8436
Self-Serve
Countertop
Cubed
36”
120
6.1 730
60 5-15P40891 HDE8448 48” 6.6 790
40892 HDE8460 60” 7.1 850
4089005 HDE1536 36”
220-240
3.6 830
50/60
UK/
Schuko/
China*
4089105 HDE1548 48” 3.9 890
4089205 HDE1560 60” 4.1 950
Drop-in Case
Curved Case
Cubed Case
Front Access Curved Case
2 Heated Display Cases Operator’s Manual
FUNCTION AND PURPOSE
This equipment is designed for illuminated display of food products at
temperatures between 104°F (40°C) and 158°F (70°C). This equipment
is intended and designed to keep food at proper serving temperatures.
while it is displayed for sale. Food must be prepared and placed in
display cabinets at proper serving temperatures. Heated display
cabinets are not intended or designed to cook raw food or to reheat
prepared food. It is not intended for household, industrial or laboratory
use.
UNPACK THE EQUIPMENT
When no longer needed, dispose of all packaging and materials in an
environmentally responsible manner.
1. Remove all packing material and tape, as well as any protective
plastic from the equipment.
2. Remove bolts that secure the equipment to the pallet.
3. Clean any glue residue left over from the plastic or tape.
4. After the installation is complete the thin breather wires on the top of
the side glass panels may be trimmed and crimped closed.
COUNTERTOP MODEL INSTALLATION
Clearance Requirements
Countertop cases require a minimum of 4” (10.2 cm) between the
equipment and any surrounding walls. Surrounding walls must be
made of non-combustible materials.
1. Place the equipment on a flat stable surface.
2. Plug the equipment into a properly grounded electrical supply
matching the nameplate rating. Damage to the equipment can occur
if incorrect power is supplied to equipment.
NOTICE: Using a voltage other than the nameplate rated voltage
will cause damage to the unit. Incorrect voltage,
modification to the power cord or electrical components
can damage unit and will void the warranty.
3. After the installation is complete the thin breather wires on the top of
the side glass panels may be trimmed and crimped closed.
DROP-IN MODEL INSTALLATION
Clearance Requirements
Drop-in cases require a minimum of 4” (10.2 cm) of non-combustible
countertop to support the unit and a minimum of 6” (15.2 cm)
clearance on all sides of the drop-in for proper air circulation.
1. Choose a flat, level countertop for the mounting surface.

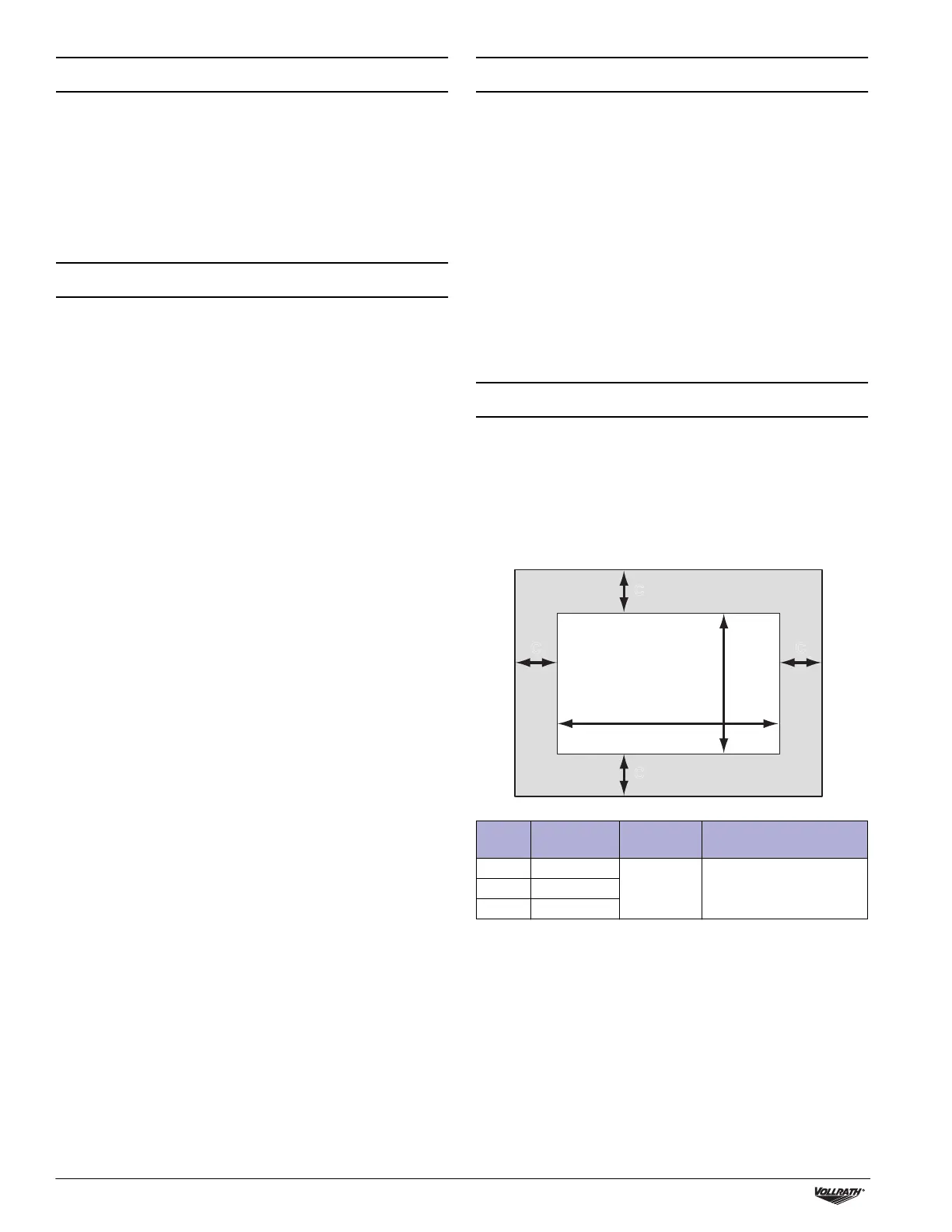

2. Measure the area for the cutout. See the illustration below.
l
3. Seal the base of the equipment to the countertop with food grade
silicone seal.
4. Plug the equipment into a properly grounded electrical supply
matching the nameplate rating.
NOTICE: Using a voltage other than the nameplate rated voltage
will cause damage to the unit. Incorrect voltage,
modification to the power cord or electrical components
can damage unit and will void the warranty.
5. After the installation is complete, the thin breather wires on the top
of the side glass panels may be trimmed and crimped closed.
Display
Cabinet
A B
C (Minimum
Countertop Support)
36" 34" (86.3 cm)
19" (48.6 cm) 4" (10 cm)48" 45" (114.3 cm)
60" 58" (147.3 cm)
C
C
C C
A
B
