Instruction：

：：

：LED WALL SCONCE BRACKET

Model：

：：

：WS-MR57LED

Retain these instructions for future service and

adjustments

44 Harbor Park Drive, Port Washington, NY 11050

Tel: (800) 526-2588 Fax (800) 526-5050

www.waclighting.com

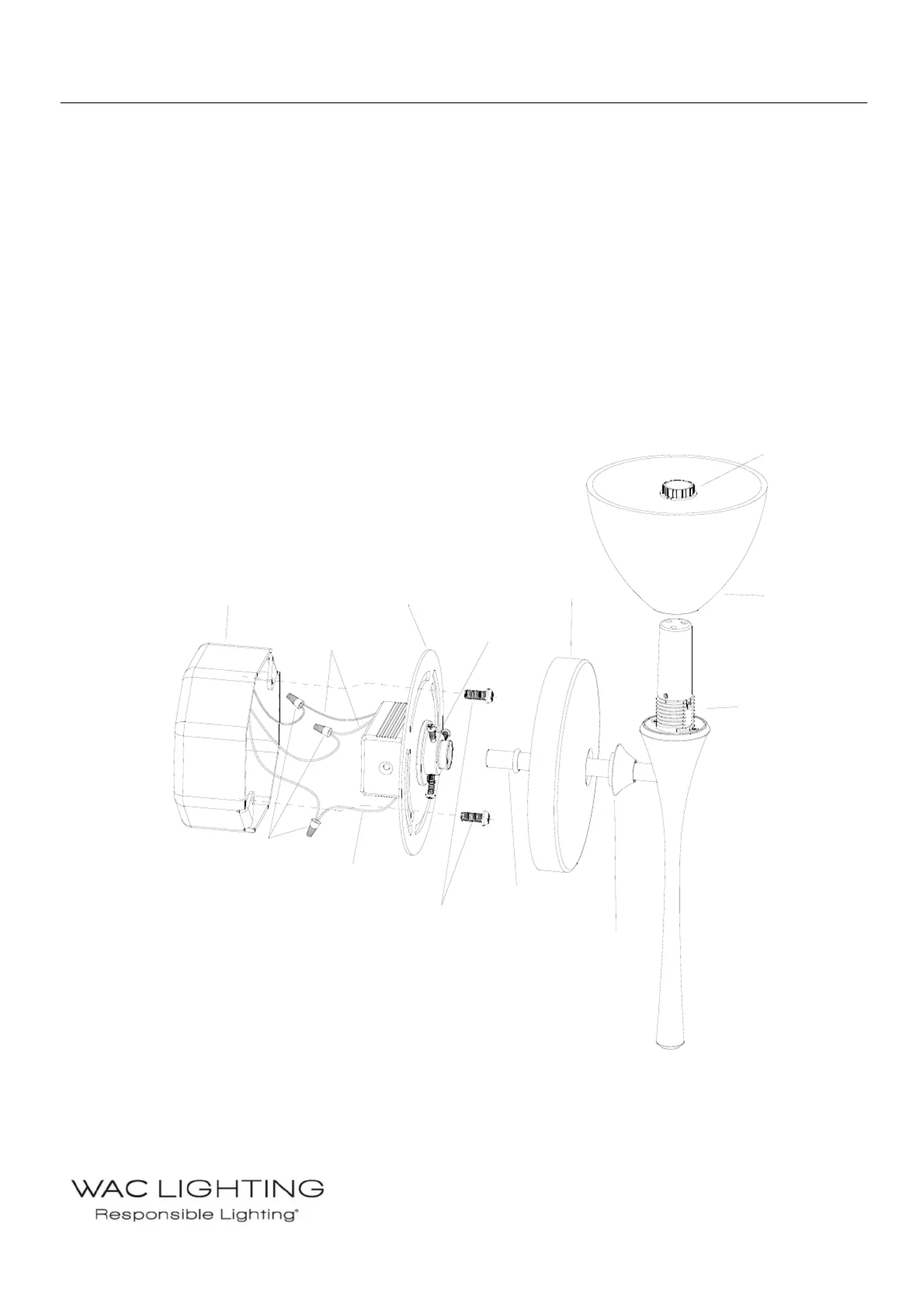

Shade Lock Ring

Junction Box

Lock Ring

Ground wire

Wire Connector

Fixture Shaft

Junction Box

Screw

Transformer

Input Wire

Mounting Plate

Mounting plate

collar

Canopy

Shade

Fixture Socket

CAUTION:

 Always turn o power at main switch prior to installation to prevent electrical shock.

 Intended for installation in accordance with National Electrical Code, and local regulations.

 For installation by a qualied electrician.

 Install over a standard 4-inch junction box.

Overview:

WS-MR57LED is designed to accept glass shades from the G500 series. Check catalog for various style and color

choices.

WS-MR57LED comes with a self-contained electronic transformer that may be dimmed with an electronic low

voltage dimmer switch.

Fixture Installation:

1. Unscrew the lock ring and separate the canopy and mounting plate.

2. Connect ground wire from junction box to the grounding wire on the mounting plate.

3. Connect corresponding colored wires from the junction box to

xture wires, with wire connectors.

4. Tuck excess wire into the junction box. Attach the mounting plate

to the junction box using the slotted holes.

5. Adjust the xture shaft, align the socket vertically, by loosen and

tighten the three screws on the mounting plate collar.

6. Secure the canopy to the mounting plate by tightening lock ring.

Shade Installing:

1. Unlock the shade lock ring from the xture.

2. Place shade over the xture socket.

3. Screw the shade lock ring from above.
