Carbon Filter

(Product

Code WF3000)

AQUASMART

WATER SYSTEM

AQUASMART

WATER SYSTEM – TROUBLE SHOOTING

Munster Simms Engineering Ltd.

2 Enterprise Road, Bangor, N. Ireland BT19 7TA Tel: +44 (0)28 9127 0531 Fax: +44 (0)28 9146 6421

Web: www.whalepumps.com Email: info@whalepumps.com

Ref No: 180.39_v5_0114

Please read carefully before use.

To the Fitter:

Ensure all relevant personnel read and that a copy is passed

on to the end user.

To the User:

Read the user guide overleaf before use of equipment.

SERVICE KITS

Service kits are available from Whale dealers worldwide. To

ensure correct service kits, check Whale website

www.whalepumps.com or contact Whale service desk: Email:

info@whalepumps.com.

REPLACING FILTERS

A pack containing two replacement filters (Product Code

WF3000) is available. Filters will need to be replaced after

filtering 3000 litres (approx. 33 days of normal use). These

filters are not designed for removing bacteria and should not

be used on water supplies of an unknown bacterial quality.

Plug and Hose Assembly

with Dust Cover

(UH0814)

Dust

Cover

Whale Quick

Connect Fitting

(WU1204)

Whale Quick

Connect 12mm

tubing

(WX7112)

Watermaster On

Board Pump

(FP0814)

STANDARD SYSTEM

3-Way

Solenoid

Valve

Whale Quick

Connect

Fitting

(WU1202)

ELECTRIC SYSTEM FOR USE

WITH ONBOARD TANKS

2-Way

Solenoid

Valve

ON-BOARD TANK

MANUAL SYSTEM FOR USE

WITH ON-BOARD TANKS

3-Way

Valve

(WU1271)

Take care to retain the o-ring seal when replacing filters

Wall

Socket

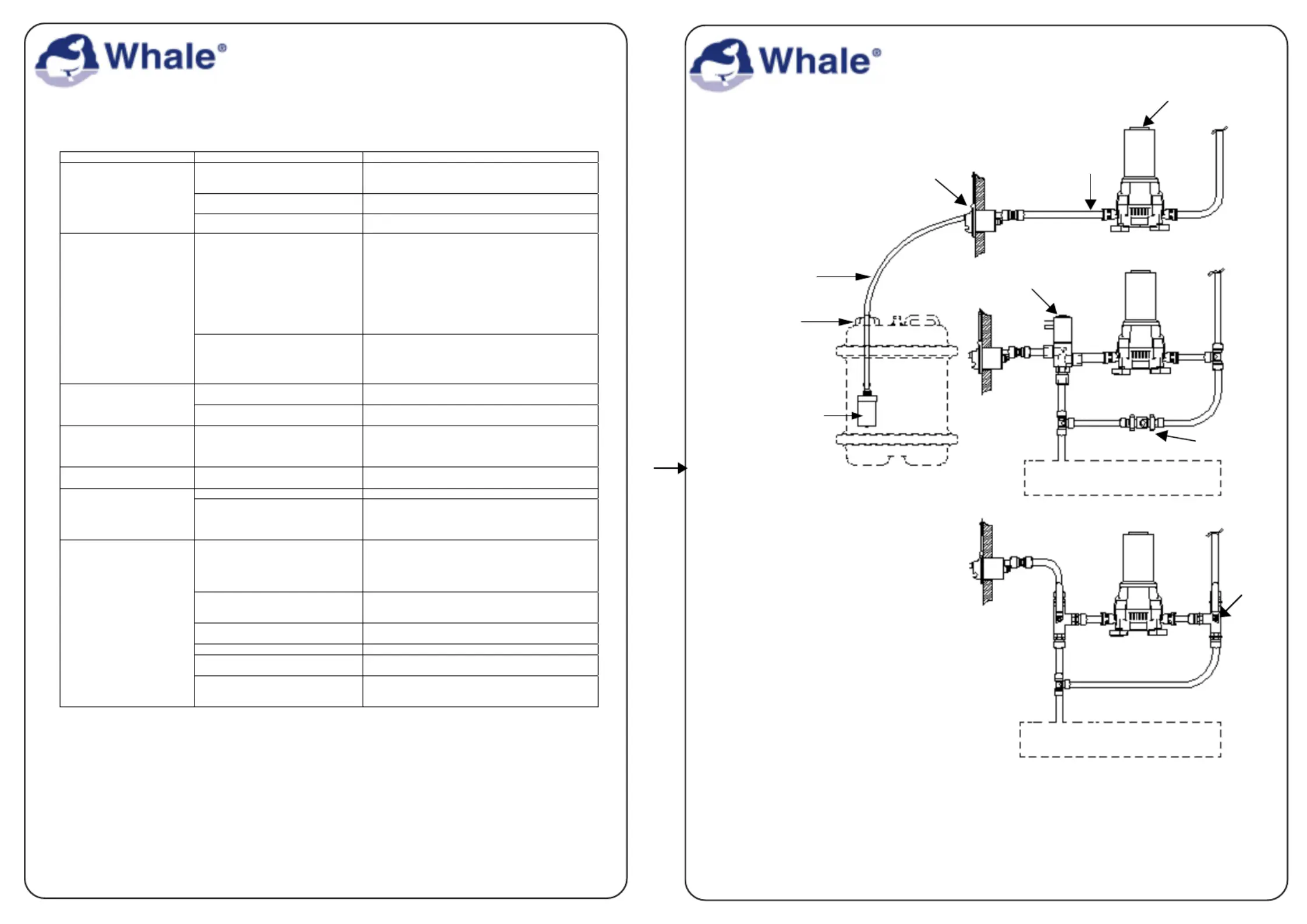

FAULT CAUSE SOLUTION

No power to pump

Check power supply

Attach leads/ clean connections

Check tap microswitch is present

Fuse has blown Replace fuse – do not exceed recommended fuse size

Pump doesn’t run

Blockage in pipework Check pipework for kinks

No water getting to pump

Check water tank is not empty

Check filter is not blocked

Check filter is fully submerged in water

Check all connections from tank to inlet of pump are

secure, any leaks will prevent prime.

To test for air leaks hold showerhead underwater and

operate pump. If air bubbles visible coming from the

showerhead then leak is present

Pump runs but no water

appears

Water leak at outlet side of pump

Check pipework and fittings for leaks and repair

Check system drain plugs are closed

Water leak at outlet side of pump

Check pipework/ fittings for leaks and repair

Check system drain plugs are closed

Pump runs but will not switch

off

No water

Check water supply level

Check and replace filter if clogged

Pump cycles on and off

periodically when all the taps

are closed (Normal with

partially opened tap)

Water leaking at outlet side of pump

Check pipework/ fittings for leaks and repair

Check system drain plugs are closed

Pump cycles on and off

excessively when tap(s) open

Excessive back pressure

Check pipework for kinks and filters etc. are clear

Check shower rose & taps for blockages and repair

Pump drawing air See CAUSE ‘NO water getting in pump’

Noisy Operation

Noise created by vibration

Check pump is secured to a solid surface

Check pump body is clear of hard surfaces

Locate away from interfering surfaces

Check pipework is securely supported

Bore of pipework / connections too

small

8.5mm minimum bore recommended for pipework

(Whale Quick Connect 12mm tubing – Product code

WX7112 blue/cold and WX7114 red/hot)

Check for kinks in pipework

Check pipework is not blocked

Power supply to the pump

Check power supply to pump uses correct wire

(2.5mm

) to give full voltage at pump

Check battery is not flat

Pipework/ Connections crushed due to

over tightened jubilee clips

Replace damaged connections

Pump too far from water tank Pump should be situated beside inlet/ water tank

Water leaking at outlet side of pump

Check pipework fittings for leaks and repair

Check system drain plugs are closed

Low flow

Valves internal filters clogged (if

present)

Remove manual/ electric valve, inspect internal filters

If necessary remove fitting nearest filter

Clean and refit filter and plumbing

OPERATIONS

Onboard Tanks:

If manual valves are included in

this system they must be

positioned appropriately (figs.1 to

4) when switching between the

three functions of the water

system; using an external water

supply, filling the onboard tank, and

using the onboard tank. If electric

valves are included in this system

the three functions are selected

by the three positions of the

switch.

For optimum flow use the

onboard tank.

Priming:

1. Select external water supply

(position the manual valves as

shown in fig.1)

2. Open one hot tap (e.g. kitchen

sink)

3. Place carbon filter fitted to hose,

into water container.

4. Insert plug into wall socket and

close lid to lock plug in place (see

fig.5).

5. Adjust dust cover over water

container opening (please note dust

cover should not be secured to

water container as air must be

allowed to enter container to

replace water being drawn out).

6. Switch on 12 volt DC supply at

main panel isolator switch.

7. Water will flow from the open

tap after filling the water heater.

This can take a few minutes if the

heater is empty. The water may

at first be grey in colour which is

quite normal, the discolouration is

due to harmless media being

flushed out of the new filter

cartridge.

8. When water is flowing smoothly

close hot tap and open cold tap to

expel any remaining air in the

plumbing system

9. The system is now ready for

use. Hose can be inserted into

plug groove (fig.6) to keep filter

off ground while refilling water

container. Keep socket lid shut at

all times when plug is removed

10. When the caravan is

left unattended or water supply

has been allowed to empty, to

prevent the pump running

continuously, turn off at isolating

switch.

WINTERISING

If water is allowed to freeze in the

system, serious damage to the

pipework and pump may occur. To

best avoid this damage, completely

drain the water system.

1. Ensure that both the hot and cold

systems are fully drained by draining

separately. The cold drain plug (if

fitted) is a separate drain plug from

the heater drain plug.

2. Open all the taps (including drain

valve) and allow pump to purge

remaining water from the system,

then turn the pump off

3. Position manual valves (if fitted)

as shown in fig. 4.

4. Remember to leave all tapso

including showers open to avoid any

damage.

AQUASMART

WATER SYSTEM – USER GUIDE

WARNING

When using with an AquaSource system,

do not sleep or leave the vehicle

unattended without turning off the mains

tap.

NOTICE

This product is designed for use with water.

If it is intended for use with any other

liquid, it is the users responsibility to ensure

that the materials are fully compatible with

the liquids to be used and that a system

of safe working practice is applied to

installation, use, and maintenance. A

planned maintenance schedule of regular

inspection is recommended, replacing

components as necessary.

We recommend the pump head be

replaced every 5 years (Product Code

AK1318).

WARRANTY

This Whale product is covered by 2

years warranty.

Please see the enclosed document for

details of our statement of limited

liability.

AQUASMART

WATER SYSTEM – USER GUIDE

PLEASE NOTE: The following

section covers installation of an

AquaSmart

System in a new

vehicle. For retro fitting to an

existing vehicle see separate

leaflet ‘AquaSmart

Water

System – Installation Guide

Existing Vehicle Upgrade’ ref. no.

180.38. Please read the relevant

leaflet before installation.

LOCATION

When looking for a suitable

location to fit the Whale

AquaSmart

System, the

following points should be

considered:

1. The carbon filter should reach

the bottom of the water container.

2. There should be access to the

back of the socket.

3. Ideally, the AquaSmart system

should be fitted close to the water

heater or kitchen sink to avoid long

runs of pipework.

4. Locate the pump in a dry position,

free from submersion and spray, with

adequate ventilation, no more than 2

metres above the water tank.

5. Pump should be mounted

vertically (pump head below

motor).

6. Wire length from the battery to

the pump (via the isolating switch)

should be kept as short as possible

to minimize voltage drop and hence

reduction in pump performance.

INSTALLATION

1. Use template enclosed when fitting

the wall socket.

2. Before installing wall socket, fill

outer groove around flange with

sealant (see fig.7) and secure with

four screws.

3. Ensure correct flow direction

through pump (as indicated on

pump body) and attach pipework

using appropriate adapters (see

fig.8).

4. Pump feet are adjustable to

allow easy installation. Use No.8

stainless steel screws to fasten

the pump to a solid surface

which supports the pump

securely.

5. Connect pump red wire to

+12V DC supply via tap micro-

switches if present, the isolating

switch, and a 5A fuse. Connect

pump black wire to battery earth.

Recommended wire size is

2.5mm

(AWG 13). Connect the

remaining wire to the pump

running light if present.

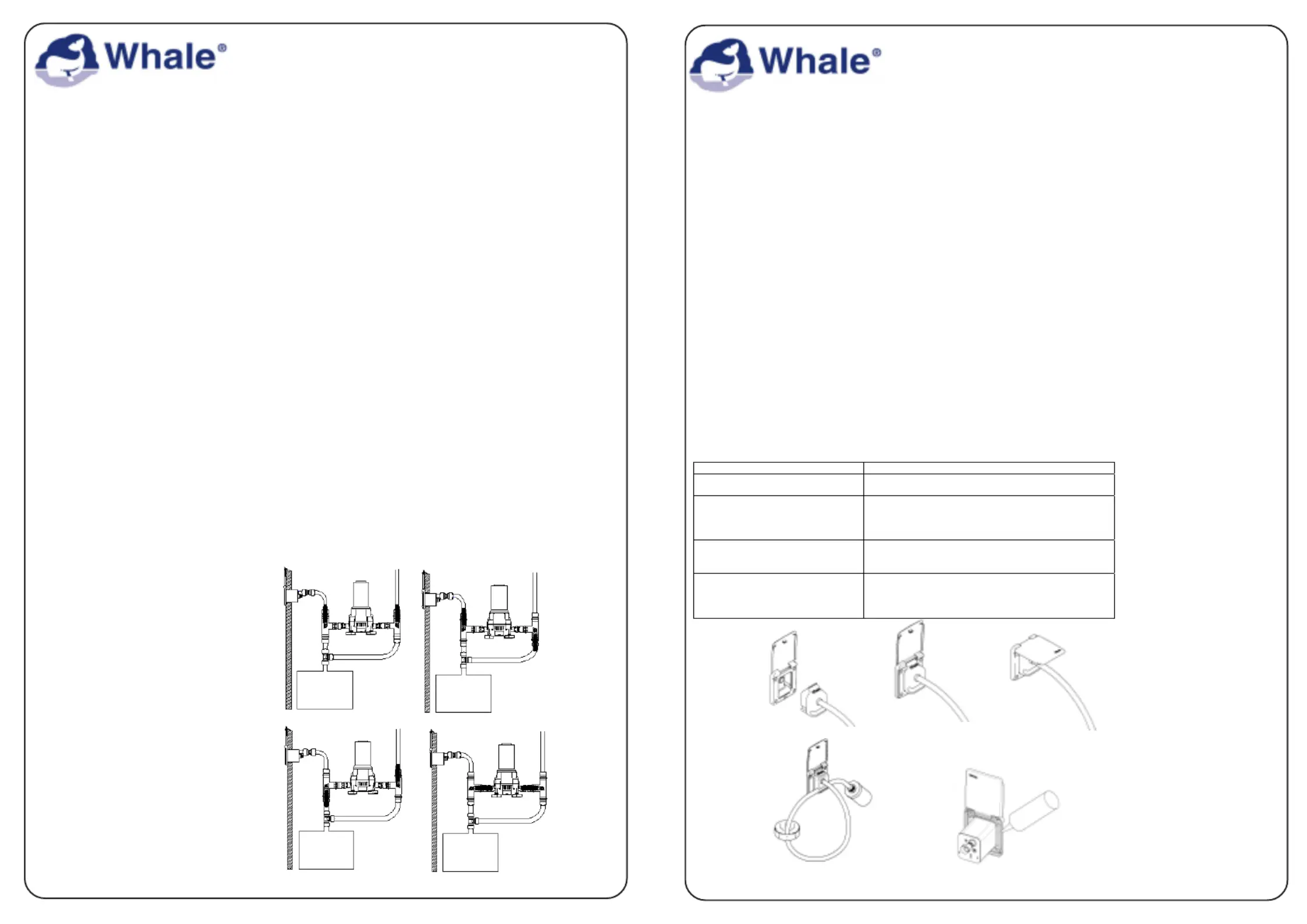

Fig.8 Plumbing Guide

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Using an

external water

supply

Using the

on-board tank

Filling the

on-board tank

Winterising

Pipe System Used Fitting required

12mm semi-rigid

Connect directly using Whale Quick Connect 12mm

fittings

15mm semi-rigid

Use Whale Quick Connect adaptor WU1512 for the

Water Master

Socket and 12mm semi-rigid pipe WX7112 plus

WU1512 x 2 for the pump

" (10mm) bore flexible hose

Use Whale Quick Connect WU1280 x 2 (included in

retail pack) attaching with Stainless Steel hose clips

" (13mm) bore flexible hose

Use Whale Quick Connect adaptor WX1509 for the

Water Master Socket and WU1282 x 2

(included in the retail pack)

for the pump attaching with stainless steel hose clips.

Produkt Specifikationer

Mærke:	Whale
Kategori:	Vandpumpe
Model:	AquaSmart

Har du brug for hjælp?

Hvis du har brug for hjælp til Whale AquaSmart stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Vandpumpe Whale Manualer

Whale AquaSmart Manual

5 September 2024

Whale Babyfoot Manual

5 September 2024

Whale Mk5 Universal Manual

5 September 2024

Whale BP0527 Manual

5 September 2024

Whale Supersub Smart 650 Manual

1 September 2024

Whale Orca 950 Manual

14 August 2024

Whale Supersub Smart 1100 Manual

9 August 2024

Whale GP1352 Manual

3 August 2024

Whale GP1354 Manual

25 Maj 2024

Vandpumpe Manualer

Nyeste Vandpumpe Manualer

Draper 98921 Manual

24 September 2025

Draper 61621 Manual

23 September 2025

Draper 98920 Manual

23 September 2025

Draper D20 08097 Manual

23 September 2025

Draper 98913 Manual

23 September 2025

Draper 61667 Manual

23 September 2025

Closer Pets Fish Mate 473 Manual

23 September 2025

OKAY TMP 550-S Niro Manual

22 September 2025

Heissner HSP2500-00 Manual

18 September 2025

Stanley SXUP1100XDE Manual

18 September 2025
