Contents:

Antenna Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Quick Install Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the Outside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Finding the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing a Wilson Electronics Signal Booster . . . . . . . . . . . . . . . . 9

Powering up a Wilson Electronics Signal Booster . . . . . . . . . . . . 9

Understanding the Signal Booster Lights . . . . . . . . . . . . . . . . 10

Warnings and Recommendations . . . . . . . . . . . . . . . . . . . . 13

Guarantee & Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: This manual contains important safety and operating

information. Please read and follow the instructions in this

manual. Failure to do so could be hazardous and result in

damage to your Signal Booster.

Adjustable Gain

Signal Boosters

AG Pro 75™, AG Pro 70™, AG Pro Installer™,

AG SOHO 65™, AG SOHO 60™

(SOHO: Small Office, Home Office)

In-Building Wireless 800/1900 MHz

Smart Technology ™

Appearance of device and accessories may vary.

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.

Installation Instructions for the Following

Wilson Electronics Signal Boosters:

AG Pro 75™, AG Pro 70™, AG Pro Installer™& AG SOHO 65™

AG SOHO 60™ In-Building Wireless 800/1900 MHz

Smart Technology ™ Signal Boosters

Model # 271265

FCC ID: PWO271265 IC: 4726A-271265

The term “IC” before the radio certification number only signifies that Industry Canada

technical specifications were met.

How it Works

Wilson Electronics Signal Boosters are bi-directional devices that deliver

service levels consistent with what would be expected in areas of high cell

network coverage. They amplify a weak or shadowed signal in mobile,

marine and in-building applications. When using a Wilson Electronics

Signal Booster in conjunction with Wilson Electronics antennas, the

Outside Antenna will collect the cell tower signal and send it through

the cable to the Signal Booster. The signal is then amplified and re-

transmitted through the Inside Antenna into the room. Cell phones and

cellular data cards in that area then communicate with the improved

signal. When a cell phone or cellular device transmits, the signal is

received by the Inside Antenna, amplified by the Signal Booster and

transmitted back to the cell tower through the Outside Antenna.

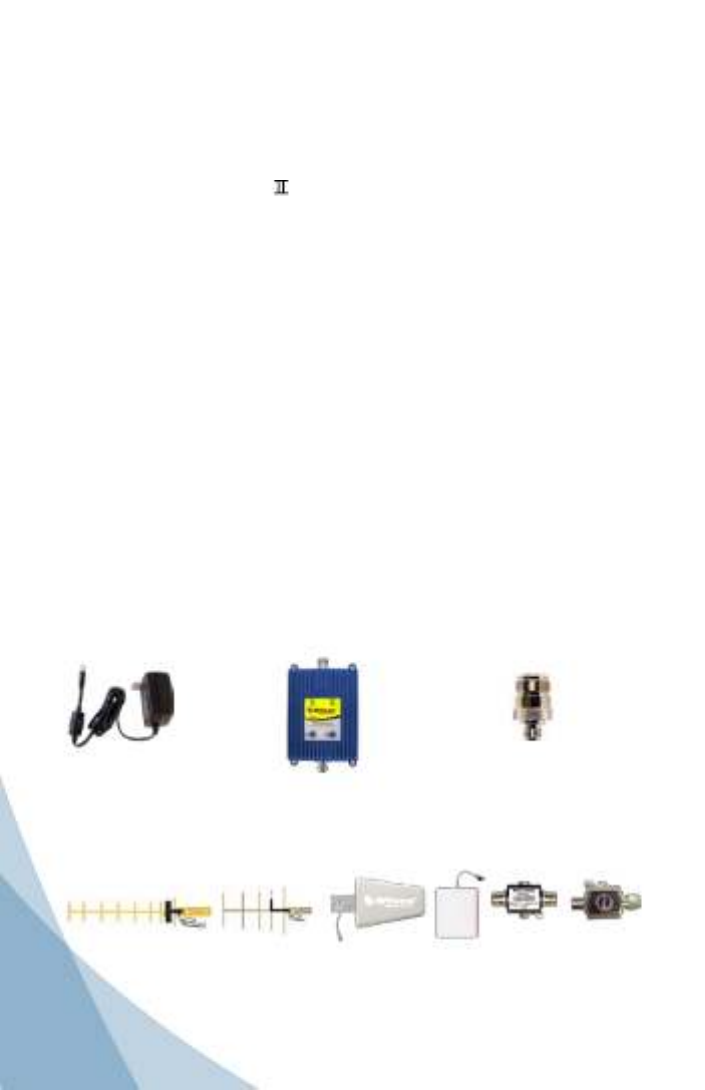

Inside this Package

Signal

Booster

AC/DC

Power

Supply

To purchase, call Wilson Electronics Sales Department at: 800-204-4104

Outdoor Antenna Options

Indoor Antenna Options & Accessories

1. 1900 MHz Yagi PCS Antenna (301124)

2. 800 MHz Yagi Cellular Antenna (301129)

3. Wide Band Directional Antenna 700 MHz -

2700 MHz (304411)

A. Wide-Band Panel Antenna 700-2700MHz (301155)

B. 50 Ohm Lightning Surge Protector N-Connector (859902)

C. 75 Ohm Lightning Surge Protector F-Connector (859988)

Splitter options on page 8

12BC

(The AG Pro Installer

has a different knob

conguration)

Note: Kits may contain different accessories

N Female - FME

Female Adapter

(Sold with the

AG SOHO 60)

Appearance of device and accessories may vary.

Produkt Specifikationer

Mærke:	Wilson
Kategori:	TV signal forstærker
Model:	AG Pro 70
Vægt:	220 g
Produktfarve:	Blå
Strømforbrug (typisk):	8 W
Dimensioner (BxDxH):	140 x 108 x 39 mm
Indgangsspænding:	110 - 240 V
Stik:	F-Female
Indgangsfrekvens:	50 - 60 Hz
Frekvensområde (fremføringsvej):	824 - 894 MHz
Frekvensområde (returvej):	1850 - 1990 MHz
Støjtal:	3.5 dB
Forstærkning (fremføringsvej):	65 dB
Forstærkning (returvej):	70 dB
