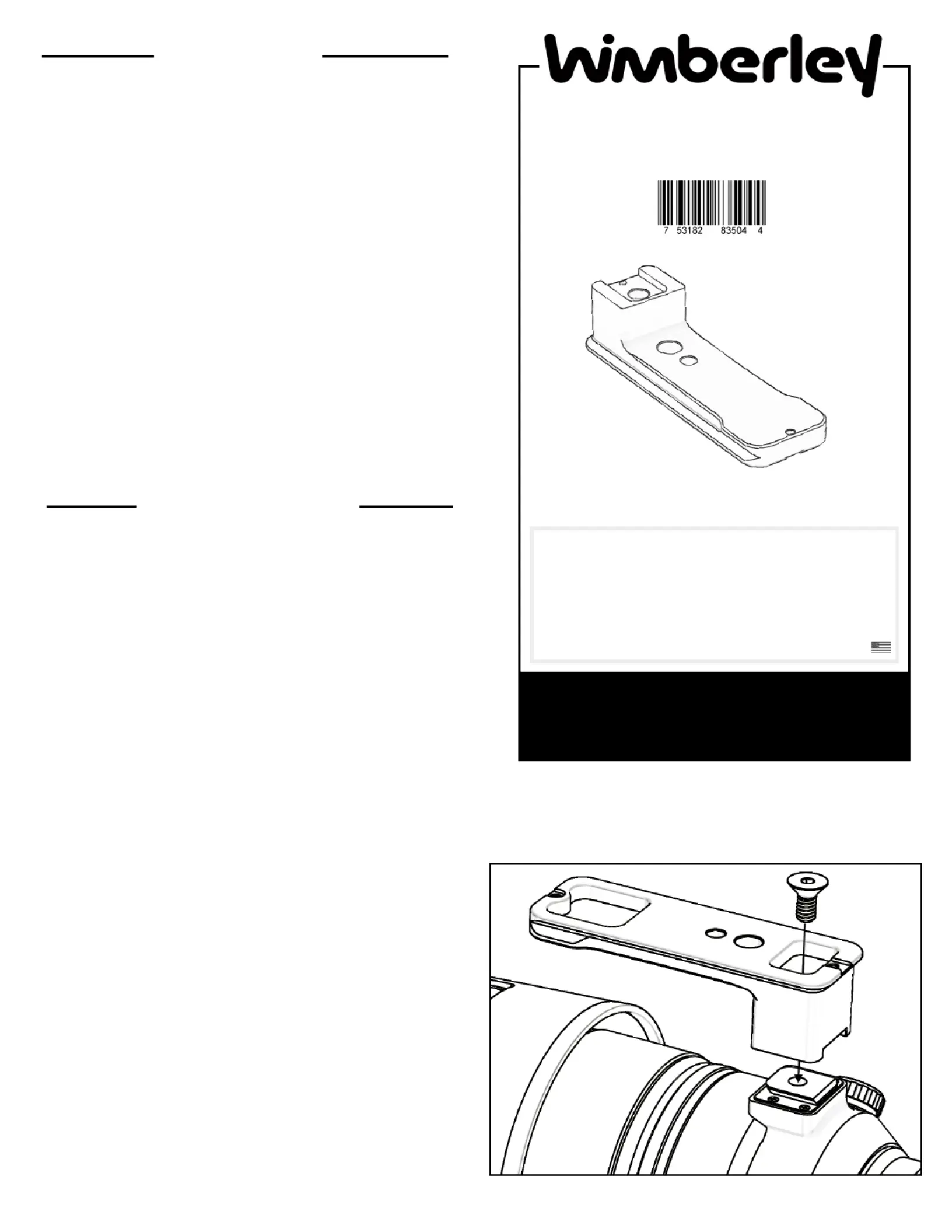

Installation Instructions
About the AP 612-
Package Contents:
• Arca Swiss Style QR Plate: - 612 Replacement Foot (Qty 1)AP-
• Mounting Screw: 1/4 20 x -9/16”L Flat Head Socket Cap Screw (Qty 1)
• Safety Stop Screws: M3 x 6mm Socket Head Cap Screw (Qty 2)
• Hex Key: 5/32 (Qty 1)
• Hex Key: 2.5mm (Qty 1)
The Replacement Foot fits the Sony 300 f/2.8 GM AP-612
OSS FE lenses and serves three main purposes:
1. Added Stiffness over the factory tripod mounting foot
connected to a lens plate, reducing flex and vibration.
2. -Functions as the Arca Swiss style quick release plate -
for your lens.
3. Creates a more ideal geometry for using your lens on
the Wimberley Sidemount Head and Sidekick, allowing
the lens to balance optimally.
Wimberley lens plates are compatible with Arca Swiss style -
quick release clamps such as those made by Wimberley, -
Kirk Enterprises, Really Right Stuff, Arca Swiss, Markins, -
and others.
1. Remove the factory foot from the lens.
2. Attach the AP 612 plate t-o the lens using the enclosed
1/4-20 x 9/16”L flat head fastener (Fig. 1).
3. Drive the screw in until you first meet resistance,
then turn it about 30° farther to establish appropriate, but
not excessive, torque. ; it is possible to Do not over tighten
shear the head off the fastener or damage the threaded
insert on the lens with the hex key included.
4. Install safety stop screws as shown on page 2 (Fig. 3).
Safety stop screws are not required, however they keep
your lens and camera secure when using a compatible QR
clamp.
Figure 1
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
Made in USA
Weight: 3.33 oz
Product Dimensions (L x W x H): 4.8” x 1.5” x .1.2”
Materials: Anodized 6061 Aluminum, Stainless Steel
AP-612
Quick release Replacement -
Foot for Sony:
300 f/2.8 GM OSS FE
10 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details

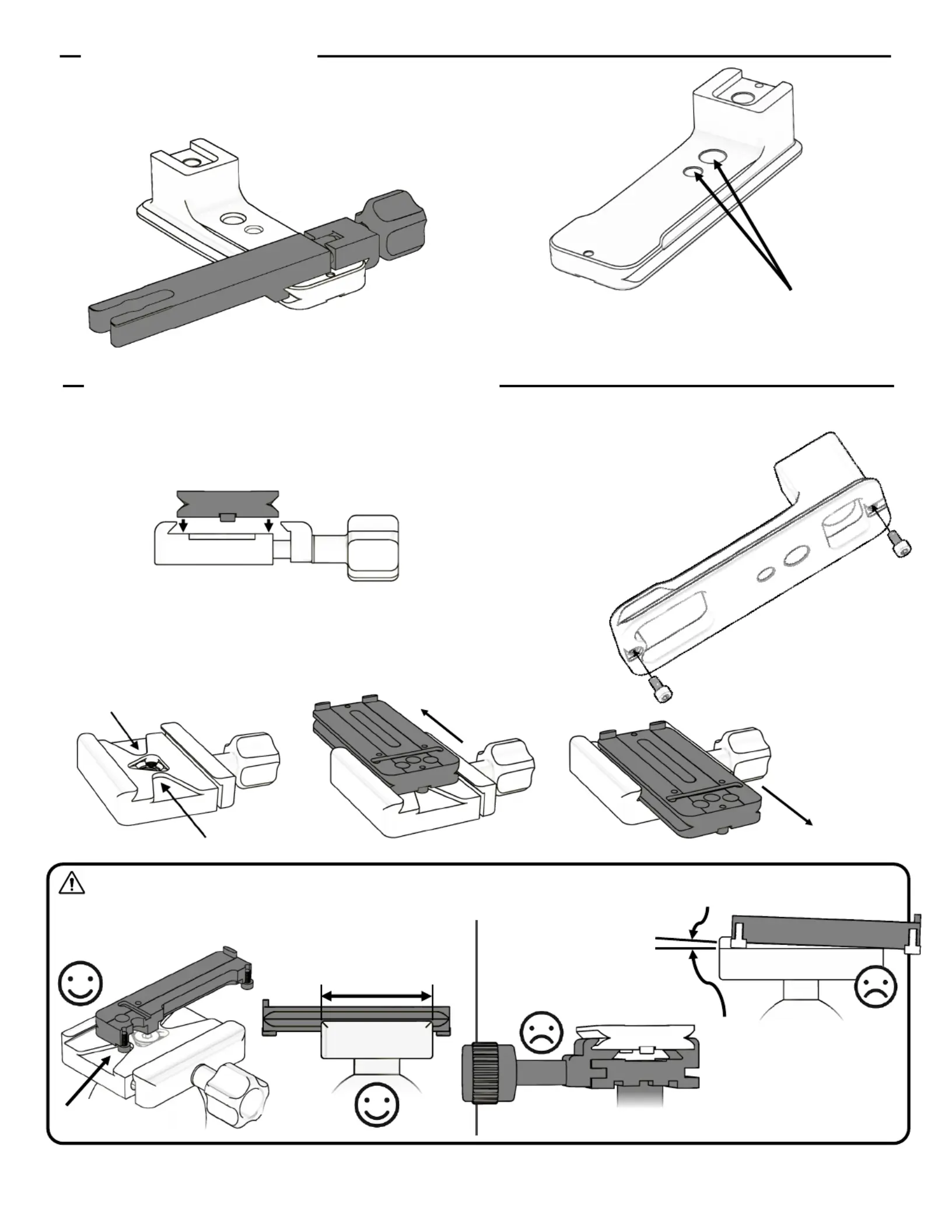

Using the AP 612 without using a quick release- -
The 3/8 and 1/4 inch holes in the middle section of the plate can be used
to attach the foot directly to the threaded stud of a monopod or other lens
support equipment, without needing a quick release clamp.-
Figure 3
Using the Optional Safety-Stop Screws
Top Load
(Required with Safety Stop screws)
Safety Stop Channels We recommend using clamps with safety stop channels.
These channels allow a full range of forward and backward motion but will not let
the plate slip out if the clamp is inadvertently loosened.
Wimberley replacement feet have a double dovetail cross section. -
The upper dovetail allows you to attach Wimberley Flash Brackets
as well as other 3rd party quick release style brackets.-
Using Flash Brackets
Your Wimberley foot comes with two safety stop screws and a matching 2.5mm hex key. Two of these screws are
intended to be screwed into the small bottom threaded holes in the front and back of the foot to serve as stops (Fig. 3)
that prevent the foot from accidentally sliding out of the quick release clamp. If you opt to use both stops, you must -
open the jaws of the quick release clamp wide enough to load your lens from the top (instead of sliding it in). -
Top Loading is less convenient,
but you can be certain that your lens
will not slide out of the clamp.
Safety Stop
Channels
Your clamp must have
safety stop channels
3rd Party Clamp Warning: Our safety stop screws work with most 3rd party quick release clamps, but clamps that do -
not have channels and are too wide to be straddled by the safety stop screws will not work.
Arca Swiss Z1-
The safety-stop security
feature of this foot does not work
when used with an Arca-Swiss
“double-decker” quick release clamp. -
If this foot safety feature is important to you, we recommend
replacing the clamp with a Wimberley C-12 QR Clamp.
Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.
OR
be short enough to allow the
foot to straddle the clamp
Clamps without safety stop
channels (or those without
adequate clearance) will
insecurely clamp the foot
at an angle
Wimberley, Inc. ©2024, All Rights Reserved Rev. 240416
